Power Window Switch: Service and Repair

Rear Side Door Window Switch Replacement

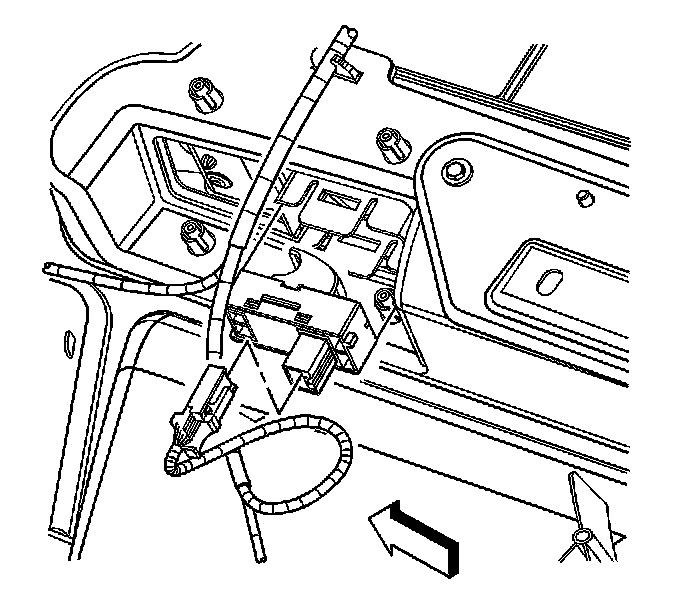

Removal Procedure

1. Remove the door trim panel.




2. Disconnect the electrical connectors.
3. Release the tabs securing the switch the door trim panel.
4. Remove the switch through the bottom of the door trim panel.

Installation Procedure




1. Push the switch into the door trim panel in order to secure the mounting tabs.
2. Connect the electrical connectors.
3. Install the door trim panel.
