Lighting Systems Component Views

Fig 1: Above Front Windshield Connector Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left Connector
2	Left Sunshade
3	Right Sunshade
4	Vanity Mirror Lamp - Right Connector
5	Vanity Mirror Lamp - Right
6	Inside Rearview Mirror
7	Vanity Mirror Lamp - Left

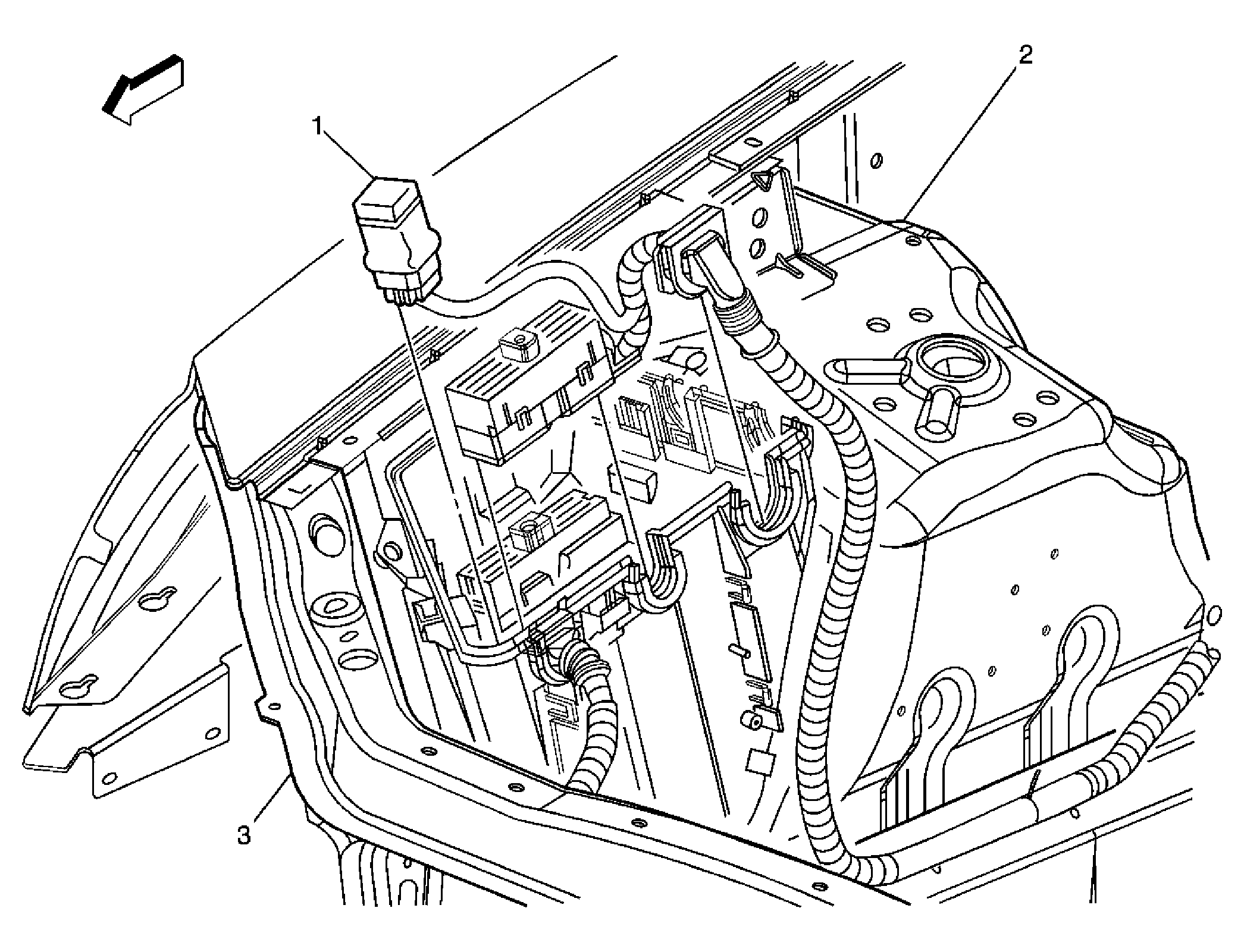

Fig 2: Automatic Headlamp Dimming Relay (TQ5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Headlamp Dimming Relay
2	RF Strut Tower
3	Radiator Core Support

Fig 3: Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Console
2	Auxiliary Audio/Video Control (UY5)
3	HVAC Control Module - Rear Auxiliary (KA6)
4	LR Heated Seat Switch - Part of the Rear Auxiliary Module
5	RR Heated Seat Switch - Part of the Rear Auxiliary Module
6	Mode Select Switch - Auxiliary (KA6)
7	Auxiliary Power Outlet - Rear
8	Hazard Switch
9	Traction Control Switch

Fig 4: Driver Door Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Assembly (DDSA)
2	Door Lock Switch - Driver
3	Mirror Switches
4	Outside Rearview Mirror - Driver
5	Window Motor - Driver
6	Driver Door Module (DDM)
7	Courtesy Lamp - Left Front Door
8	Rear Compartment Lid Release Switch - Interior
9	Door Latch Assembly - Driver
10	Door Status Indicator - Driver

Fig 5: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Ballast w/ HID - Left
2	Headlamp Ballast - Right
3	Heated Washer Nozzle - Left (CE4)
4	Headlamp Low Beam - Left
5	Headlamp High Beam - Left
6	Park Lamp - Left
7	Side Marker Lamp - LF
8	Turn Signal Lamp - LF
9	Fog Lamp - LF
10	Fog Lamp - RF
11	Turn Signal Lamp - RF
12	Side Marker Lamp - RF
13	Park Lamp - Right
14	Headlamp High Beam - Right
15	Headlamp Low Beam - Right
16	Heated Washer Nozzle - Right (CE4)

Fig 6: Front Passenger Door Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Window Switch - Front Passenger
3	Door Status Indicator - Passenger
4	Door Latch Assembly - Passenger
5	Courtesy Lamp - Right Front Door
6	Front Passenger Door Module (FPDM)
7	Speaker - LF Door (UXP/UY5)
8	Window Motor - Front Passenger
9	Door Lock Switch - Passenger

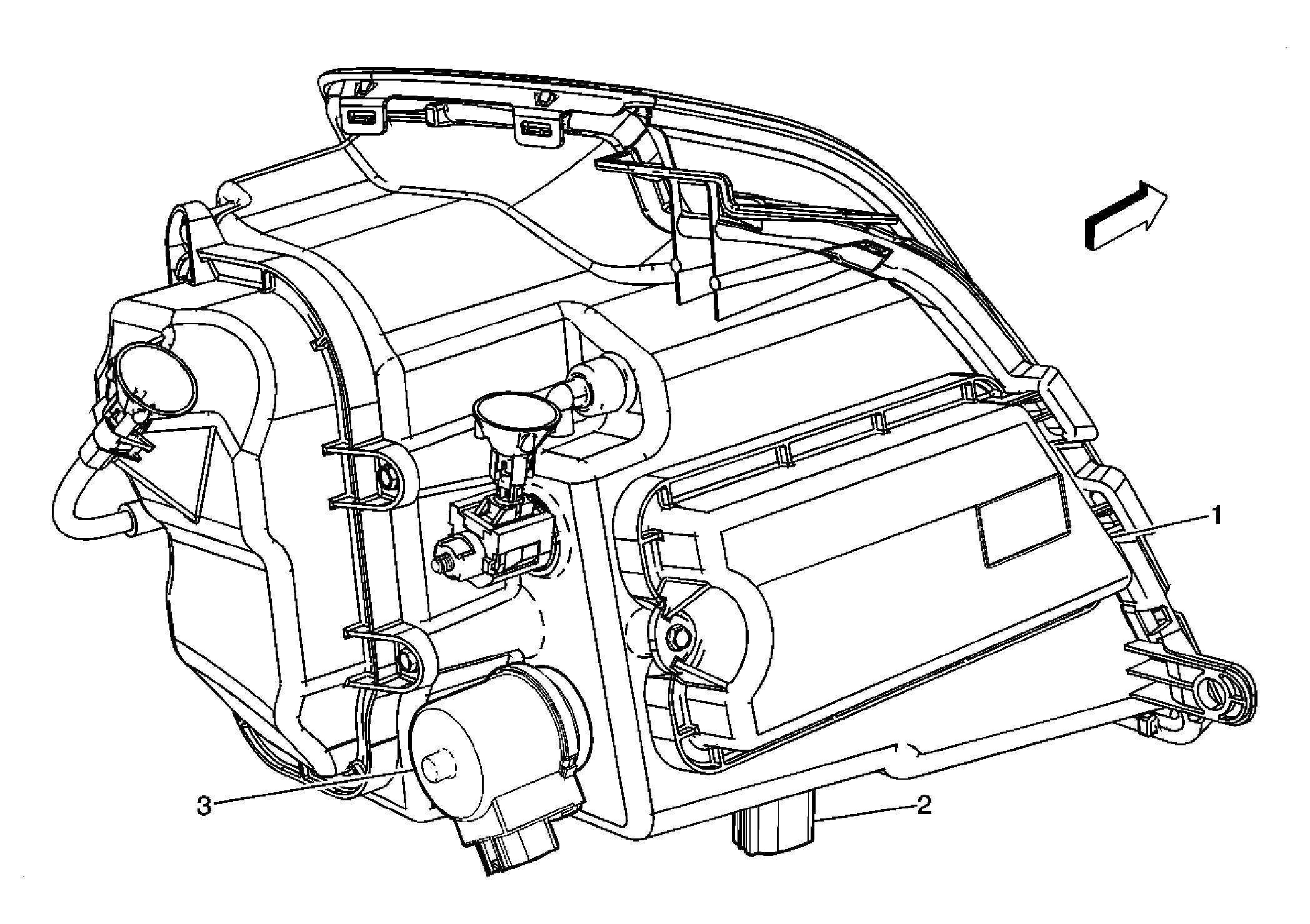

Fig 7: Headlamp Assembly-Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Ballast - Left
2	C120
3	Headlamp Leveling Actuator - Left (TT7/TT8)

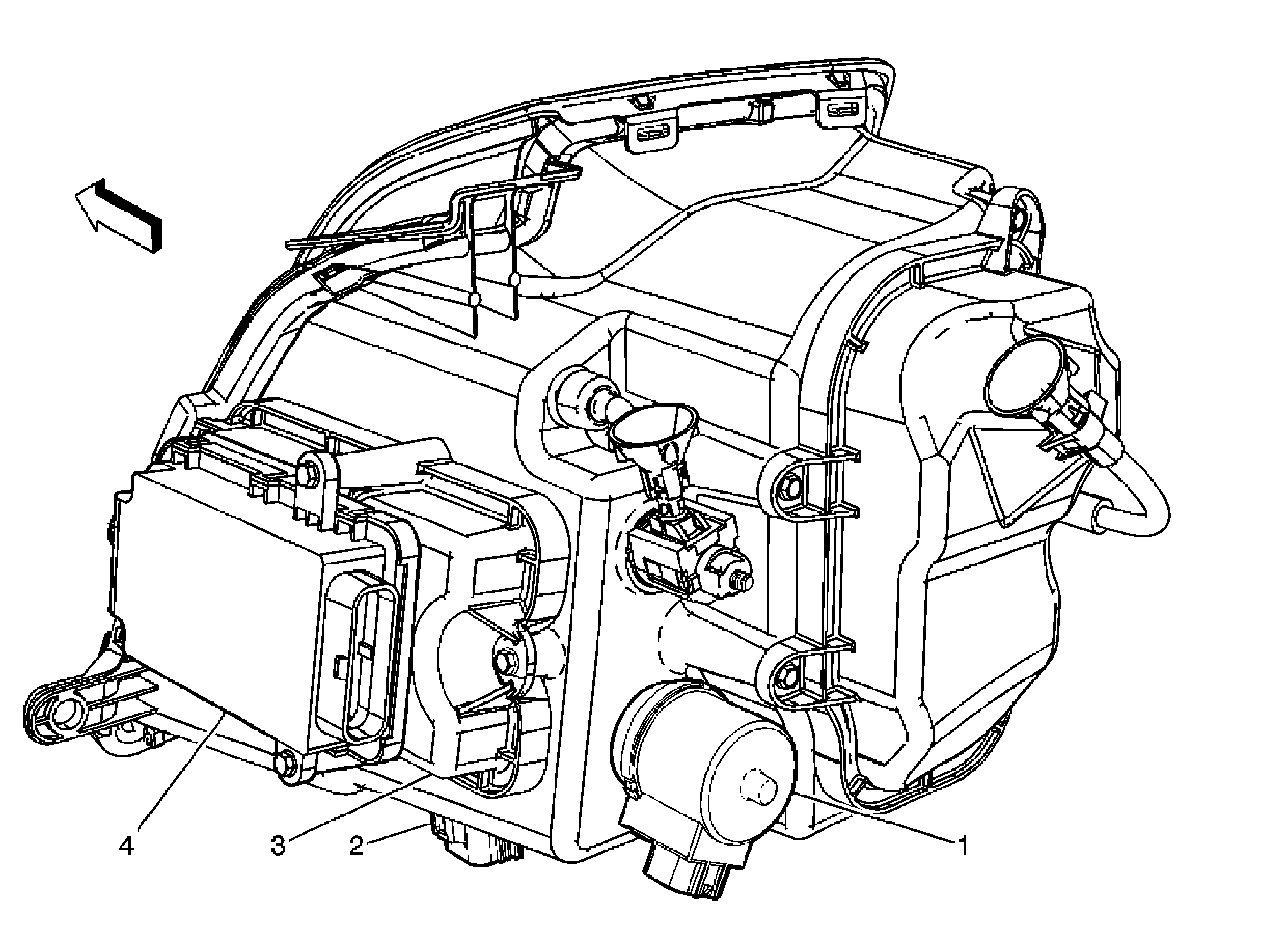

Fig 8: Headlamp Assembly-Right

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Leveling Actuator - Right (TT7/TT8)
2	C121
3	Headlamp Ballast - Right
4	Headlamp Leveling Module (TT7/TT8)

Fig 9: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Courtesy/Reading Lamps - Front
2	Garage Door Opener (UG1)
3	Keyless Entry Antenna - Headliner
4	Sunroof Control Module (CF5)
5	Overhead Courtesy/Reading Lamps-Rear
6	Rear Parking Assist (RPA) Display (UD7)
7	Sunroof Assembly (CF5)
8	Top of Headliner
9	Noise Compensation Microphone (UY5)
10	Sunroof Switches (CF5)

Fig 10: I/P Cluster and Trim Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Board
2	Instrument Panel Cluster (IPC)
3	Ignition Mode Switch
4	Air Temperature Sensor - Inside
5	I/P Dimmer Switch/HUD Switches w/ UV6

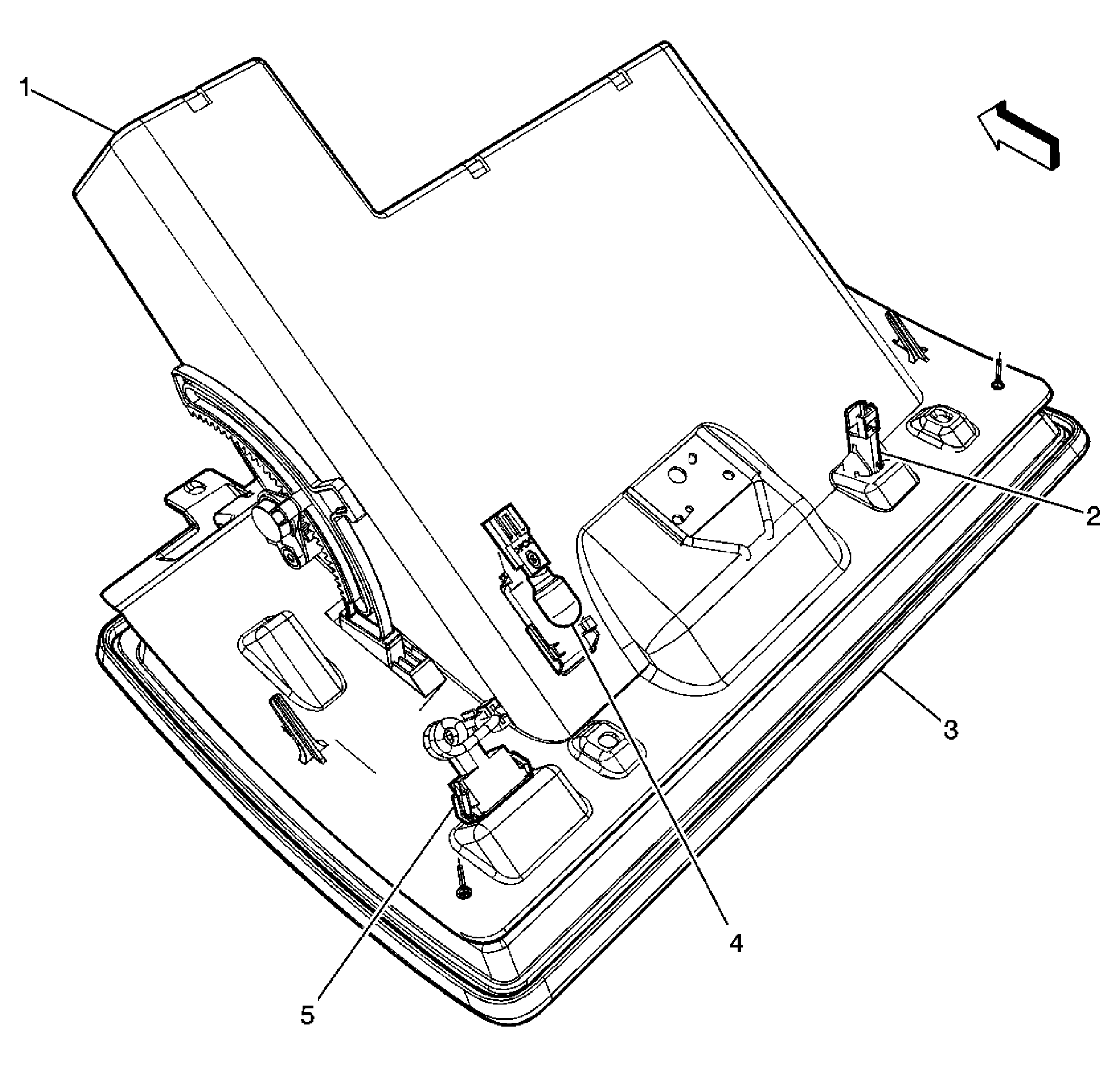

Fig 11: I/P Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Compartment Bin
2	I/P Compartment Lamp Switch
3	Component Door
4	I/P Compartment Lamp
5	Valet Switch

Fig 12: LR Door Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Left Rear
2	Window Switch - Left Rear
3	Speaker - LR Door
4	Courtesy Lamp - Left Rear Door
5	Left Rear Door Module
6	Window Motor - Left Rear

Fig 13: Left Side of the I/P Carrier Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	I/P Side Panel - Left
3	Data Link Connector (DLC)
4	Courtesy Lamp - Left Footwell
5	Steering Column Fuse Box or Holder

Fig 14: Optical Beacon Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	Optical Beacon Antenna
3	Passenger A Pillar

Fig 15: Pedal Switches & Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Left Front Floor Panel

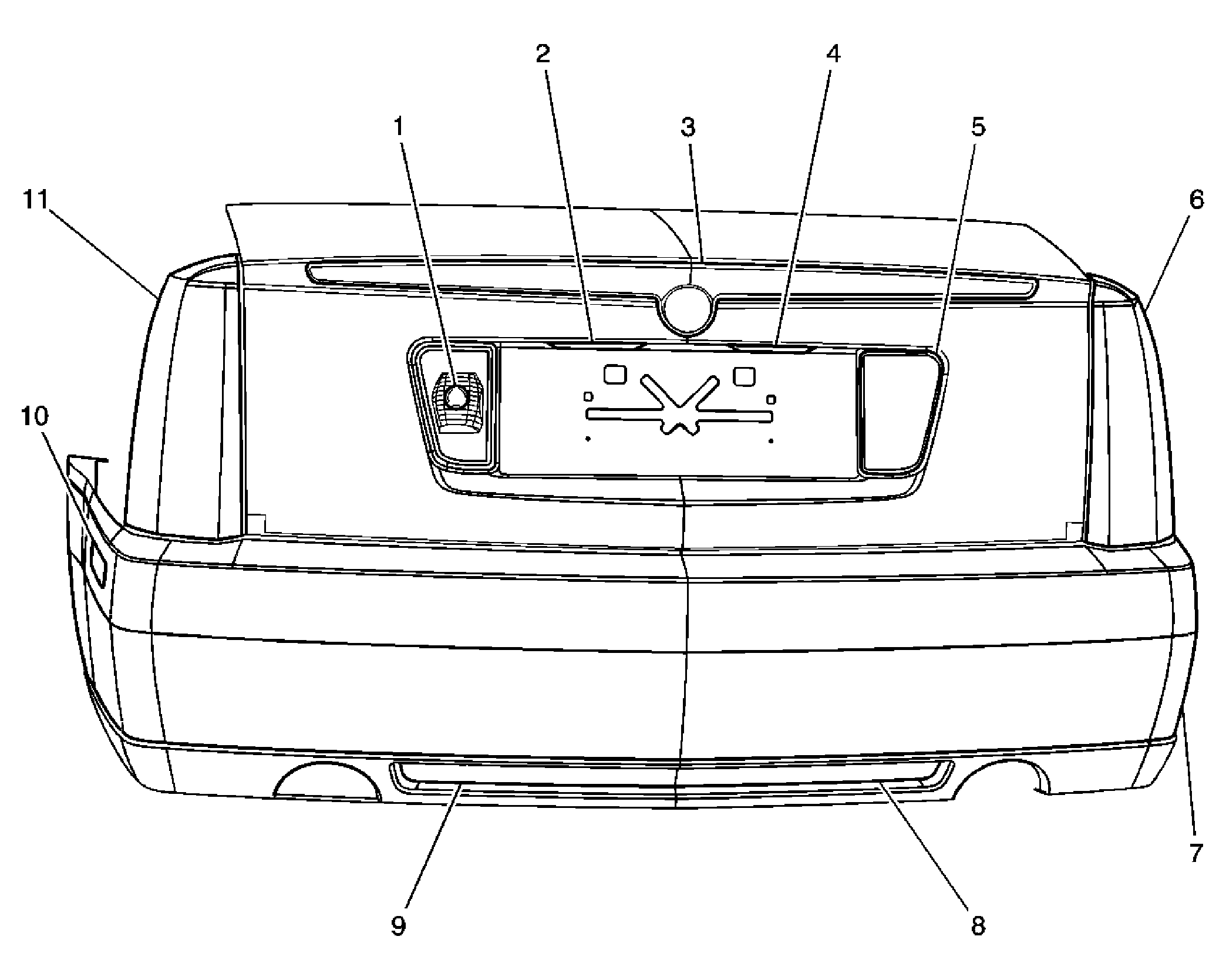

Fig 16: Rear Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Back Up Lamp - Left
2	License Lamp - Left
3	Center High Mounted Stop Lamp (CHMSL)
4	License Lamp - Right
5	Back Up Lamp - Right
6	Tail Lamp Assembly - Right
7	Side Marker Lamp - RR
8	Fog Lamp - RR (Export w/TT7/TT8)
9	Fog Lamp - LR (Export w/TT7/TT8)
10	Side Marker Lamp - LR
11	Tail Lamp Assembly - Left

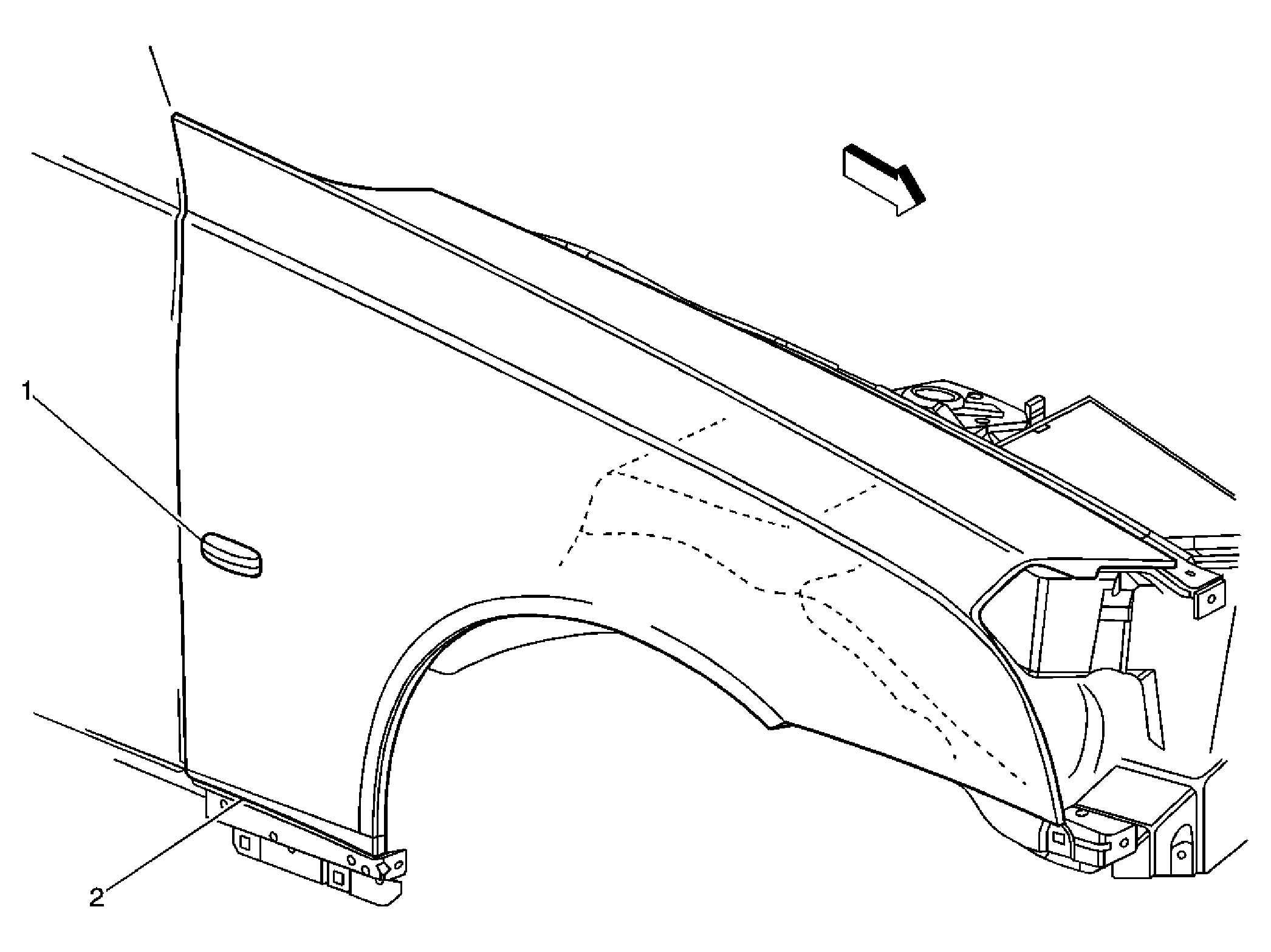

Fig 17: Repeater Lamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Repeater Lamp - Right (Left Similar)
2	RF Fender

Fig 18: RR Door Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear
2	Door Latch Assembly - Right Rear
3	Right Rear Door Module (RRDM)
4	Courtesy Lamp - Right Rear Door
5	Speaker - RR Door
6	Window Motor - Right Rear

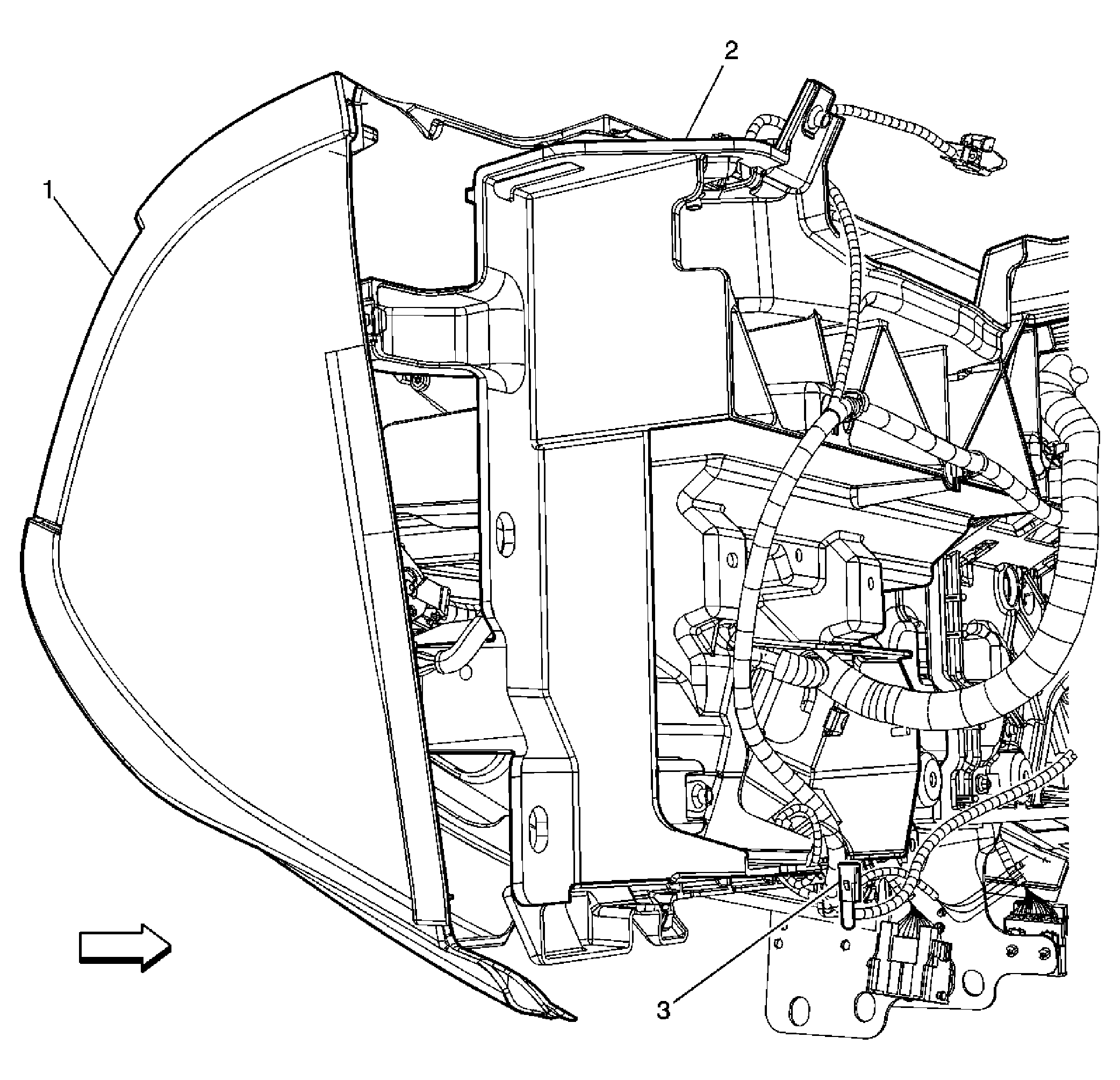

Fig 19: Right Side of the I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Side Panel - Right
2	I/P Carrier
3	Courtesy Lamp - Right Footwell

Fig 20: Steering Column and Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Telescoping Drive Wheel
2	Steering Angle Sensor
3	Turn Signal/Multifunction Switch
4	Windshield Wiper/Washer Switch Assembly
5	Steering Wheel Controls Seek Button (Part of the Steering Wheel Control Switch Assembly)
6	Steering Wheel Controls Volume Button (Part of the Steering Wheel Control Switch Assembly)
7	C277
8	Horn Switch Connector
9	Heated Steering Wheel Module
10	Steering Wheel Controls Mute/Source Button (w/o NR7/N31), Heated Steering Wheel Button (NR7/N31) (Part of the Steering Wheel Control Switch Assembly)
11	Steering Wheel Controls Voice/Preset Button (Part of the Steering Wheel Control Switch Assembly)
12	Heated Steering Wheel (NR7/N31)
13	Tilt/Telescope Switch
14	Tilt Actuator
15	C202
16	Steering Column Lock Control Module (UA2)

Fig 21: Top of the Windshield Component Views

Courtesy of GENERAL MOTORS CORP.

Inside Rear View Mirror

Callout	Component Name
1	Sunroof Switch (CF5)
2	Outside Moisture Sensor (CE1)
3	Cellular Microphone (UE1)
4	OnStar® Button Assembly (UE1)
5	Inside Rearview Mirror (ISRVM)
6	Intellabeam Sensor (TQ5)
