Wiper Inhibit Relay (WCV)

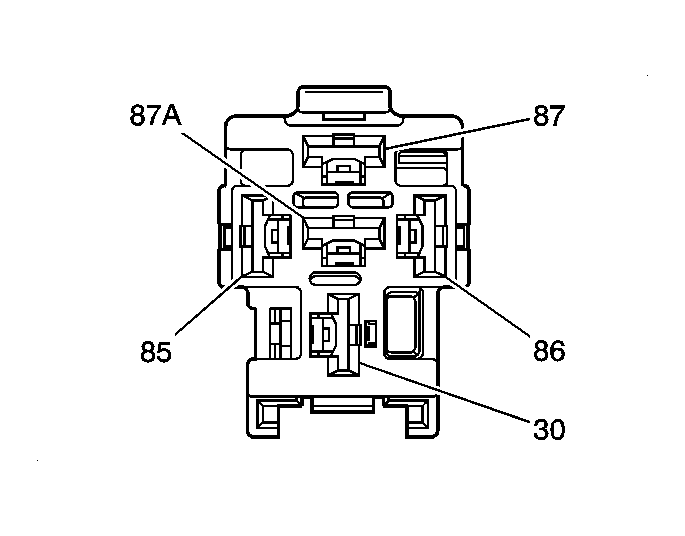

Fig 1: Wiper Inhibit Relay (WCV) Connector End View
GM1523979Courtesy of GENERAL MOTORS CORP.
Wiper Inhibit Relay (WCV) Connector Parts Infromation

Connector Part Information
  • OEM: 7223-6055-30
  • Service: 88988398
  • Description: 5-Way F ISO Relay
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Wiper Inhibit Relay (WCV) Connector Terminal Identification

Pin Wire Color Circuit No. Function
30 YE 43 Accessory Voltage
85 BK 850 Ground
86 PU 6722 Wiper Inhibit Relay Control
87 YE 6723 Windshield Wiper Depressed Park Motor Relay Signal
87A - - Not Used
