Cooling System Component Views

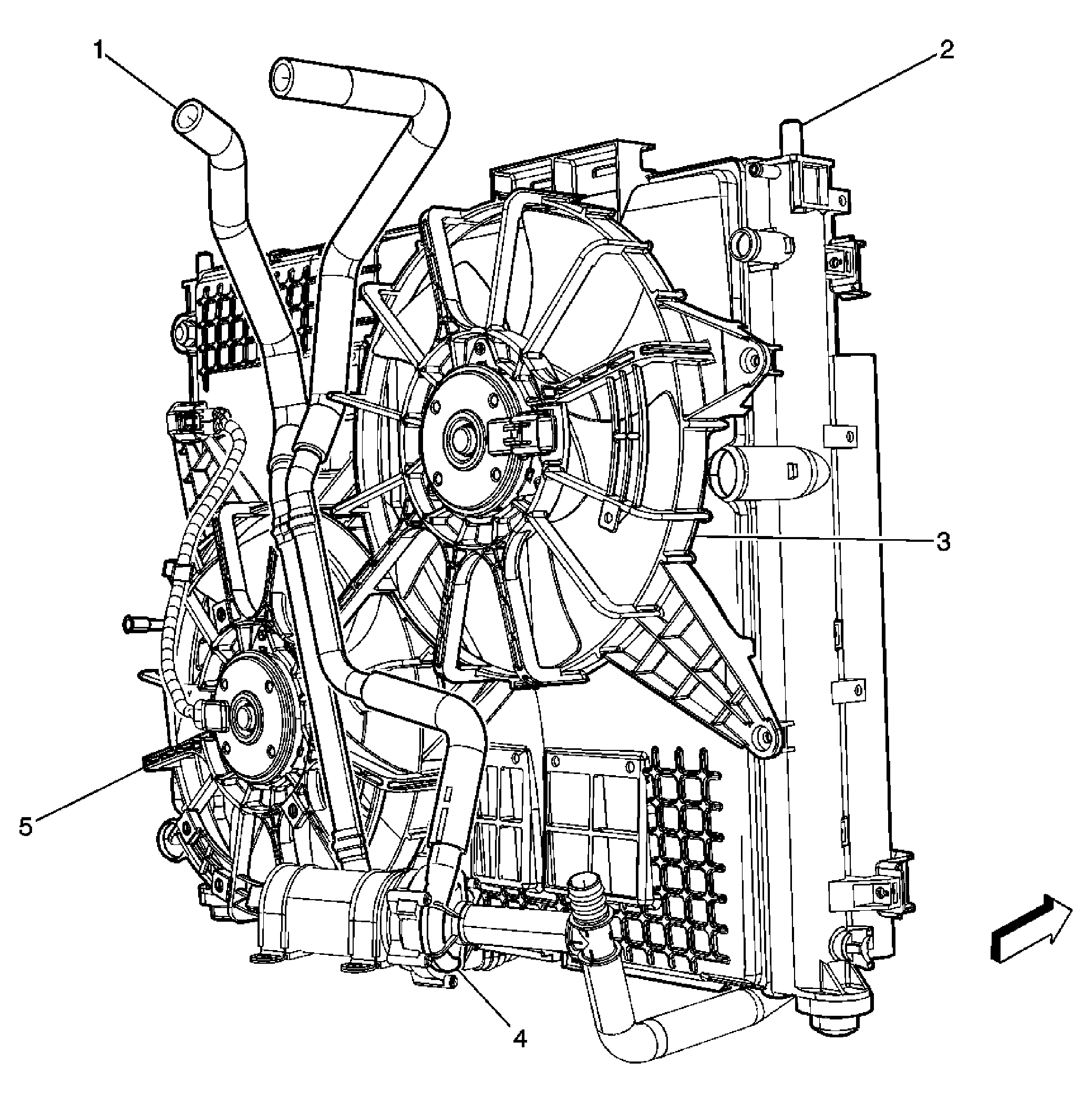

Fig 1: After Boil Heater Pump
GM1530212Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heater Hose
2 Radiator
3 Cooling Fan - Right
4 After Boil Heater Pump (LH2/V92 Only)
5 Cooling Fan - Left

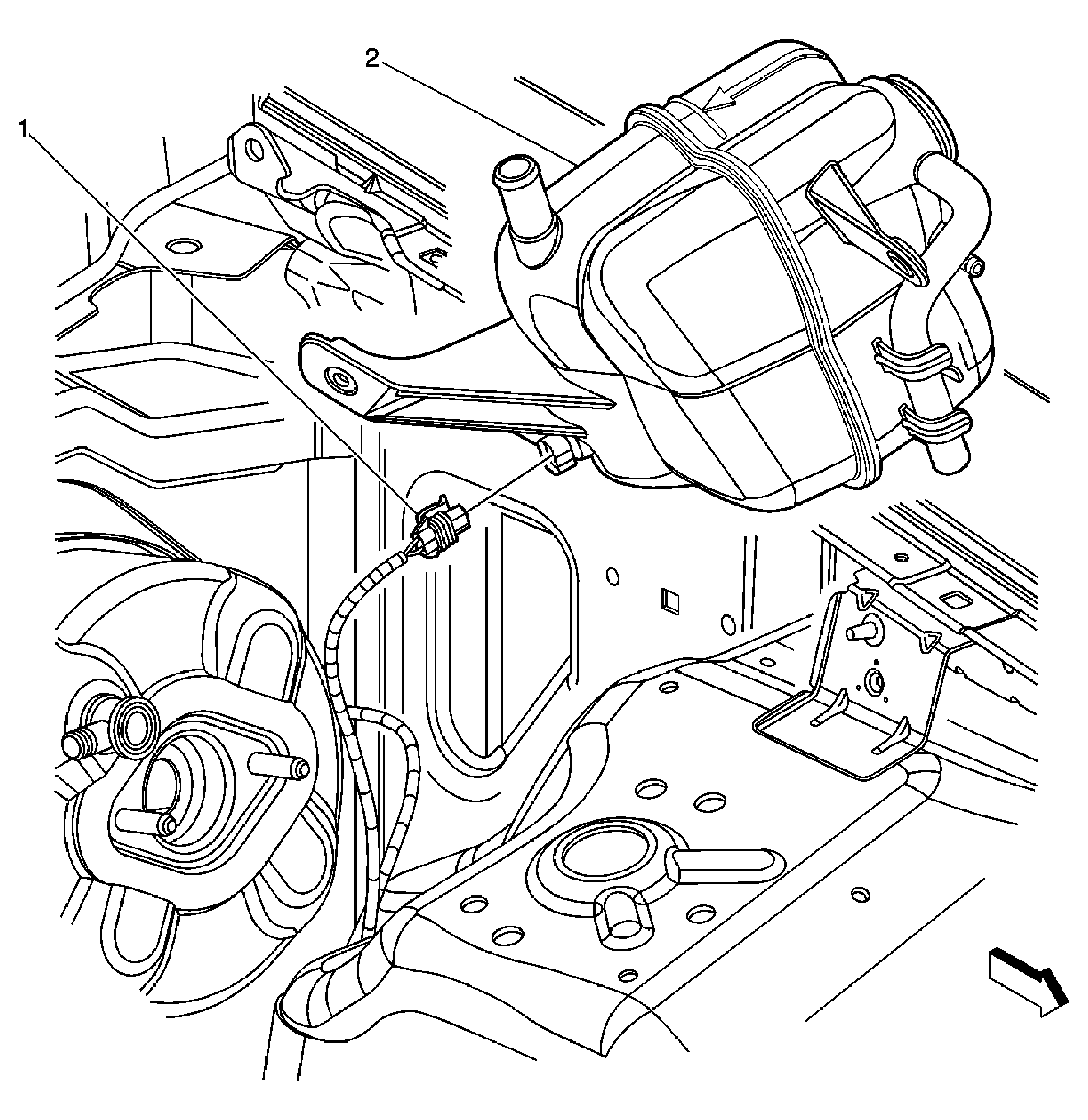

Fig 2: Coolant Level Switch Component View
GM1488544Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coolant Level Switch
2 Coolant Recovery Reservoir
Fig 3: Cruise Control Module and Cooling Fans (LH2/V92)
GM1488534Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Frame
2 Hood Latch Bracket
3 Cooling Fan - Left
4 Cooling Fan - Right
5 Distance Sensing Cruise Control Module (w/K59)
