Power and Grounding Component Views

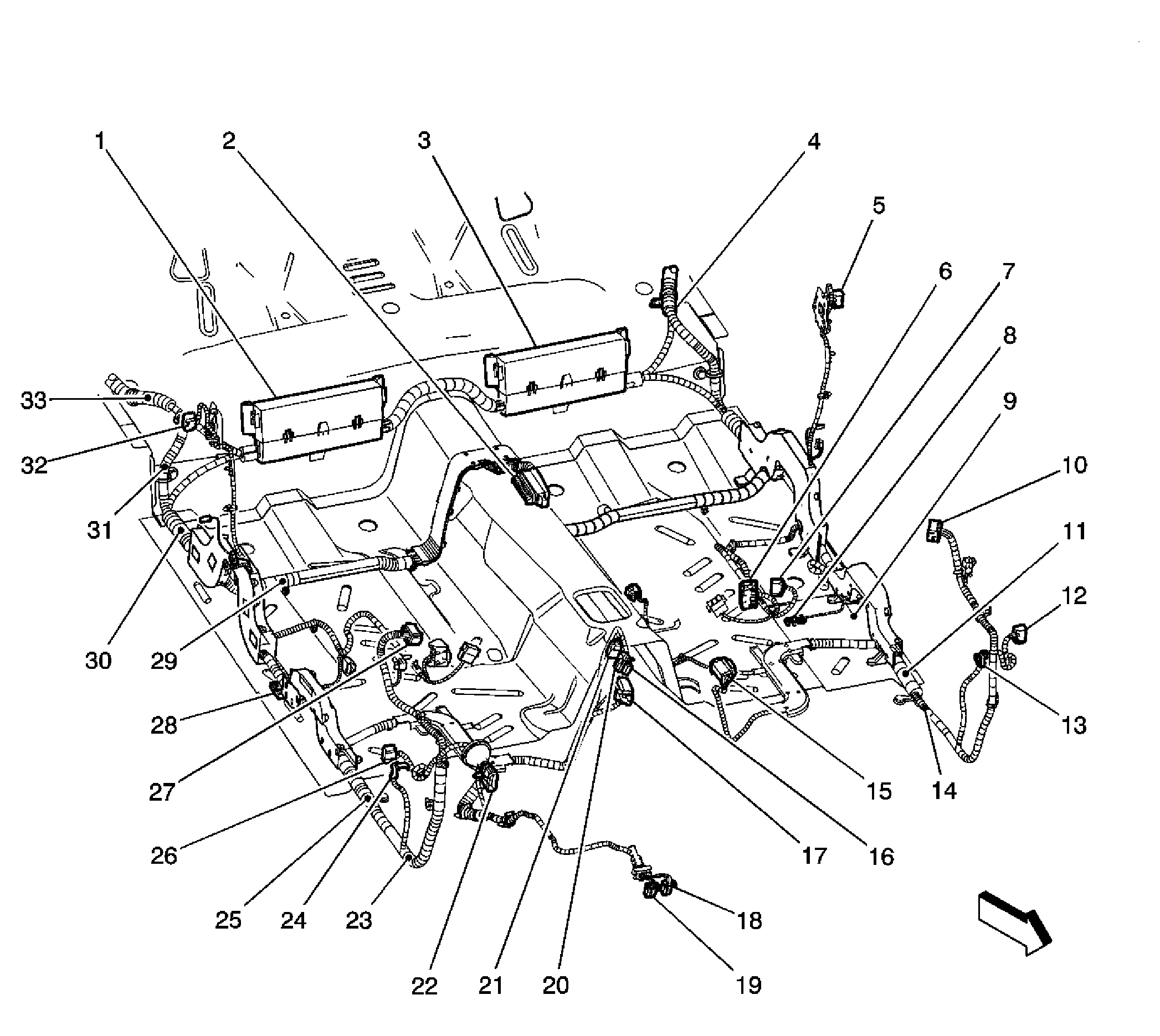

Fig 1: Body Harness - Front
GM1419817Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - RR
2 G306
3 Fuse Block - LR
4 C302 (KA6)
5 C700
6 C300
7 C301
8 G307
9 C205
10 C205
11 S207
12 C500
13 G200
14 S205
15 C204
16 C206
17 C201
18 Fuse Block - Underhood C3
19 Fuse Block - Underhood C2
20 C213
21 C212
22 C101
23 S208
24 G201
25 S209
26 C600
27 C200
28 SP303
29 S303
30 S302
31 S306
32 C800
33 S317

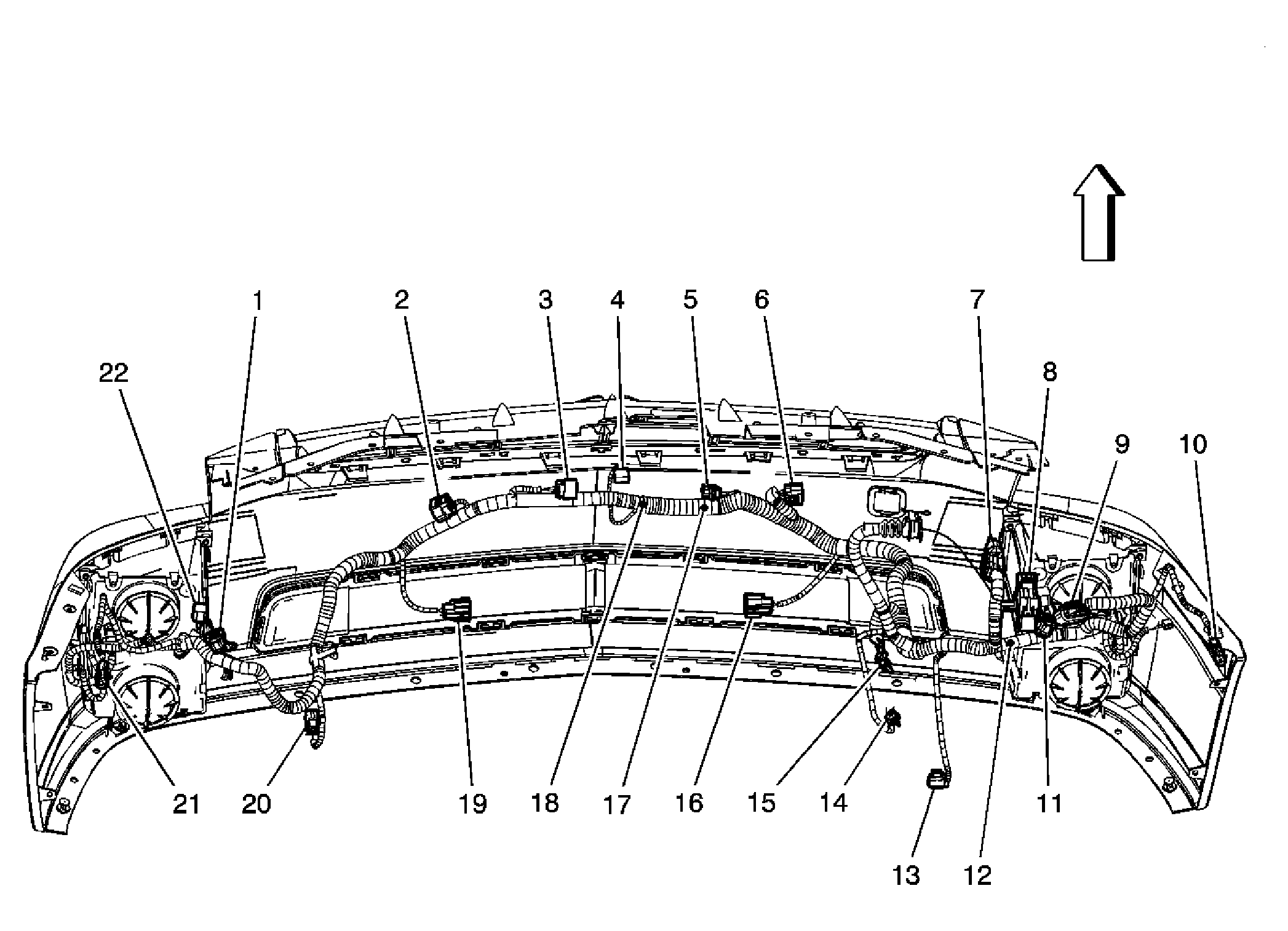

Fig 2: Forward Lamp Harness
GM1415907Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Leveling Actuator - Left Connector
2 SP100
3 Hood Ajar Switch Connector
4 Cruise Control Module Connector
5 Ambient Air Temperature Sensor Connector
6 Air Quality Sensor Connector
7 Headlamp Level Controller
8 Fuse Block - Underhood C1
9 C112
10 C108
11 C111 (w/ K59, TT6)
12 S116
13 C113 (LH2)
14 G110
15 G104
16 Cooling Fan - Right Connector
17 S110
18 S111
19 Cooling Fan - Left Connector
20 Horn Assembly Connector
21 C107
22 Headlamp Assembly - Left Connector

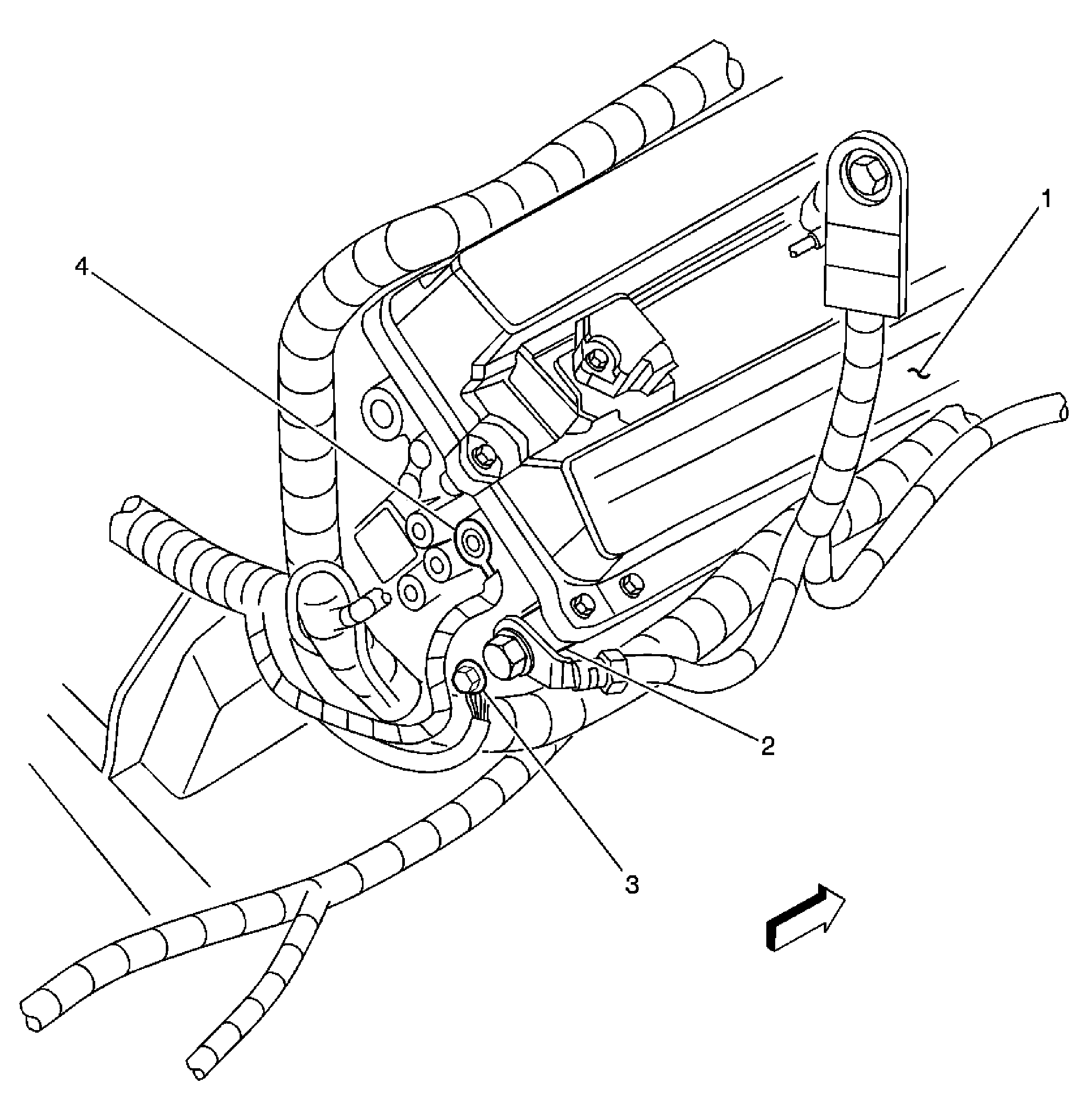

Fig 3: G100, G106 and G107
GM1488380Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Cylinder Head
2 G106
3 G100 (LH2)
4 G107 (LH2)

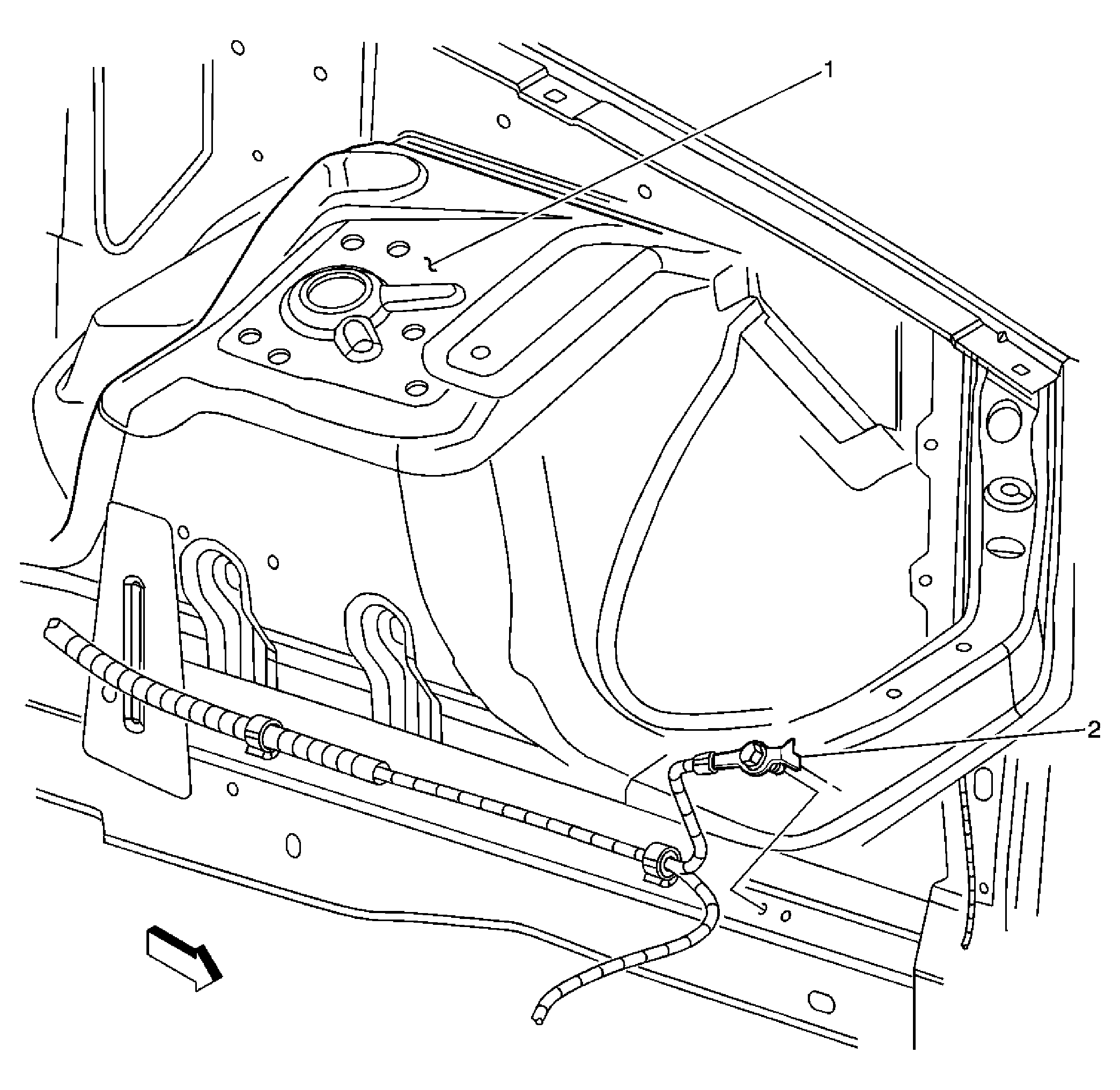

Fig 4: G101
GM1488382Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 LF Strut Tower
2 G101

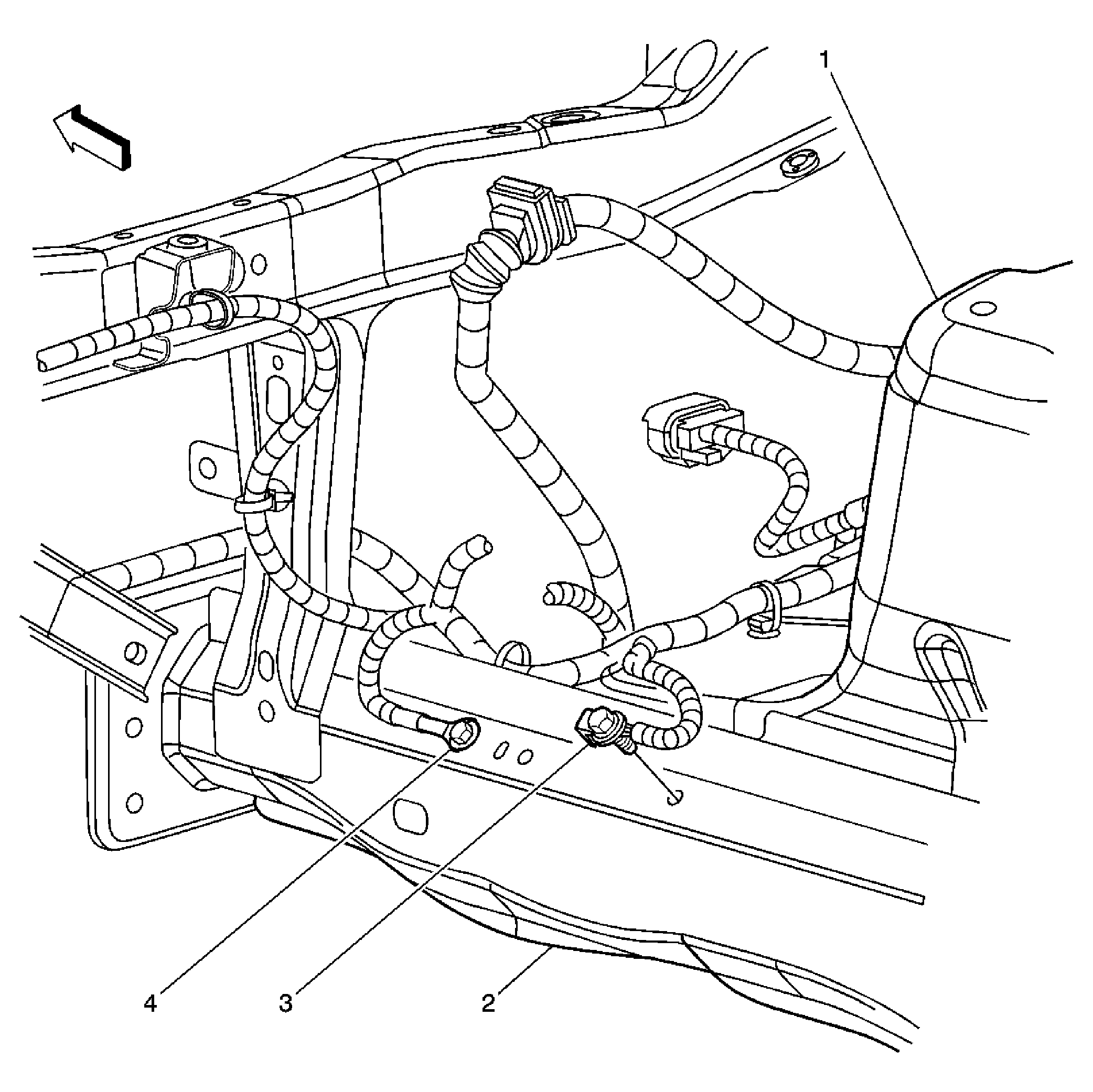

Fig 5: G104 and G110
GM1488402Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RF Strut Tower
2 RF Frame Rail
3 G110
4 G104
Fig 6: G103, G109 and G113 (LY7)
GM1530183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G109
2 G103
3 C106
4 G113
5 Right Cylinder Block

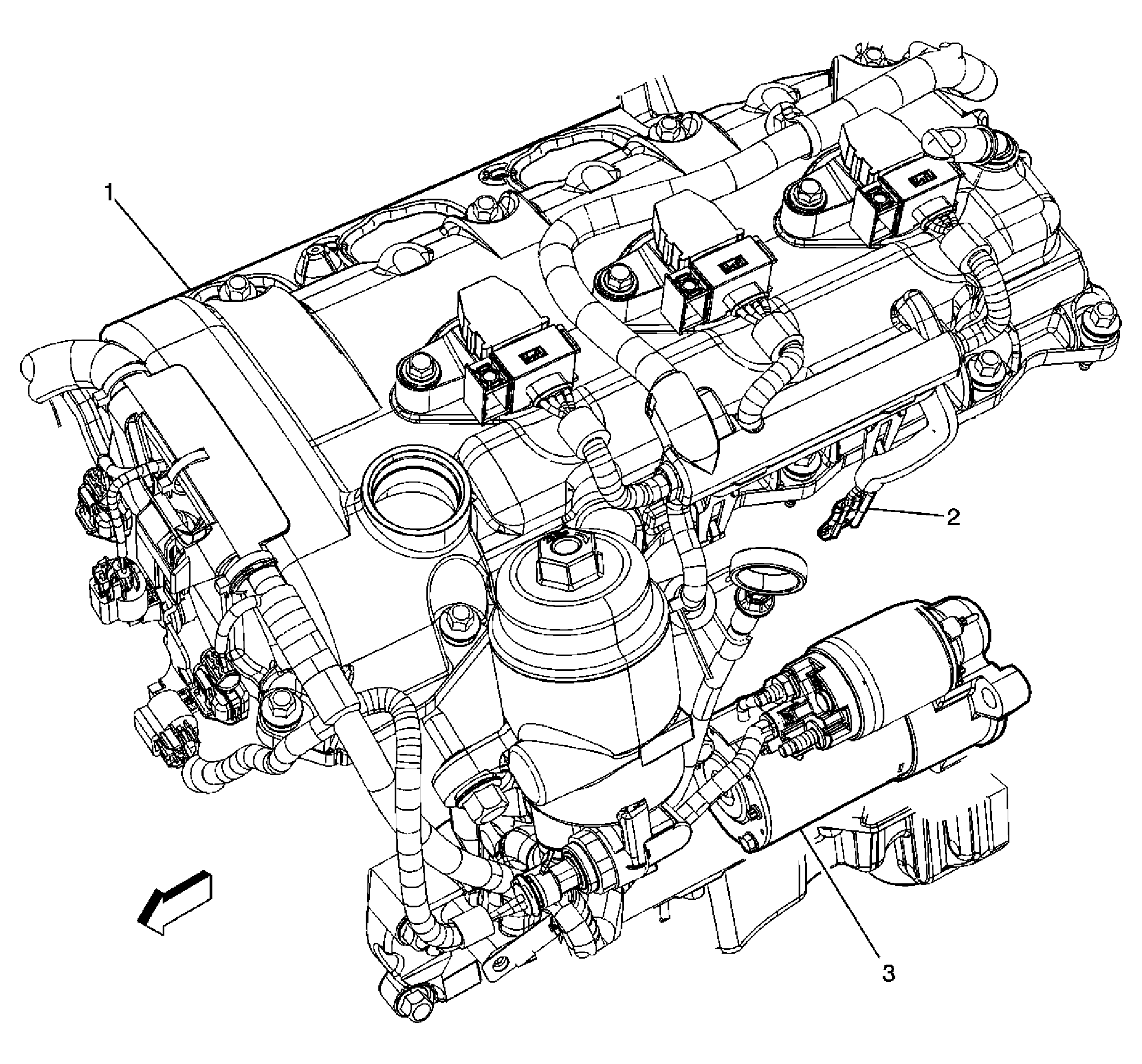

Fig 7: G112 (LY7)
GM1530182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Valve Cover
2 G112
3 Starter

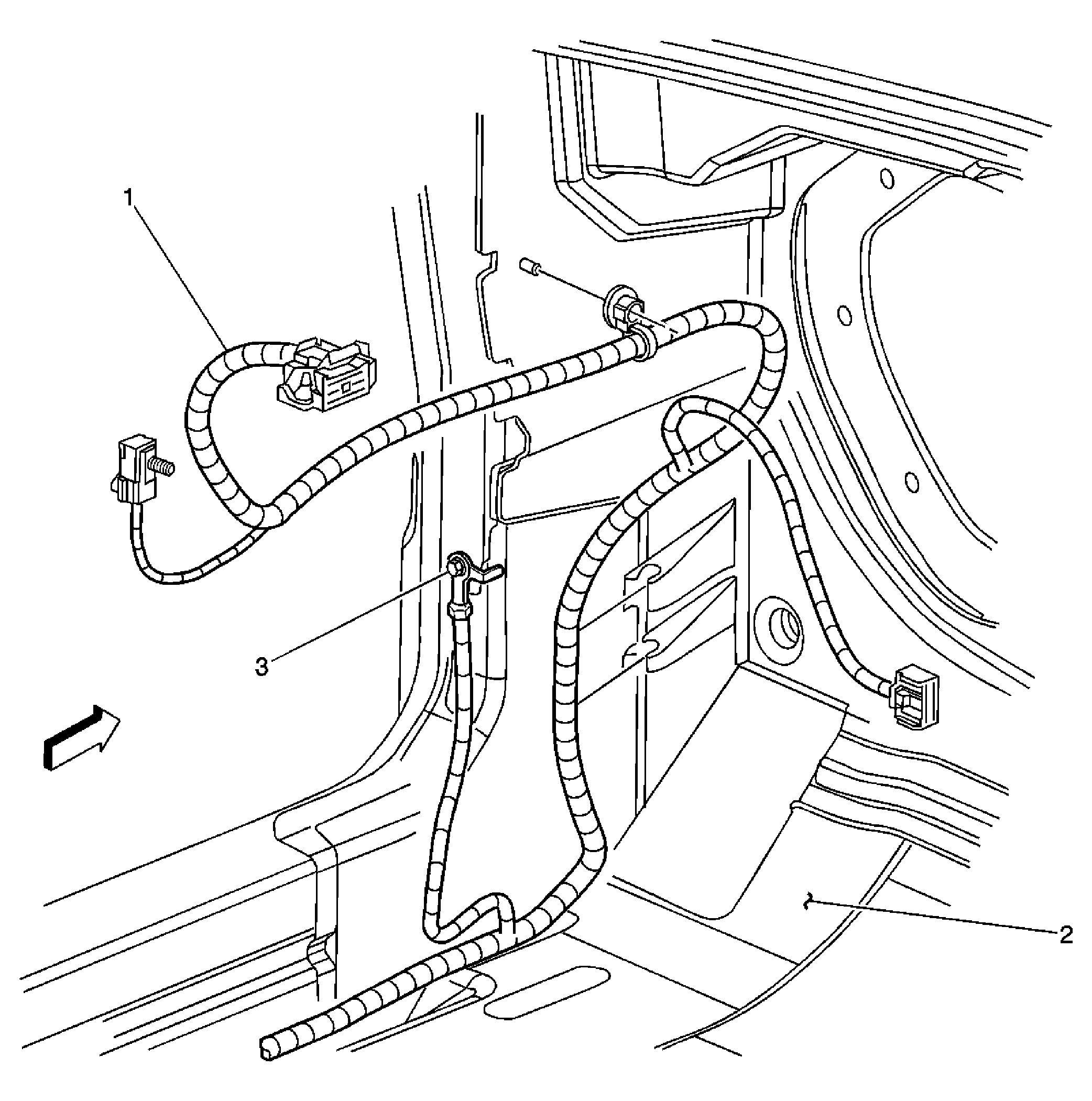

Fig 8: G200
GM1488390Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 LF Floor Panel
3 G200

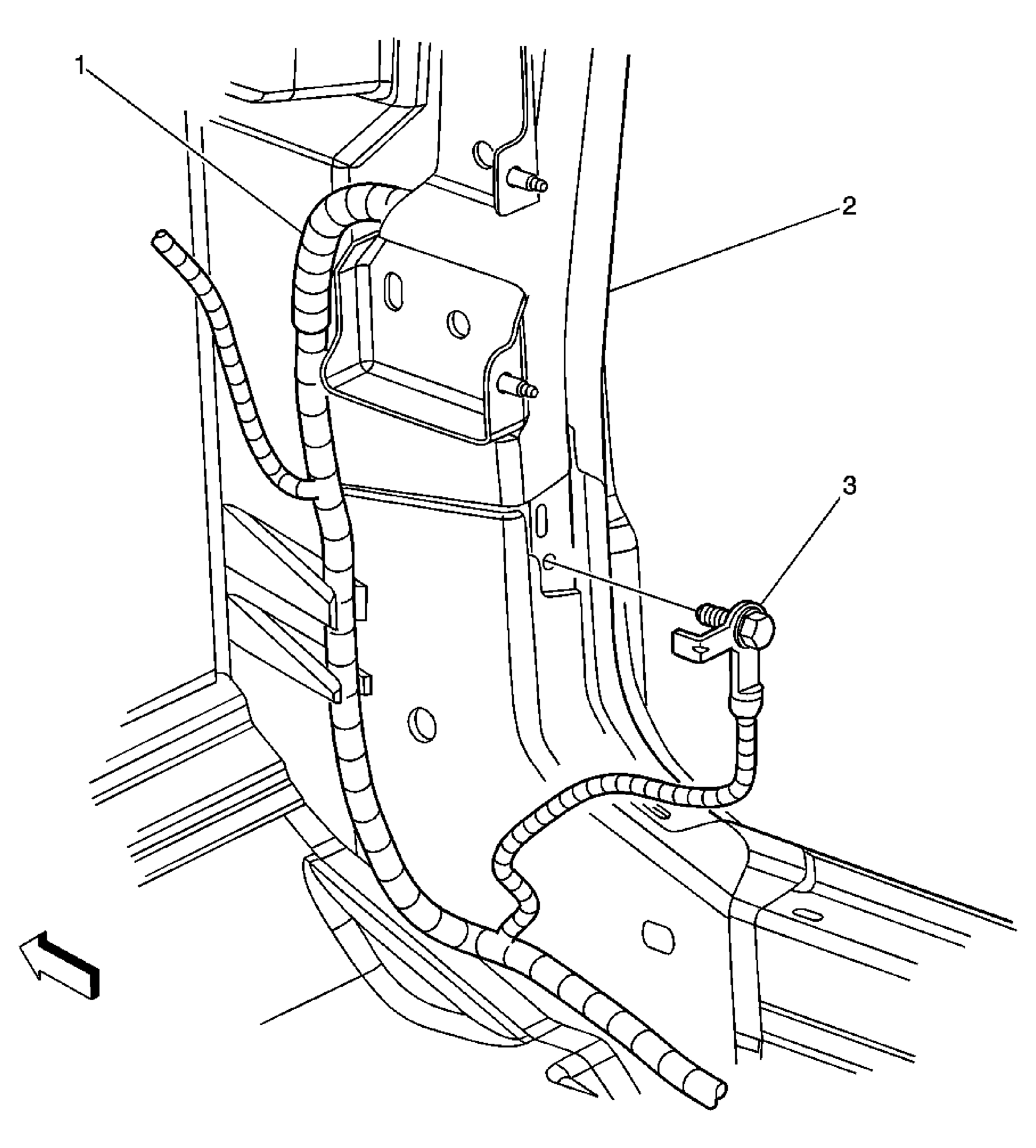

Fig 9: G201
GM1488384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 RF Kick Panel
3 G201

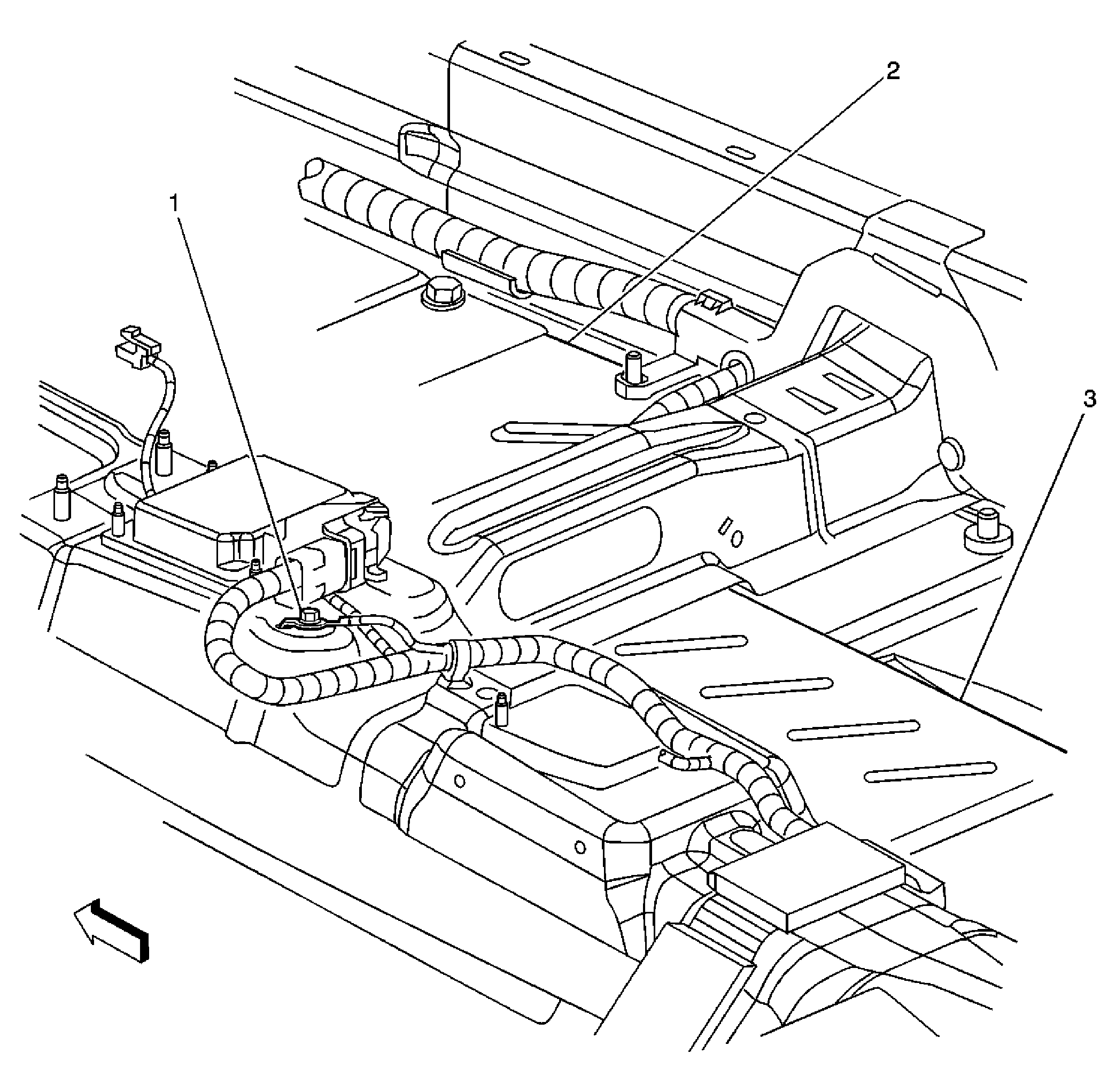

Fig 10: G306
GM1488392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G306
2 RF Floor Pan
3 RR Floor Pan
Fig 11: G307 and Splice Pack SP300 Component View
GM1488399Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP300
2 G307
3 LF Floor Panel

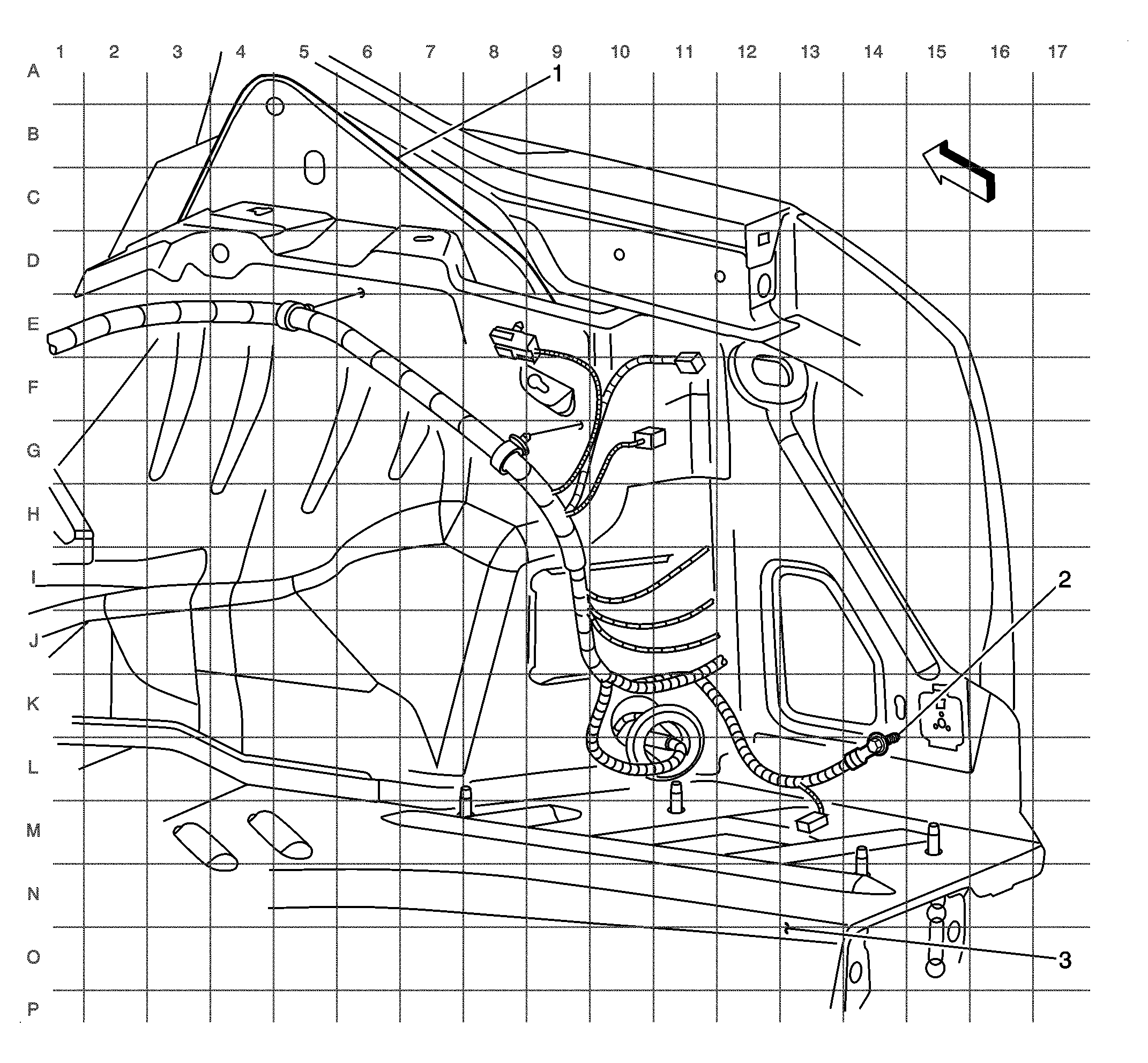

Fig 12: G401
GM1488394Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR Fender
2 G401
3 Trunk Compartment Floor Panel

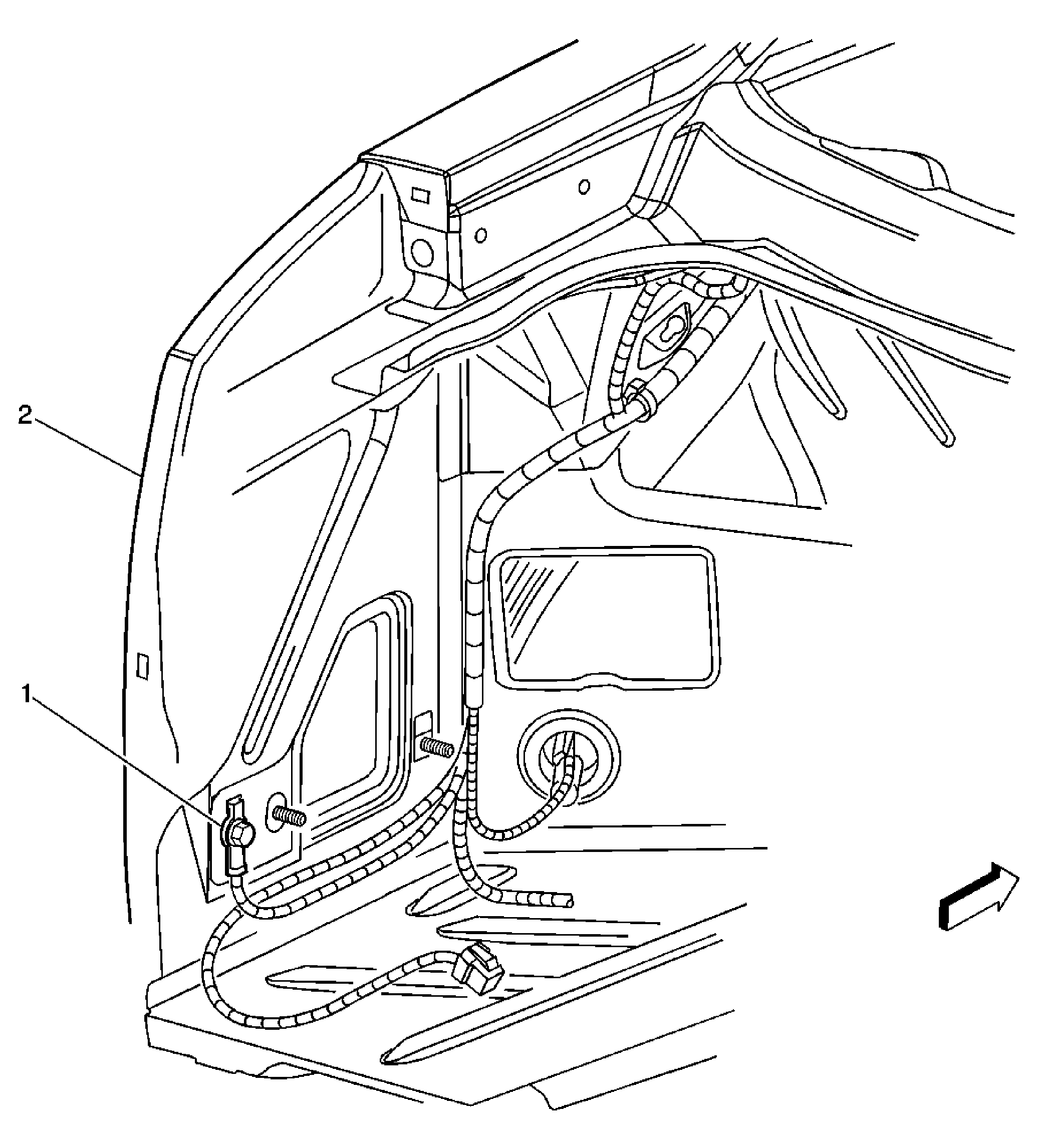

Fig 13: G402
GM1488396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G402
2 LR Fender

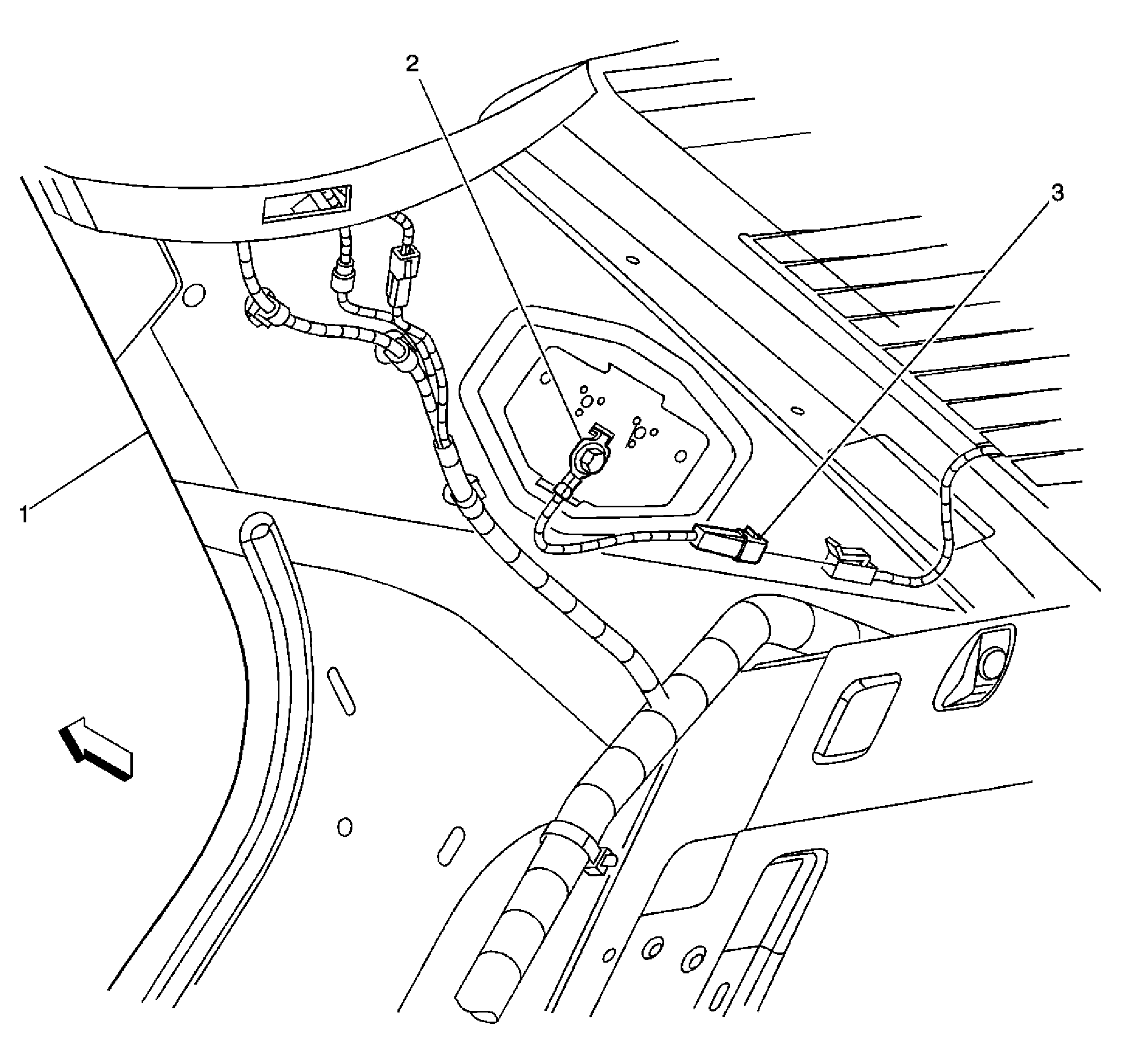

Fig 14: G403
GM1488404Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Side C Pillar
2 G403
3 Defogger Connector

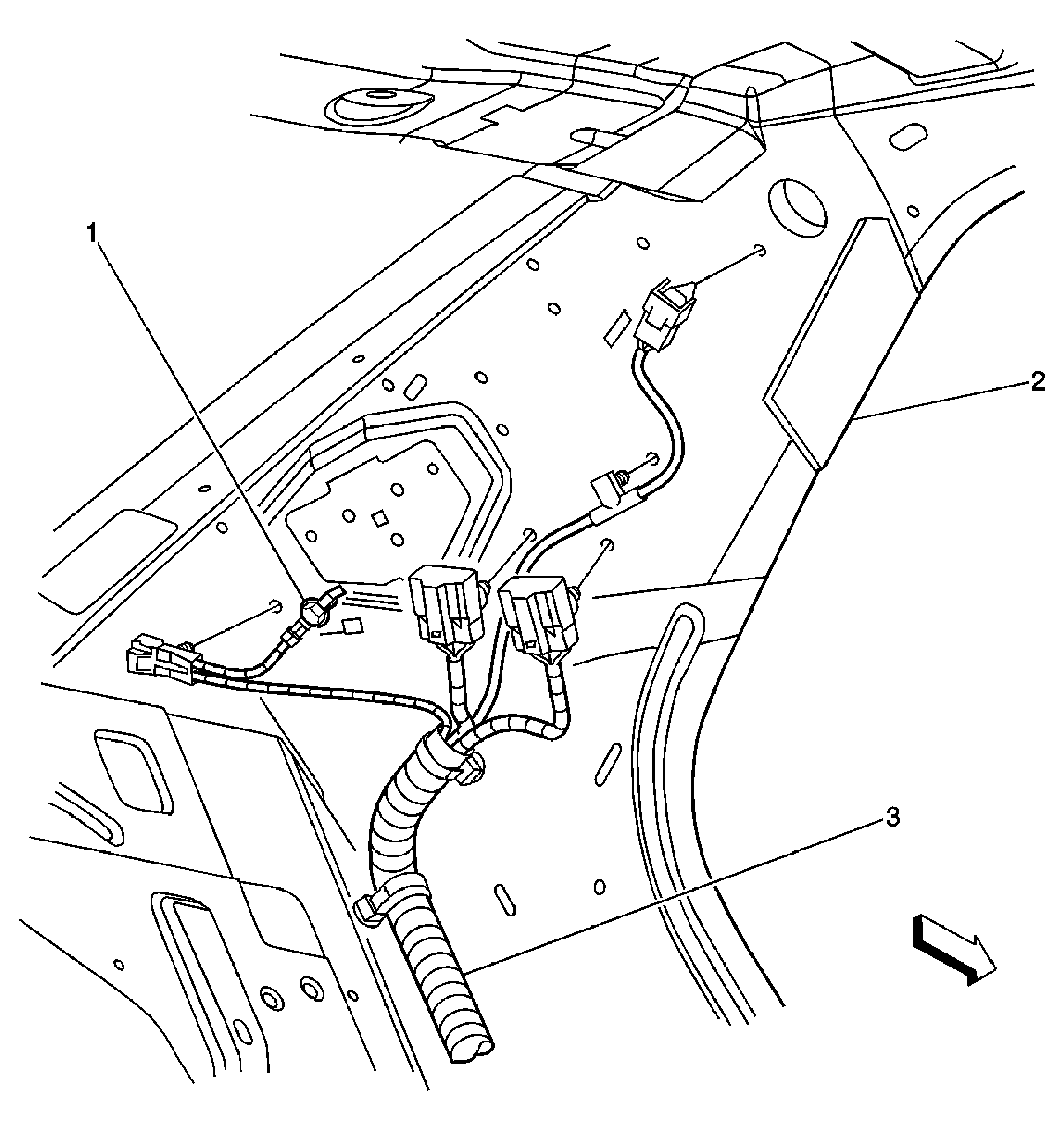

Fig 15: G404
GM1488403Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G404
2 Left Side C Pillar
3 Body Harness

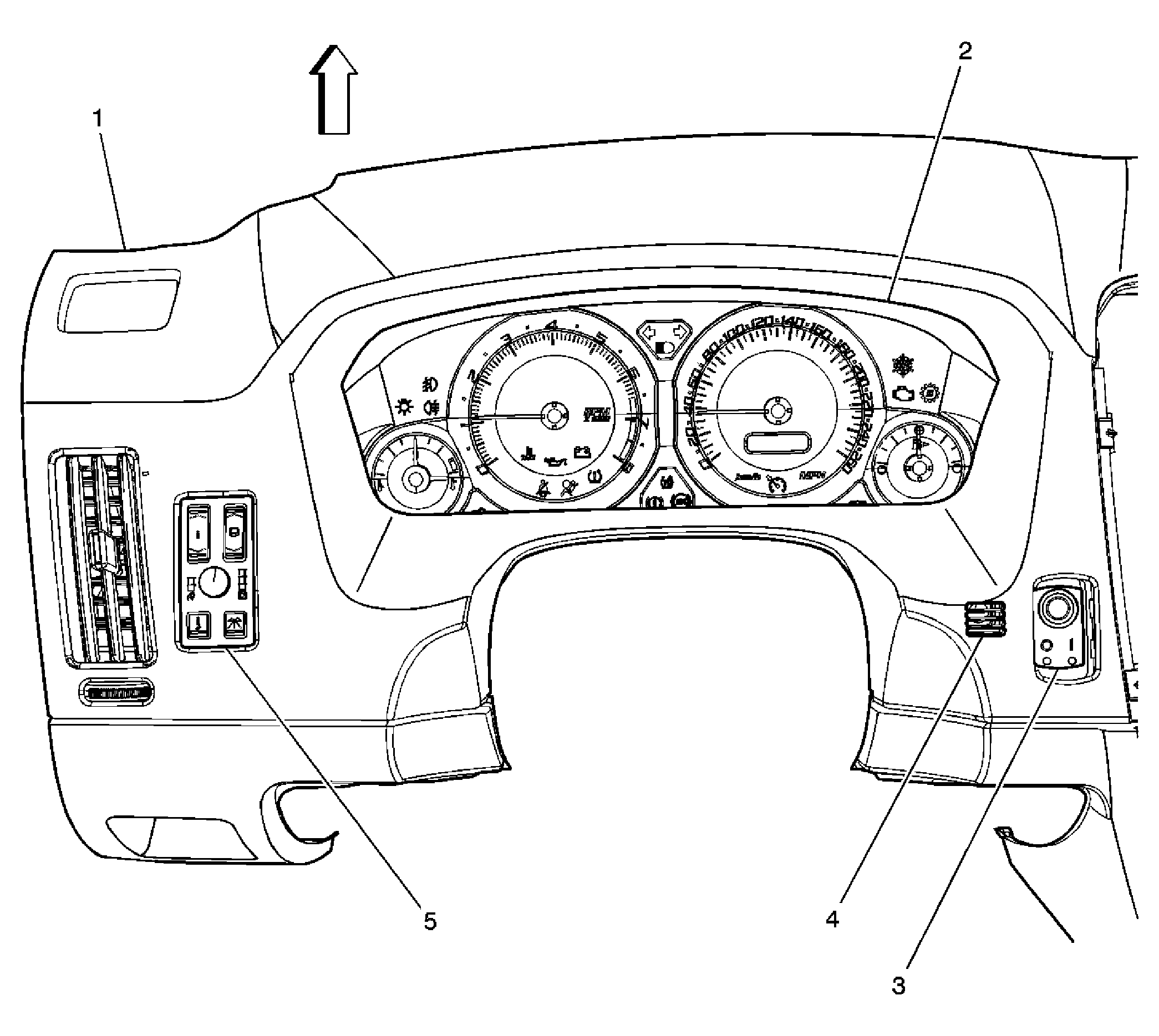

Fig 16: I/P Cluster and Trim Component Views
GM1530192Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dash Board
2 Instrument Panel Cluster (IPC)
3 Ignition Mode Switch
4 Air Temperature Sensor - Inside
5 I/P Dimmer Switch/HUD Switches w/ UV6

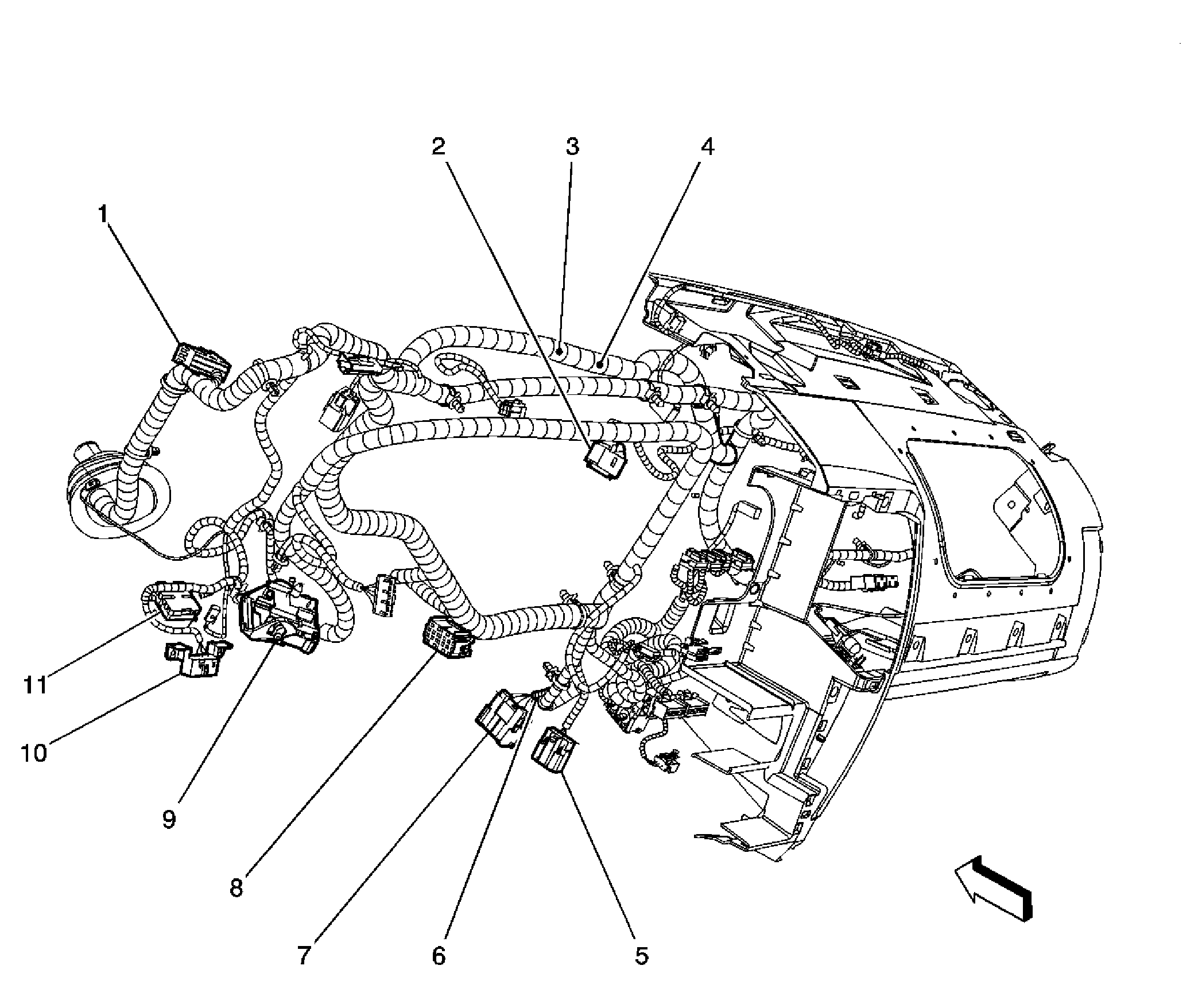

Fig 17: I/P Harness - Left
GM1419820Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SP201
2 Instrument Panel Cluster (IPC) Connector
3 S210
4 S211
5 C204
6 S230
7 S204
8 C202
9 C205
10 Data Link Connector (DLC) Connector
11 Fuse Block - Steering Column Fuse Box or Holder

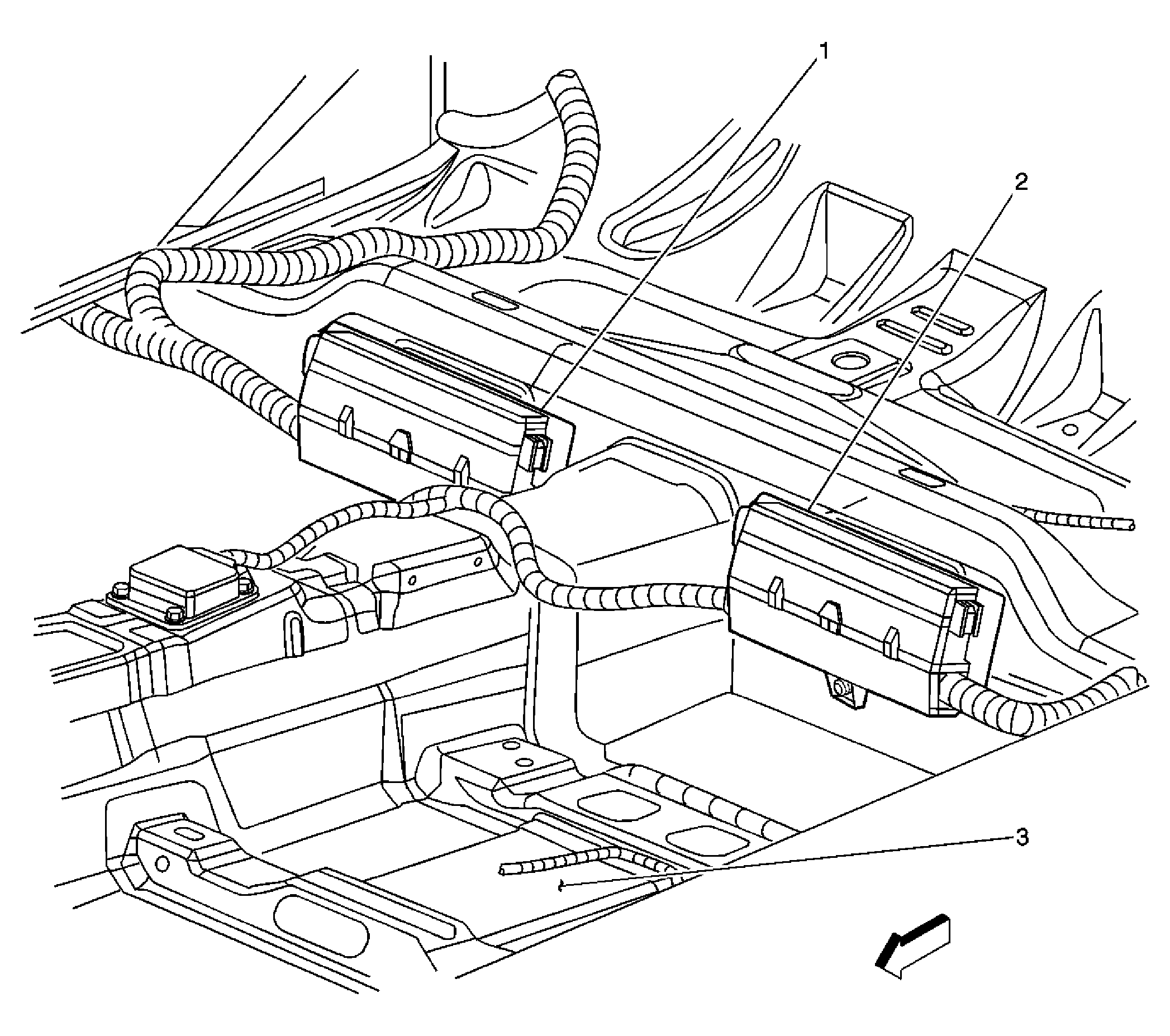

Fig 18: Rear Fuse Blocks
GM1488407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Right Rear
2 Fuse Block - Left Rear
3 Floor Panel
Fig 19: Right Front of the Engine Compartment
GM1488512Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Battery Current Sensor
3 G105
4 Fuse Block - Underhood
5 Transmission Control Module (TCM)
6 Suspension Damper - RF (F55)
