Steering Wheel and Column Component Views

Fig 1: Heated Steering Wheel (4-spoke)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel
2	Heated Steering Wheel Module (NR7/N31)

Fig 2: Heated Steering Wheel (3-Spoke)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Controls - Left
2	Steering Wheel Controls - Right
3	Horn Switch
4	Heated Steering Wheel Module (NR7/N31)

Fig 3: Steering Column and Wheel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Telescoping Drive Wheel
2	Steering Angle Sensor
3	Turn Signal/Multifunction Switch
4	Windshield Wiper/Washer Switch Assembly
5	Steering Wheel Controls Seek Button (Part of the Steering Wheel Control Switch Assembly)
6	Steering Wheel Controls Volume Button (Part of the Steering Wheel Control Switch Assembly)
7	C277
8	Horn Switch Connector
9	Heated Steering Wheel Module
10	Steering Wheel Controls Mute/Source Button (w/o NR7/N31), Heated Steering Wheel Button (NR7/N31) (Part of the Steering Wheel Control Switch Assembly)
11	Steering Wheel Controls Voice/Preset Button (Part of the Steering Wheel Control Switch Assembly)
12	Heated Steering Wheel (NR7/N31)
13	Tilt/Telescope Switch
14	Tilt Actuator
15	C202
16	Steering Column Lock Control Module (UA2)

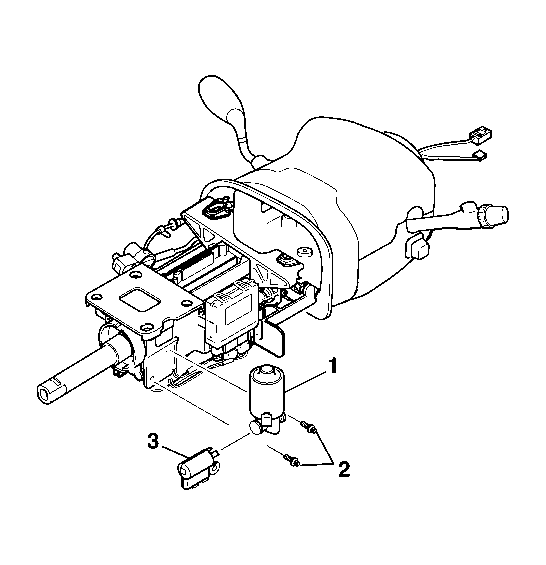

Fig 4: Telescope Actuator Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Telescoping Actuator
2	Telescoping Wheel Position Sensor (A45)

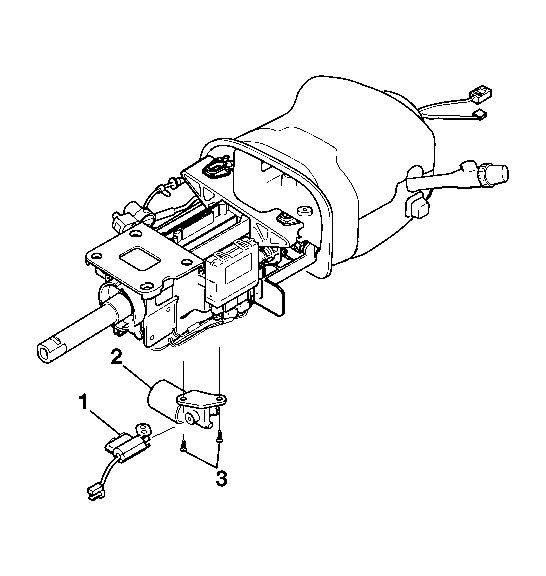

Fig 5: Tilt Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tilt Actuator
2	Tilt Wheel Position Sensor (A45)
