Tire Pressure Monitoring System Component Views

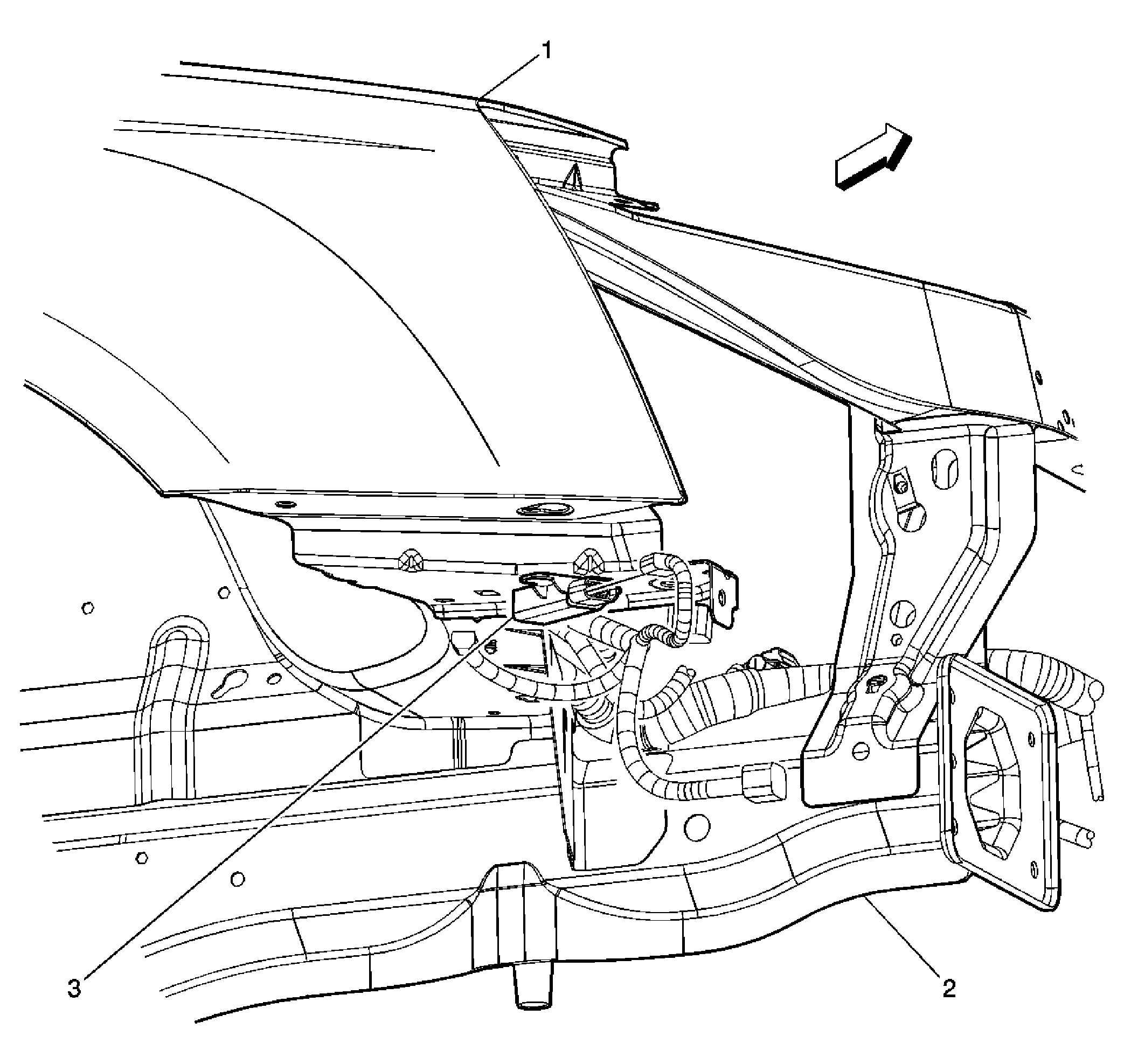

Fig 1: RF Tire Pressure Receiver (UH3-Japan Only)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Fender
2	Frame
3	Tire Pressure Receiver (UH3)-RF (LF Similar)

Fig 2: Right Side Of The Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Side C Pillar
2	Electronic Suspension Control (ESC) Module (F55)
3	Tire Pressure Module (UH3-Japan Only) - Right Side Shown, Left Similar
4	Theft Deterrent Alarm Siren (UA2 /Inclination Sensor (Export w/UA2)

Fig 3: Rear Fascia Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Object Sensor - LR Corner (UD7)
2	Object Sensor - LR Middle (UD7)
3	Object Sensor - RR Middle (UD7)
4	Object Sensor - RR Corner (UD7)
5	Tire Pressure Monitor Receiver - LR (UH3)
6	Tire Pressure Monitor Receiver - RR (UH3)

Fig 4: Wheel with Tire Pressure Sensor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tire Pressure Monitor Sensors - All 4
