Turn Signal Lamp Connector End View - LF

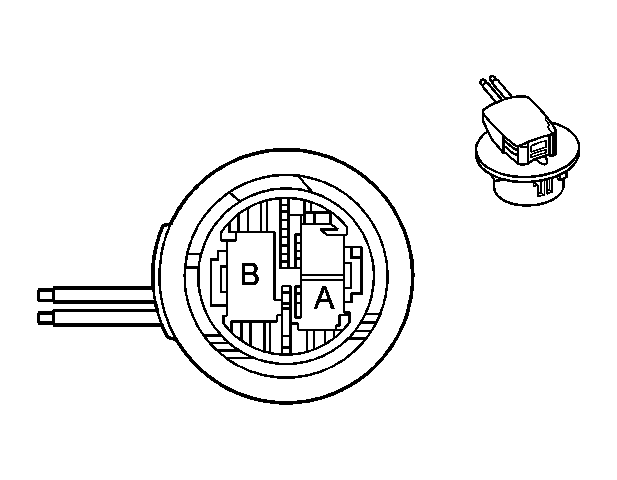

Fig 1: Turn Signal Lamp - LF Connector End View
GM882584Courtesy of GENERAL MOTORS CORP.
Turn Signal Lamp - LF Connector Parts Information

Connector Part Information
  • OEM: 1035
  • Service: See Catalog
  • Description: 2-Way F CE-F29.14-5A Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Turn Signal Lamp - LF Connector End View

Pin Wire Color Circuit No. Function
A L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
B BK 250 Ground
