Installation Procedure

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

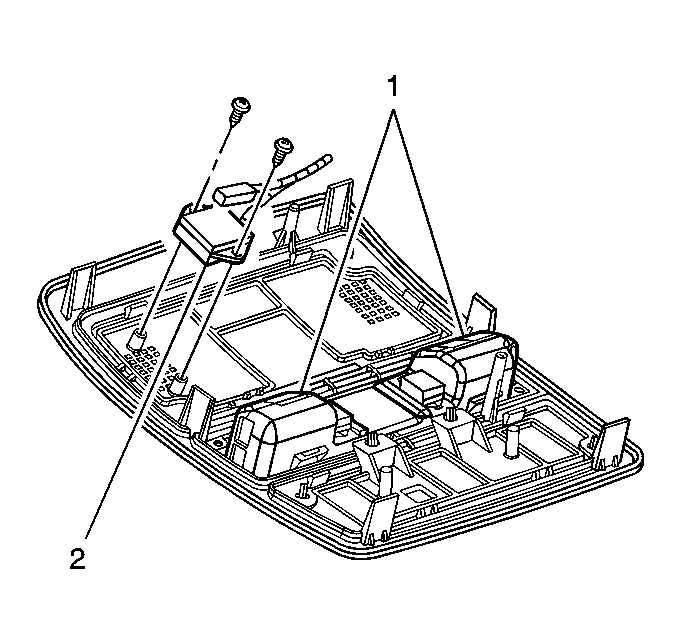

    Fig 1: View Of Front Overhead Console Components
    GM1386670Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screws securing the microphone (2) to the overhead console and tighten to 2 N.m (18 lb in).
  3. Install the overhead console. Refer to Roof Console Replacement .
