Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

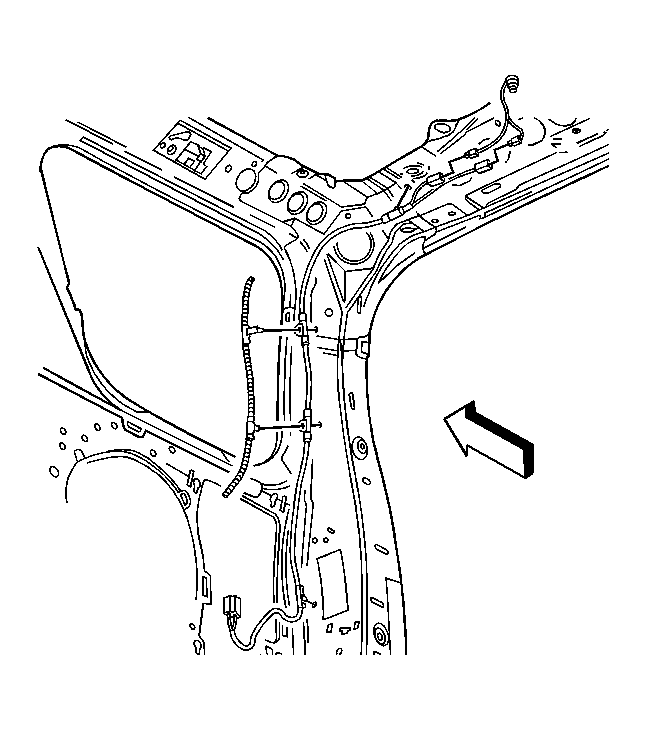

    Fig 1: View Of Digital Antenna Cable
    GM1211078Courtesy of GENERAL MOTORS CORP.
  1. Install the cable to the vehicle.
  2. Connect the digital antenna cable connector to the antenna.
    3. Fig 2: View Of Digital Radio Receiver Electrical Connectors
    GM1211148Courtesy of GENERAL MOTORS CORP.
  3. Connect the digital antenna connector to the receiver.
  4. Install the headliner. Refer to Headlining Trim Panel Replacement .
  5. Install the right rear body side garnish molding. Refer to Body Side Rear Upper Garnish Molding Replacement (w/TB5) or Body Side Rear Upper Garnish Molding Replacement (w/o TB5) .
  6. Install the right rear body side trim. Refer to Body Side Rear Trim Panel Replacement (w/TB5) or Body Side Rear Trim Panel Replacement (w/o TB5) .
