Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

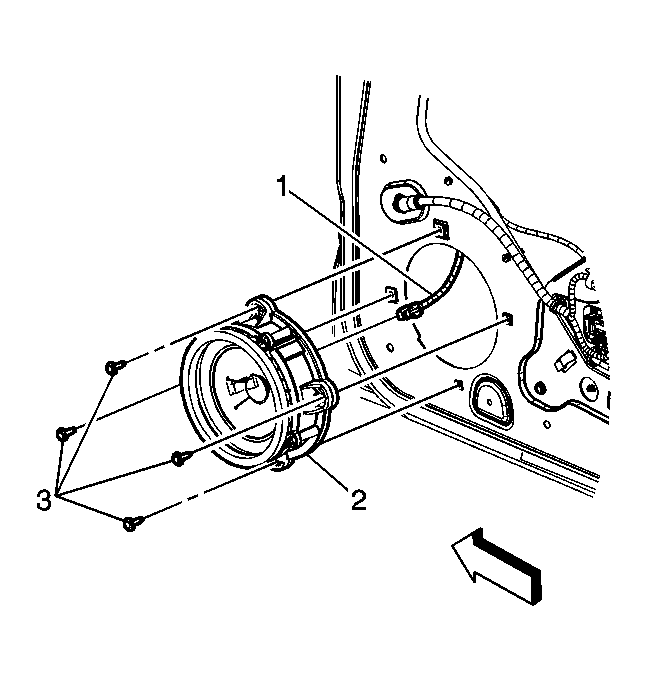

    Fig 1: Identifying Front Side Door Speaker
    GM1850862Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the speaker onto the door frame.
    NOTE: Refer to Fastener Notice .
  3. Install the screws (3) securing the speaker (2) to the door frame.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
