Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

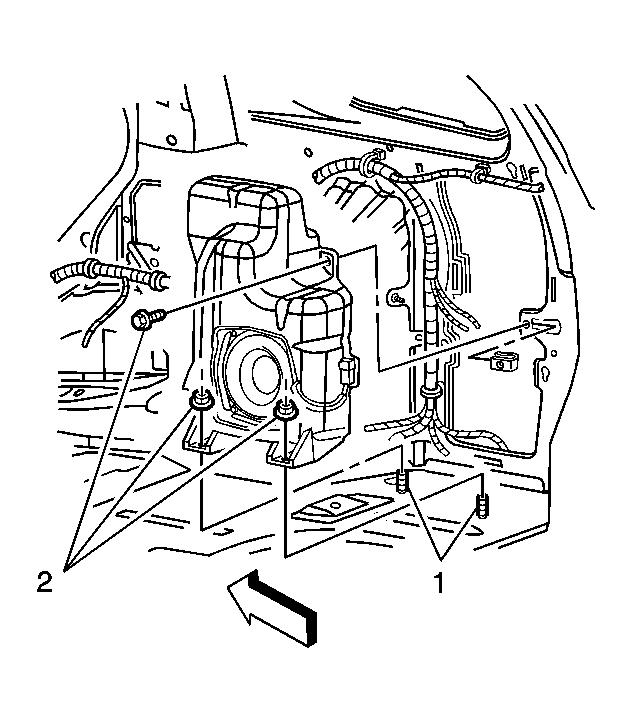

Fig 1: View Of Rear Speaker

Courtesy of GENERAL MOTORS CORP.

Locate the speaker onto the studs (1) on the vehicle floor.
Connect the electrical connector.

NOTE: Refer to Fastener Notice .

Install the fasteners (2) securing the speaker.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).
Install the body side trim panel. Refer to Body Side Rear Trim Panel Replacement (w/TB5) or Body Side Rear Trim Panel Replacement (w/o TB5) .
