Door Control Module Schematics

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

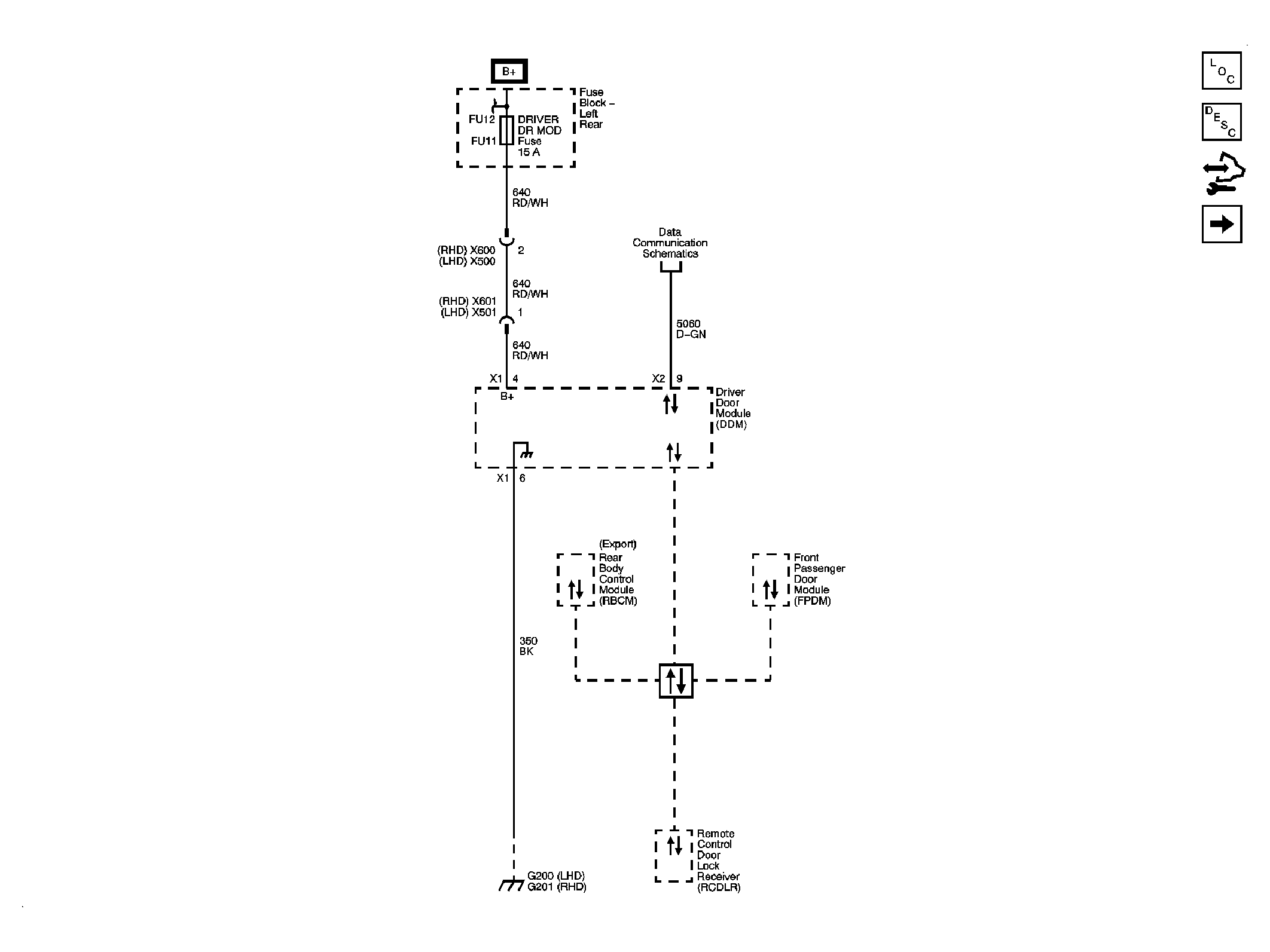

Fig 1: DDM Power, Ground and Serial Data
GM1874175Courtesy of GENERAL MOTORS CORP.

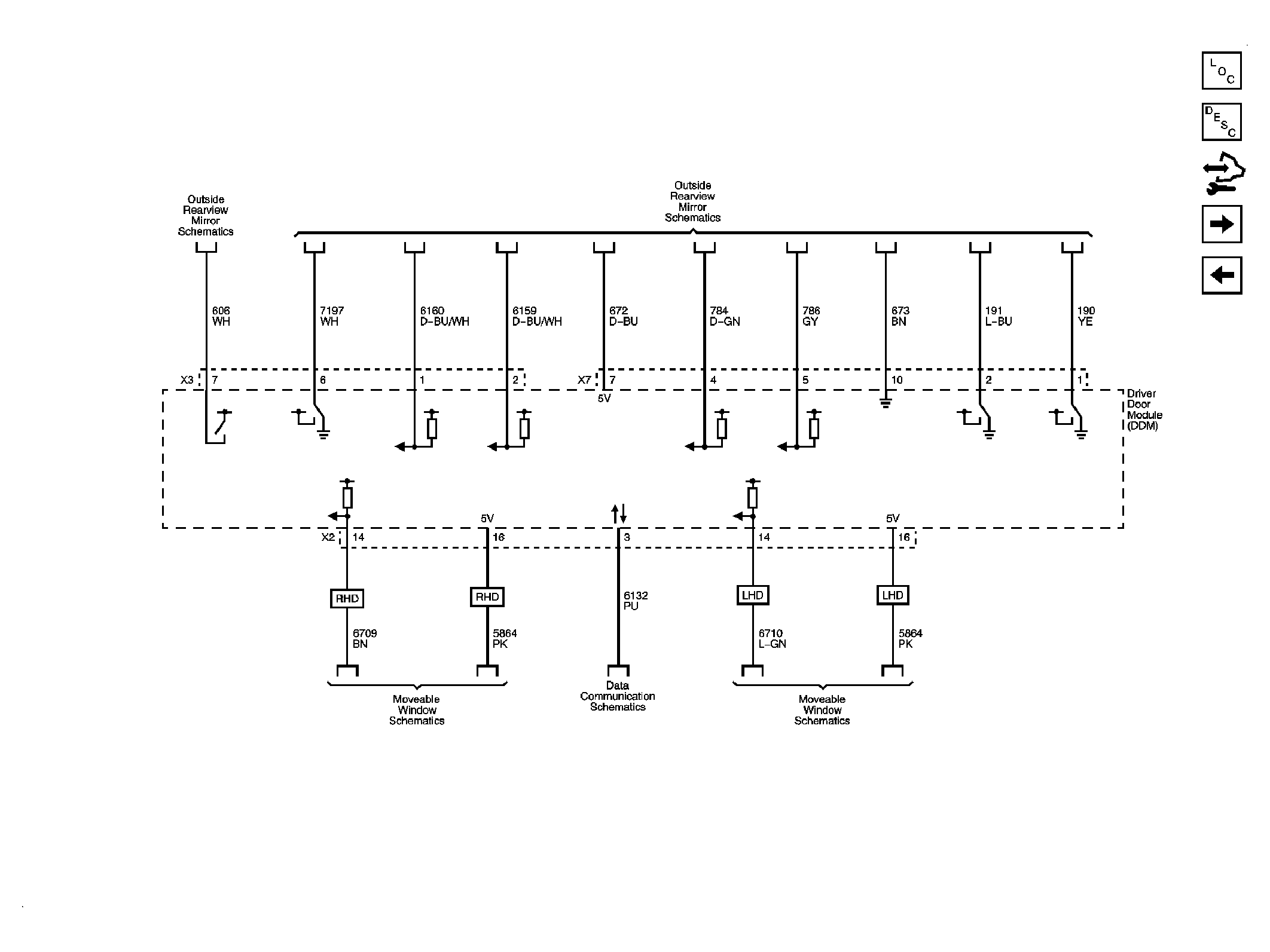

Fig 2: DDM Outside Rearview Mirror and Moveable Window References
GM1874177Courtesy of GENERAL MOTORS CORP.

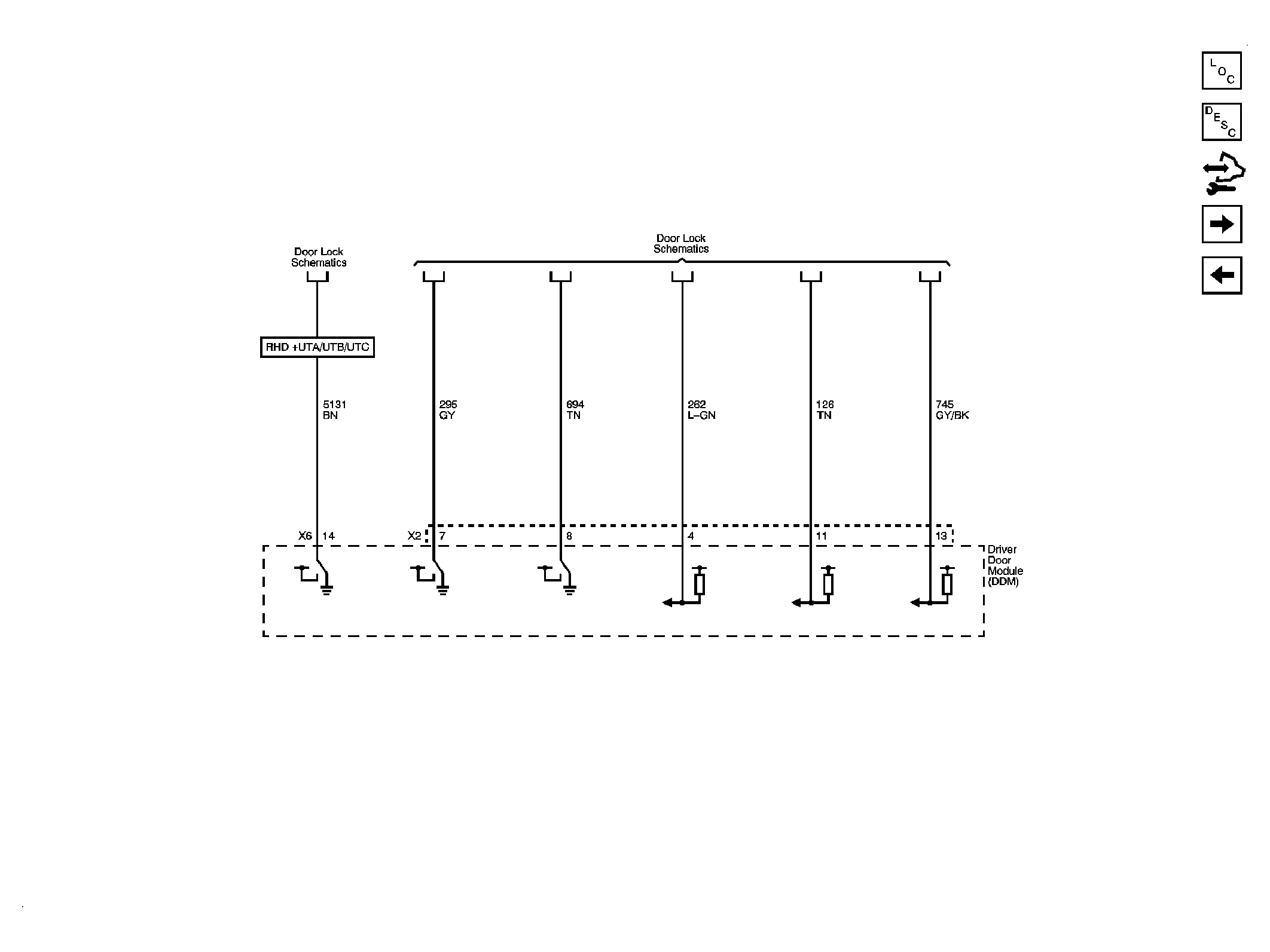

Fig 3: DDM Door Lock References
GM1874179Courtesy of GENERAL MOTORS CORP.

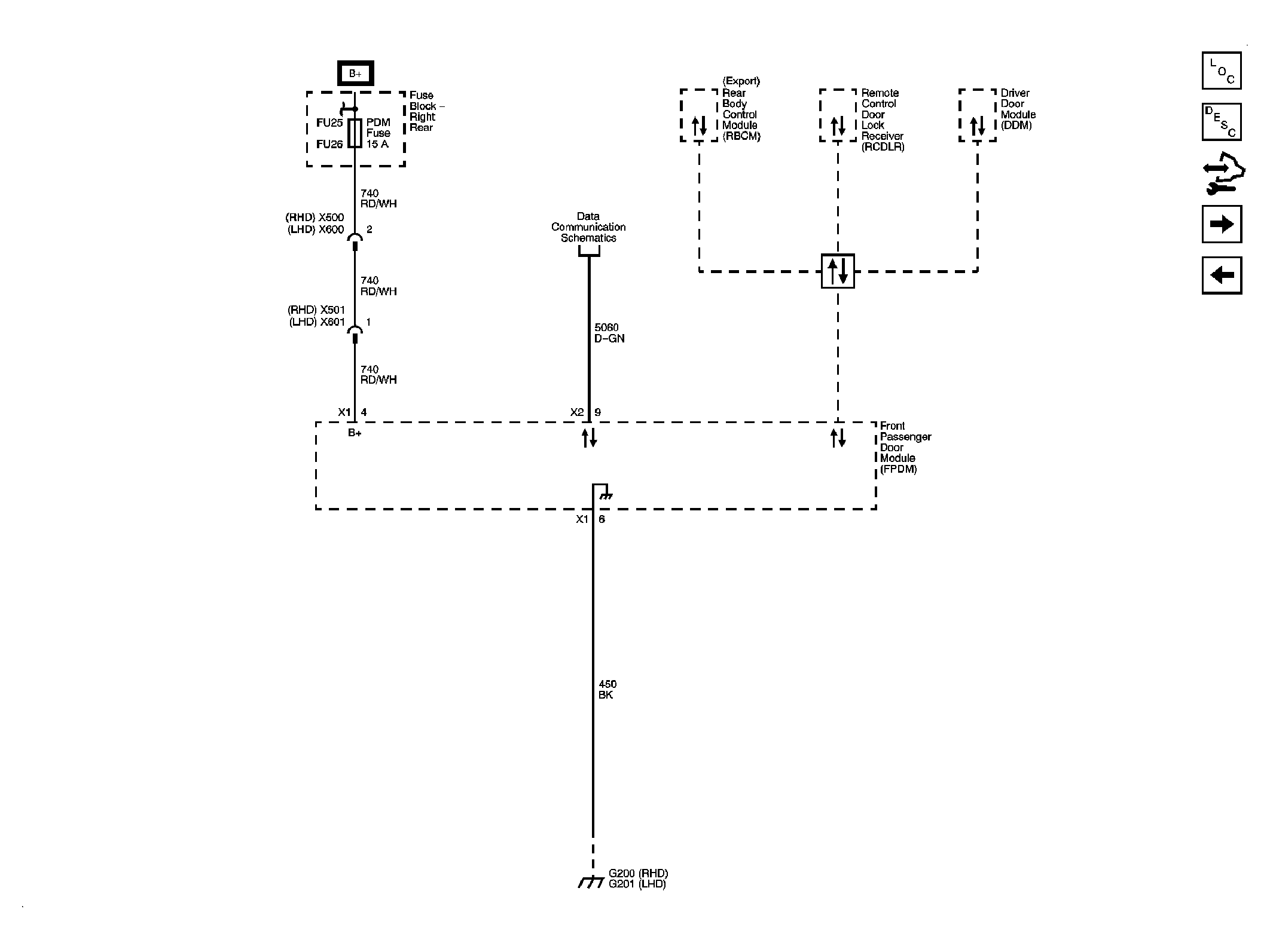

Fig 4: FPDM Power, Ground and Serial Data
GM1874184Courtesy of GENERAL MOTORS CORP.

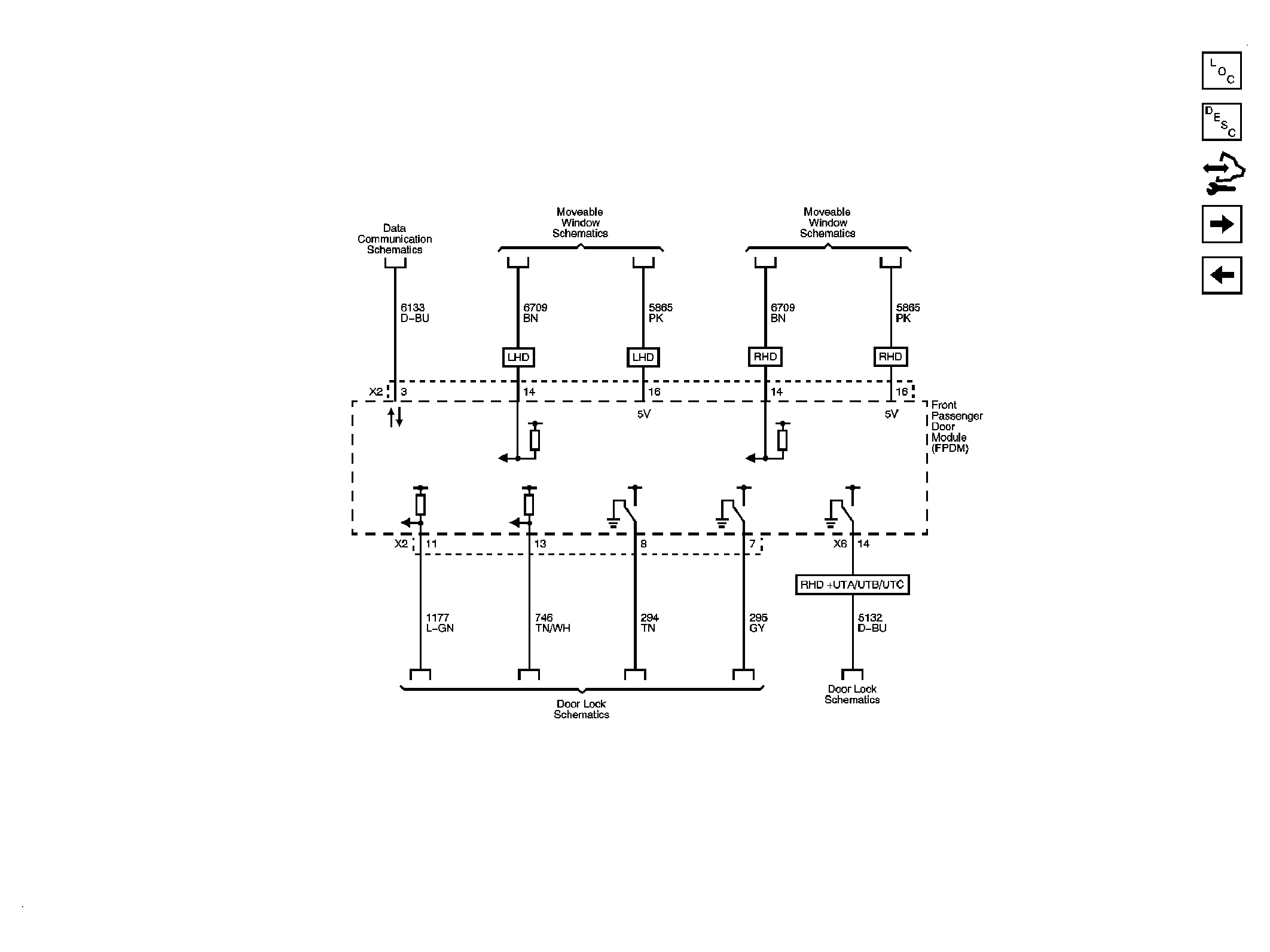

Fig 5: FPDM Moveable Window and Door Lock References
GM1874187Courtesy of GENERAL MOTORS CORP.

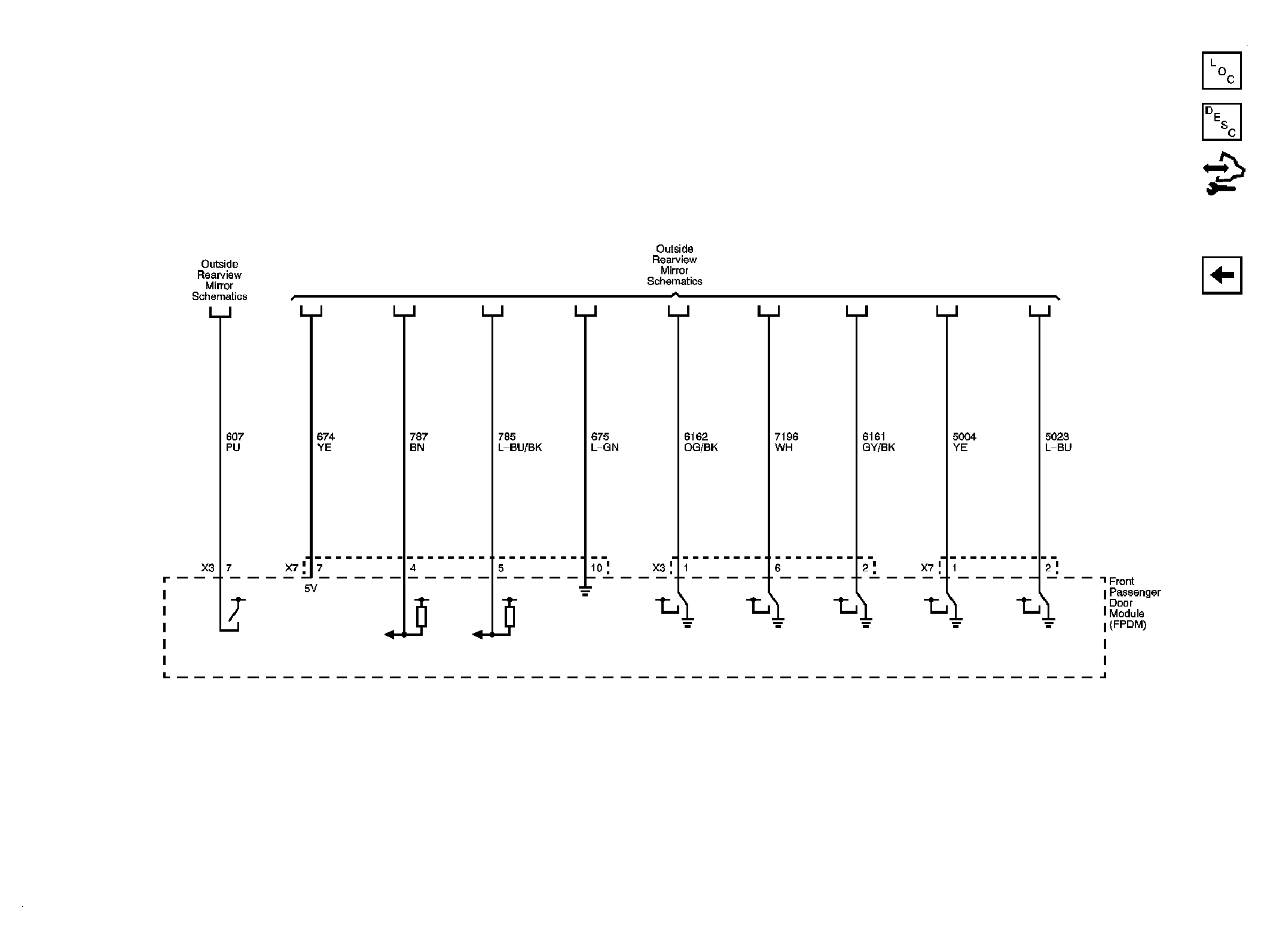

Fig 6: FPDM Outside Rearview Mirror References
GM1874189Courtesy of GENERAL MOTORS CORP.
