Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sensor to the vehicle.
  2. Bottom out the captured stud in the key hole.
  3. Rotate the sensor and bracket until the tab on the bracket bottoms out in the slot.

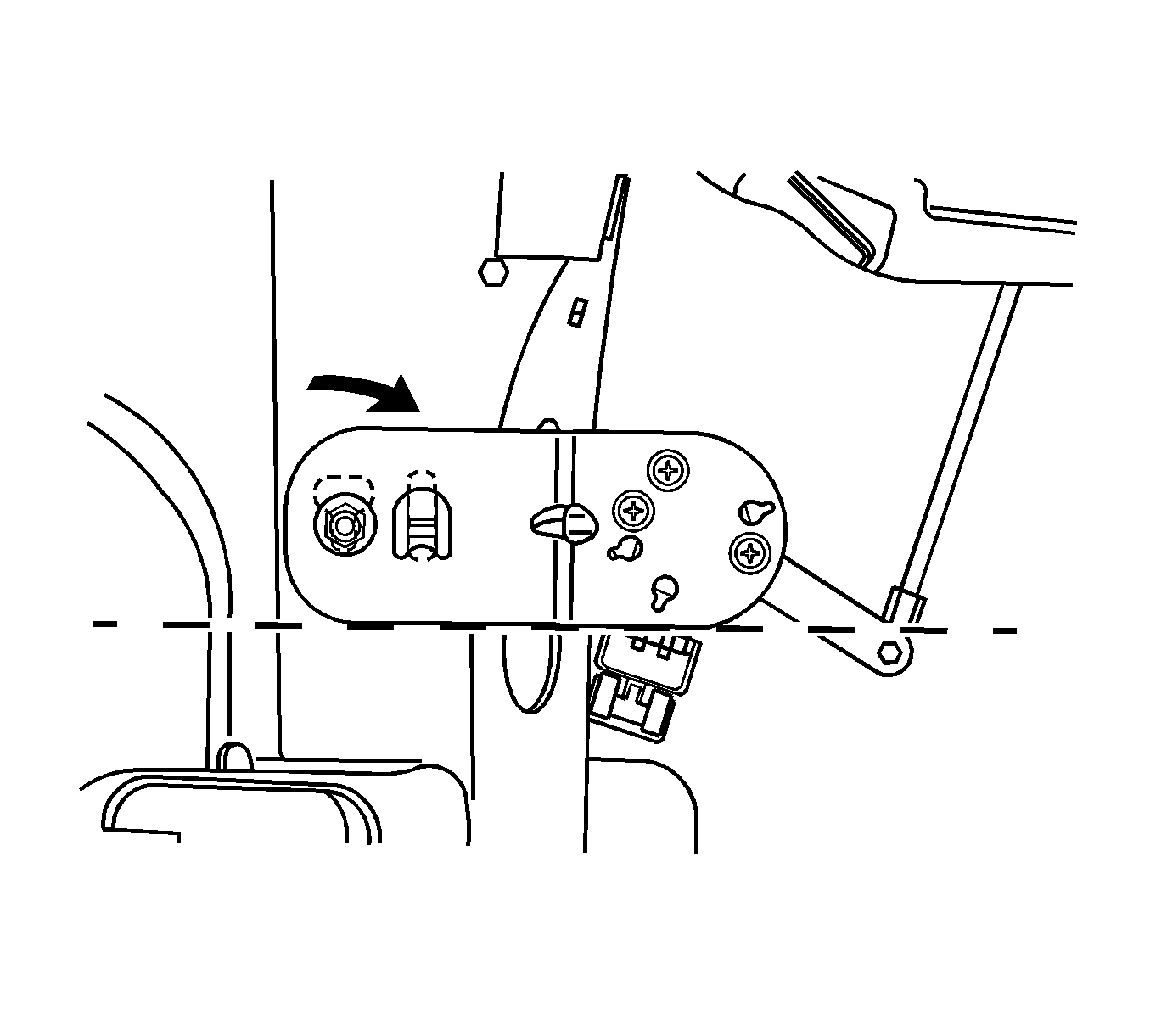

    Fig 1: View Of Rear Ride Sensor
    GM1371666Courtesy of GENERAL MOTORS CORP.
  4. If the sensor bracket is not yet level, continue to rotate it allowing the captured stud to lift slightly from the bottom of the keyhole, until the sensor is level.
  5. Install the ride height sensor retaining nut.

    Tighten:  Tighten the nut to 9 N.m (80 lb in).

    NOTE: Refer to Fastener Notice .
  6. Connect the ride sensor link to the upper control arm ball stud.
  7. Connect the ride sensor harness connector.
  8. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  9. Lower the vehicle.
