WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

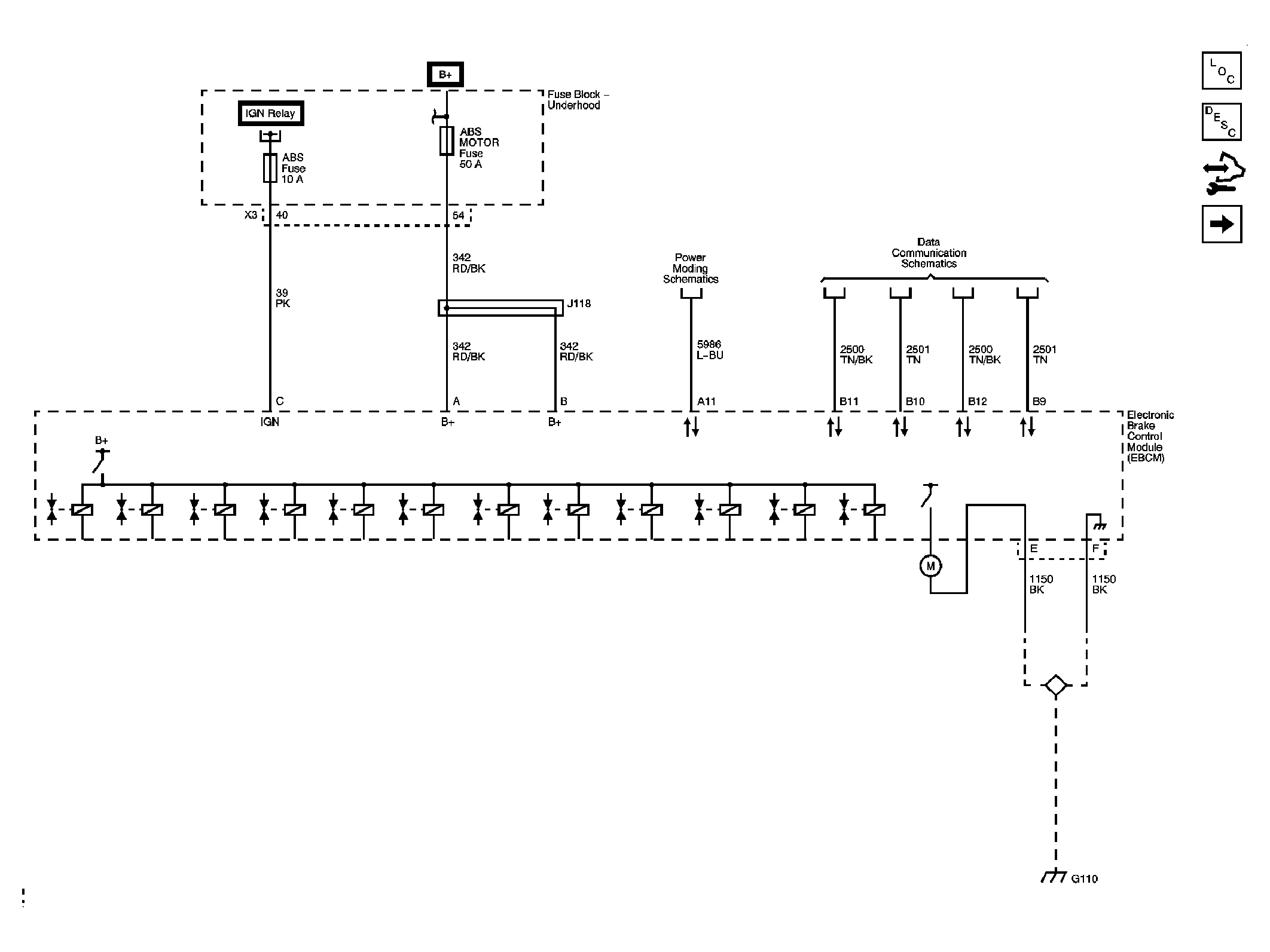

Fig 1: Power, Ground and Serial Data
Courtesy of GENERAL MOTORS CORP.

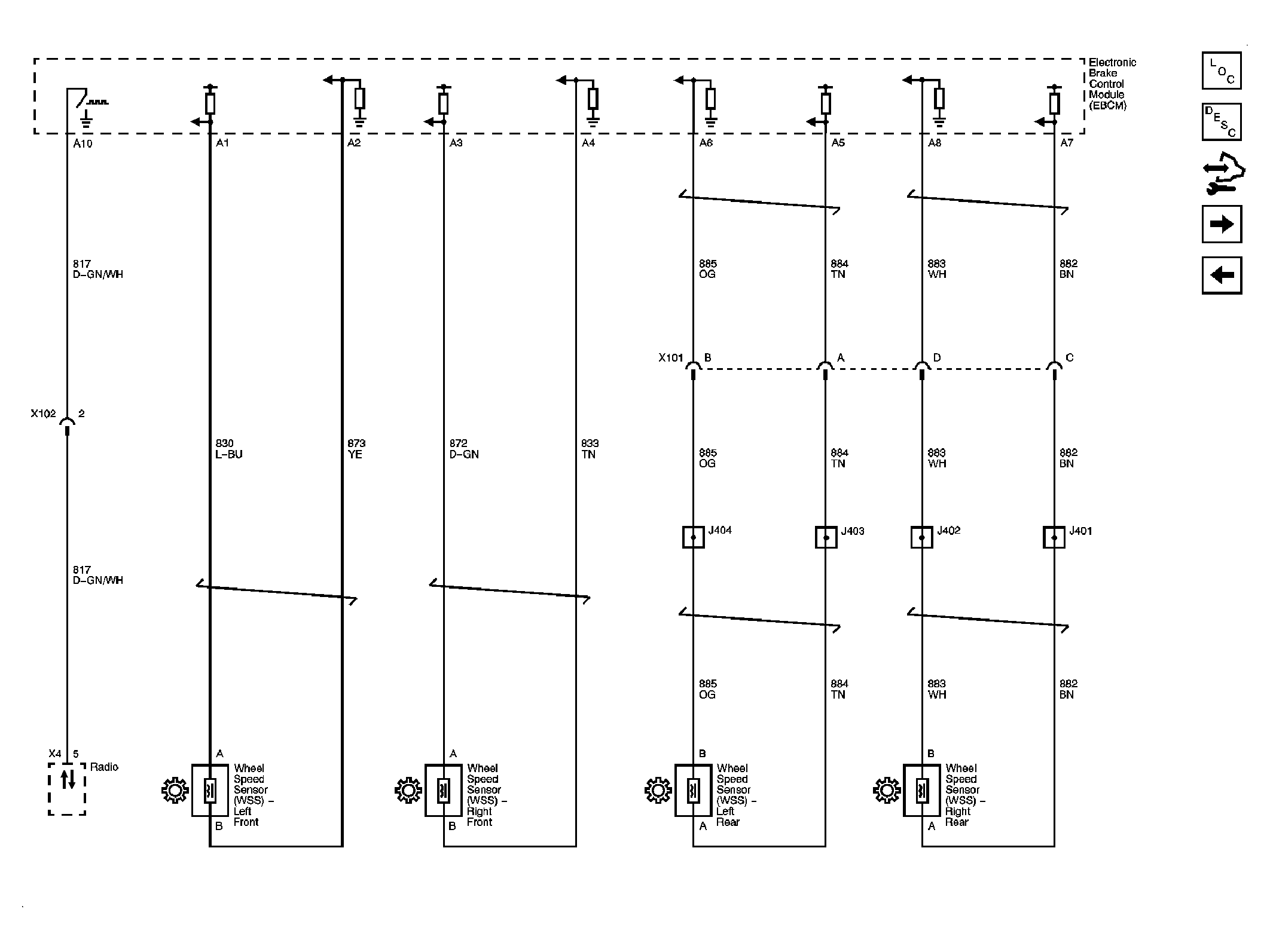

Fig 2: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

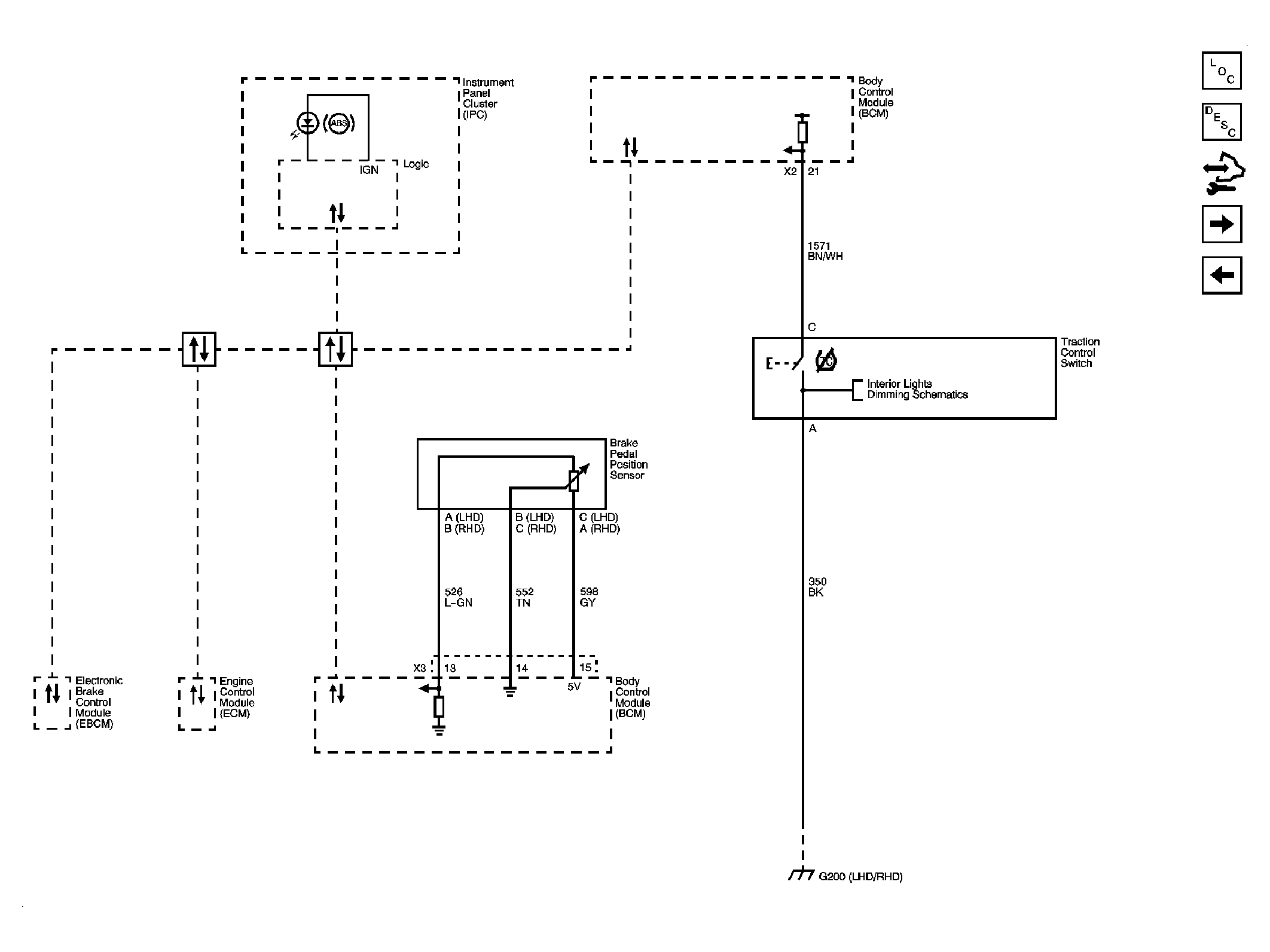

Fig 3: Indicator, Traction Control, and Brake Pedal Position
Courtesy of GENERAL MOTORS CORP.

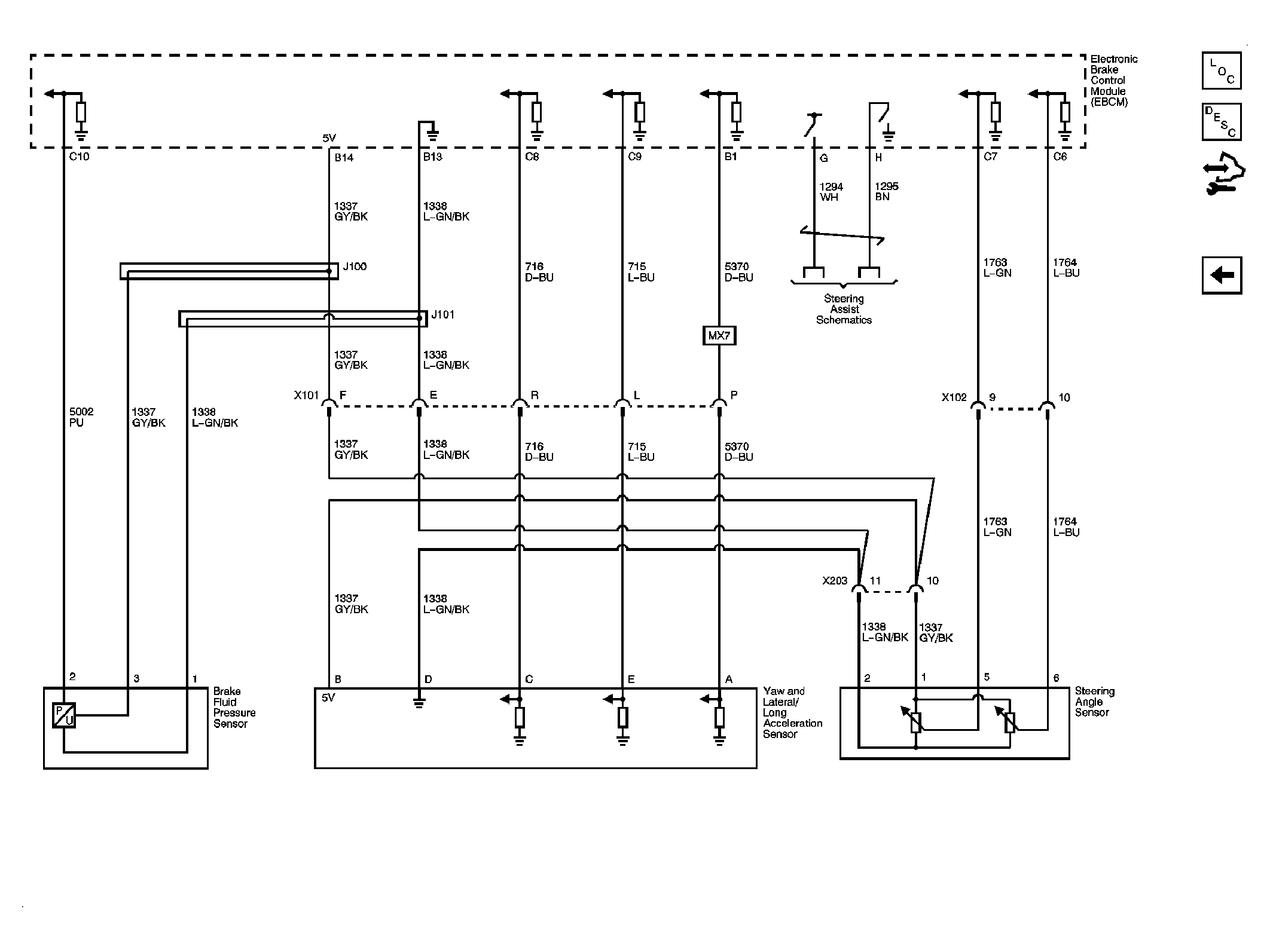

Fig 4: Stability Control System and Brake Fluid Pressure Sensor
