Seat Belt Component Views

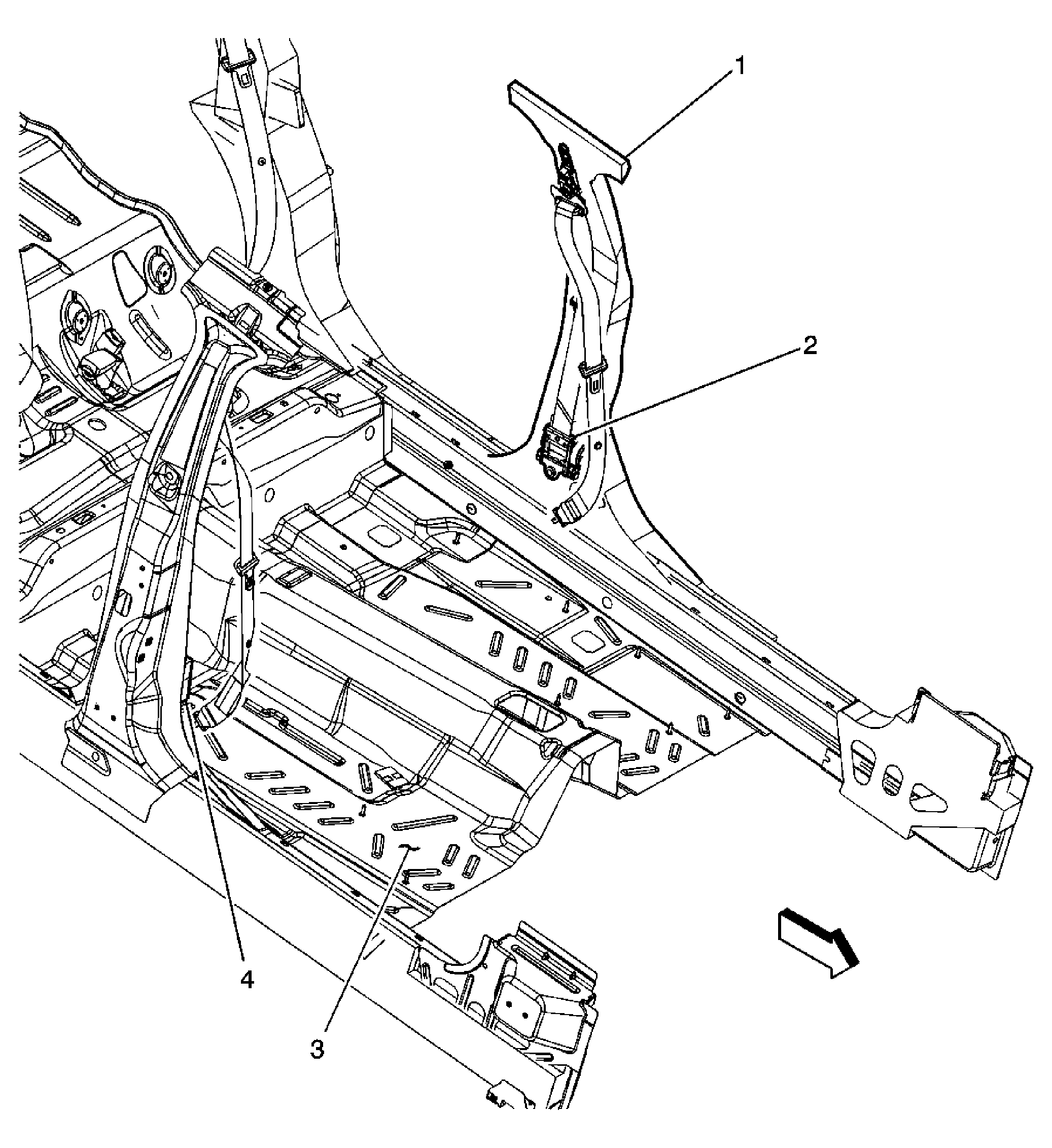

Fig 1: Seat Belt Retractors
GM1530177Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Side B-Pillar
2 Seat Belt Retractor-LF
3 Floor Panel
4 Seat Belt Retractor-RF

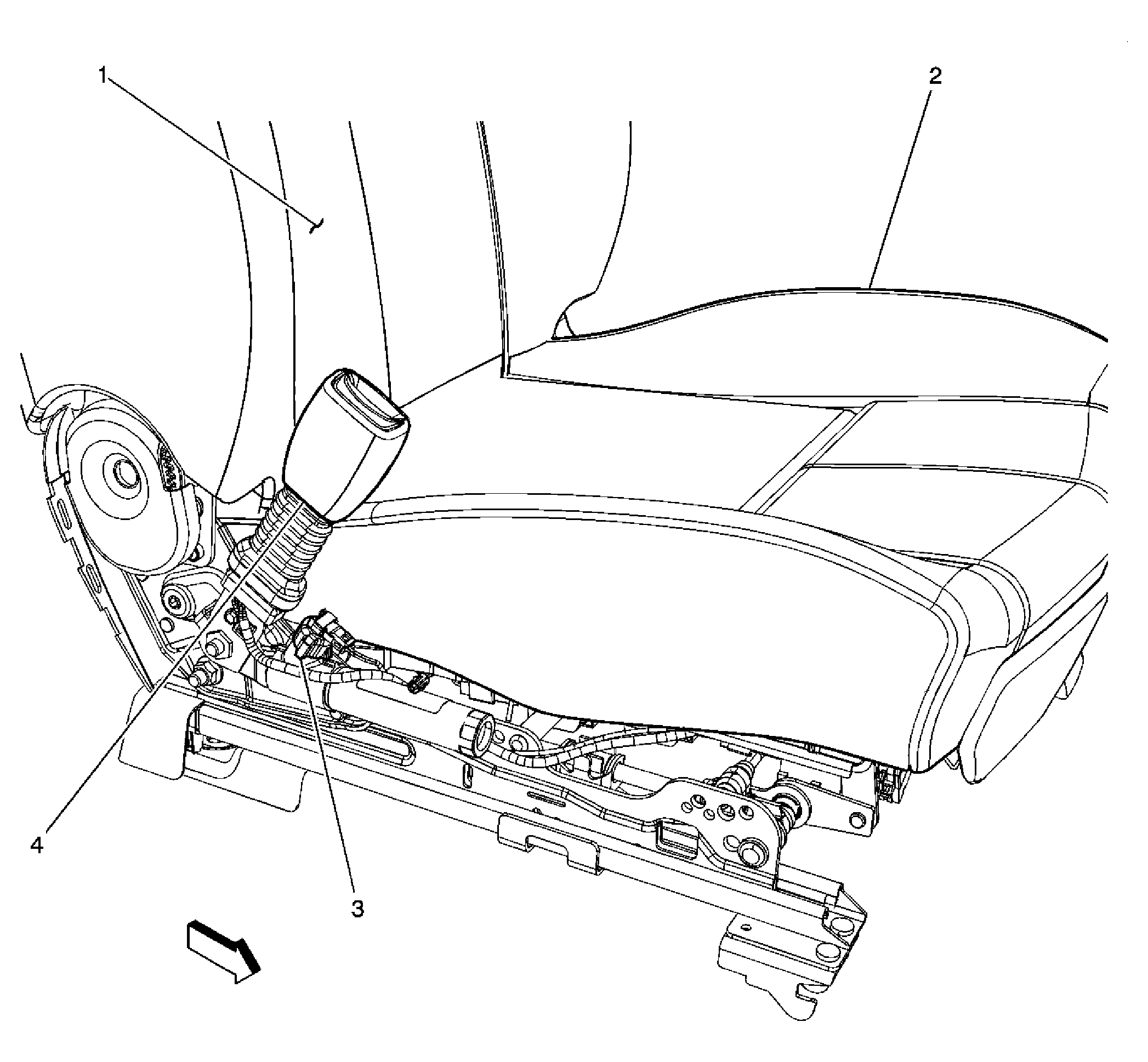

Fig 2: Seat Belt Switch and Pretensioner - Left Front Component Views
GM1530180Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Back
2 Seat Cushion
3 Inflatable Restraint Seat Belt Pretensioner - LF
4 Seat Belt Switch - LF

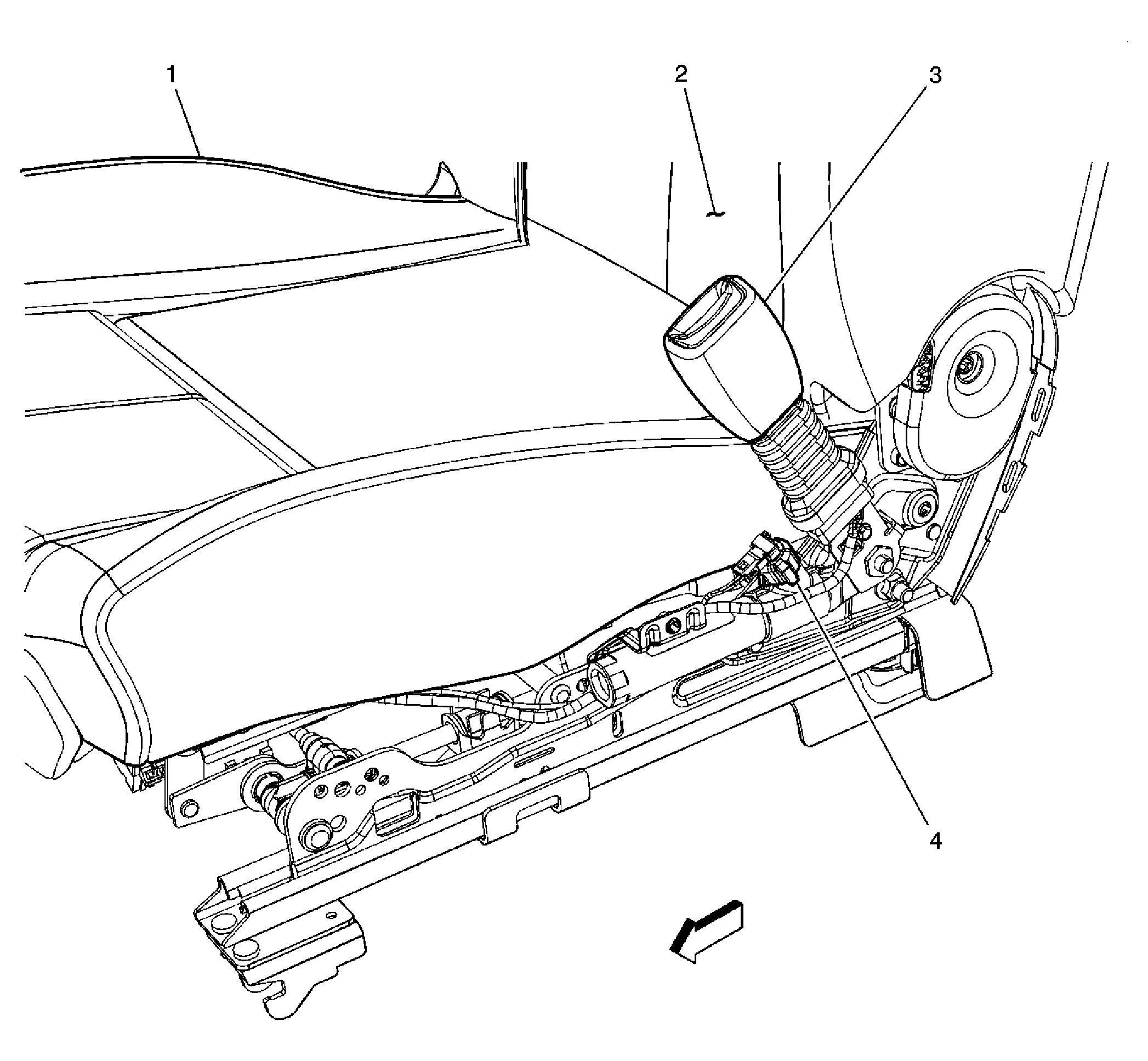

Fig 3: Seat Belt and Pretensioner - Right Front Component Views
GM1530179Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Cushion
2 Seat Back
3 Seat Belt Switch - RF
4 Inflatable Restraint Seat Belt Pretensioner - RF
