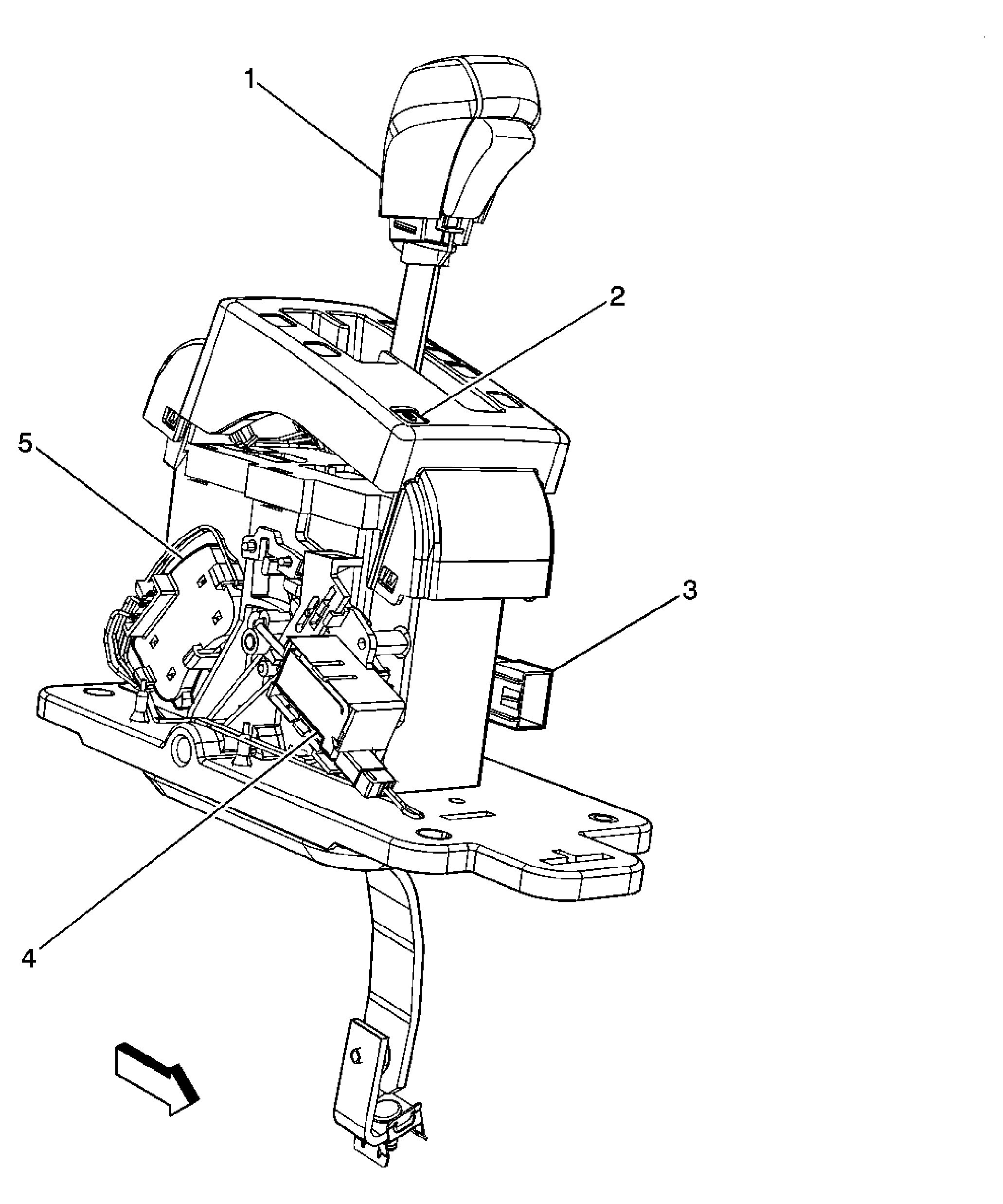

Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Automatic Transmission Shifter Control |
| 2 |
Tap Up/Tap Down Trans Enable Switch |
| 3 |
Automatic Transmission Shift Control Connector |
| 4 |
A/T Shift Lock Control Solenoid |
| 5 |
Tap Up/Tap Down Switch |
