Steering Column Fuse Block

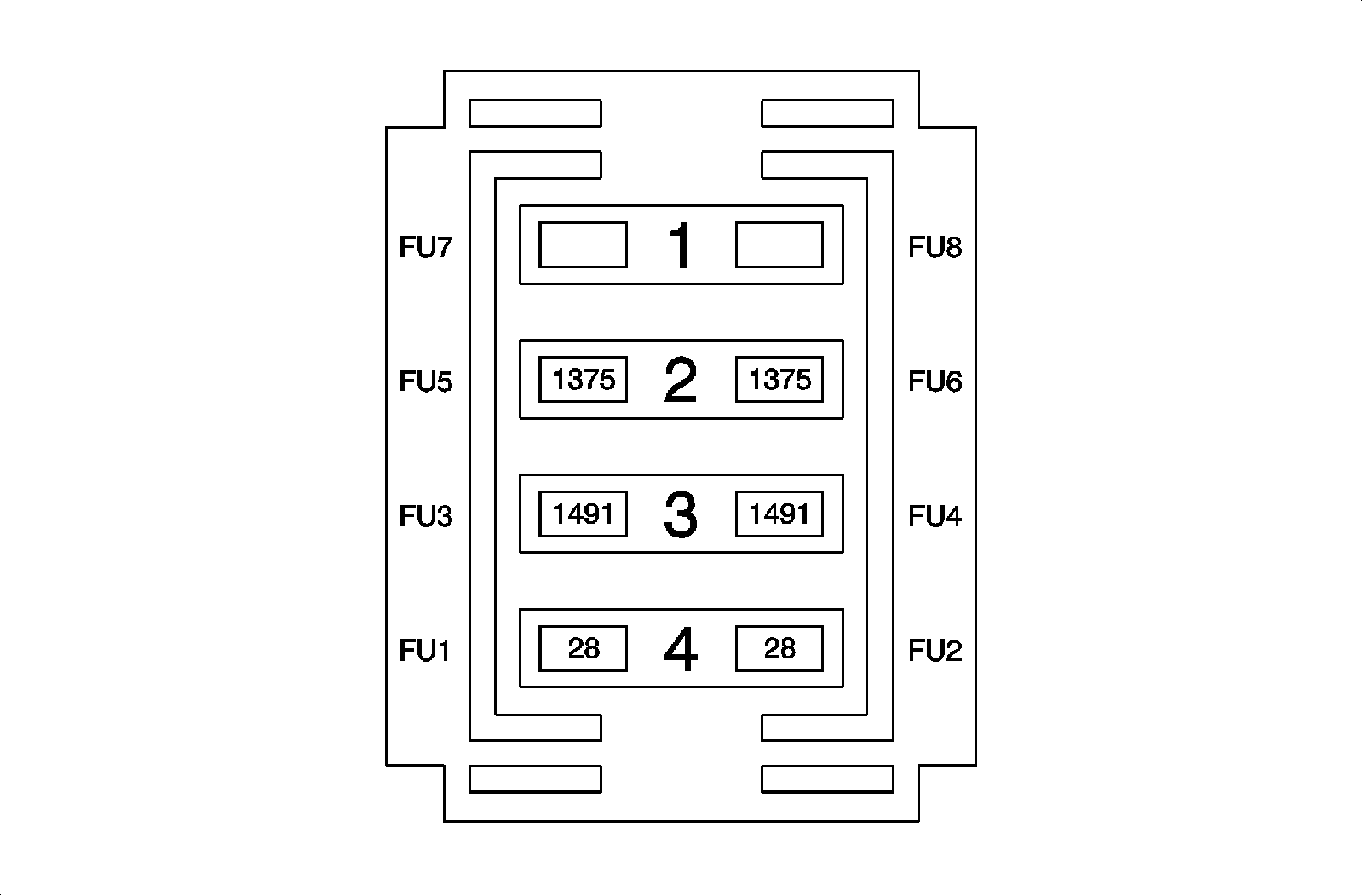

Electrical Center Identification Views

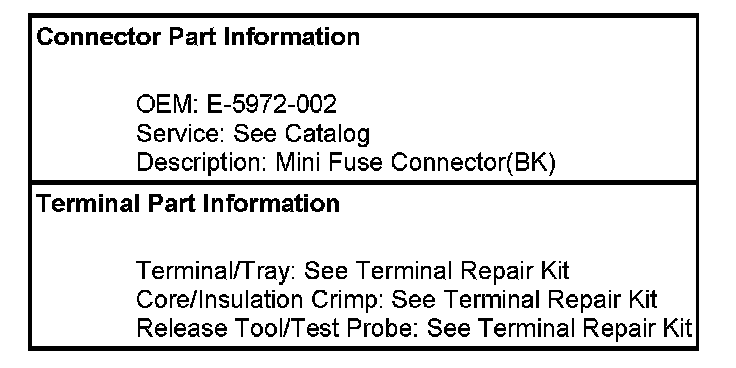

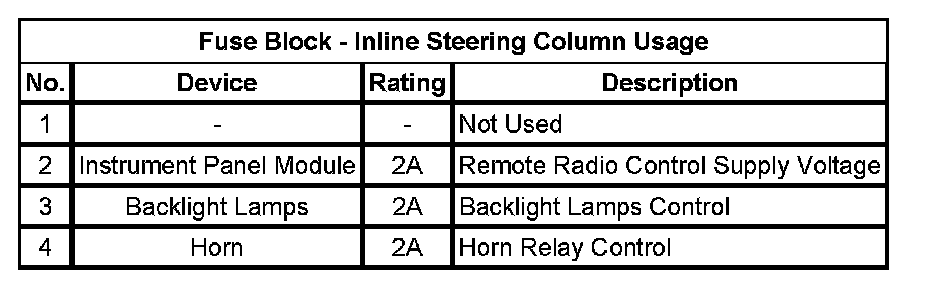

Fuse Block - Steering Column Fuse Box or Holder

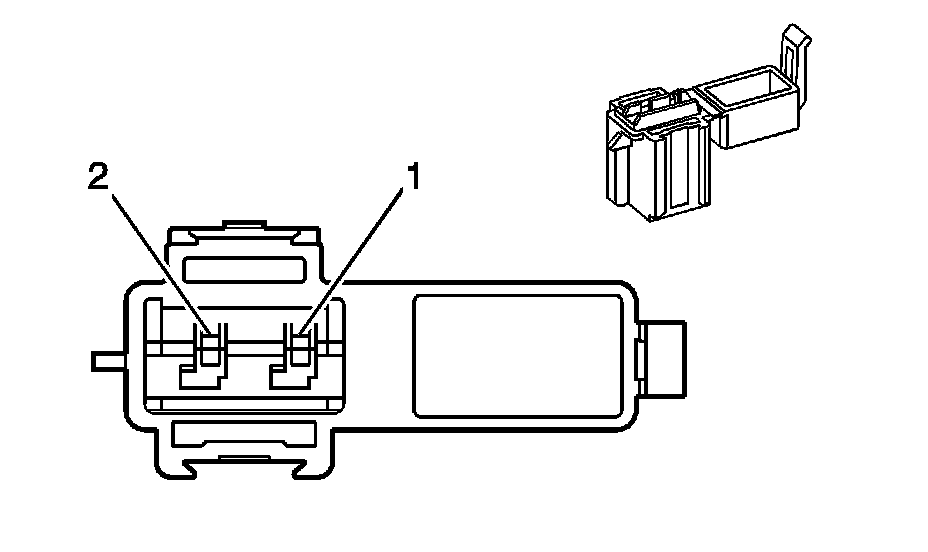

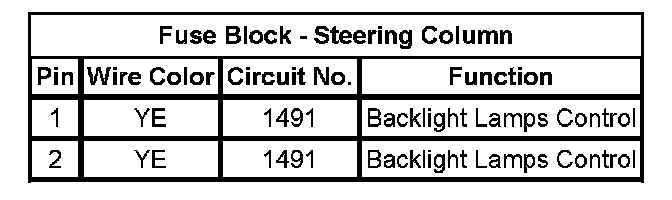

Fuse Block - Steering Column
