Door Control Module Diagrams



Door Control Module Schematics

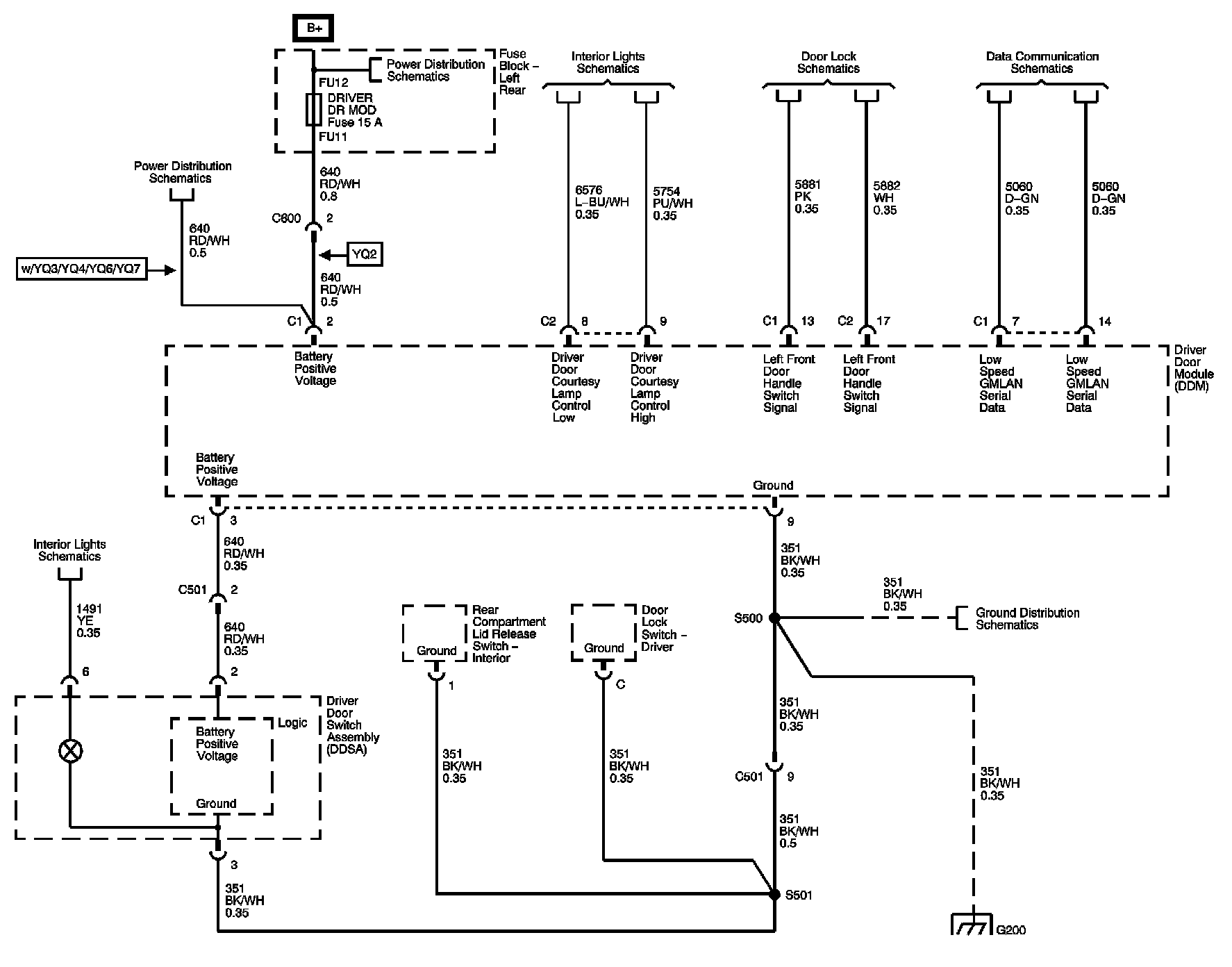

DDM Power, Ground and DLC

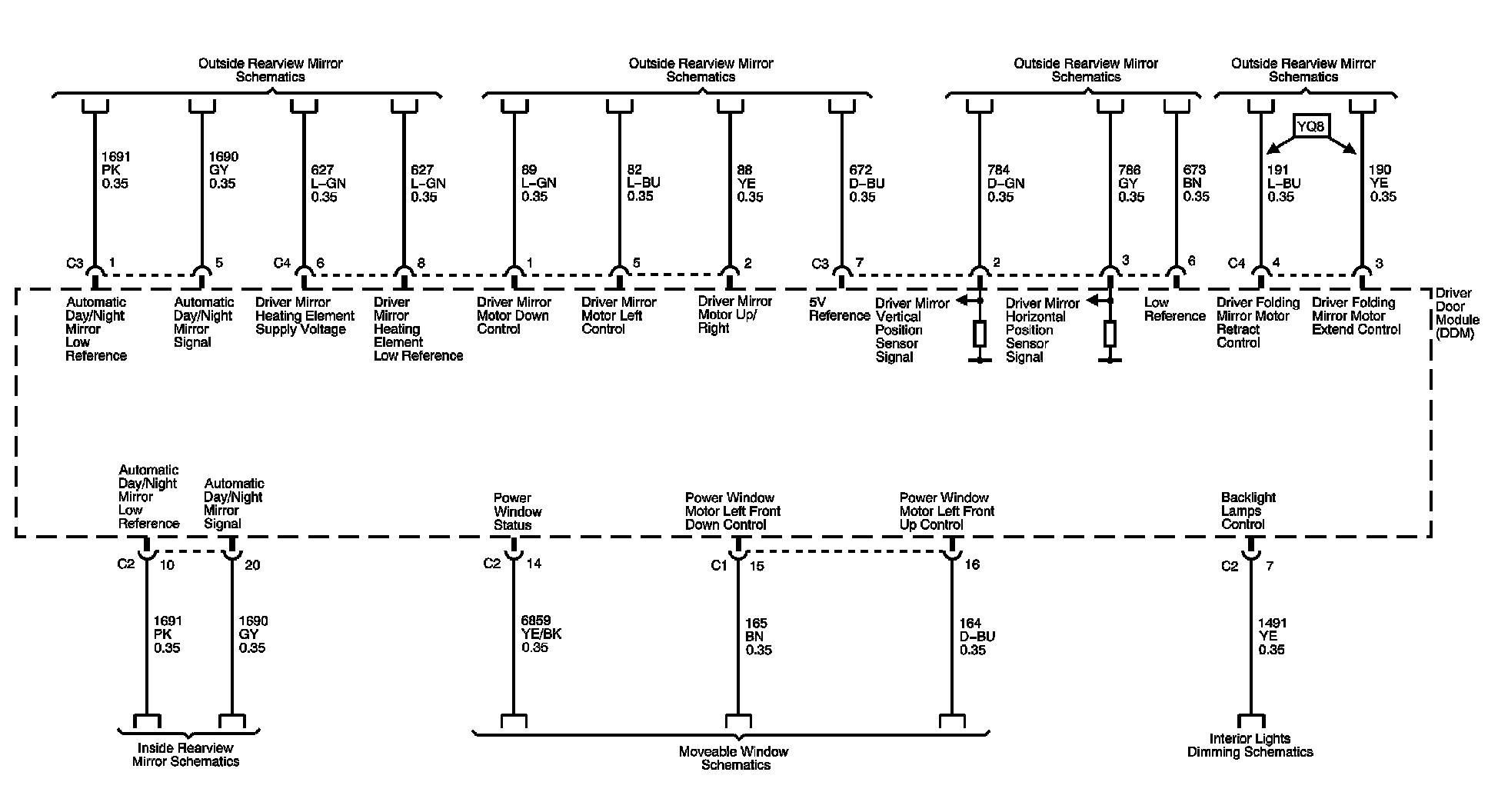

DDM Signals/Controls 1 of 2






DDM Signals/Controls 2 of 2






FPDM Power, Ground and DLC

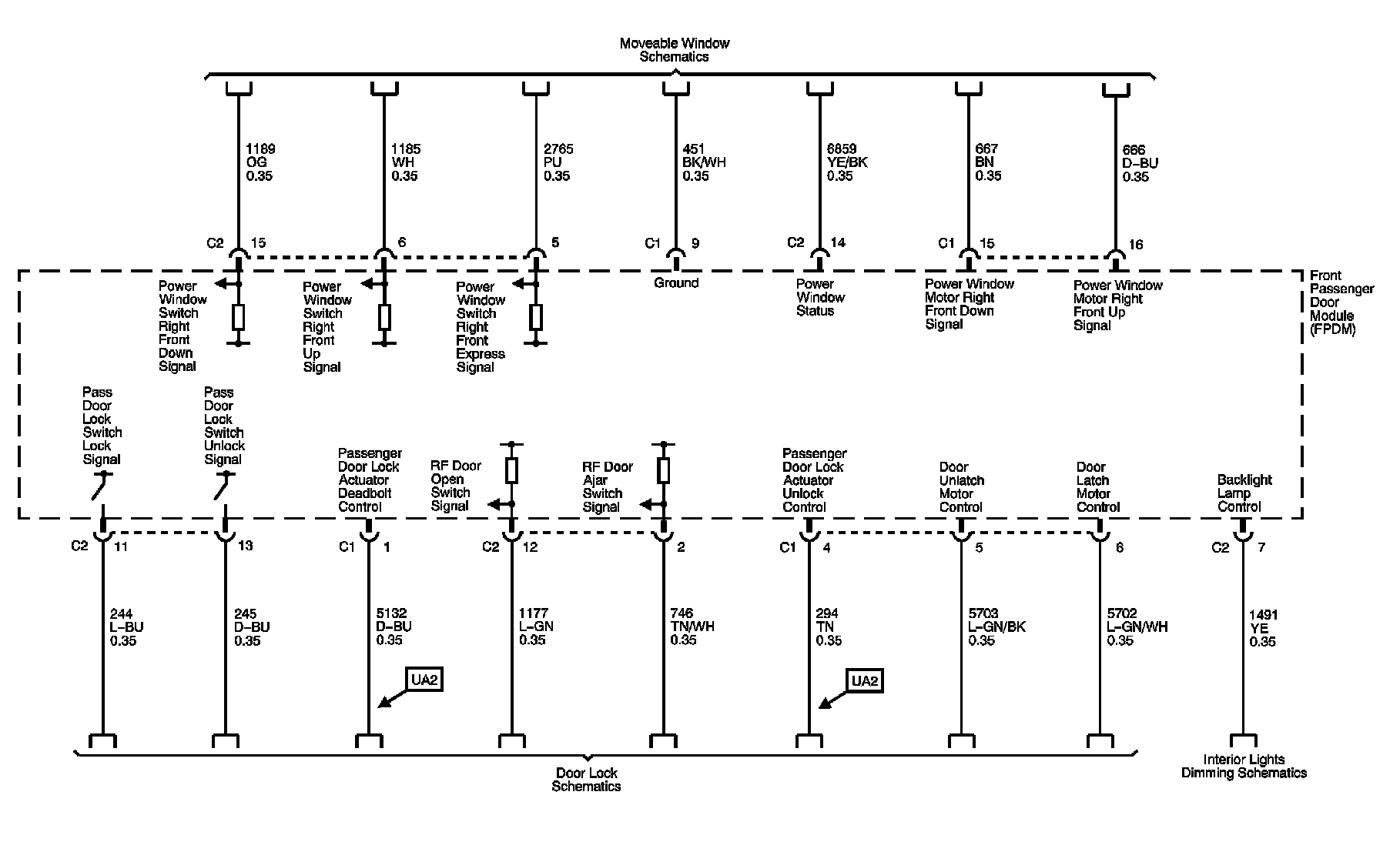

FPDM Signals/Controls 1 of 2






FPDM Signals/Controls 2 of 2






LRDM Power, Ground and DLC

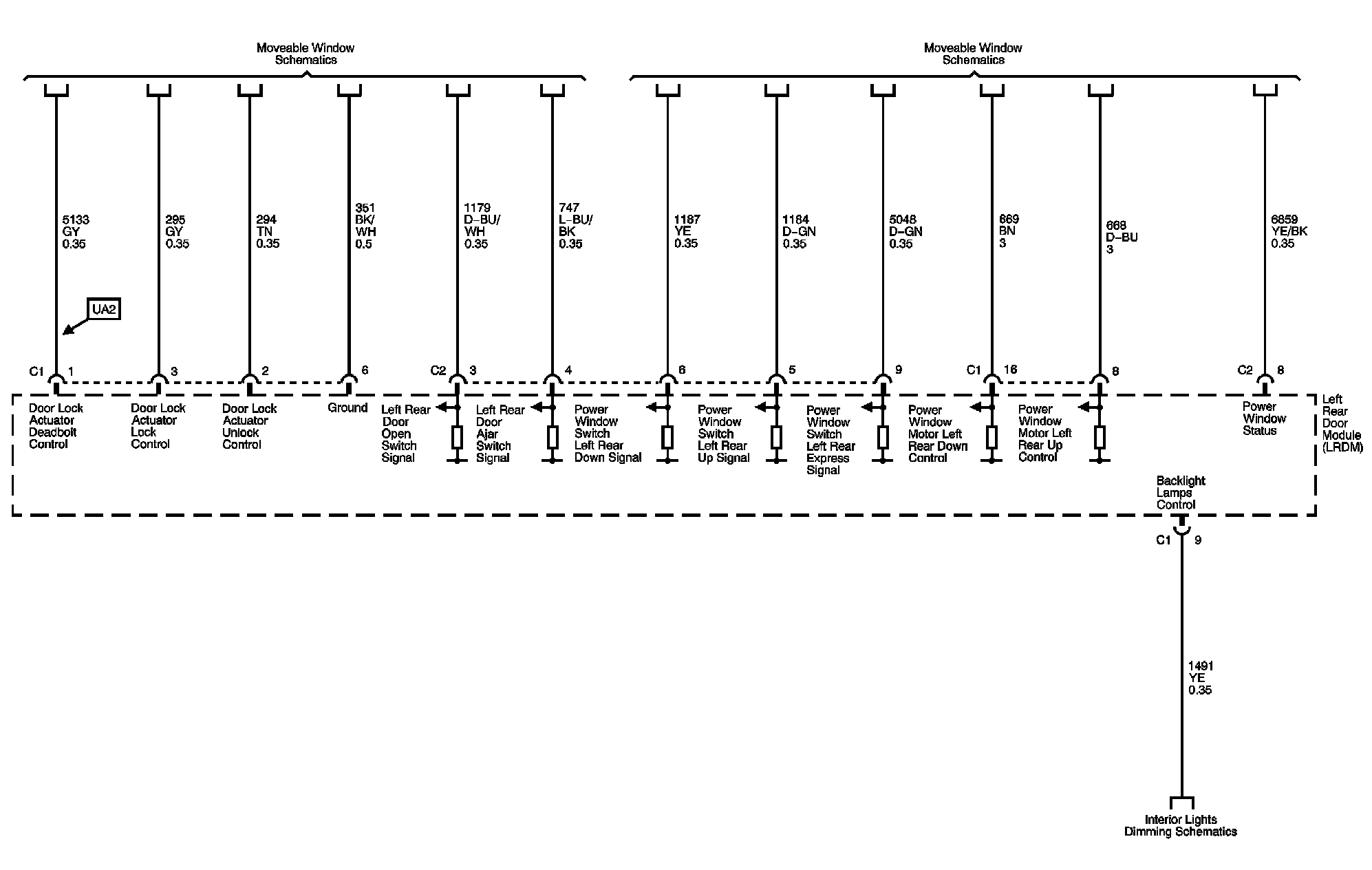

LRDM Signals/Controls






RRDM Power, Ground and DLC

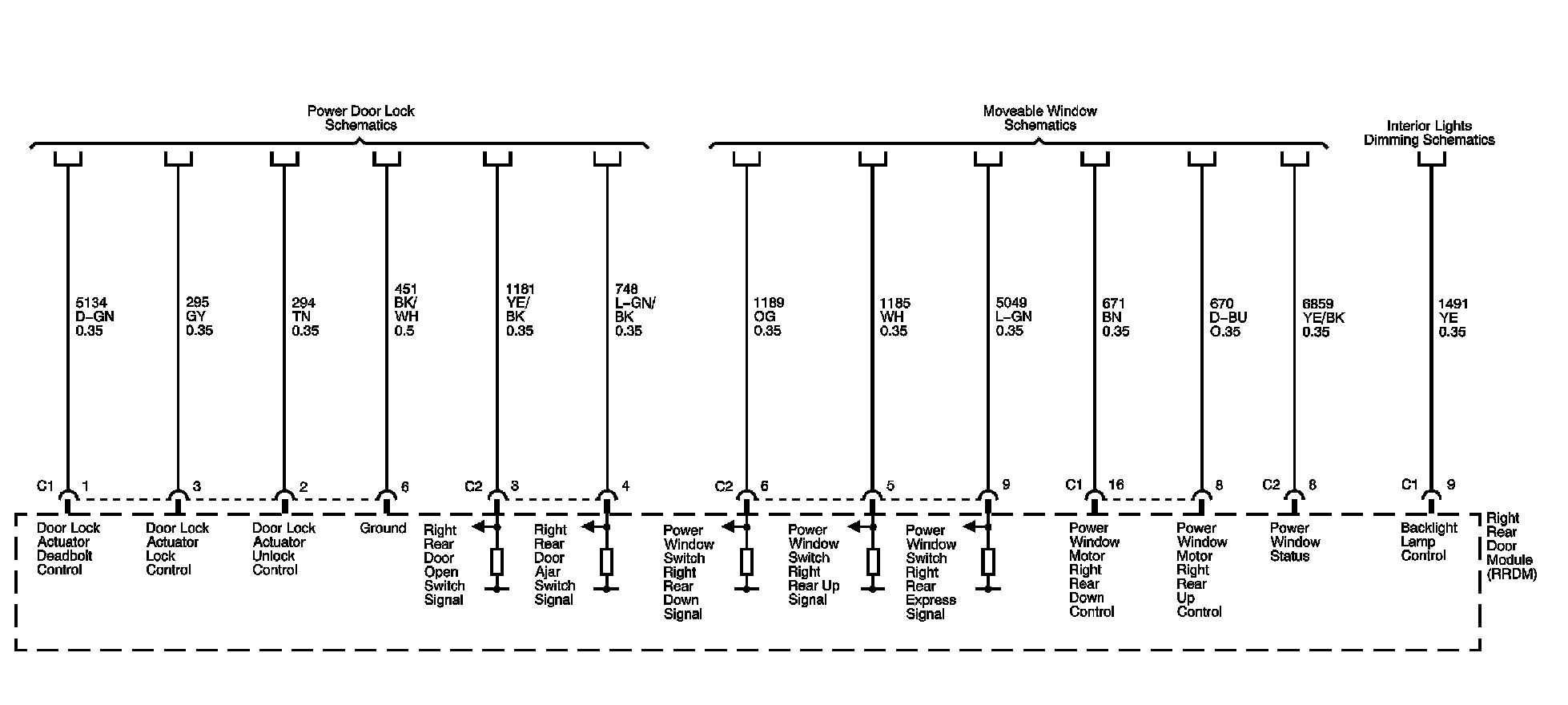

RRDM Signals/Controls
