Tire Monitoring System



Tire Pressure Monitoring System Schematics

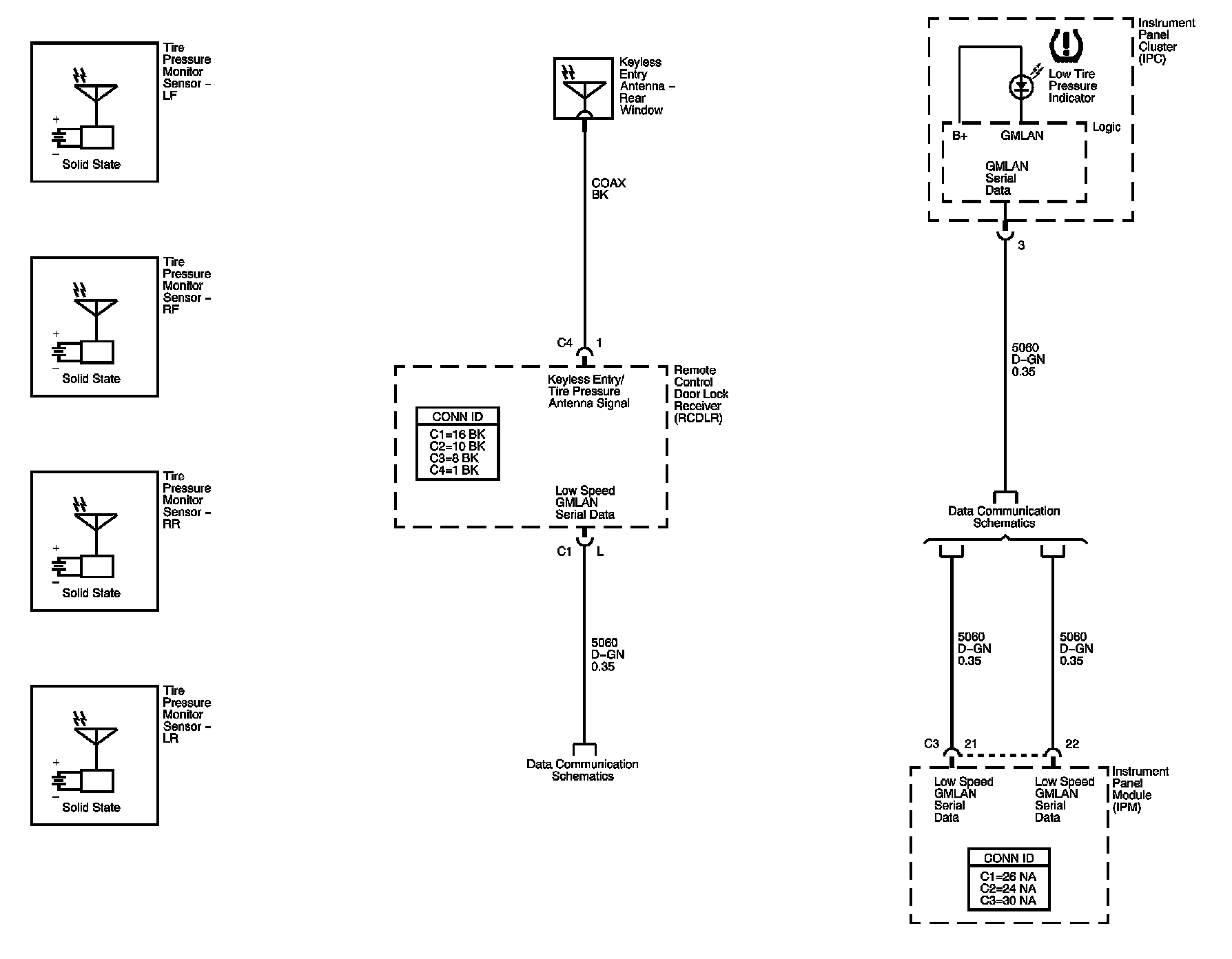

Tire Pressure Monitoring System Schematics 1:

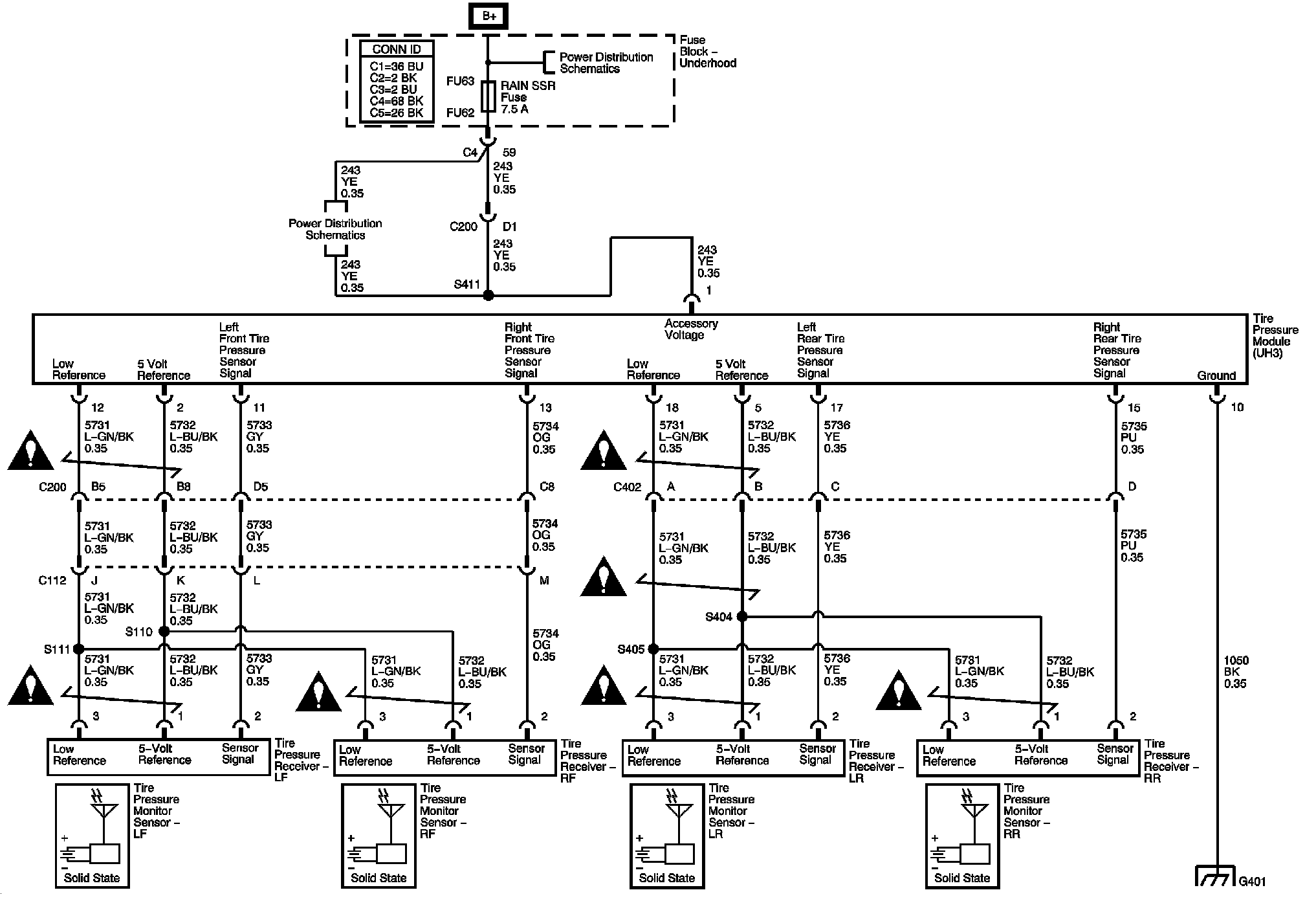

Tire Pressure Monitoring System Schematics 2:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
