Turn Signal Multifunction Switch Replacement

Turn Signal Multifunction Switch Replacement

Removal Procedure

Caution: Refer to Restraint System Service Precautions.

1. Disable the SIR system. Refer to SIR Disabling and Enabling.
2. Remove the steering column trim covers.

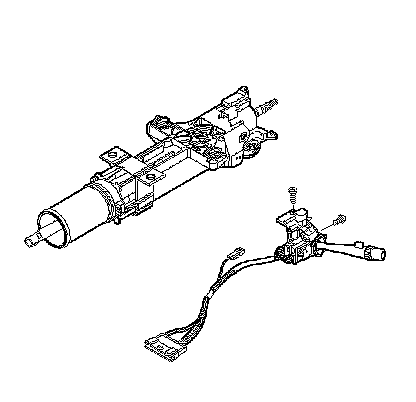

3. Remove the retaining screws from the multifunction switch.
4. Disconnect the multifunction switch electrical connections.
5. Remove the multifunction switch.

Installation Procedure

1. Connect the multifunction switch electrical connectors.
2. Install the multifunction switch to the steering column.





Notice: Refer to Fastener Notice.

3. Install the retaining screws to the multifunction switch.

Tighten the screws to 7 N.m (62 lb in).

4. Install the steering column trim covers.
5. Enable the SIR system. Refer to SIR Disabling and Enabling.
