Radio/Navigation System Schematics

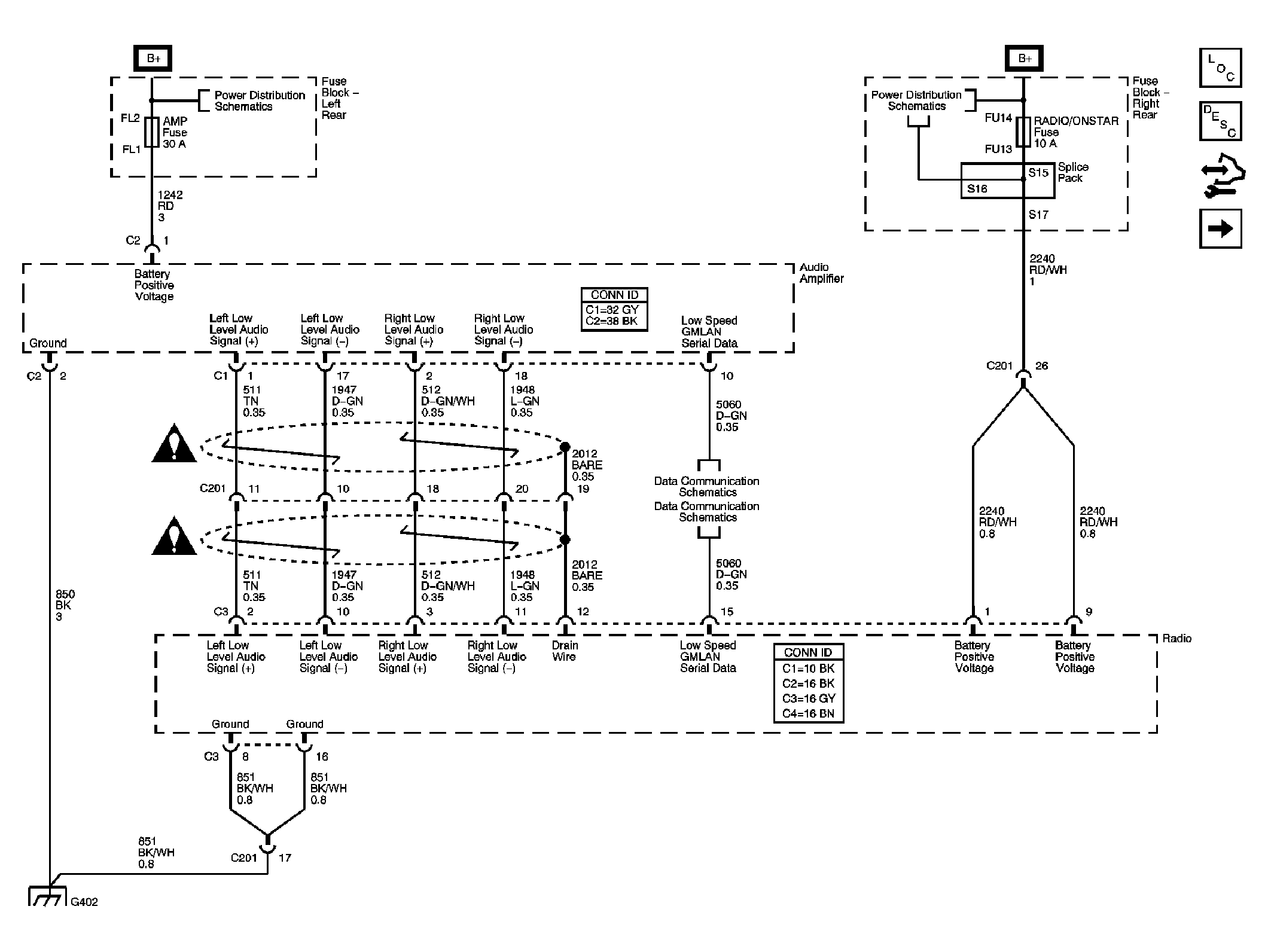

Fig 1: Radio Power, Ground, DLC and Audio Communications Schematic

Courtesy of GENERAL MOTORS CORP.

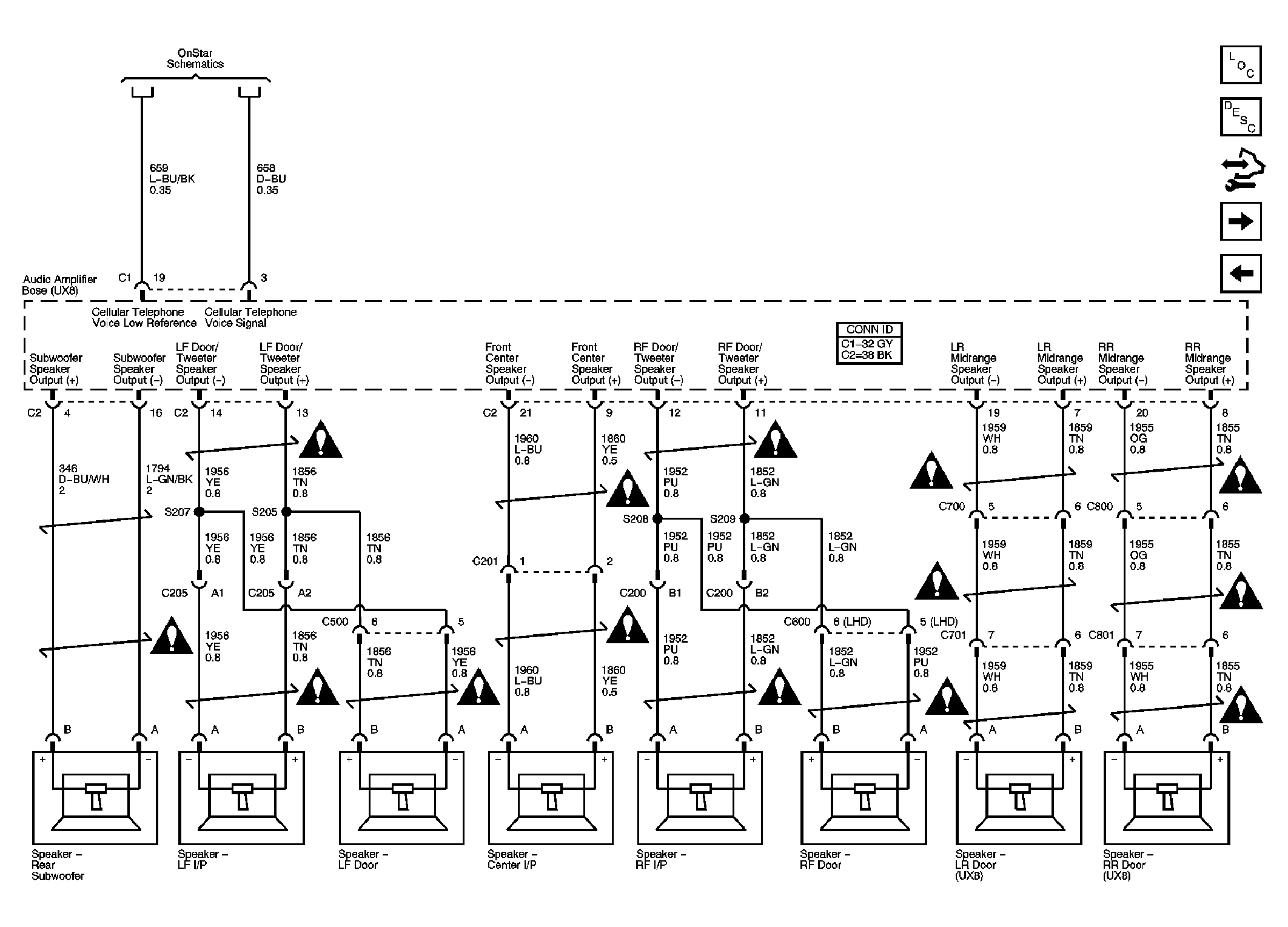

Fig 2: Speakers - w/UX8 Schematic

Courtesy of GENERAL MOTORS CORP.

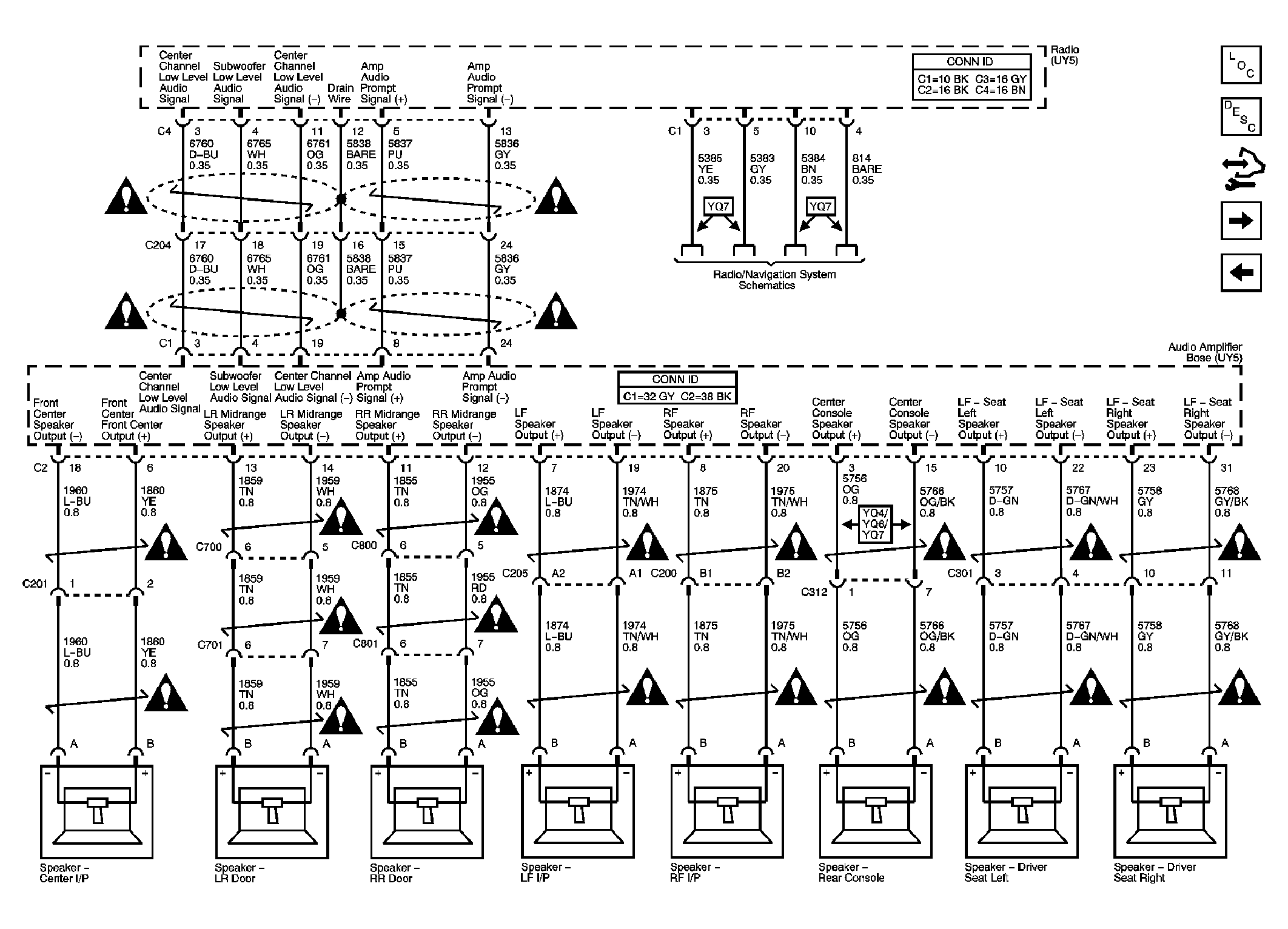

Fig 3: Speakers (w/UY5) 1 of 3 Schematic

Courtesy of GENERAL MOTORS CORP.

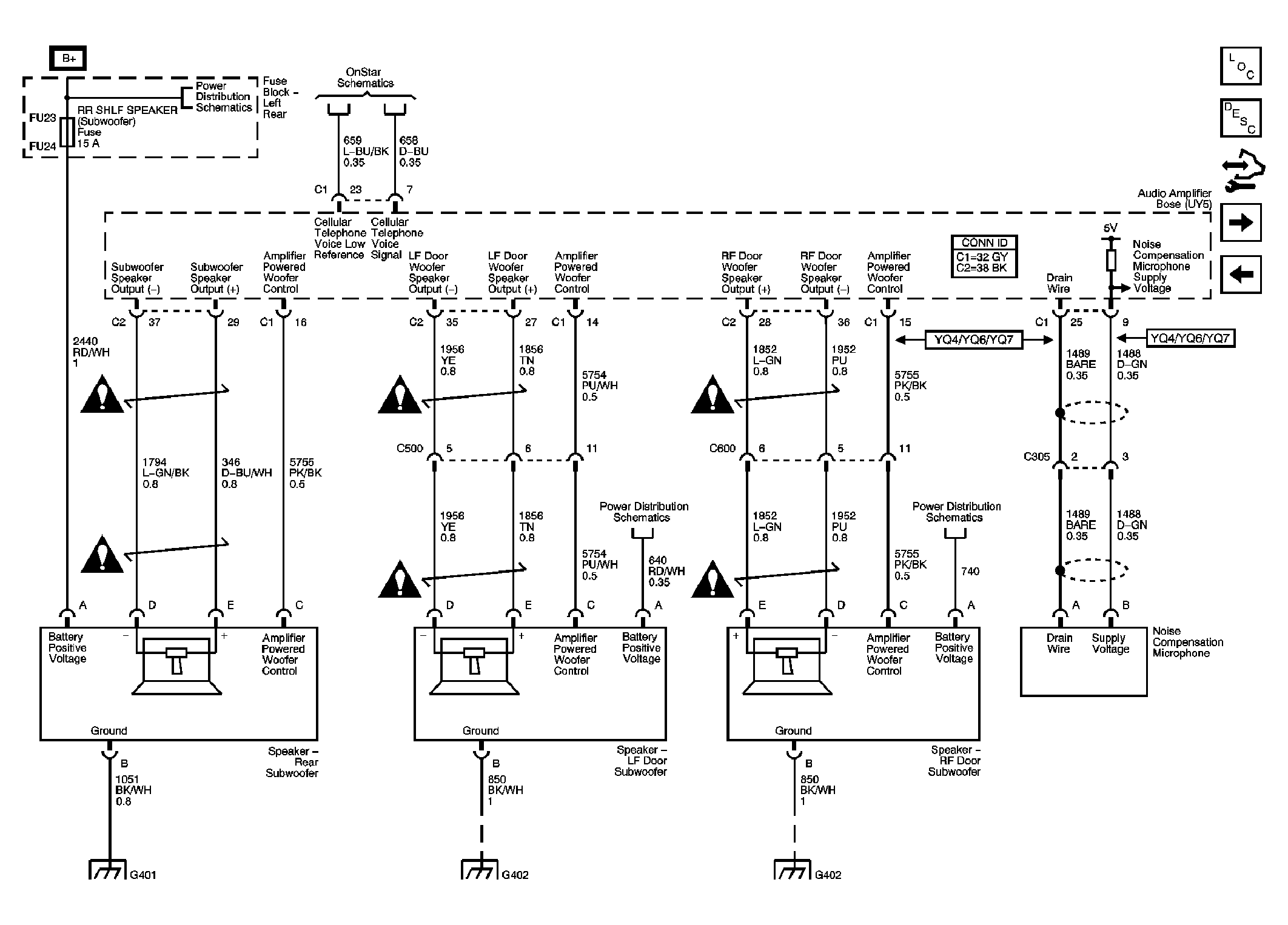

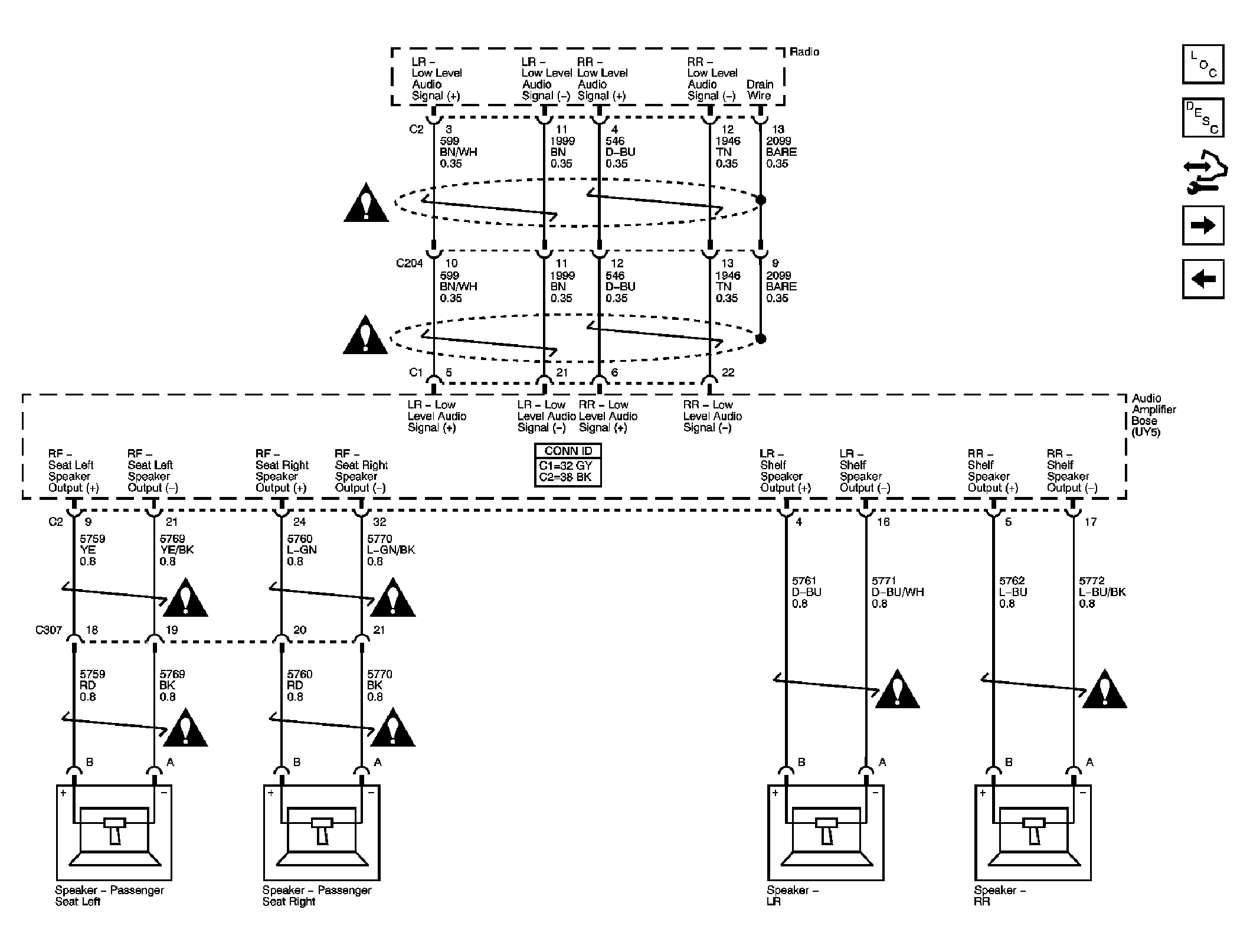

Fig 4: Speakers (w/UY5) 2 of 3 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speakers (w/UY5) 3 of 3 Schematic

Courtesy of GENERAL MOTORS CORP.

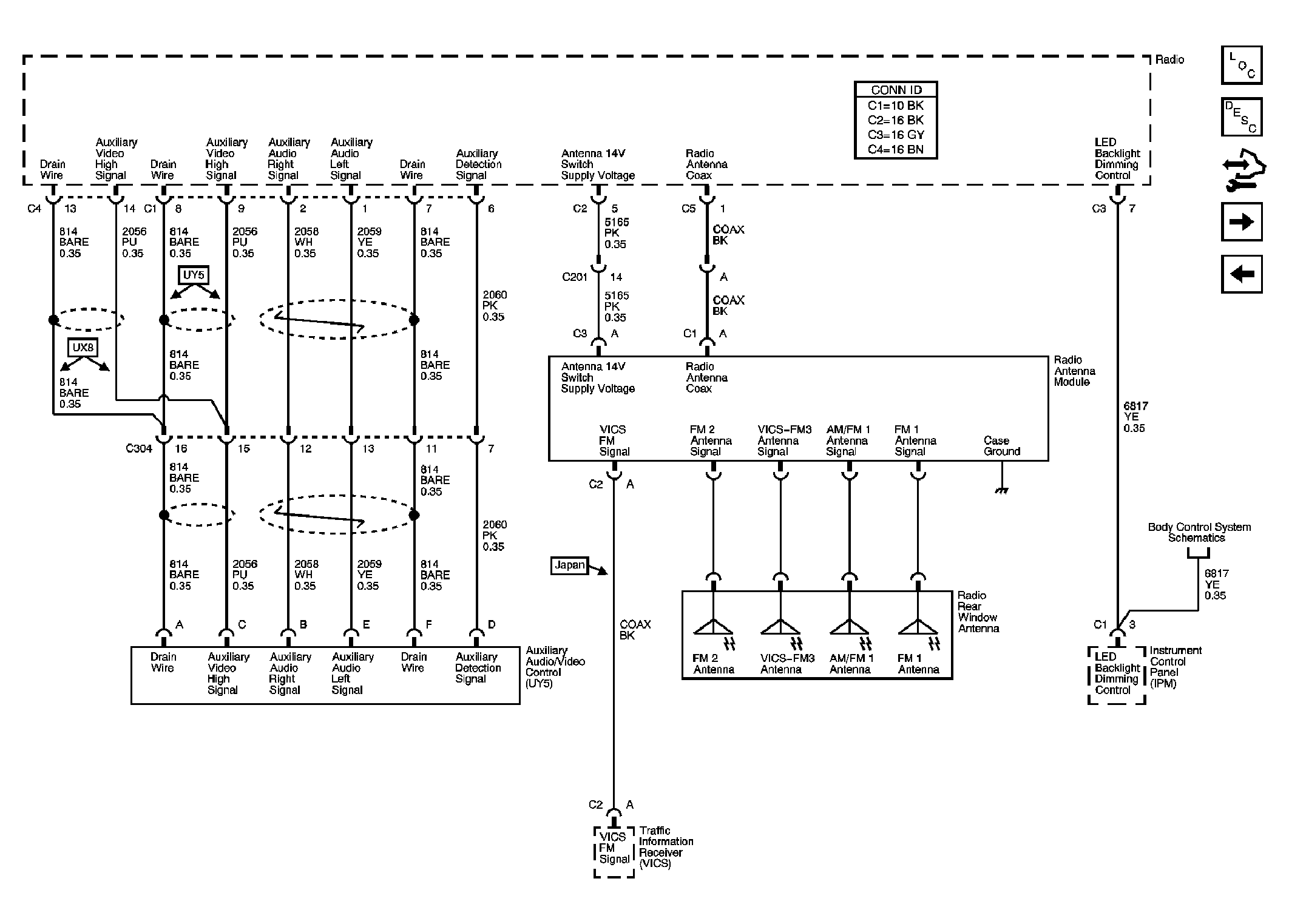

Fig 6: Radio Antennas, Audio/Video Adapter Schematic

Courtesy of GENERAL MOTORS CORP.

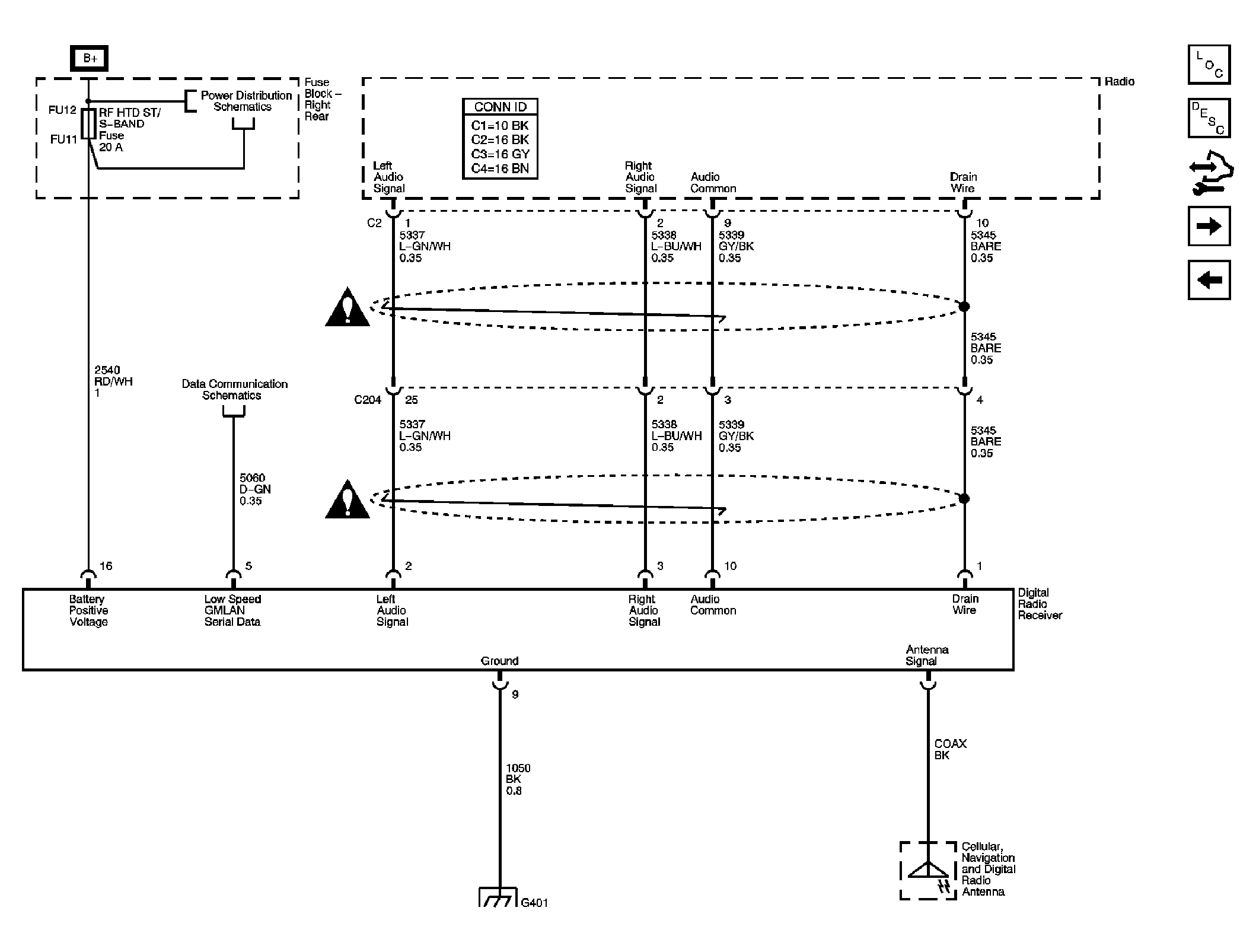

Fig 7: Digital Radio Receiver - w/U2K Schematic

Courtesy of GENERAL MOTORS CORP.

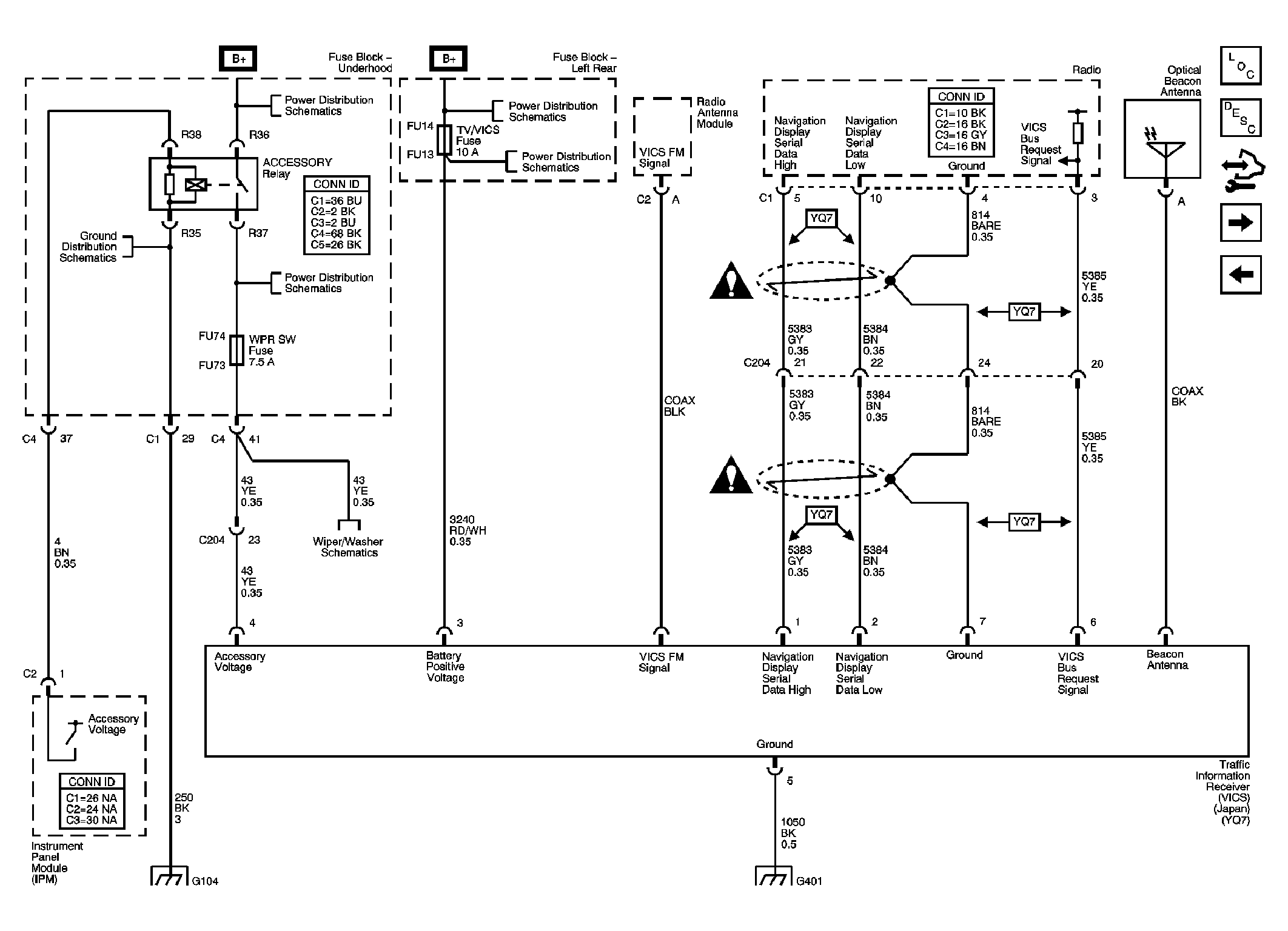

Fig 8: Traffic Information Receiver Module (VICS) - Japan Only Schematic

Courtesy of GENERAL MOTORS CORP.

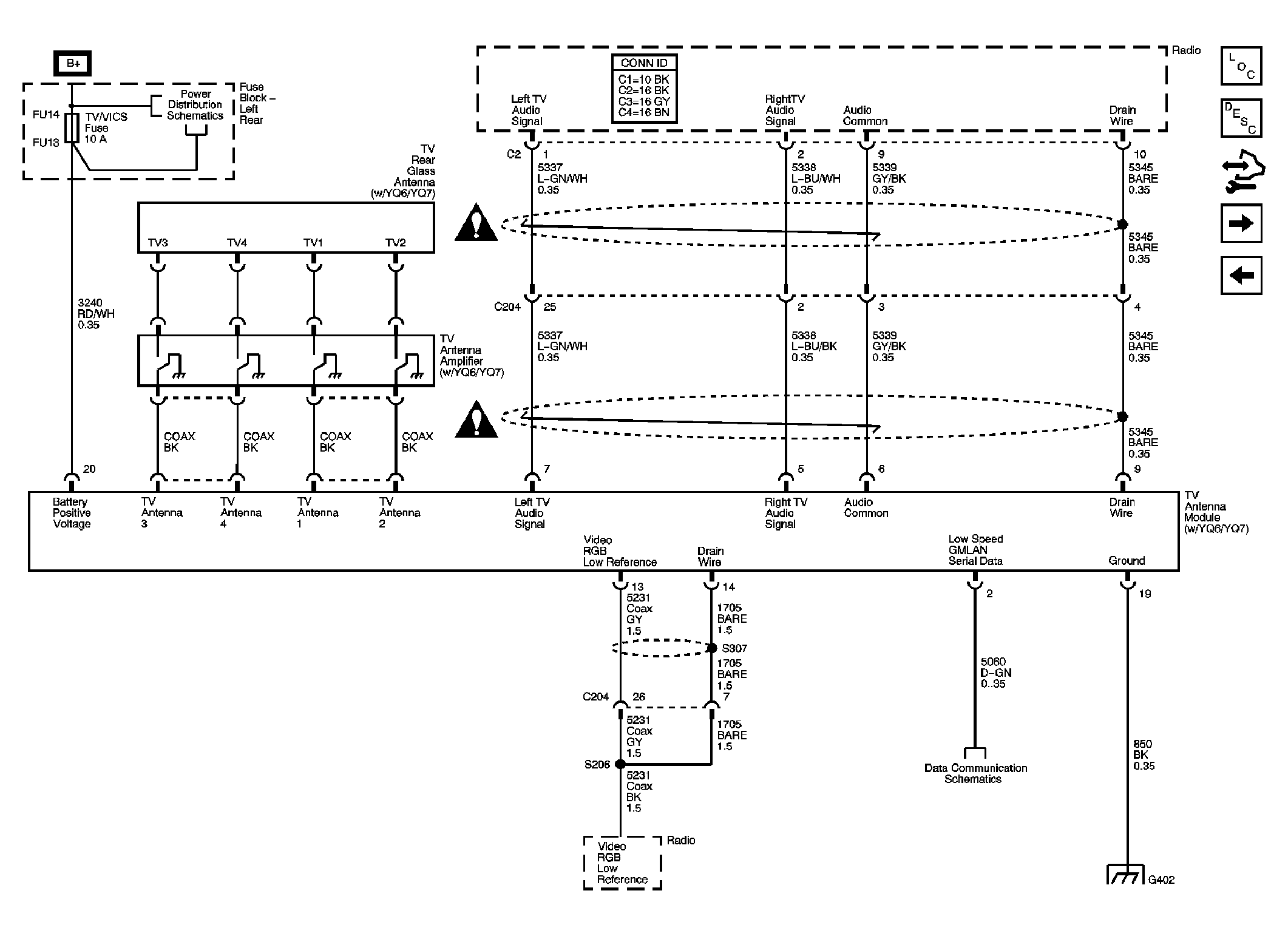

Fig 9: TV Tuner Assembly - Export Schematic

Courtesy of GENERAL MOTORS CORP.

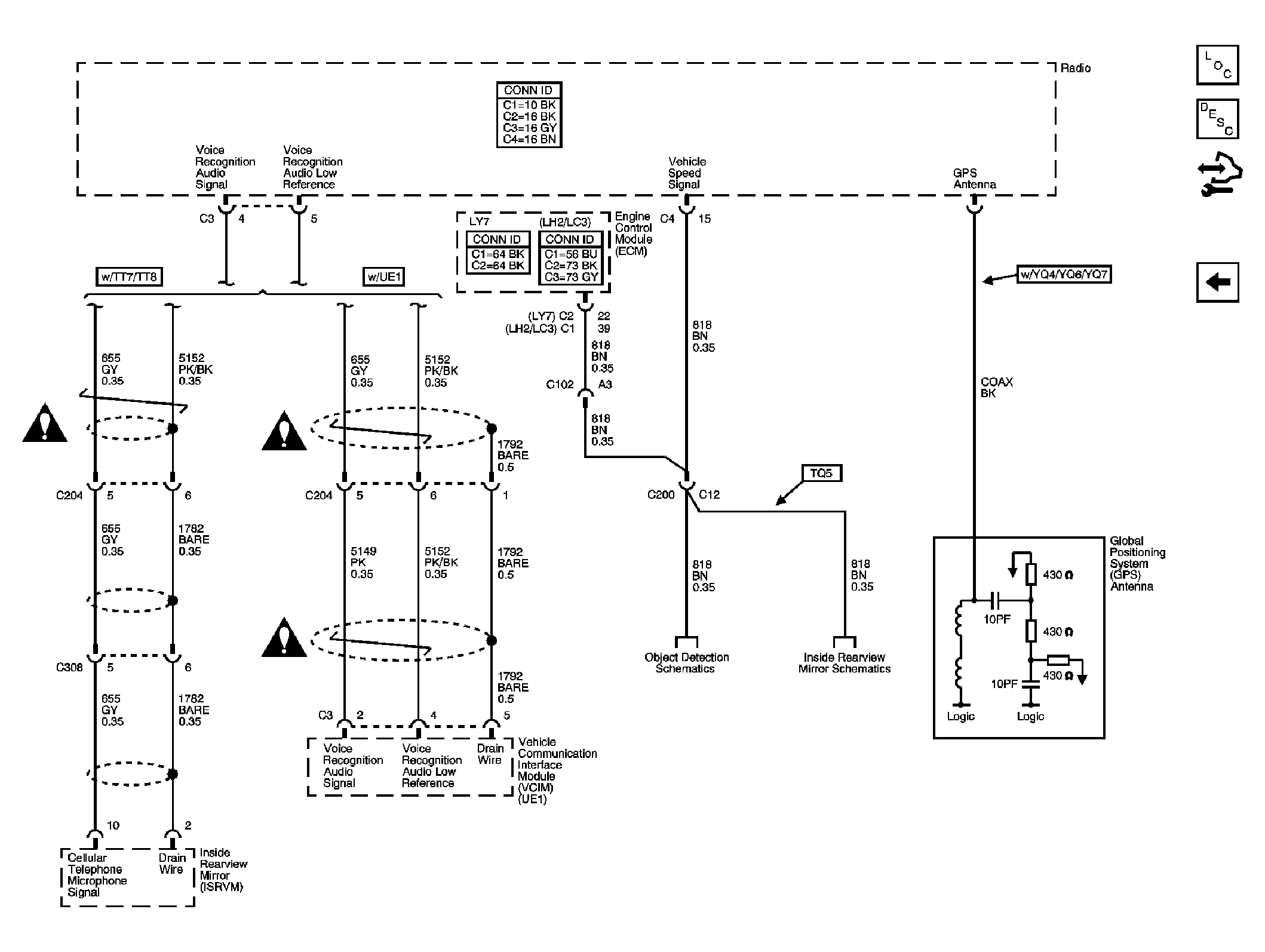

Fig 10: Microphone, VSS and GPS Antenna Schematic

Courtesy of GENERAL MOTORS CORP.
