Antilock Brake System Component Views

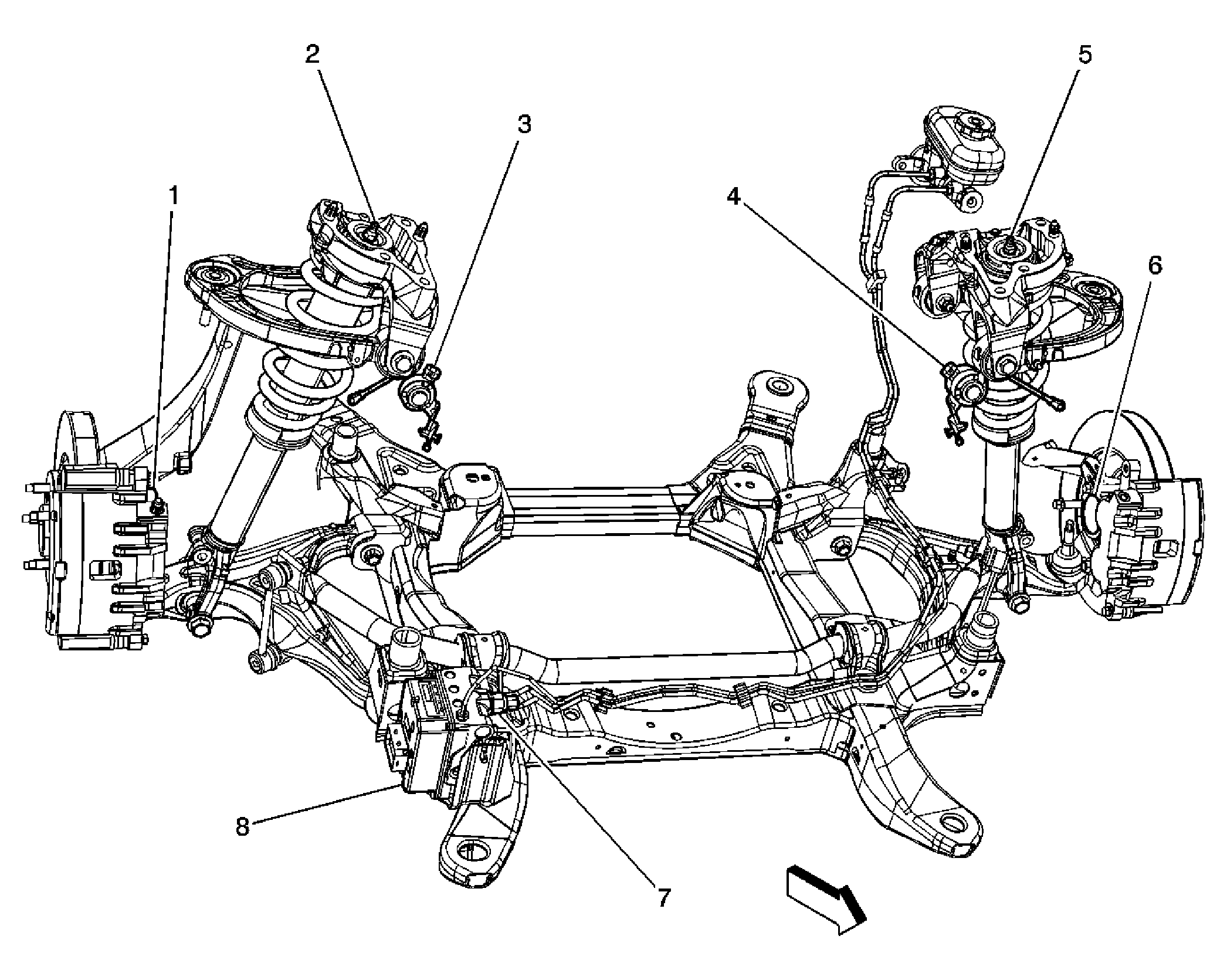

Fig 1: Front Brake and Suspension Component Views

GM1488594

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RF
2	Suspension Damper - RF
3	Suspension Position Sensor - RF
4	Suspension Position Sensor - LF
5	Suspension Damper - LF
6	Wheel Speed Sensor (WSS) - LF
7	Brake Fluid Pressure Sensor
8	Electronic Brake Control Module (EBCM)

Fig 2: Console Component View

GM1488593

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Console
2	Auxiliary Audio/Video Control (UY5)
3	HVAC Control Module - Rear Auxiliary (KA6)
4	LR Heated Seat Switch - Part of the Rear Auxiliary Module
5	RR Heated Seat Switch - Part of the Rear Auxiliary Module
6	Mode Select Switch - Auxiliary (KA6)
7	Auxiliary Power Outlet - Rear
8	Hazard Switch
9	Traction Control Switch

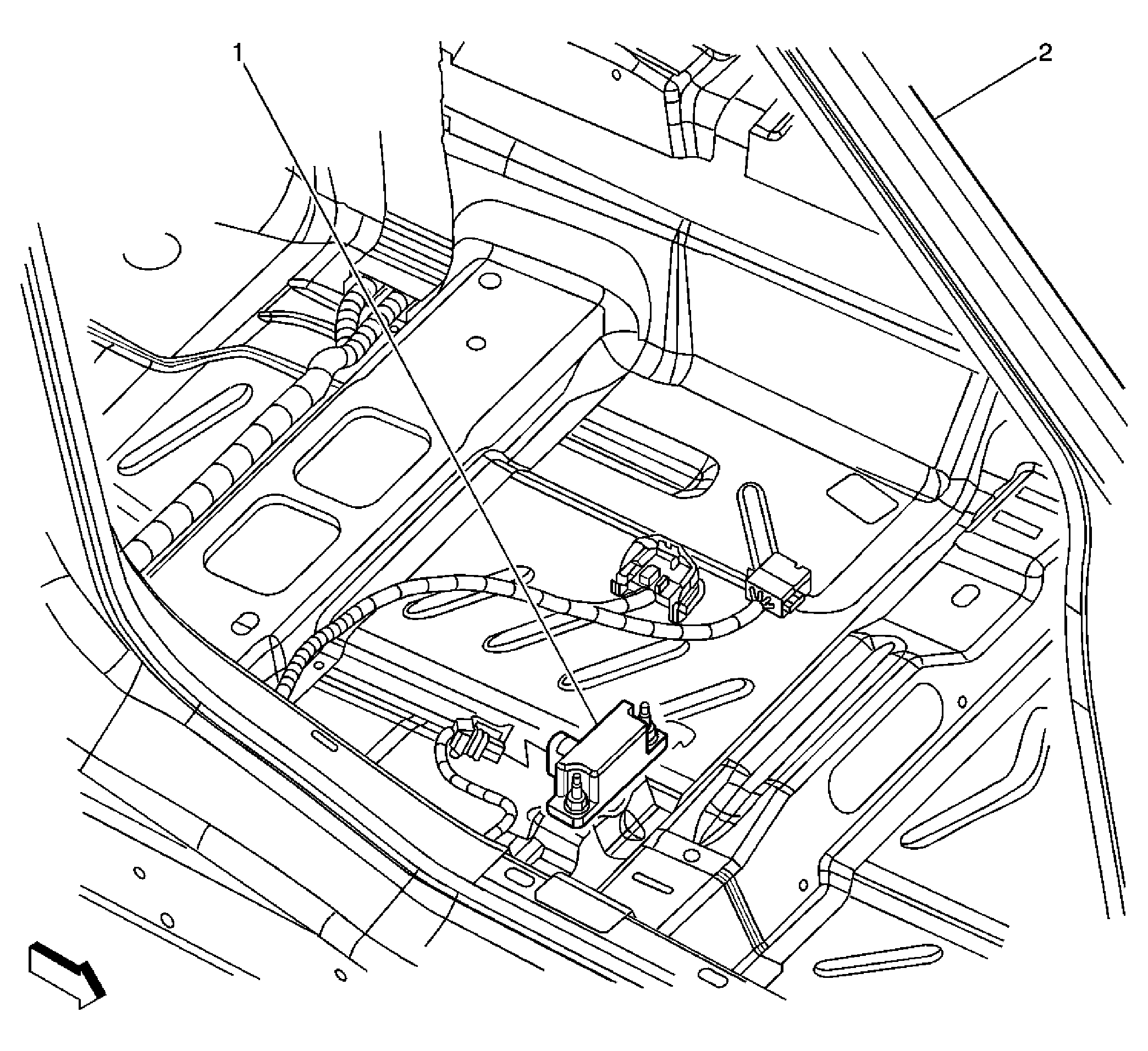

Fig 3: Under the Passenger Seat

GM1488563

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw Rate and Lateral Acceleration Sensor (JL9)
2	Passenger Side A-Pillar

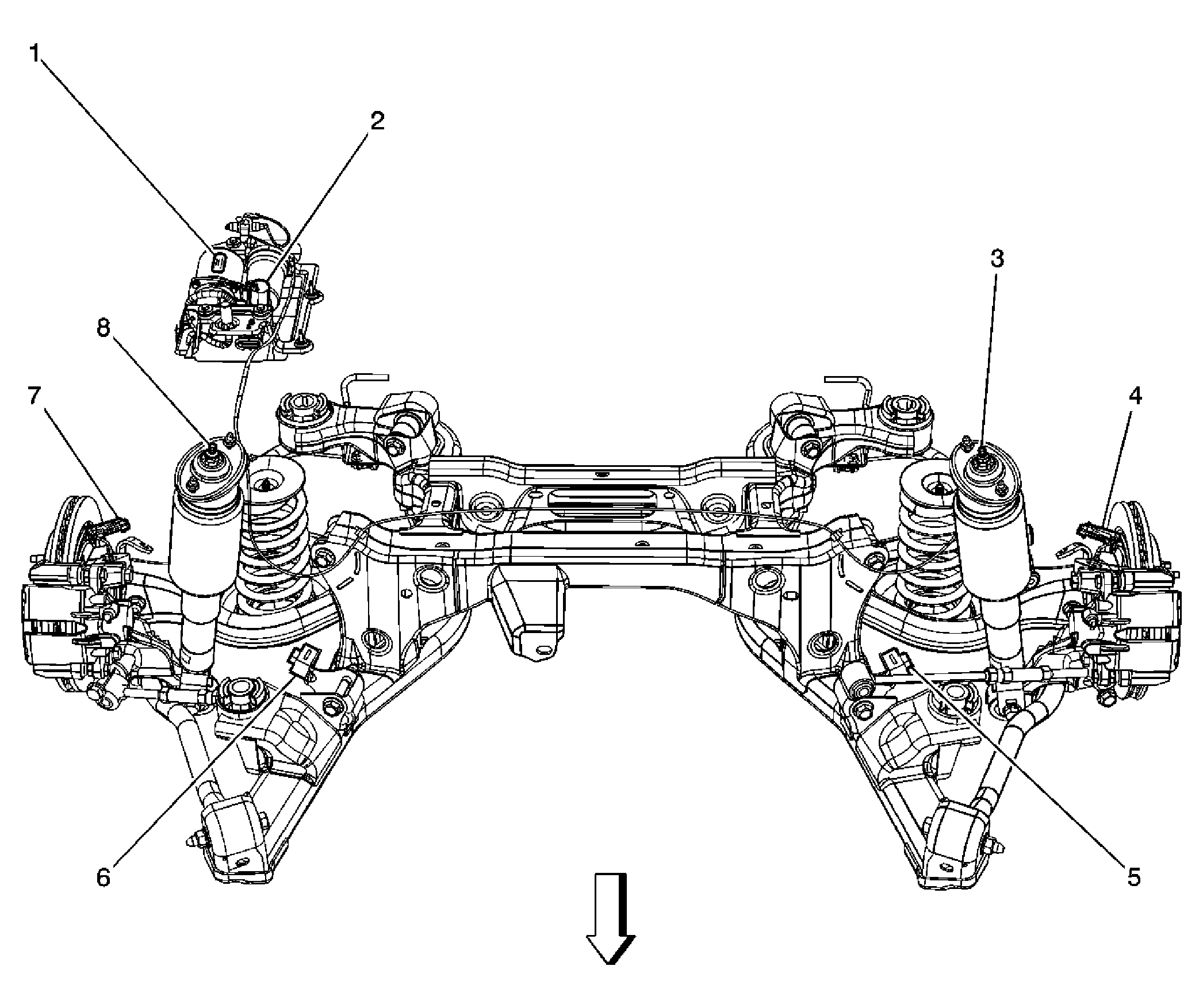

Fig 4: Rear Brakes and Suspension Component View

GM1488595

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control (ALC) Compressor
2	Automatic Level Control (ALC) Exhaust Solenoid
3	Suspension Damper - LR
4	Wheel Speed Sensor (WSS) - LR
5	Suspension Position Sensor - LR
6	Suspension Position Sensor - RR
7	Wheel Speed Sensor (WSS) - RR
8	Suspension Damper - RR

Fig 5: Steering Column and Wheel Component View

GM1488567

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Telescoping Drive Wheel
2	Steering Angle Sensor
3	Turn Signal/Multifunction Switch
4	Windshield Wiper/Washer Switch Assembly
5	Steering Wheel Controls Seek Button (Part of the Steering Wheel Control Switch Assembly)
6	Steering Wheel Controls Volume Button (Part of the Steering Wheel Control Switch Assembly)
7	C277
8	Horn Switch Connector
9	Heated Steering Wheel Module
10	Steering Wheel Controls Mute/Source Button (w/o NR7/N31), Heated Steering Wheel Button (NR7/N31) (Part of the Steering Wheel Control Switch Assembly)
11	Steering Wheel Controls Voice/Preset Button (Part of the Steering Wheel Control Switch Assembly)
12	Heated Steering Wheel (NR7/N31)
13	Tilt/Telescope Switch
14	Tilt Actuator
15	C202
16	Steering Column Lock Control Module (UA2)
