Driver Door Switch Assembly (DDSA) Connector End View

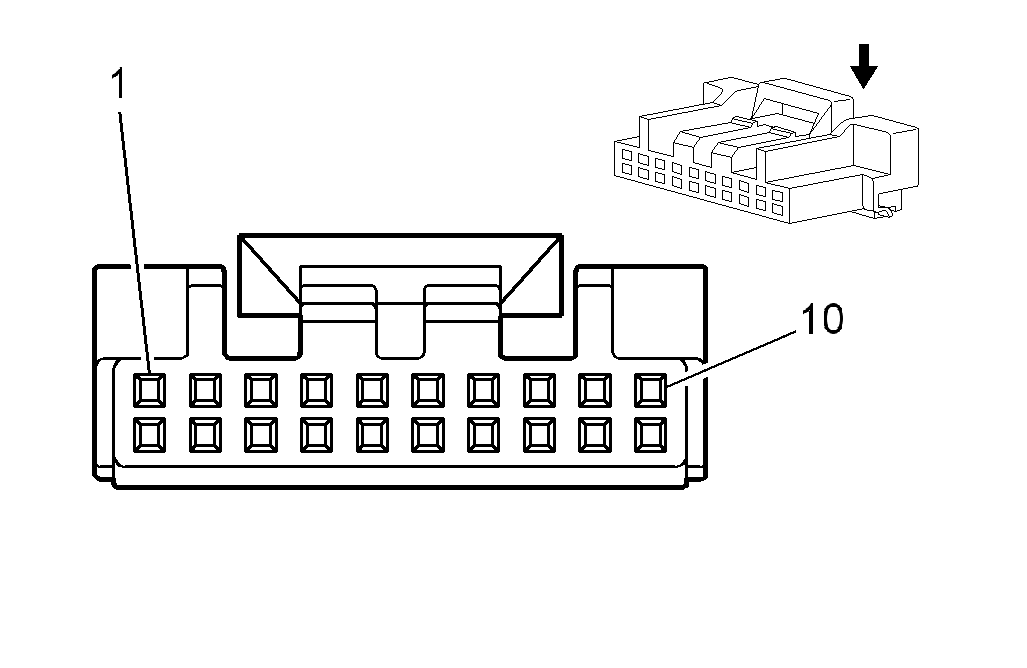

Fig 1: Driver Door Switch Assembly (DDSA) Connector End View
GM605501Courtesy of GENERAL MOTORS CORP.
Driver Door Switch Assembly (DDSA) Connector Parts Information

Connector Part Information
  • OEM: IL-AG5-10S-S3C1
  • Service: 88988190
  • Description: 10-Way (GN)
Terminal Part Information
  • Pins: 1, 2, 3, 4, 5, 6, 10
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Driver Door Switch Assembly (DDSA) Connector End View

Pin Wire Color Circuit No. Function
1 D-GN 5060 Low Speed GMLAN Serial Data
2 RD/WH 640 Battery Positive Voltage
3 BK/WH 351 Signal Ground
4 OG/BK 780 Driver Door Lock Switch Lock Signal
5 OG/BK 781 Driver Door Lock Switch Unlock Signal
6 YE 1491 Backlight Lamp Control
7-9 - - Not Used
10 WH 1526 Shift Solenoid Supply Voltage (2)
