Steering Assist Component Views

Fig 1: Steering Column and Wheel Component View
GM1488567Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Telescoping Drive Wheel
2 Steering Angle Sensor
3 Turn Signal/Multifunction Switch
4 Windshield Wiper/Washer Switch Assembly
5 Steering Wheel Controls Seek Button (Part of the Steering Wheel Control Switch Assembly)
6 Steering Wheel Controls Volume Button (Part of the Steering Wheel Control Switch Assembly)
7 C277
8 Horn Switch Connector
9 Heated Steering Wheel Module
10 Steering Wheel Controls Mute/Source Button (w/o NR7/N31), Heated Steering Wheel Button (NR7/N31) (Part of the Steering Wheel Control Switch Assembly)
11 Steering Wheel Controls Voice/Preset Button (Part of the Steering Wheel Control Switch Assembly)
12 Heated Steering Wheel (NR7/N31)
13 Tilt/Telescope Switch
14 Tilt Actuator
15 C202
16 Steering Column Lock Control Module (UA2)

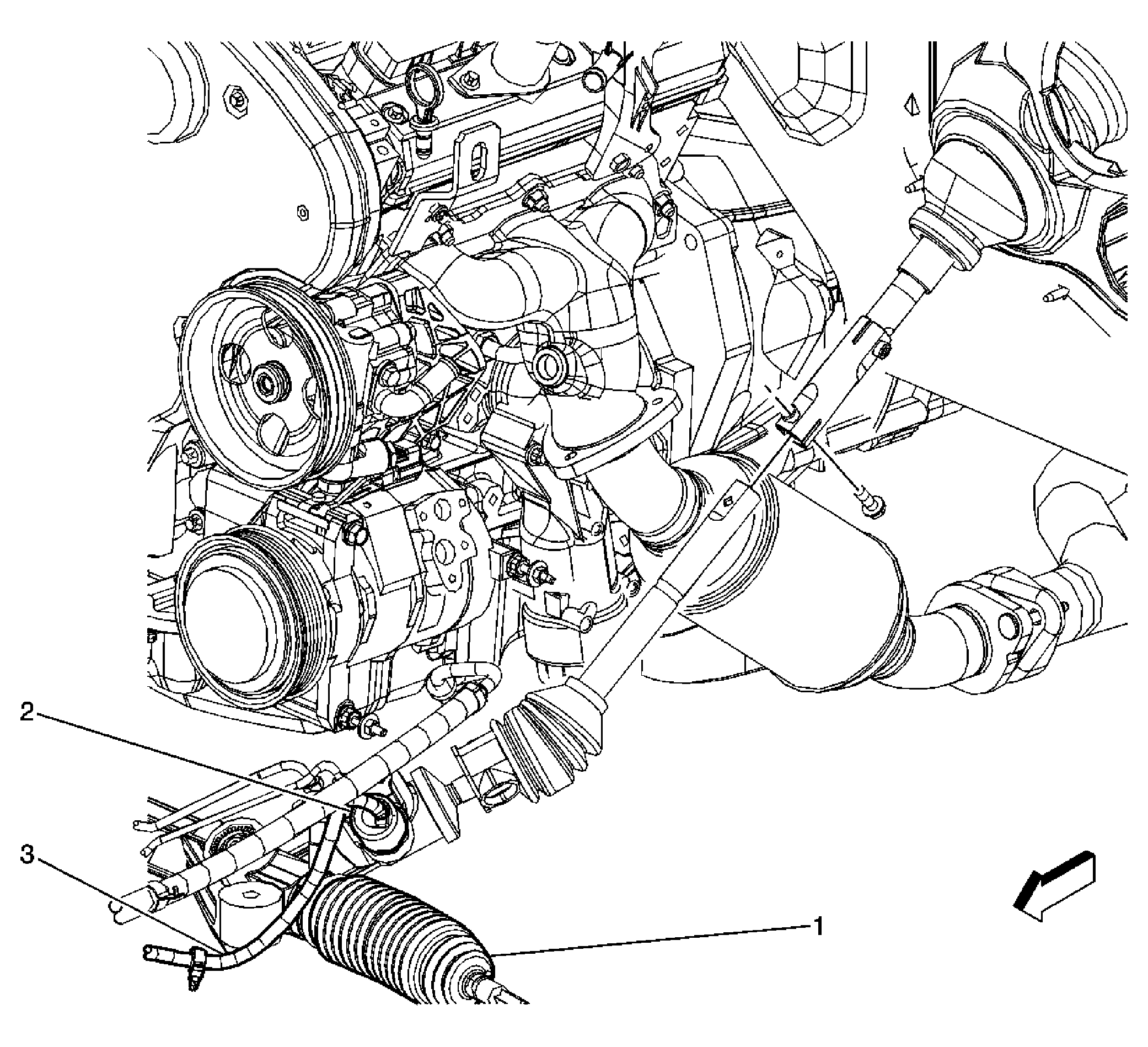

Fig 2: Lower Left Side Of Engine Compartment Component View
GM1348883Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Rack (LHD)
2 Variable Effort Steering Actuator (LHD)
3 Variable Effort Steering Actuator Wiring Harness
