Immobilizer Component Views

Fig 1: Hood Ajar Switch (UA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch
2	RF Strut Tower

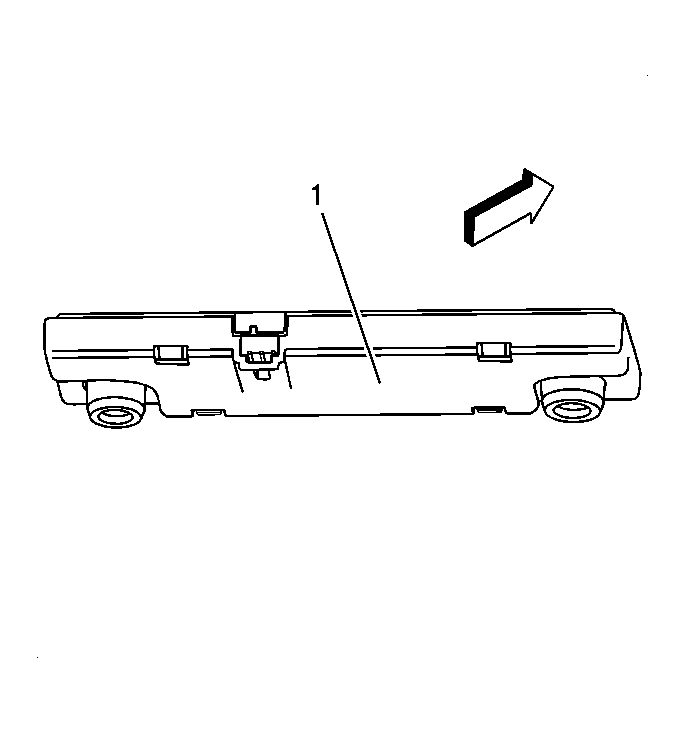

Fig 2: Intrusion Sensor (UA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intrusion Sensor (UA2)

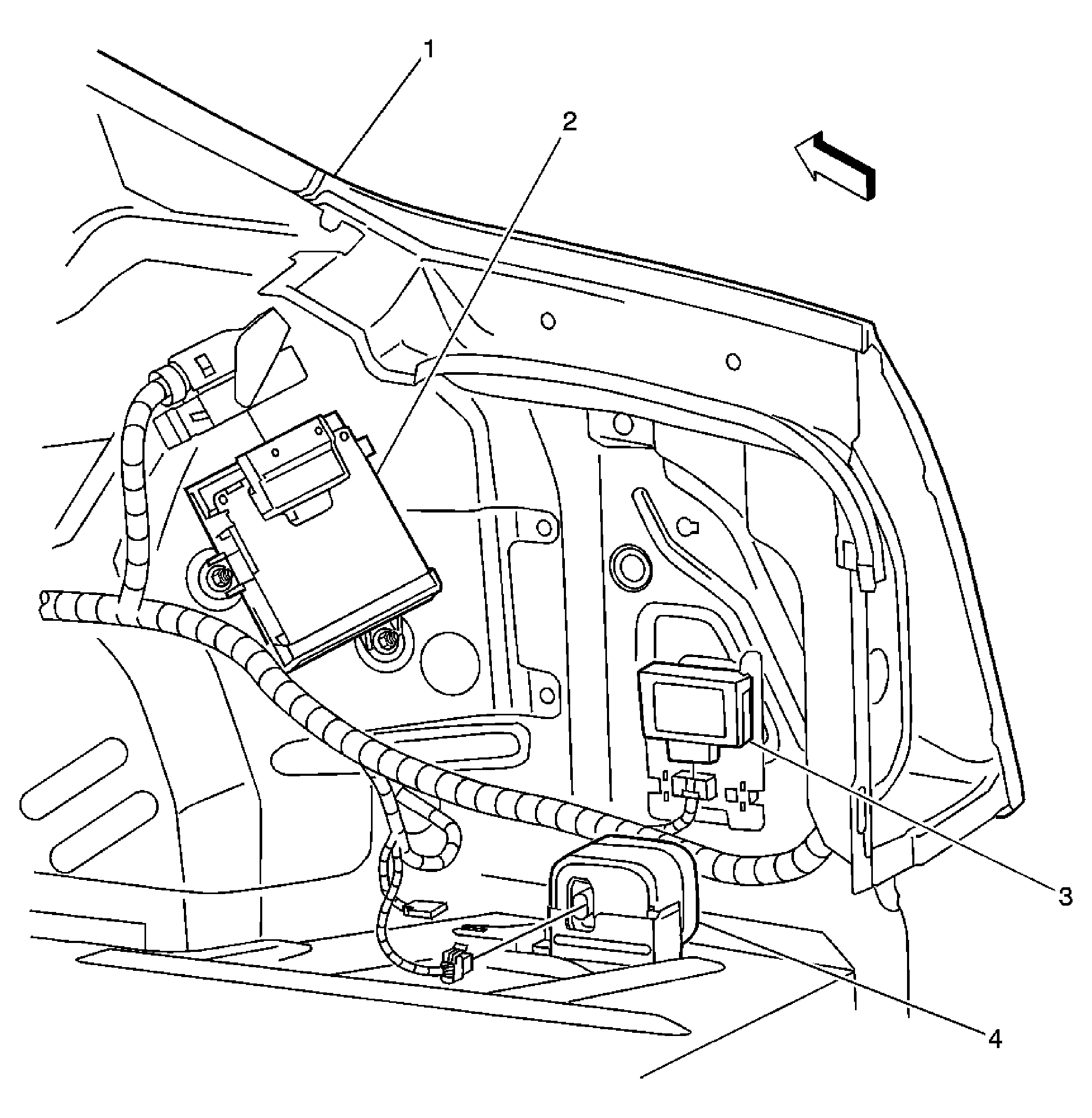

Fig 3: Right Side Of The Luggage Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Side C Pillar
2	Electronic Suspension Control (ESC) Module (F55)
3	Tire Pressure Module (UH3-Japan Only) - Right Side Shown, Left Similar
4	Theft Deterrent Alarm Siren (UA2 /Inclination Sensor (Export w/UA2)
