Installation Procedure

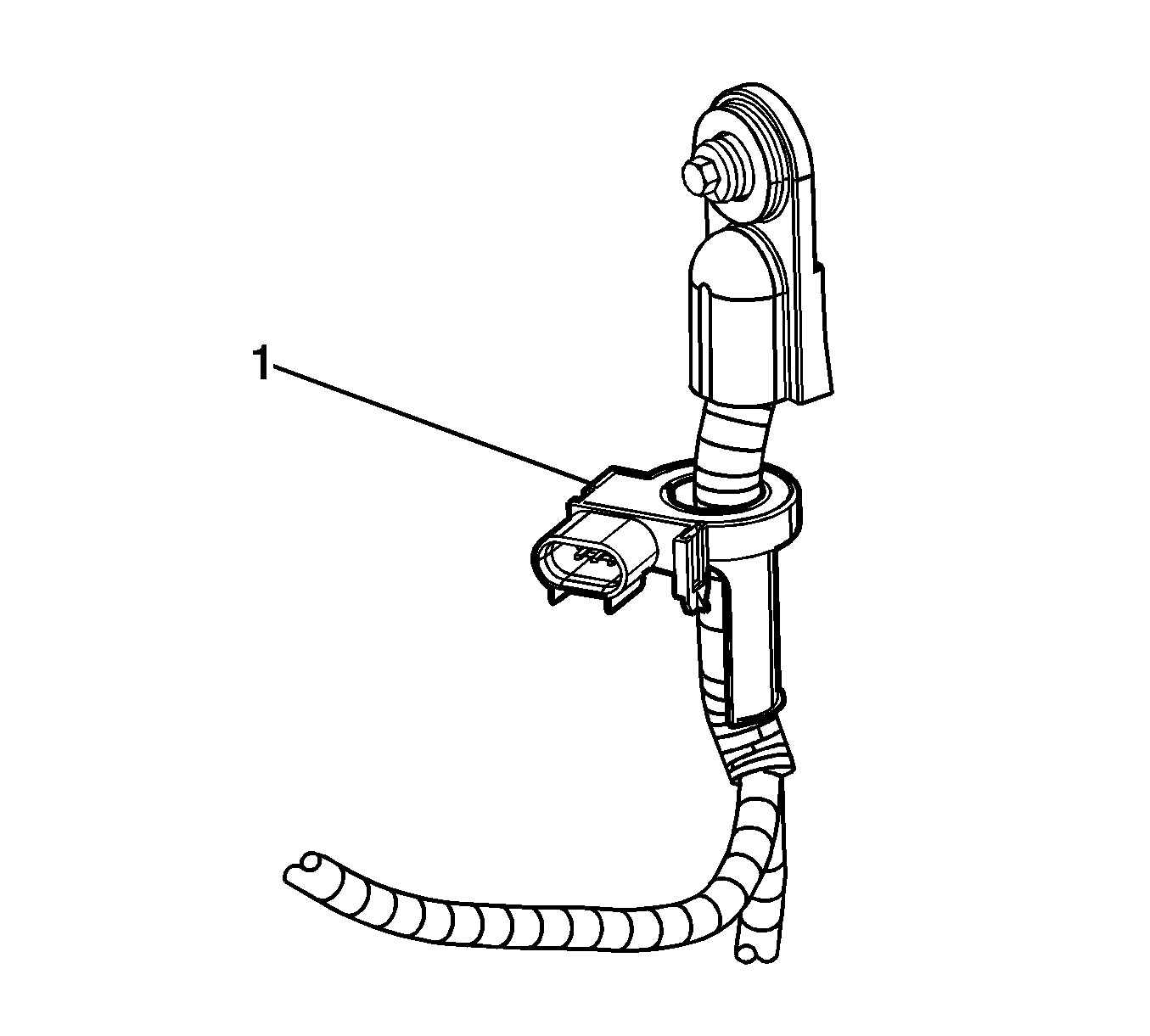

    Fig 1: View Of Battery Current Sensor
    GM1475086Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the tape tab is pointing away from the battery prior to installation.
  1. Slide the NEW battery current sensor (1) up onto the negative battery cable.
  2. Using NEW tie straps and electrical tape, attach the battery current sensor to the negative battery cable.

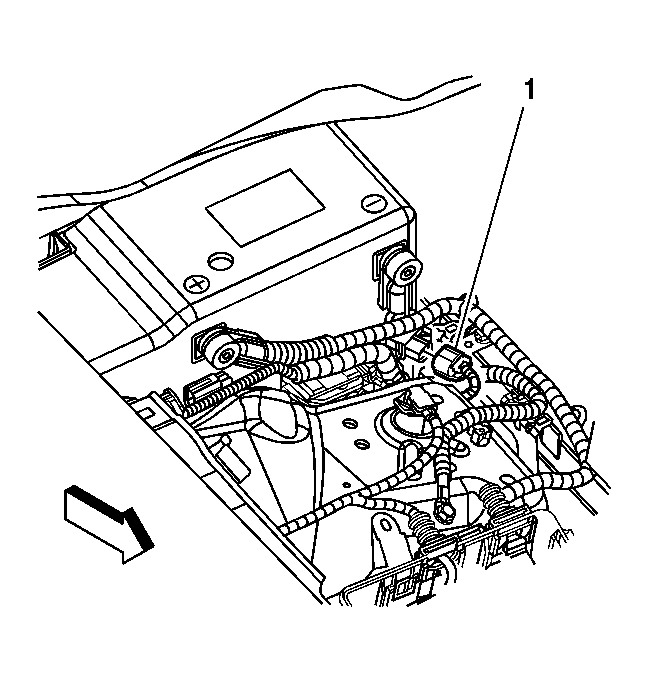

    3. Fig 2: Instrument Panel (I/P) Harness Electrical Connector
    GM1484712Courtesy of GENERAL MOTORS CORP.
  3. Install the negative battery cable. Refer to Battery Negative Cable Replacement (LC3)  or Battery Negative Cable Replacement (LH2)  or Battery Negative Cable Replacement (LY7) .
  4. Connect the I/P harness electrical connector (1) to the battery current sensor.
