Engine Controls Schematics

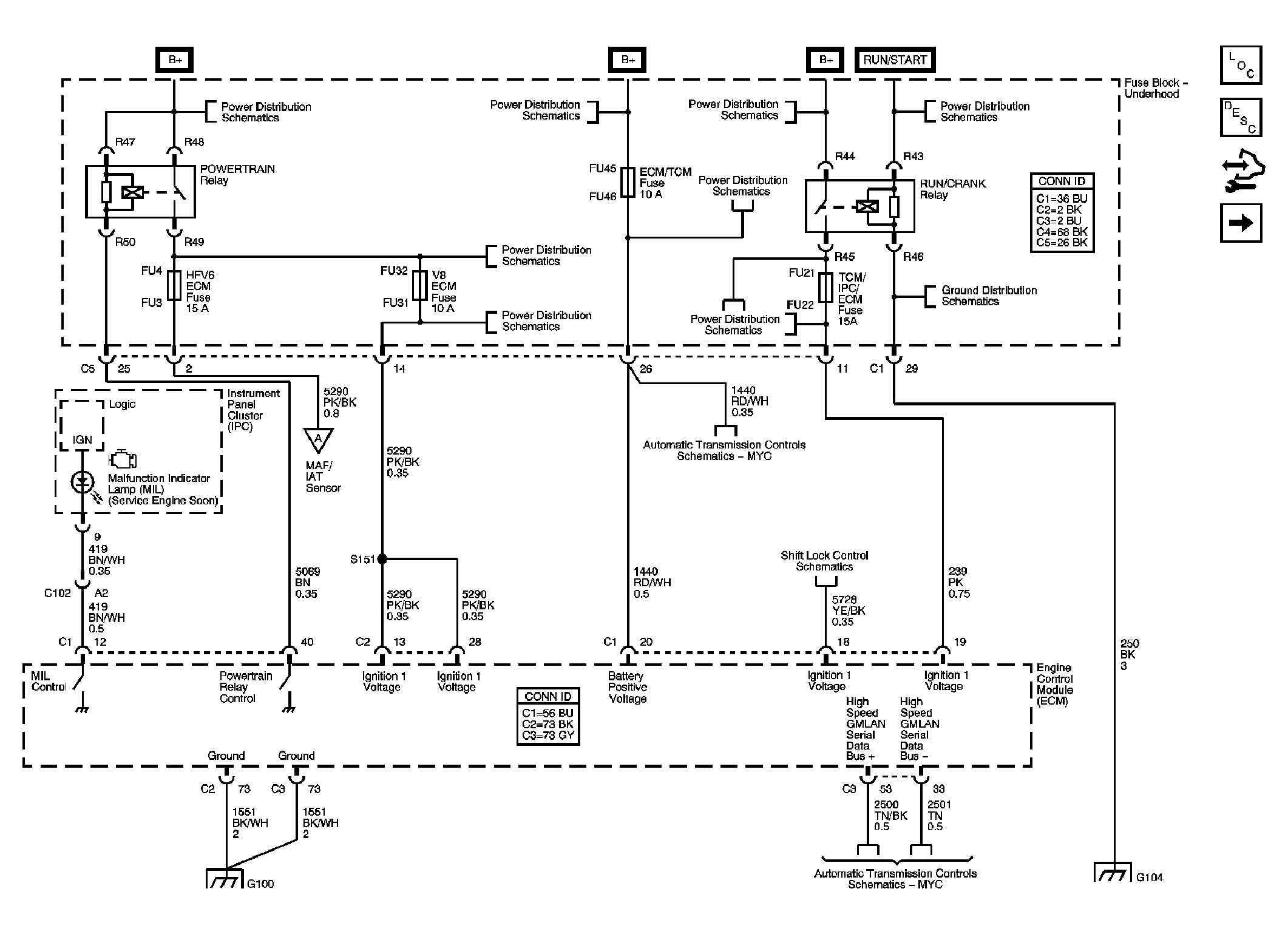

Fig 1: ECM Power, Ground, Serial Data, and MIL Schematic

Courtesy of GENERAL MOTORS CORP.

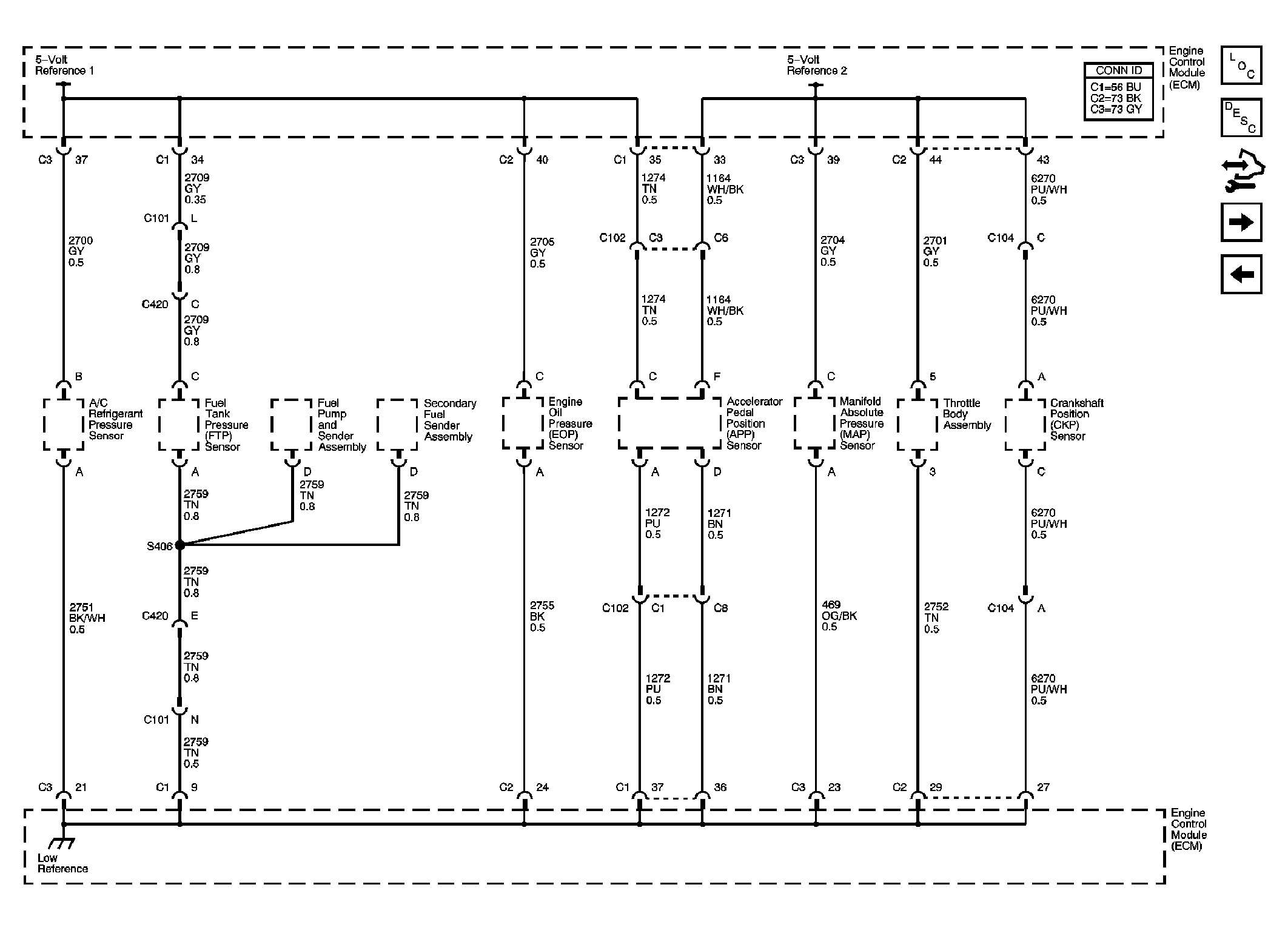

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematic

Courtesy of GENERAL MOTORS CORP.

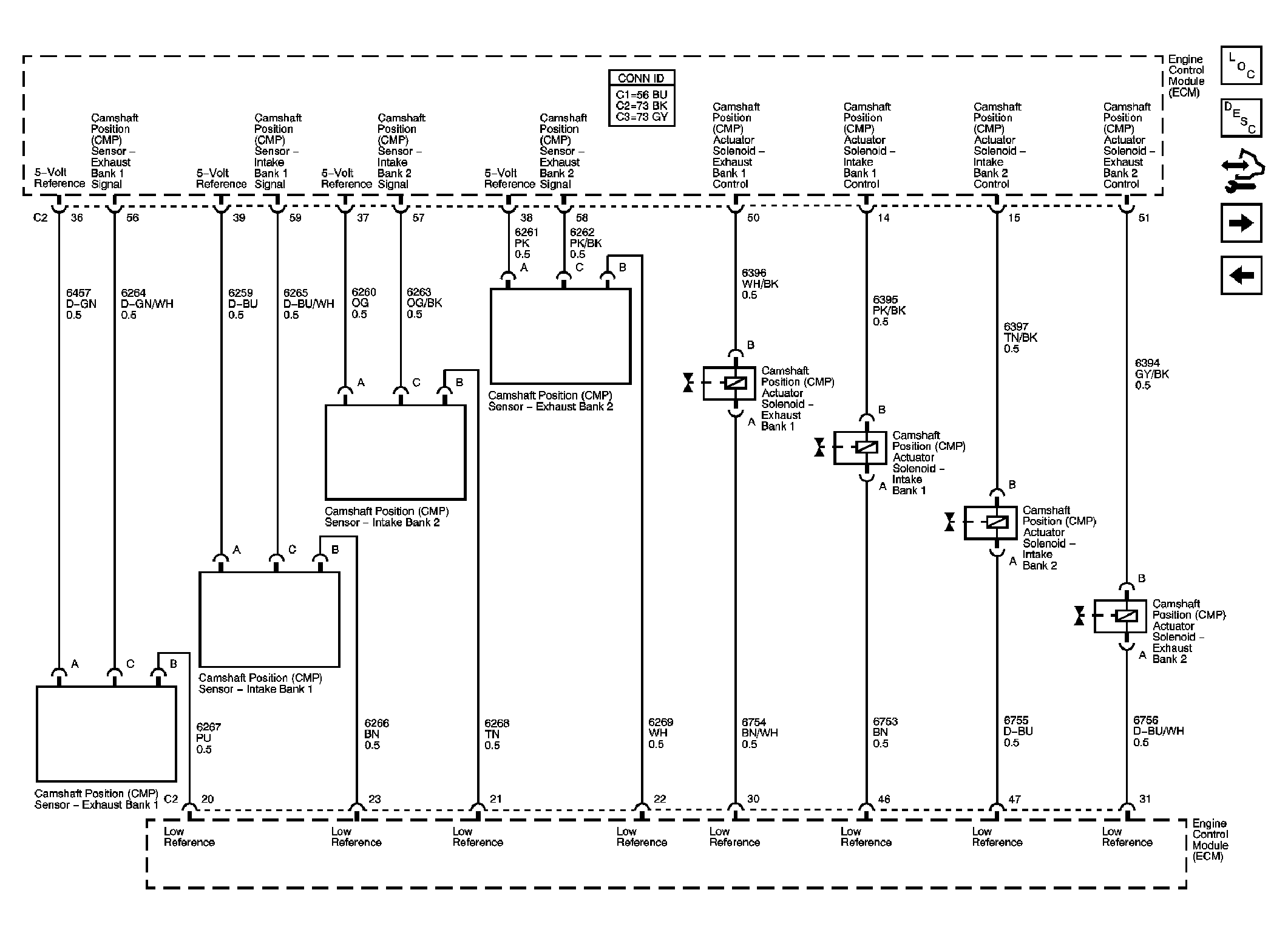

Fig 3: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

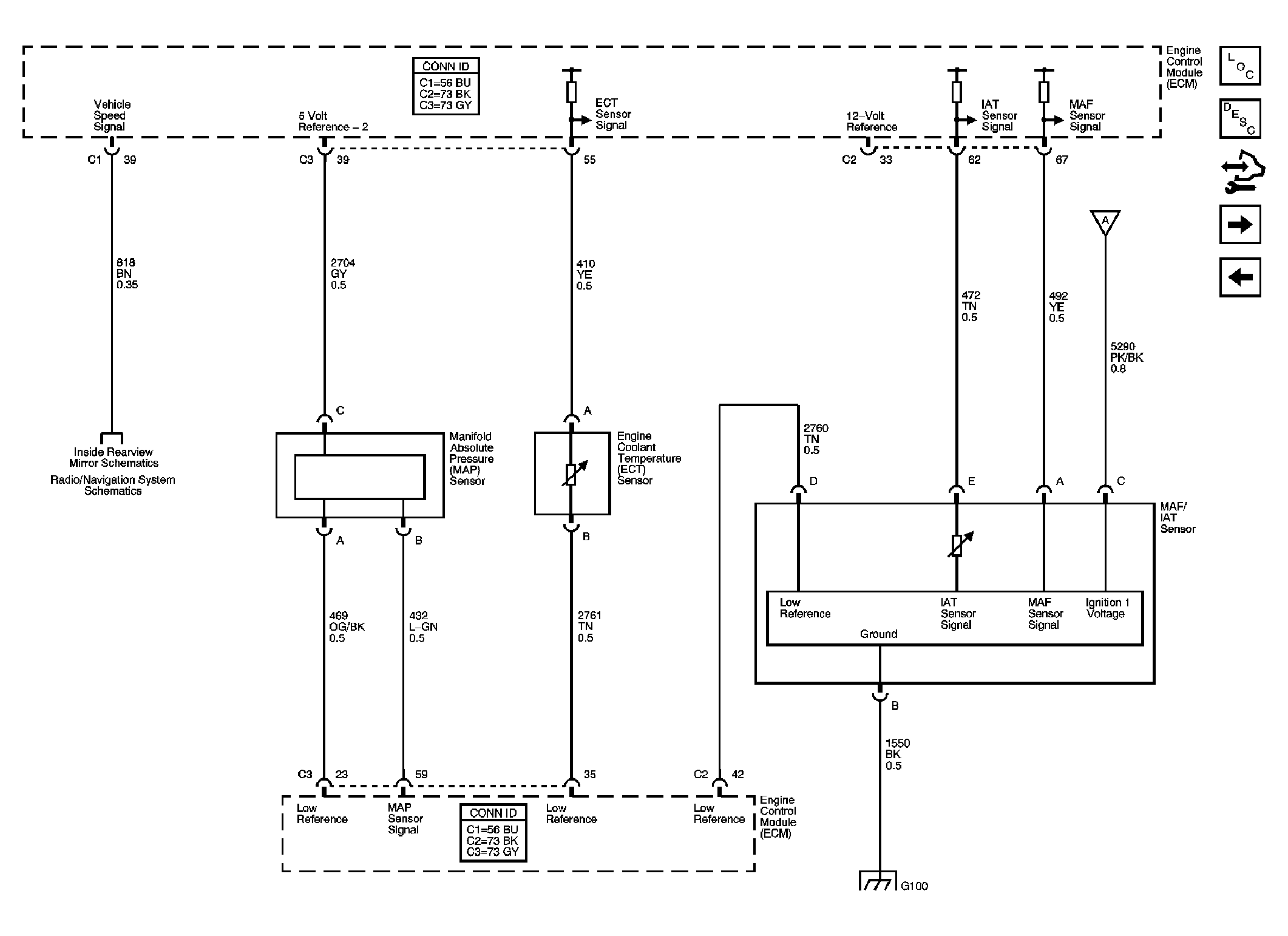

Fig 4: Engine Data Sensors - Pressure, Temperature, MAF, VSS Schematic

Courtesy of GENERAL MOTORS CORP.

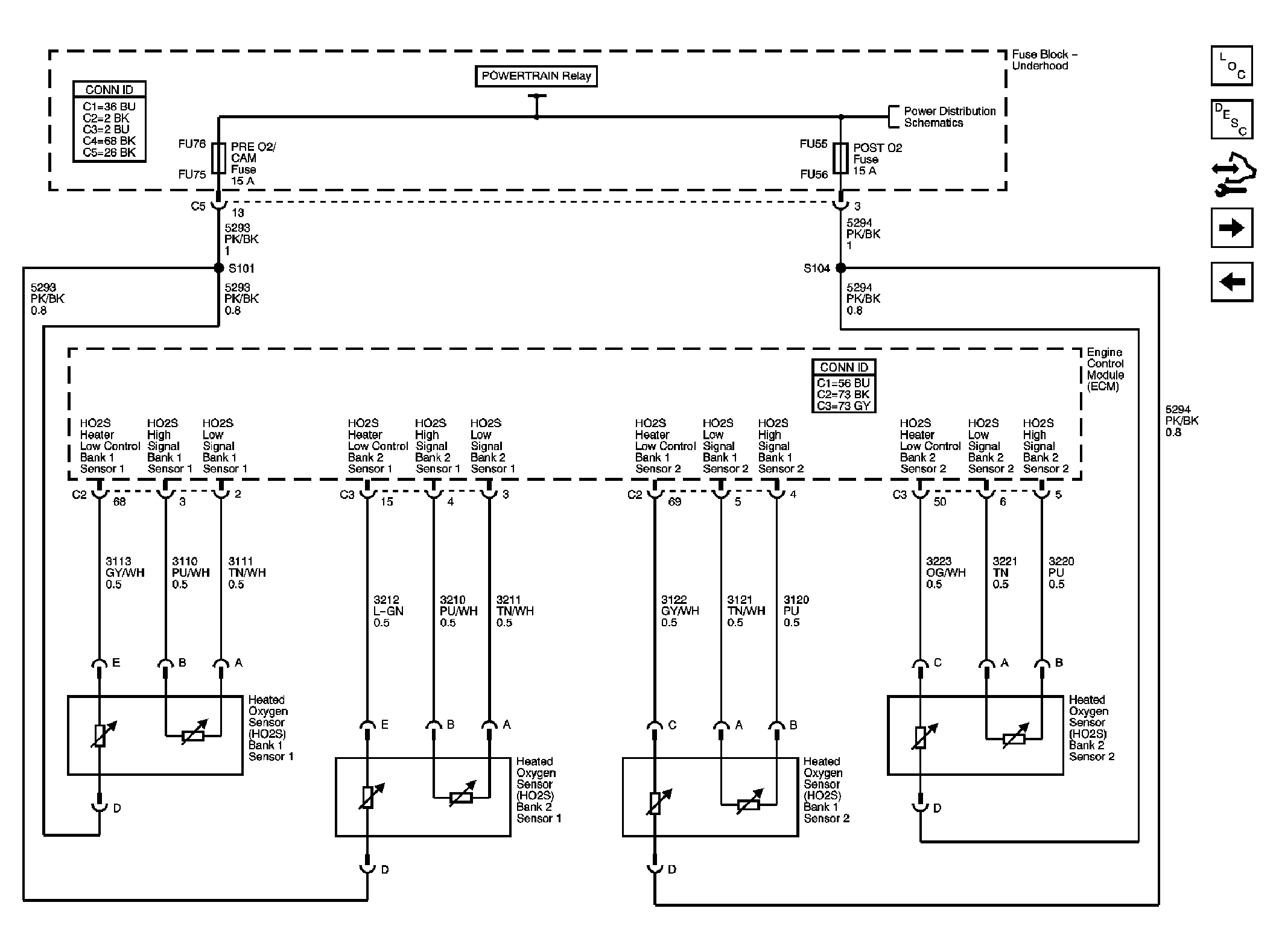

Fig 5: Engine Data Sensors - Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

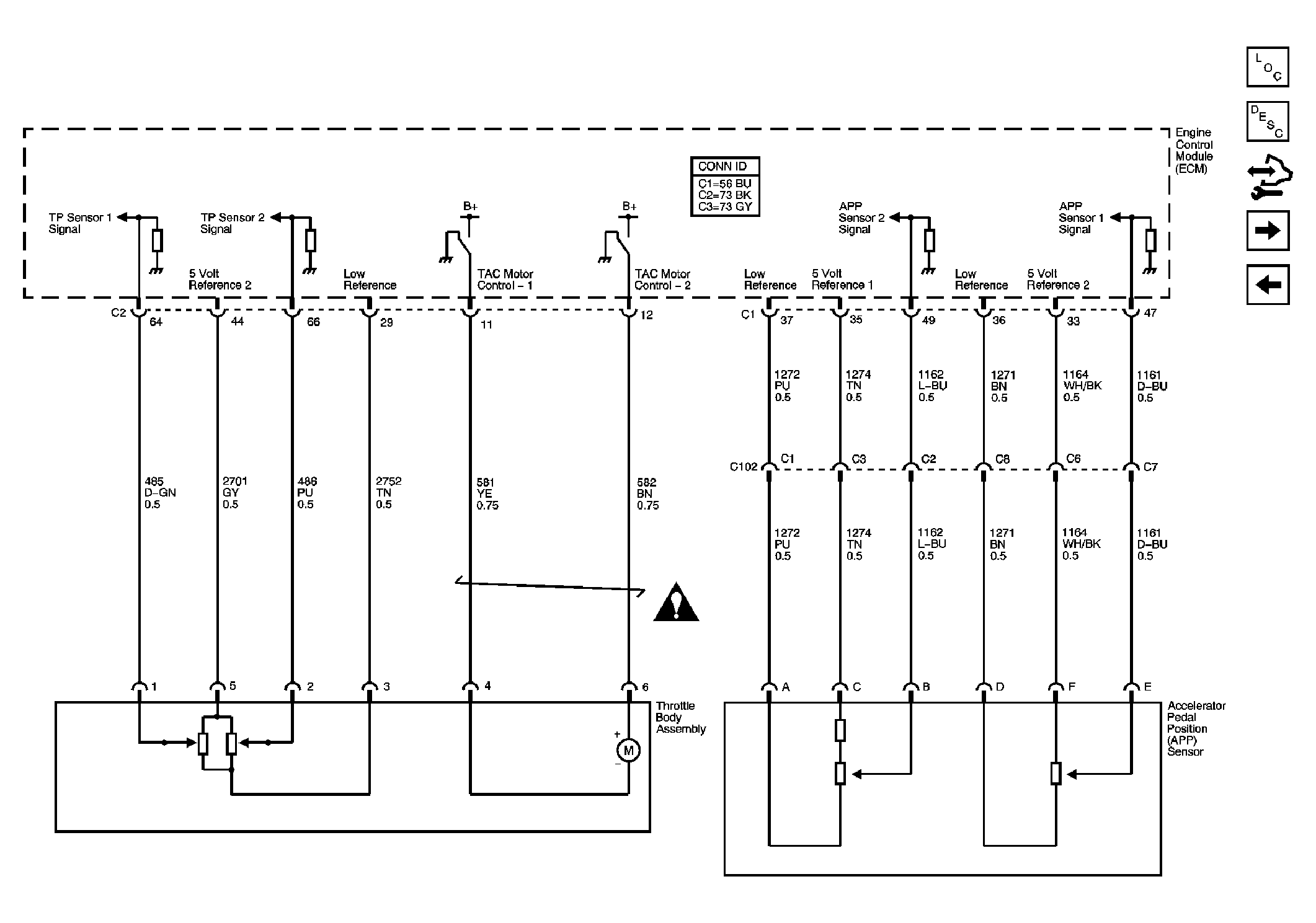

Fig 6: Engine Data Sensors - Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

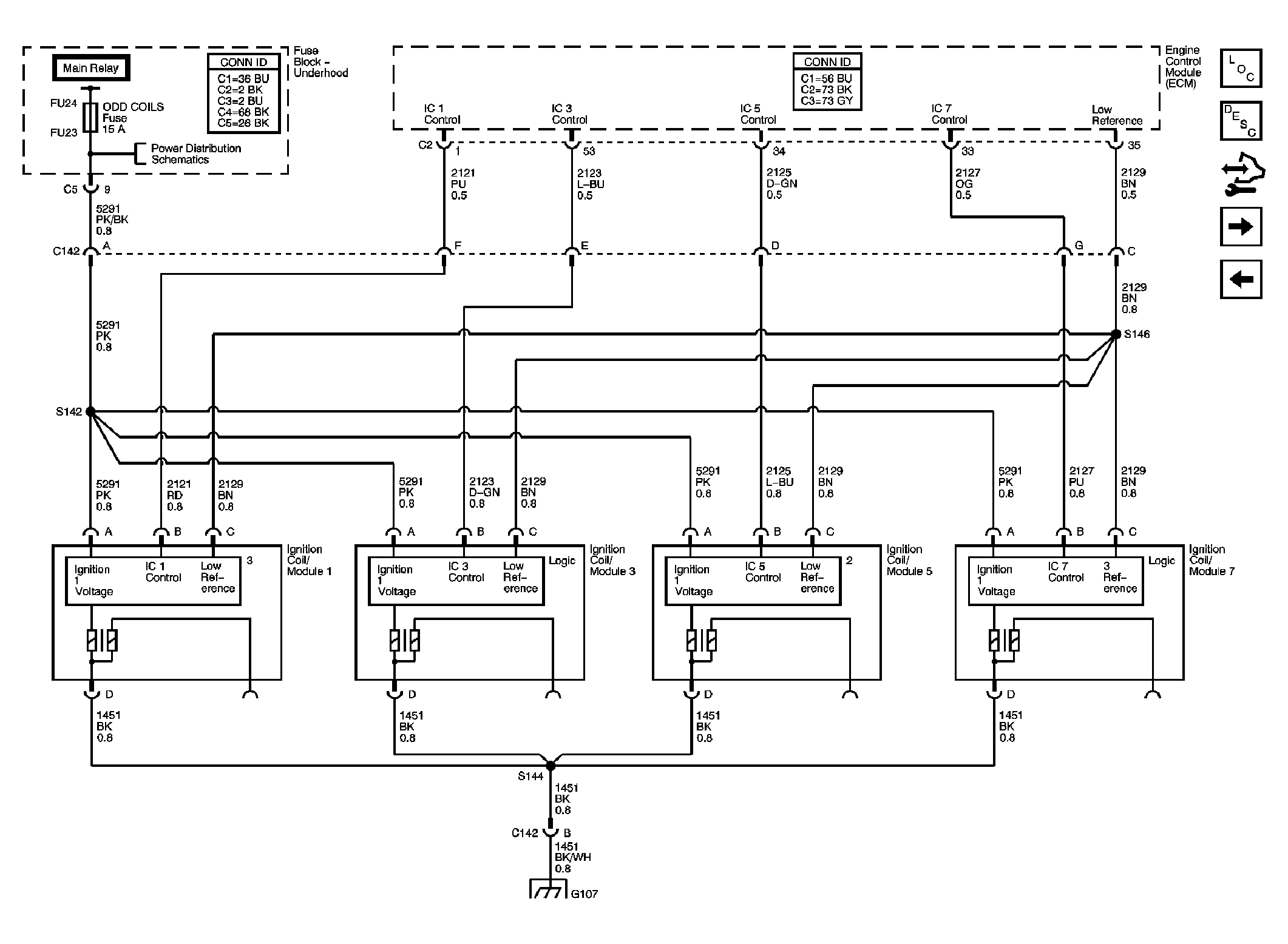

Fig 7: Ignition Controls - Ignition System Bank 1 Schematic

Courtesy of GENERAL MOTORS CORP.

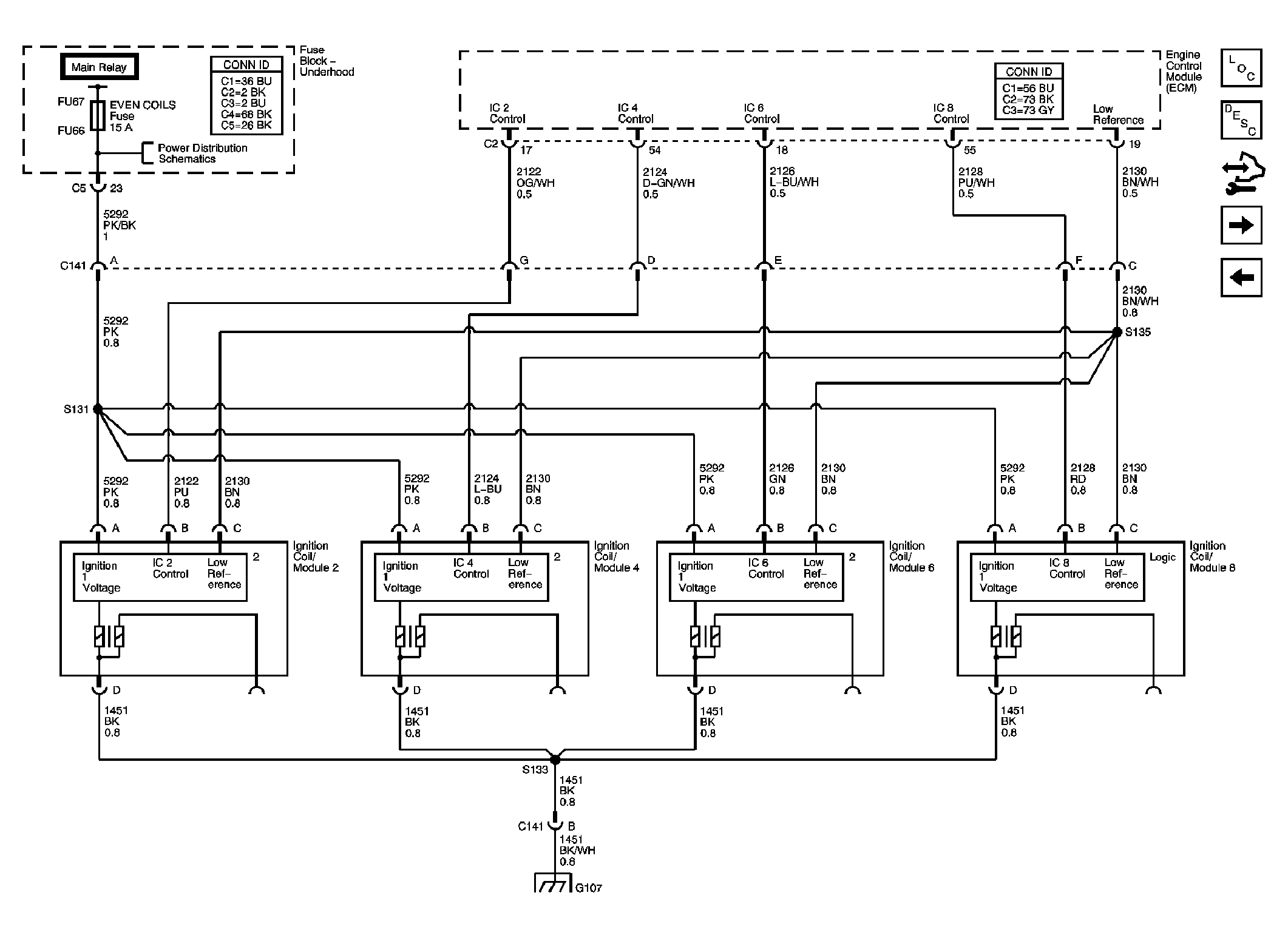

Fig 8: Ignition Controls - Ignition System Bank 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - CMP Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.

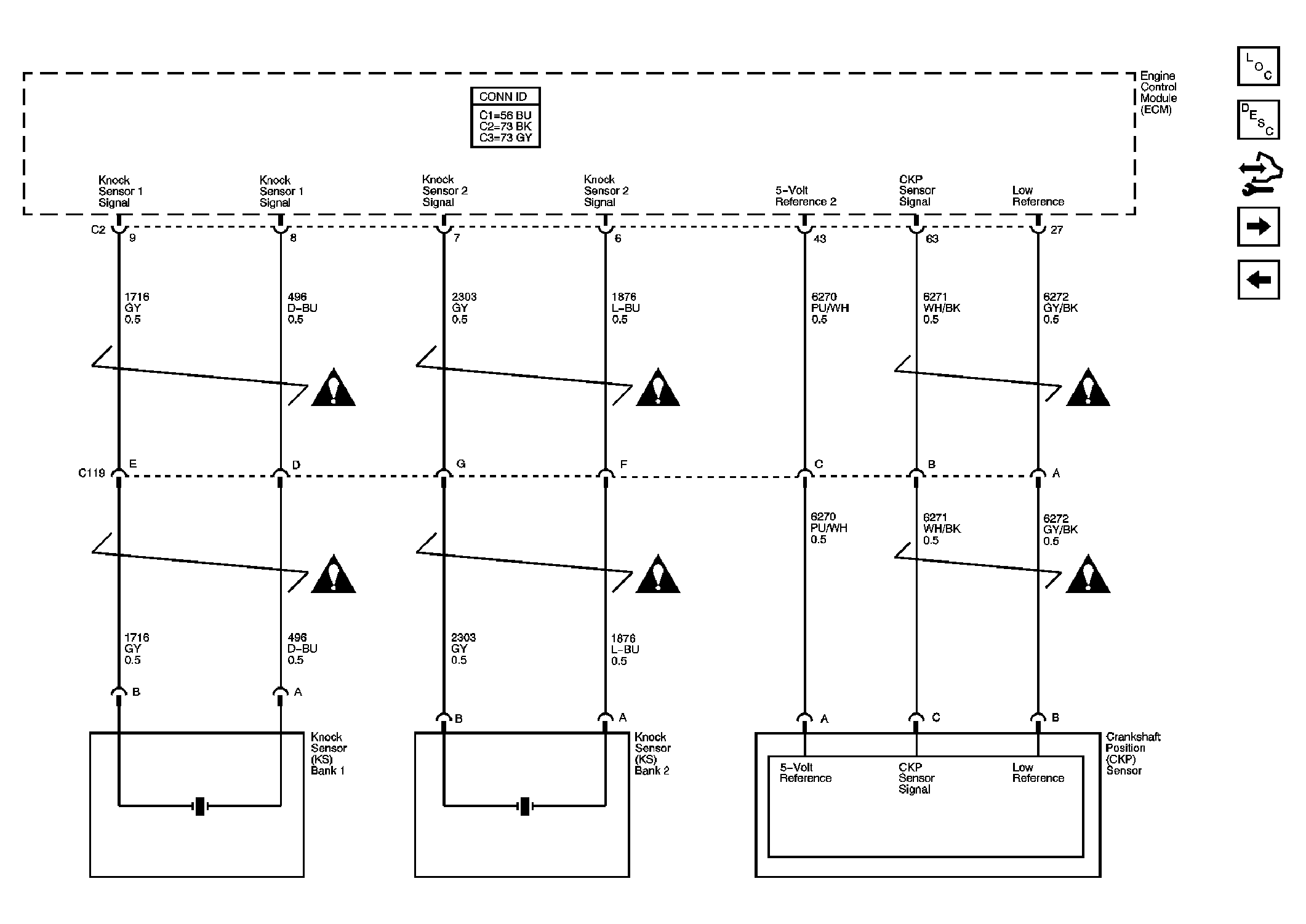

Fig 10: Crankshaft Position (CKP) Sensor and Knock Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

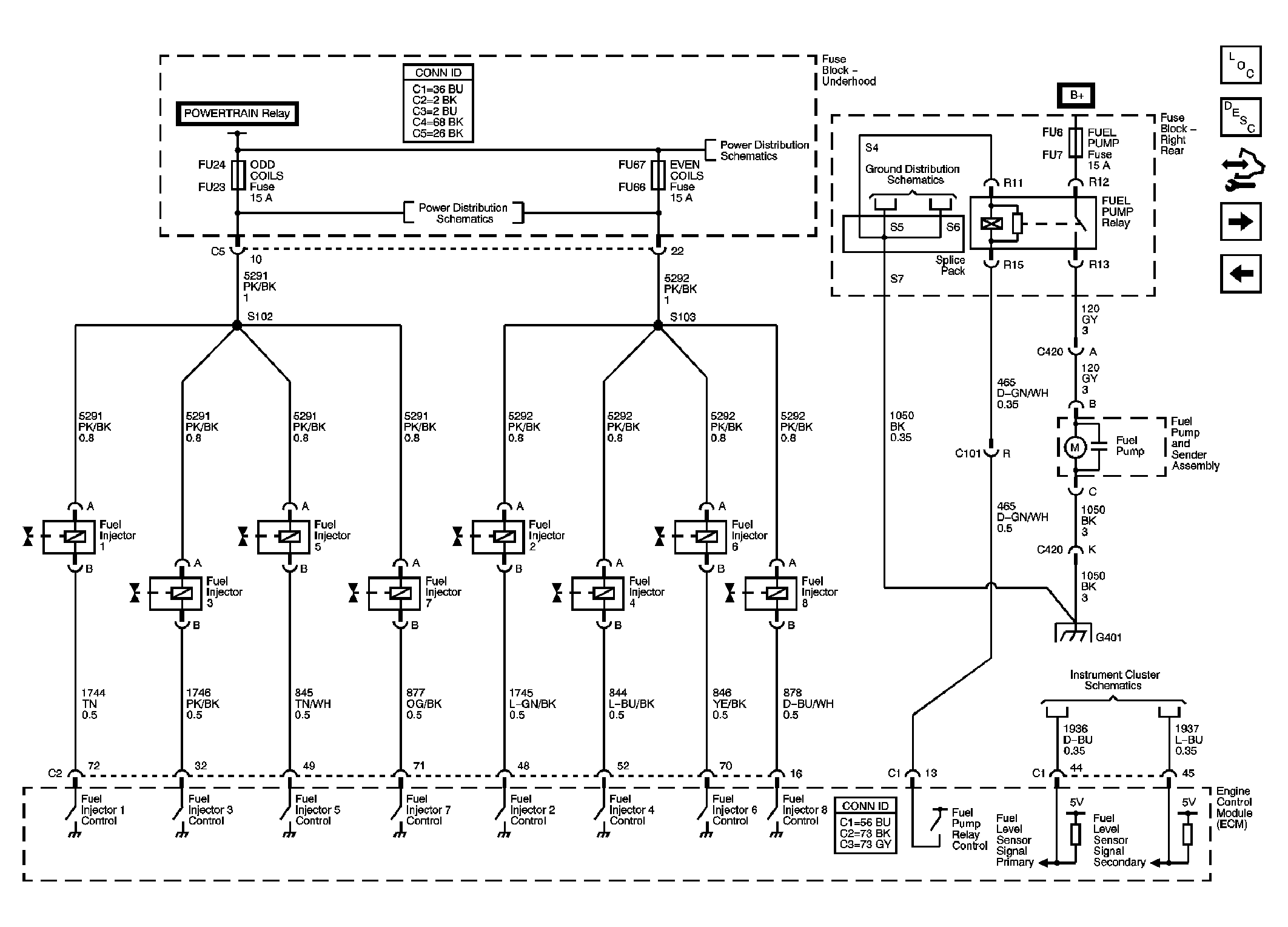

Fig 11: Fuel Controls - Injectors and Pump Schematic

Courtesy of GENERAL MOTORS CORP.

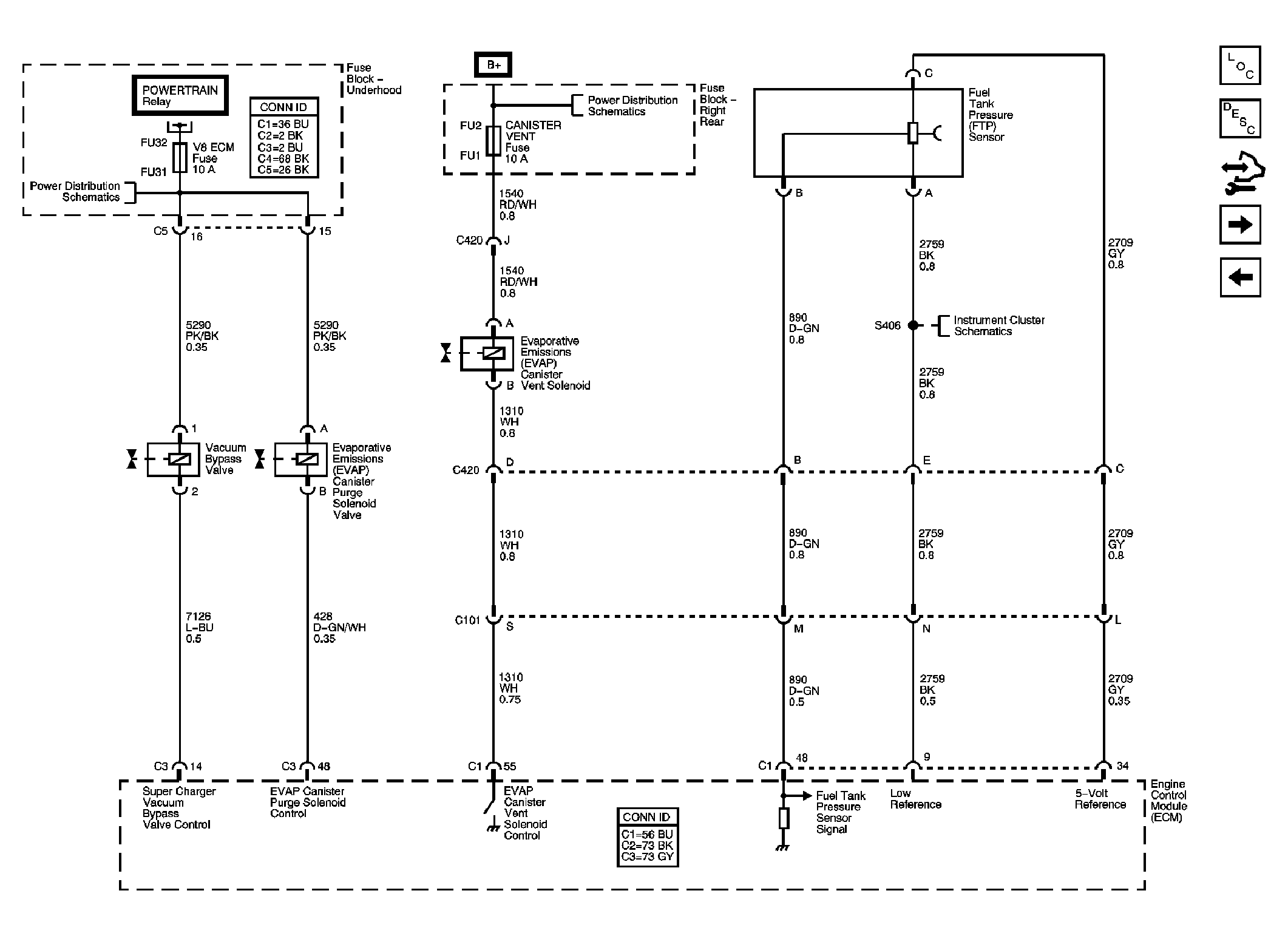

Fig 12: Fuel Controls - EVAP, Fuel Tank Pressure (FTP) Sensor, Vacuum Bypass Valve Schematic

Courtesy of GENERAL MOTORS CORP.

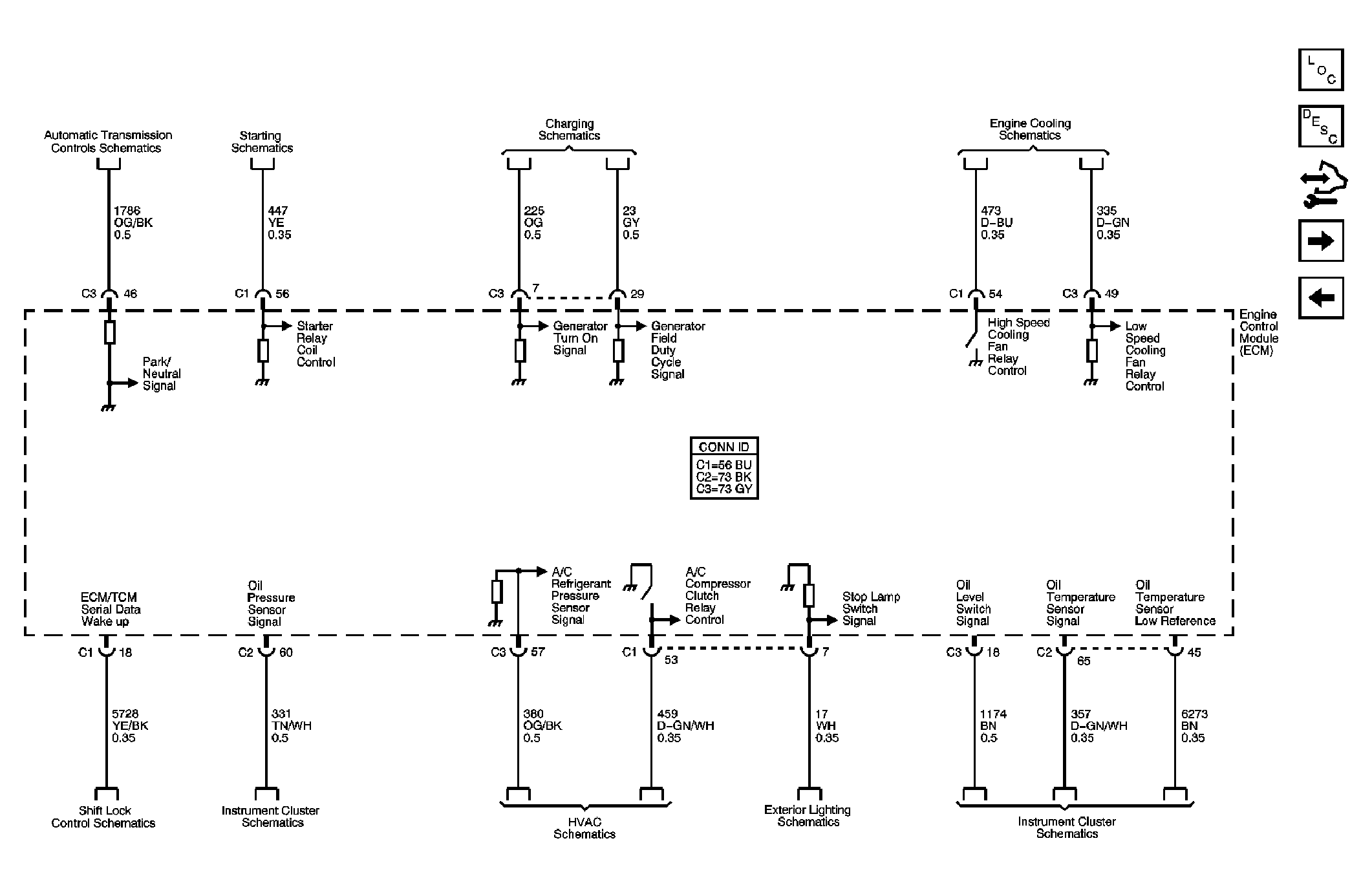

Fig 13: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: Charge Air Cooler (CAC) Coolant Pump Schematic

Courtesy of GENERAL MOTORS CORP.

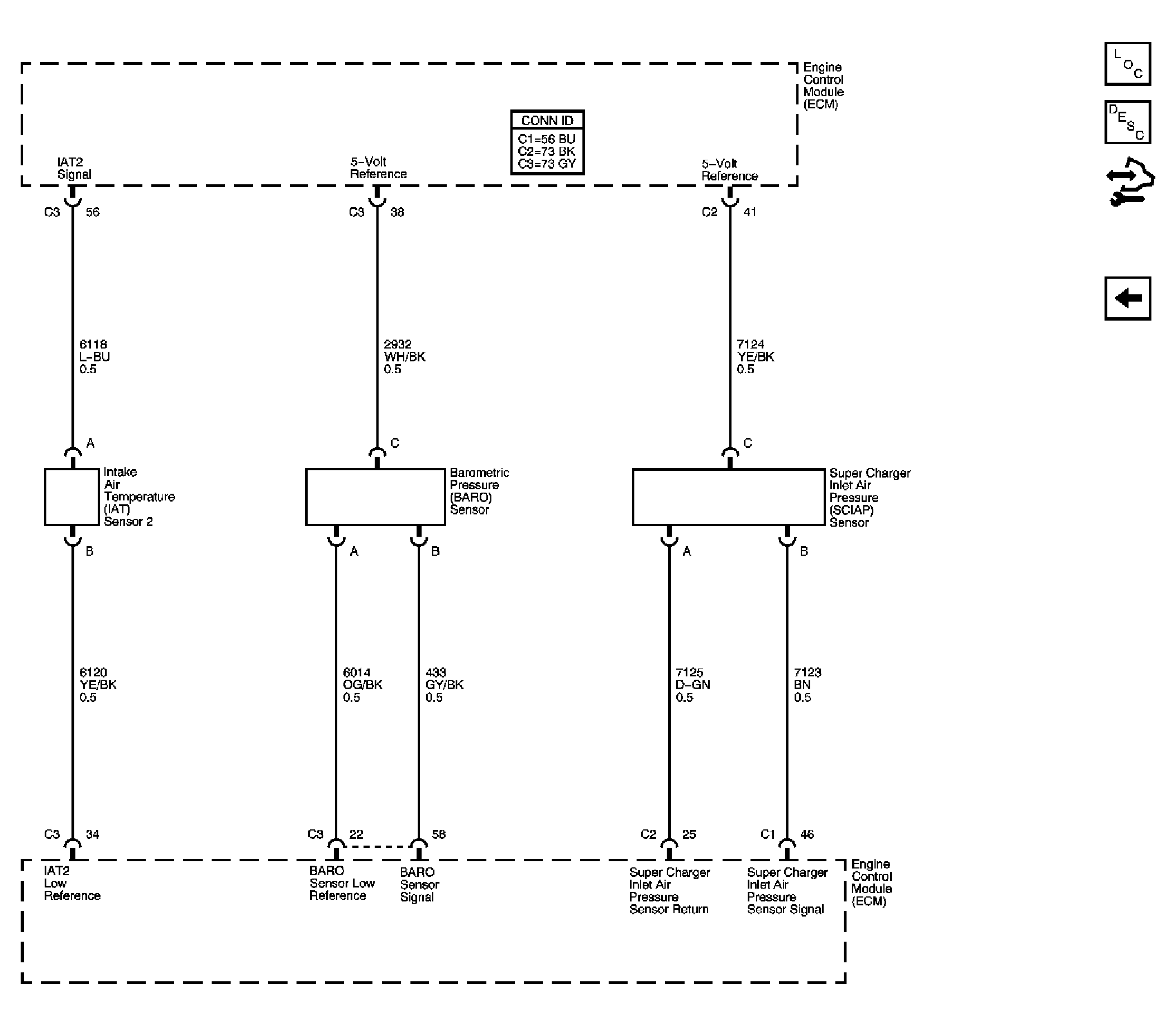

Fig 15: Engine Data Sensors - IAT 2, BARO, SCIAP Schematic

Courtesy of GENERAL MOTORS CORP.
