Keyless Entry Schematics

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

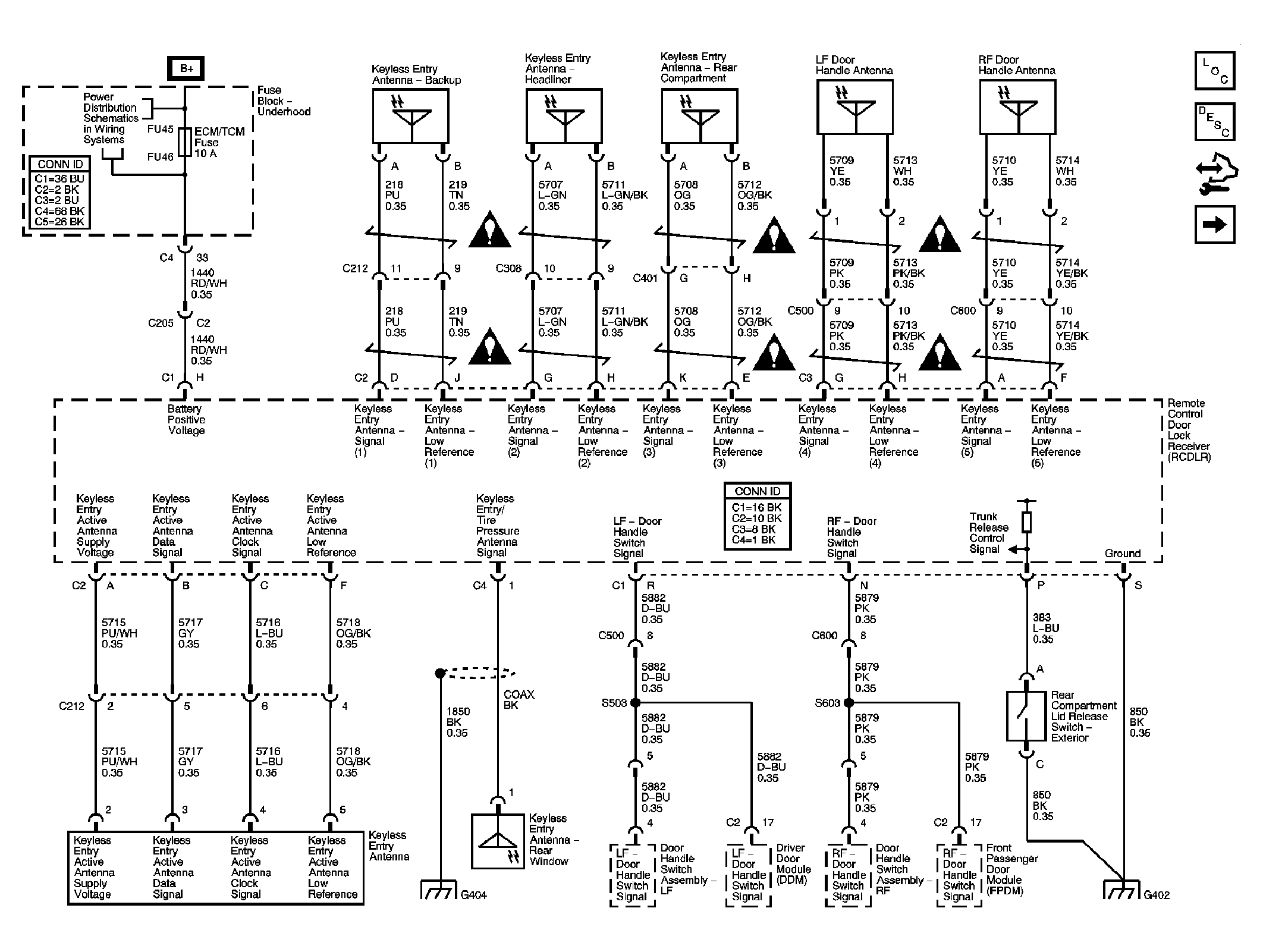

Fig 1: Module Power, Grounds, Antennas and Switches

Courtesy of GENERAL MOTORS CORP.

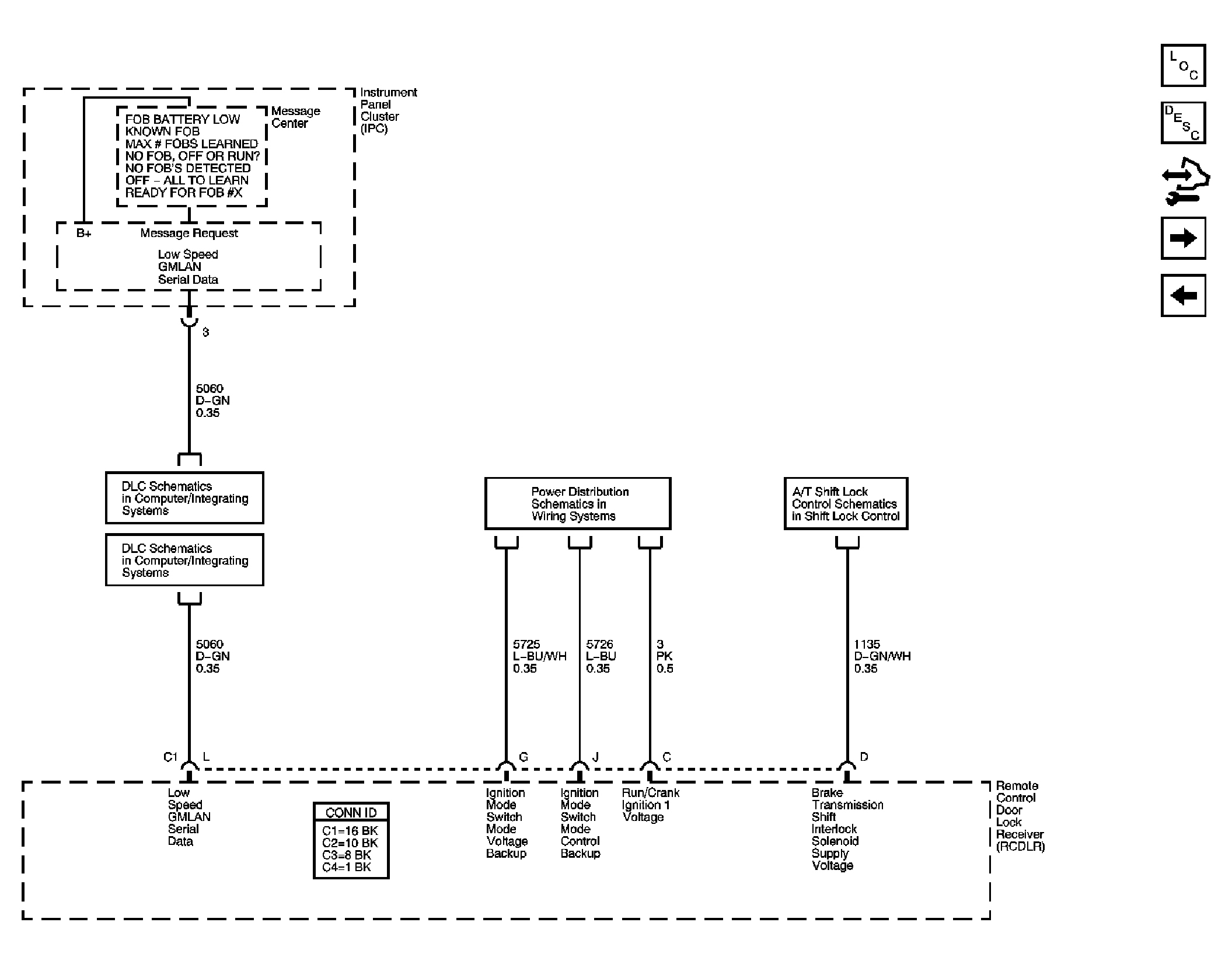

Fig 2: DLC, Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

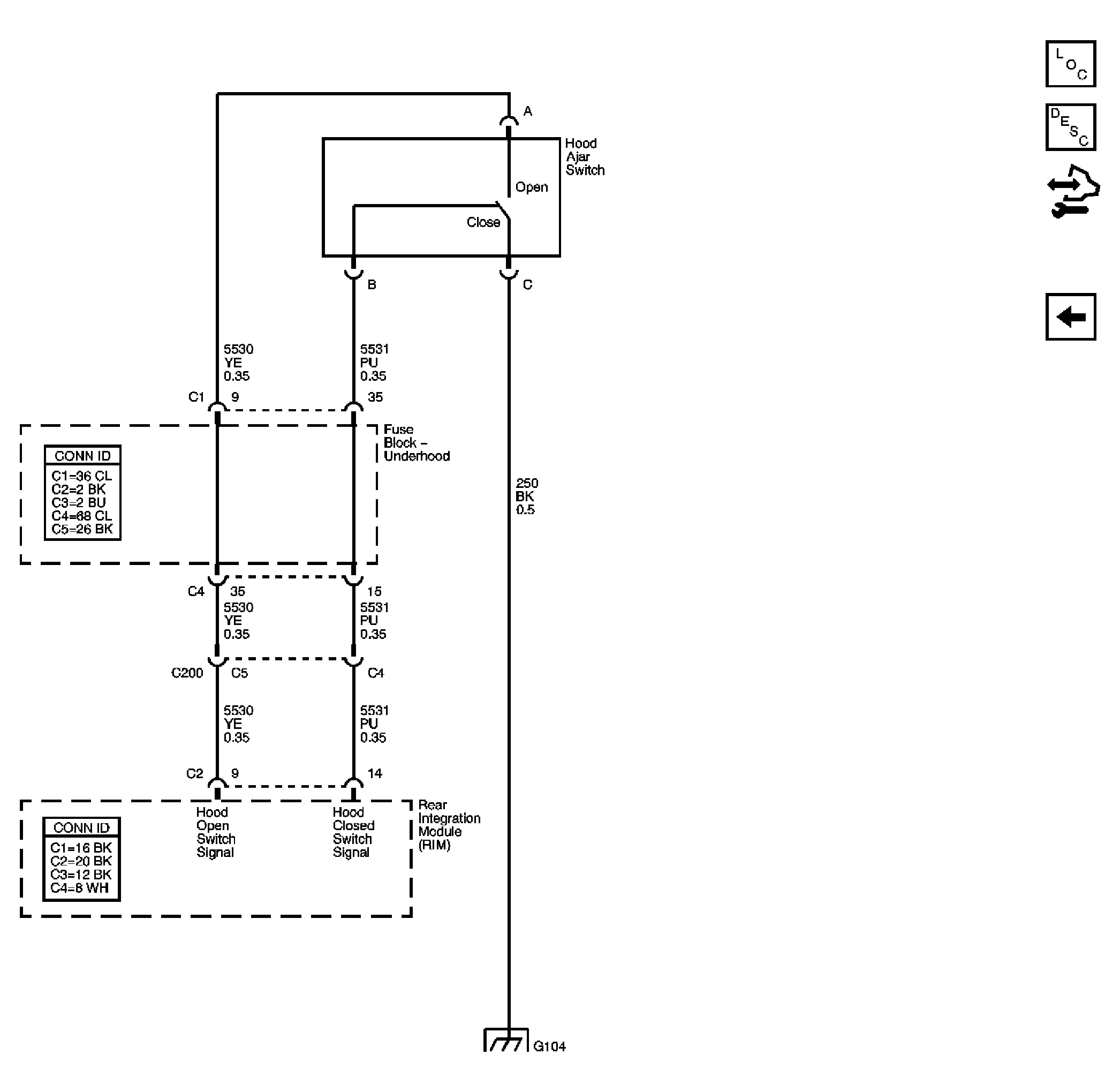

Fig 3: Hood Ajar Switch Schematic

Courtesy of GENERAL MOTORS CORP.
