SIR Component Views

WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

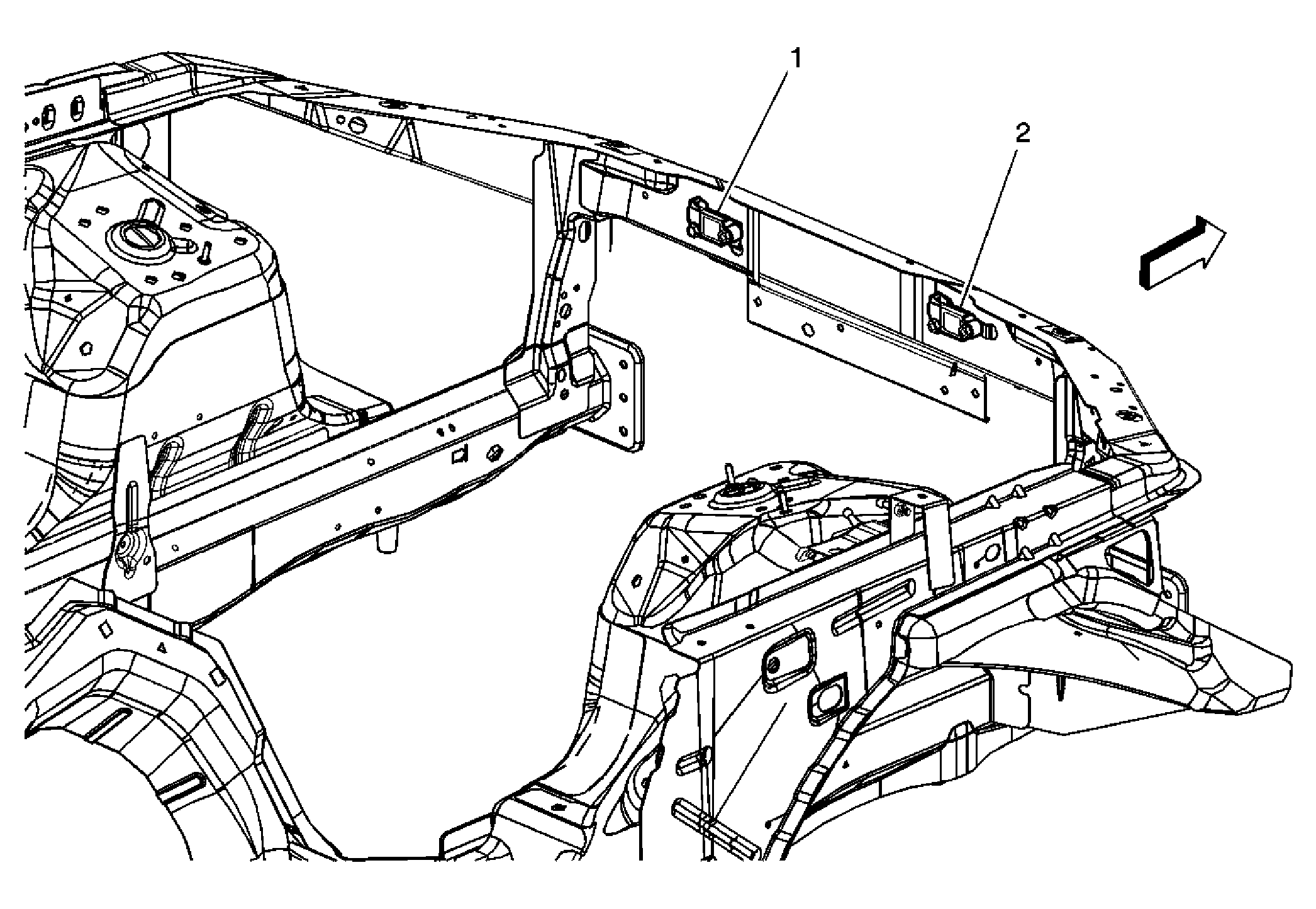

Fig 1: Front End Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Inflatable Restraint Front End Sensor - Right

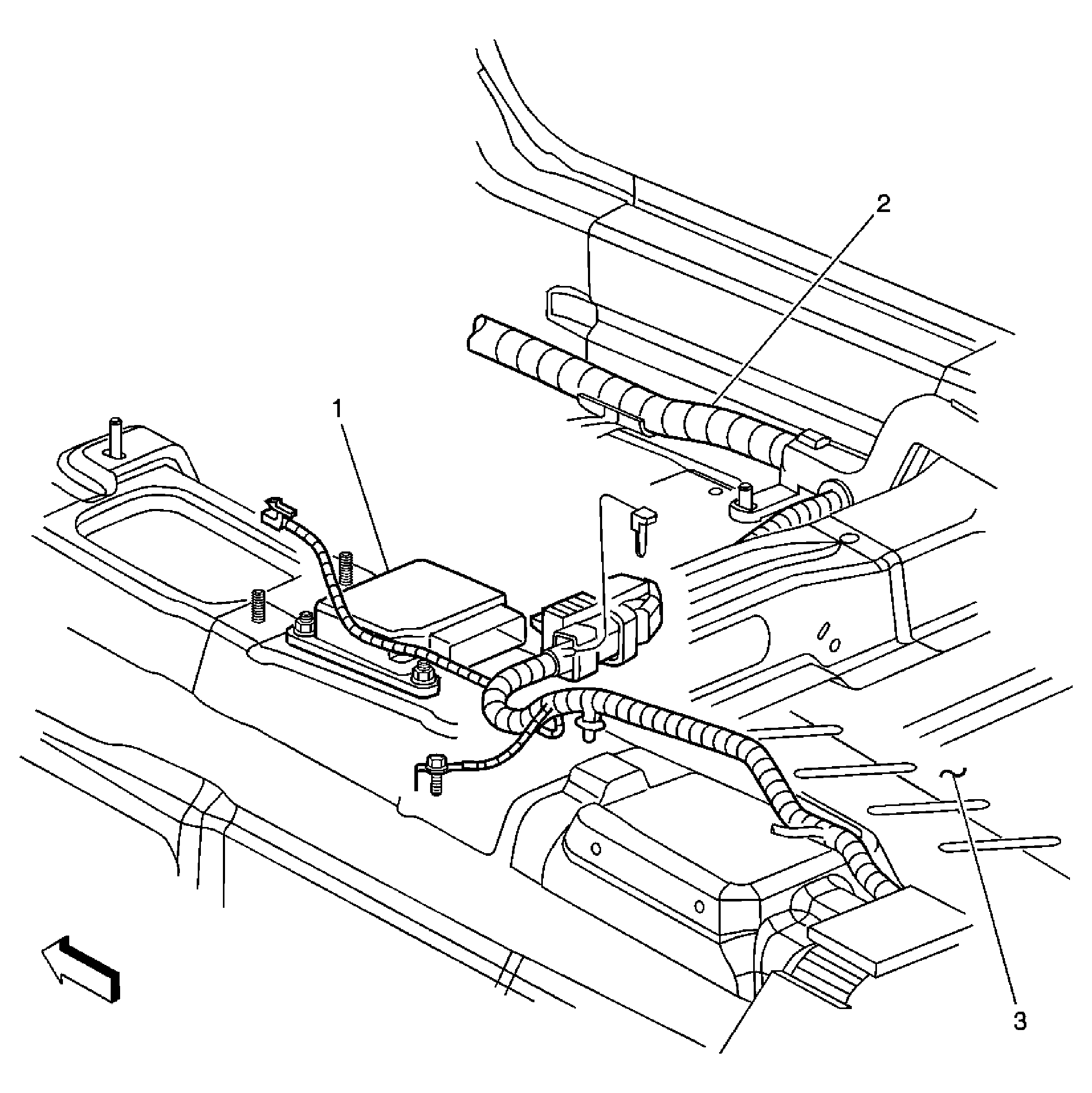

Fig 2: SIR Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Body Harness
3	Floor Panel

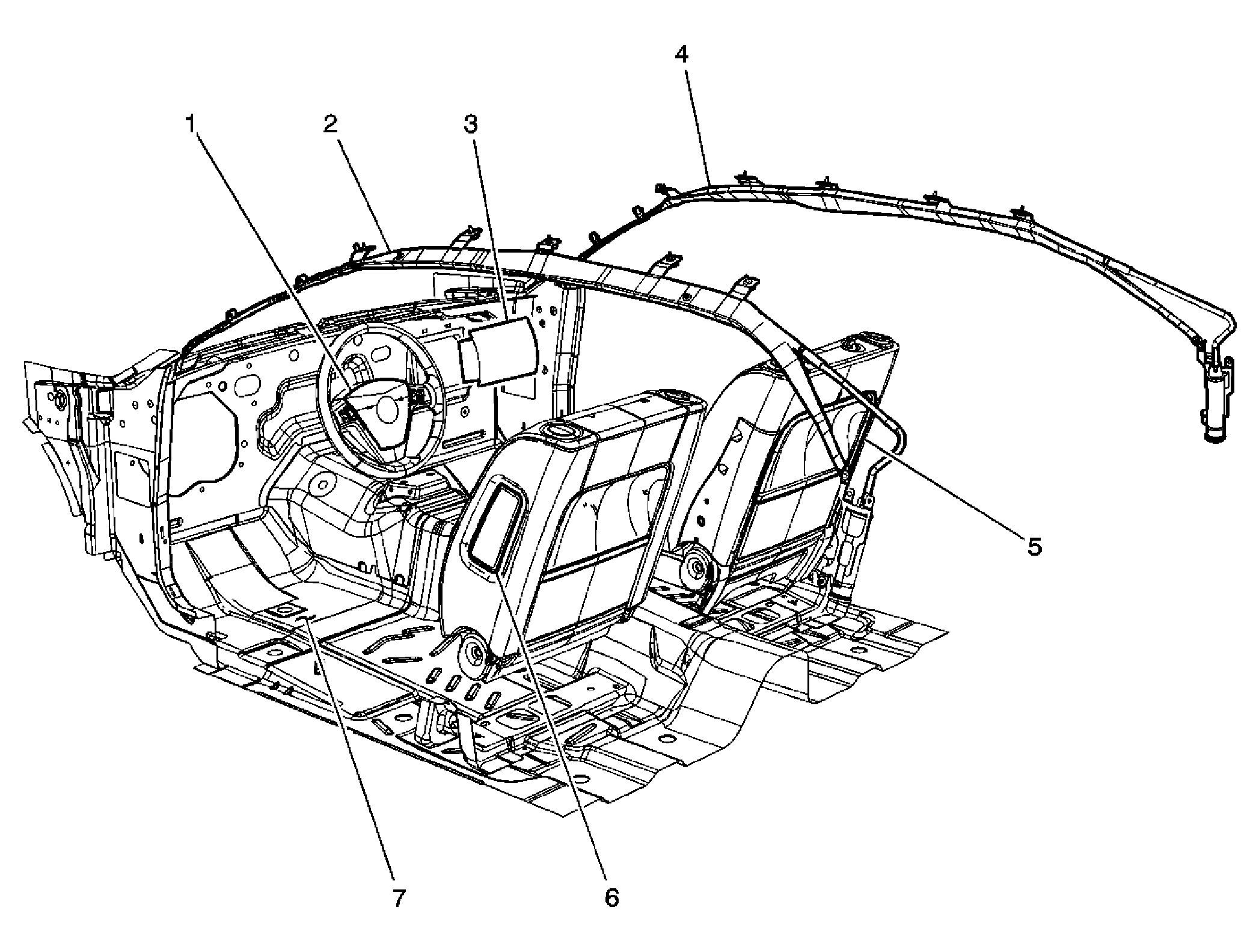

Fig 3: Air Bag Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Roof Rail Module - Left
3	Inflatable Restraint I/P Module
4	Inflatable Restraint Roof Rail Module - Right
5	Inflatable Restraint Side Impact Module - Right
6	Inflatable Restraint Side Impact Module - Left
7	Floor Panel

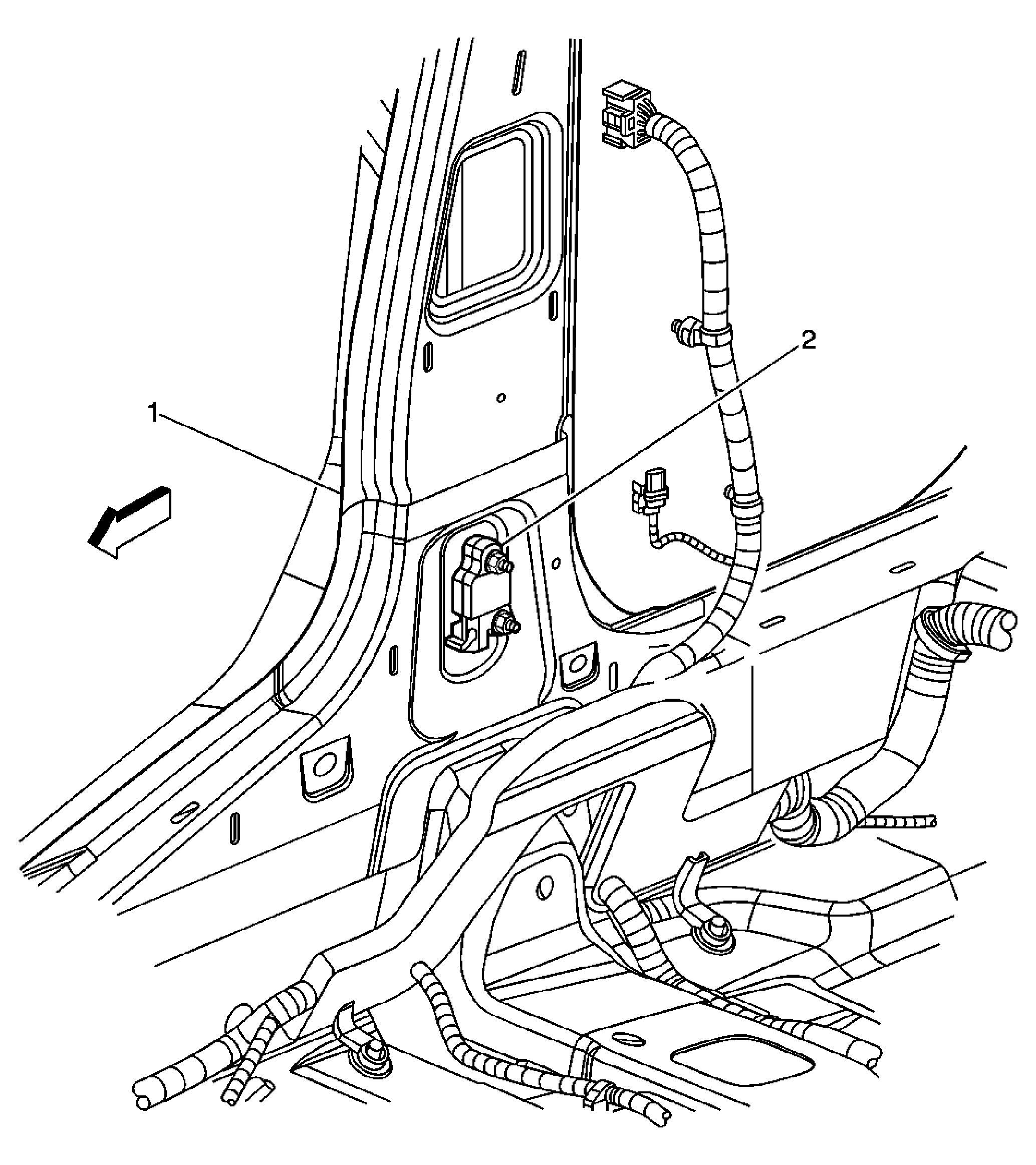

Fig 4: Passenger Side Impact Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Side B Pillar
2	Inflatable Restraint Side Impact Sensor (SIS) - Right

Fig 5: Seat Belt Switch and Pretensioner - Left Front Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back
2	Seat Cushion
3	Inflatable Restraint Seat Belt Pretensioner - LF
4	Seat Belt Switch - LF

Fig 6: Seat Belt and Pretensioner - Right Front Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Cushion
2	Seat Back
3	Seat Belt Switch - RF
4	Inflatable Restraint Seat Belt Pretensioner - RF

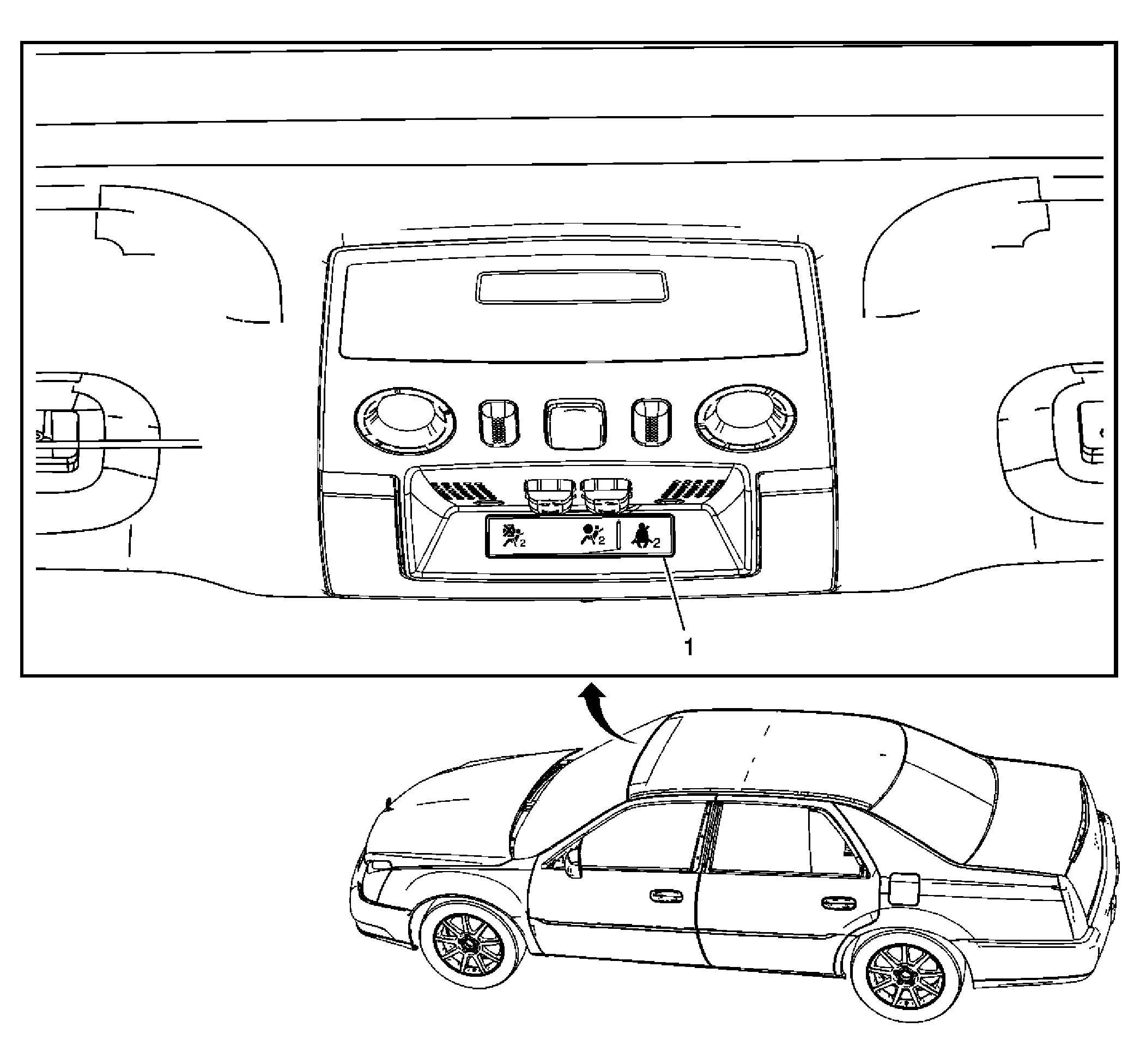

Fig 7: SIR Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module Indicator

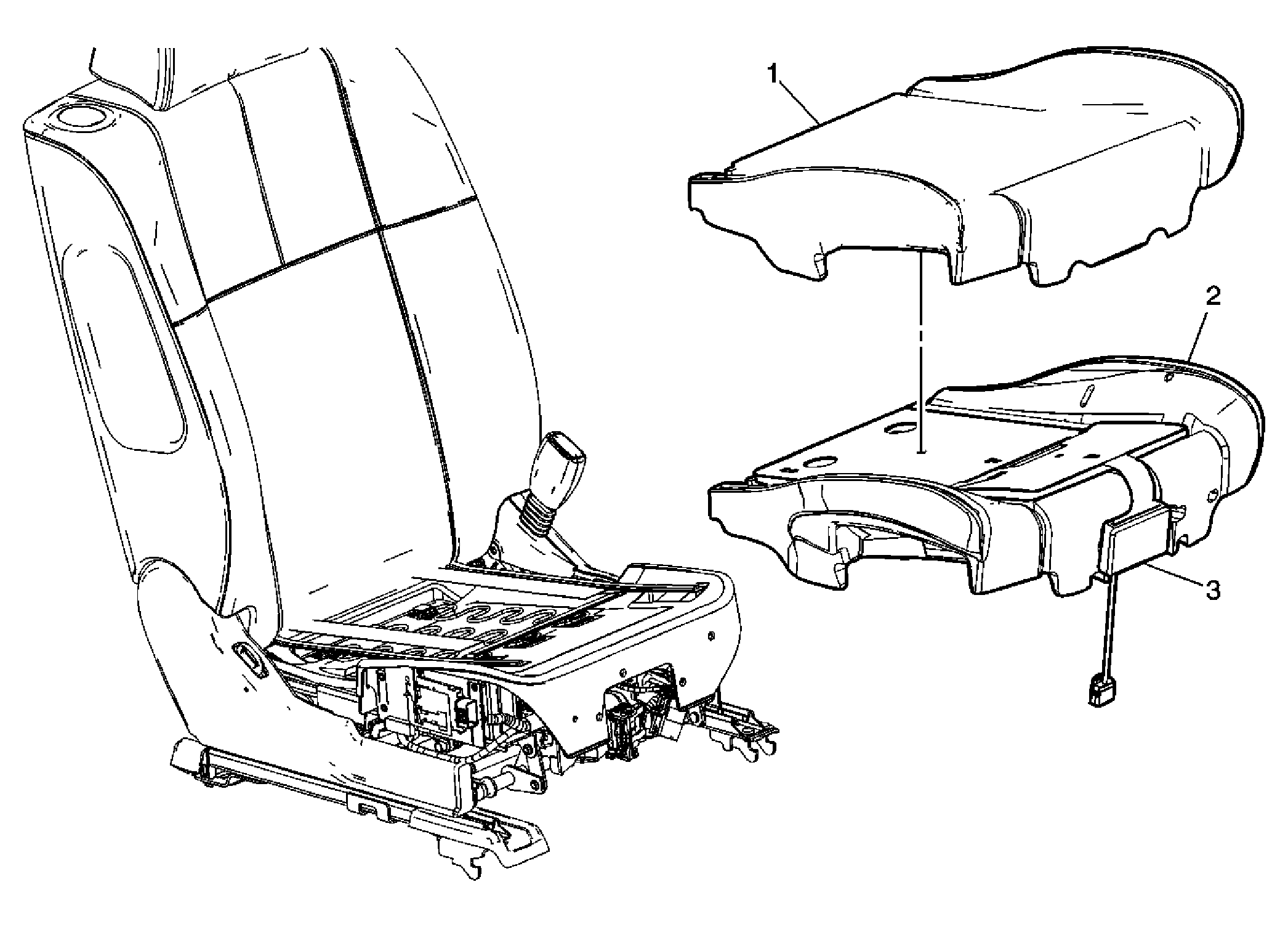

Fig 8: Inflatable Restraint Passenger Presence System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Cushion
2	Inflatable Restraint Passenger Presense Occupant Sensor
3	Inflatable Restraint Passenger Presense System (PPS) Module
