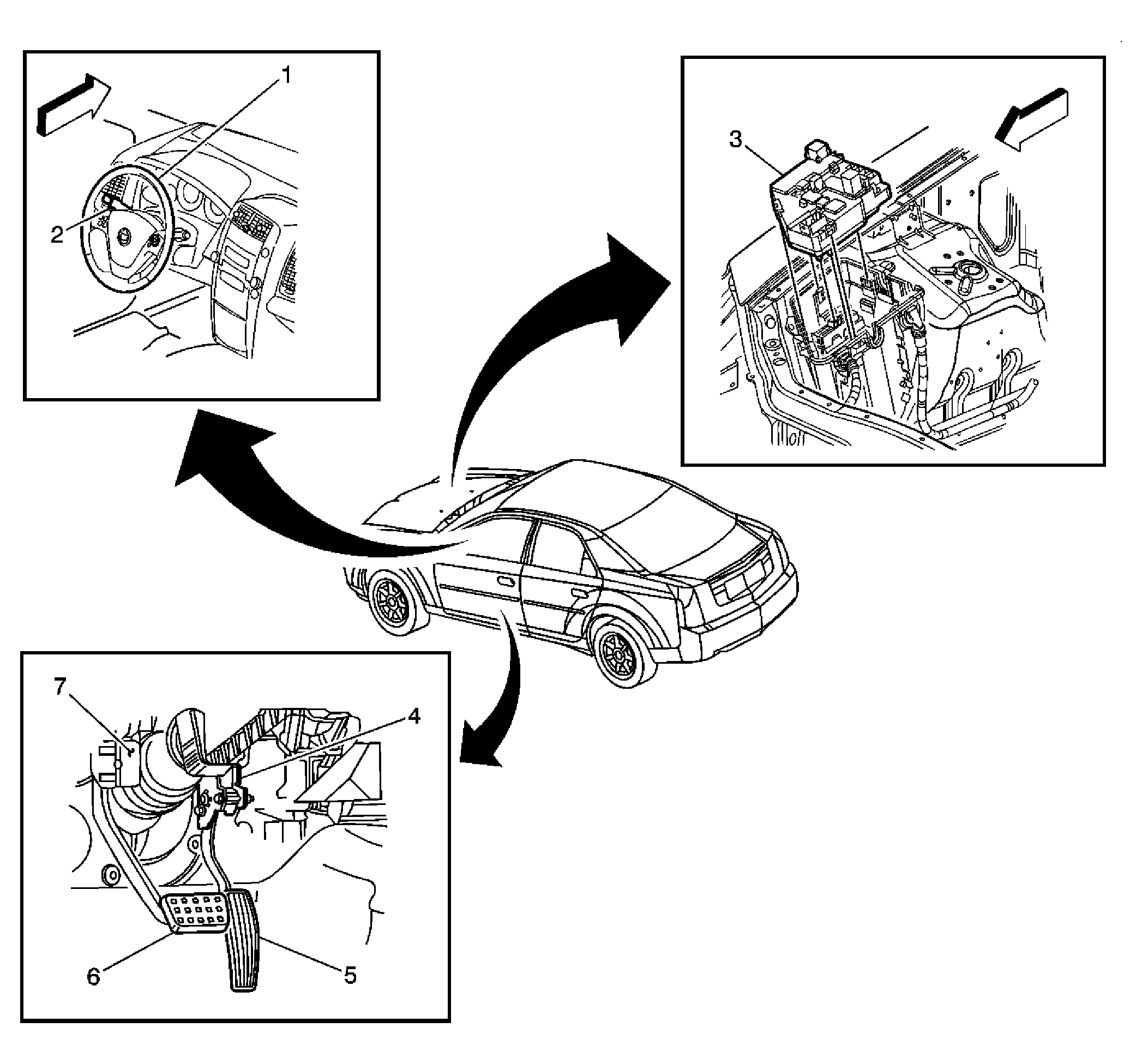

Cruise Control Component Views
WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Steering Wheel (LHD shown, RHD similar) |
| 2 |
Cruise Control Switch (Part of Turn Signal/Multifunction Switch) |
| 3 |
Fuse Block - Underhood |
| 4 |
Accelerator Pedal Position (APP) Sensor |
| 5 |
Accelerator Pedal |
| 6 |
Brake Pedal |
| 7 |
Brake Pedal Position (BPP) Sensor |
