Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

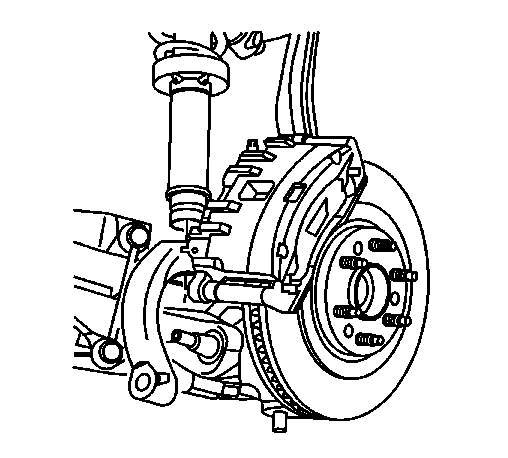

Fig 1: View Of Yoke
GM874641Courtesy of GENERAL MOTORS CORP.
  1. Install the yoke to the vehicle.
    IMPORTANT: Do not tighten the nut at this time.

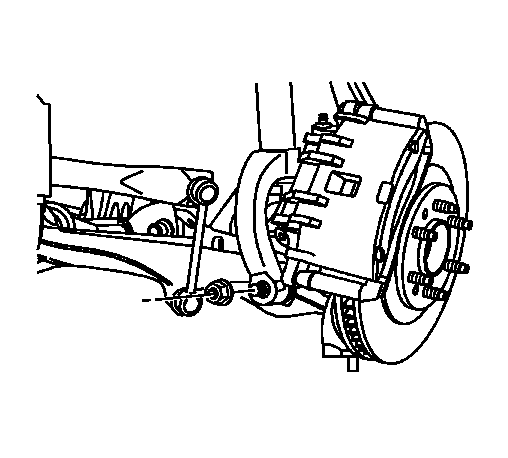

    Fig 2: View Of Yoke-To-Lower Control Arm Retaining Nut
    GM874633Courtesy of GENERAL MOTORS CORP.
  2. Install the yoke to lower control arm retaining nut.

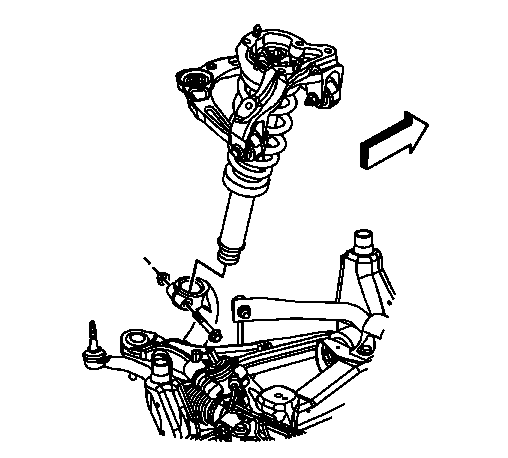

    Fig 3: View Of Shock-To-Yoke Retaining Bolt
    GM1209258Courtesy of GENERAL MOTORS CORP.
  3. Install the yoke to the shock.
    NOTE: Refer to Fastener Notice .
  4. Install the yoke to shock retaining bolt and nut.

    Tighten:

    • Tighten the shock to yoke nut to 110 N.m (81 lb ft).
    • Tighten the yoke to lower control arm nut to 180 N.m (133 lb ft).

  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
