Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

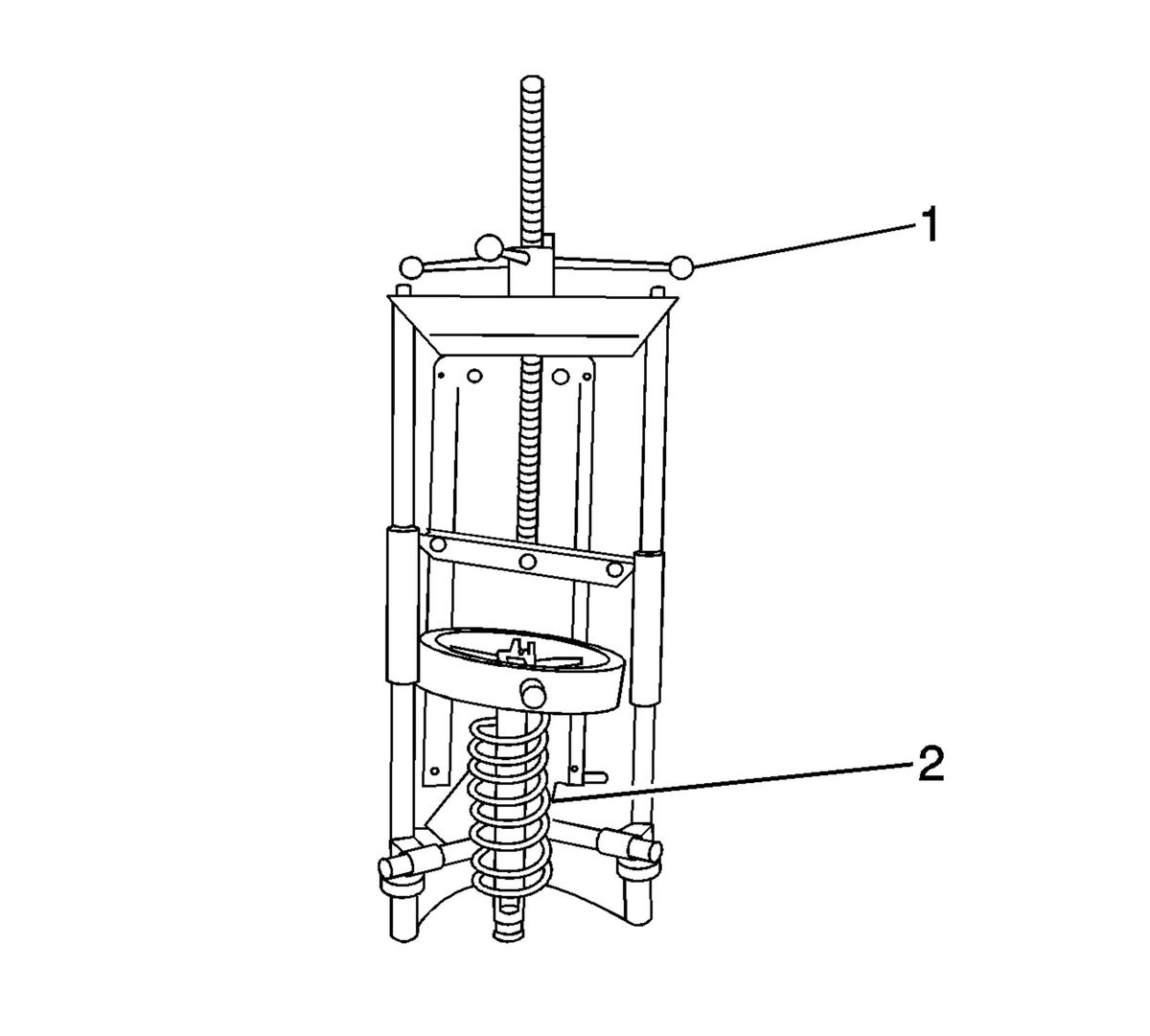

Fig 1: View Of Compressor Forcing Screw & Coil Spring
GM743241Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Ensure the alignment pins in the upper control arm bracket is orientated 90 degrees with the shock absorber lower mounting holes.
  1. Install the coil spring, insulator, upper control arm bracket assembly, and shock absorber to the spring compressor aligning all marks.
  2. Turn the spring compressor forcing screw (1) until the coil spring is compressed.
    NOTE: Refer to Fastener Notice .

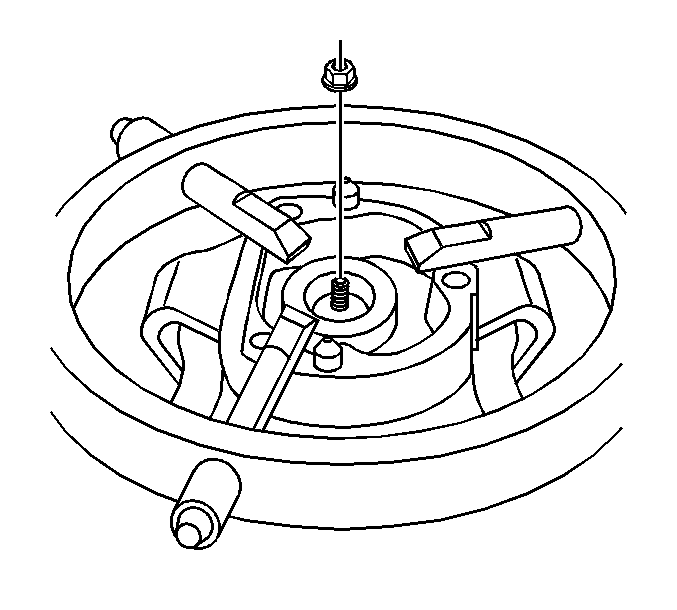

    Fig 2: View Of Shock Absorber Upper Retaining Nut
    GM803179Courtesy of GENERAL MOTORS CORP.
  3. Install the shock absorber retaining nut.

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

  4. Install the magnaride sensor nut.

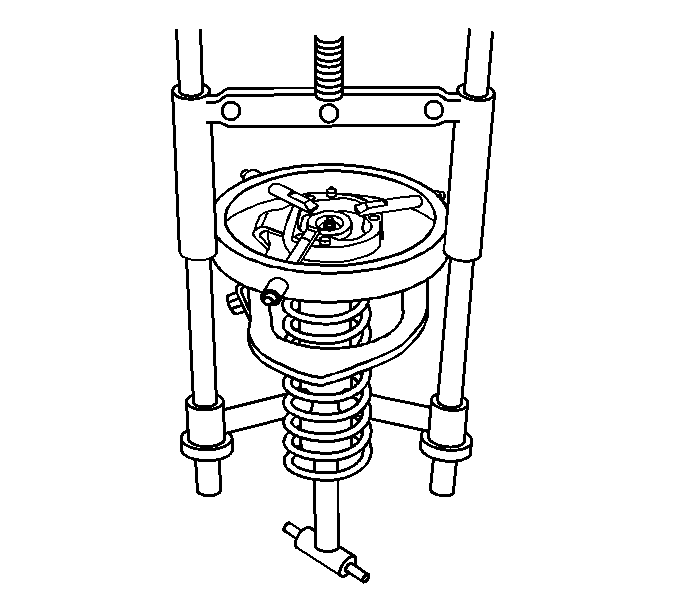

    Fig 3: View Of Spring Compressor
    GM803178Courtesy of GENERAL MOTORS CORP.
  5. Remove the shock module from the spring compressor.
  6. Install the shock module to the vehicle. Refer to Shock Module Replacement .
  7. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
