Cruise Control Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Instrument Panel And Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC) Switch
2	Dimmer Switch
3	Turn Signal/Multifunction Switch
4	Inflatable Restraint Steering Wheel Module
5	Instrument Panel Cluster (IPC)
6	Windshield Wiper/Washer Switch
7	Sunload/Ambient Light Sensor
8	Speaker - Instrument Panel (UQS)
9	Analog Clock
10	Radio/CD/DVD/Navigation Unit (UV2)
11	Inflatable Restraint I/P Module
12	HVAC Control Module
13	Rear Window Defogger Switch
14	Courtesy Lamp - Right Footwell
15	Hazard Switch
16	Tow/Haul Switch
17	Cigar Lighter
18	Rear Video Display (U42)
19	DVD Player (U42)
20	Speaker - Center Console (UQS)
21	Auxiliary Power Outlet - Center Console 2 (UQS)
22	Auxiliary Power Outlet - Center Console 1
23	Floor Console
24	Inflatable Restraint I/P Module Indicator (AQS)
25	Traction Control Switch
26	Inside Air Temperature Sensor
27	Steering Wheel Controls - Right
28	Courtesy Lamp - Left Footwell
29	Steering Wheel Controls - Left

Fig 2: View Of Pedal Switch & Sensor Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Brake Pedal Position Sensor
3	Accelerator Pedal Position (APP) Sensor
4	Left Front Floor Panel

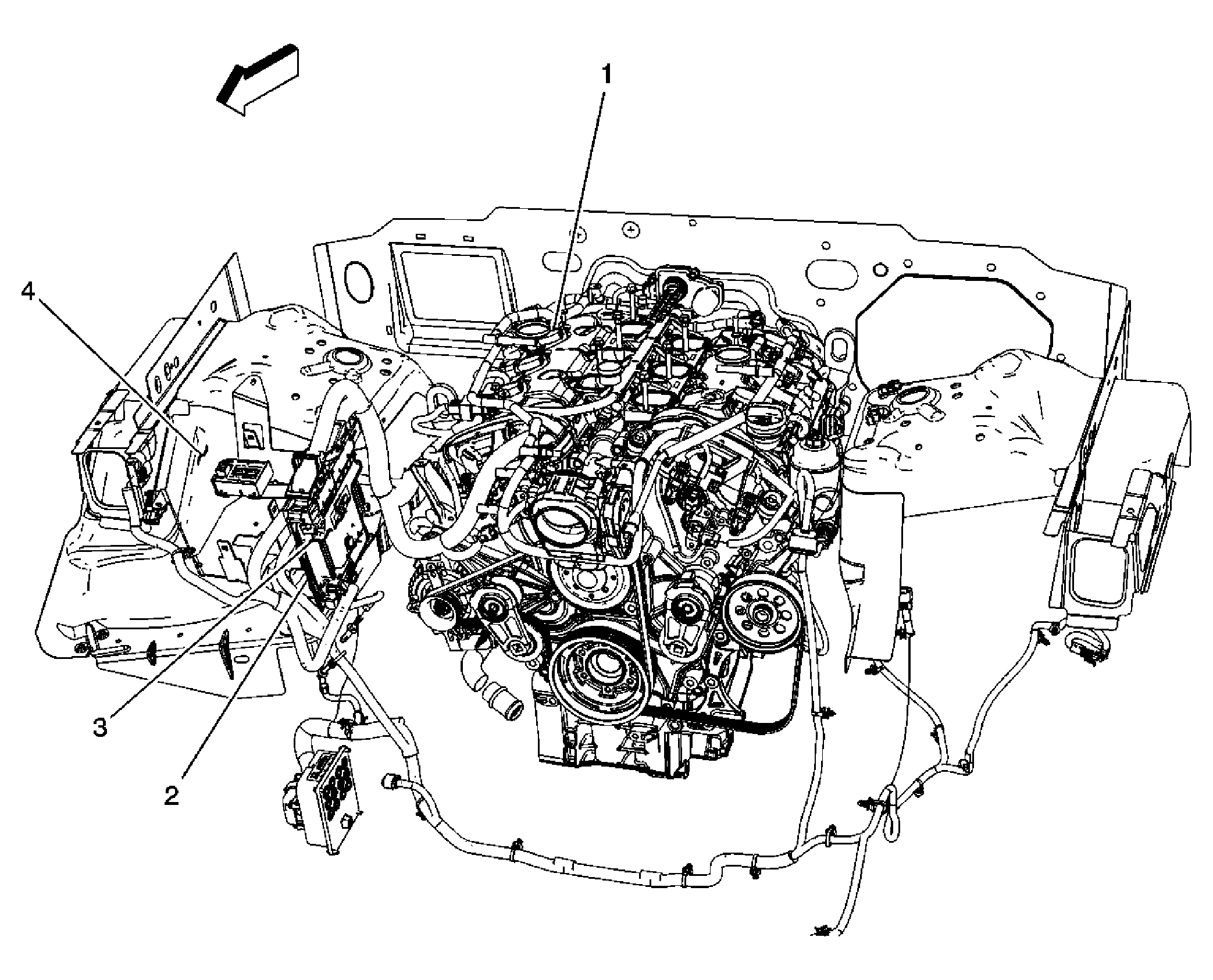

Fig 3: Front Engine Compartment (LY7) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine - LY7
2	Transmission Control Module (TCM)
3	Engine Control Module - (ECM)
4	Fuse Block - Underhood Bracket

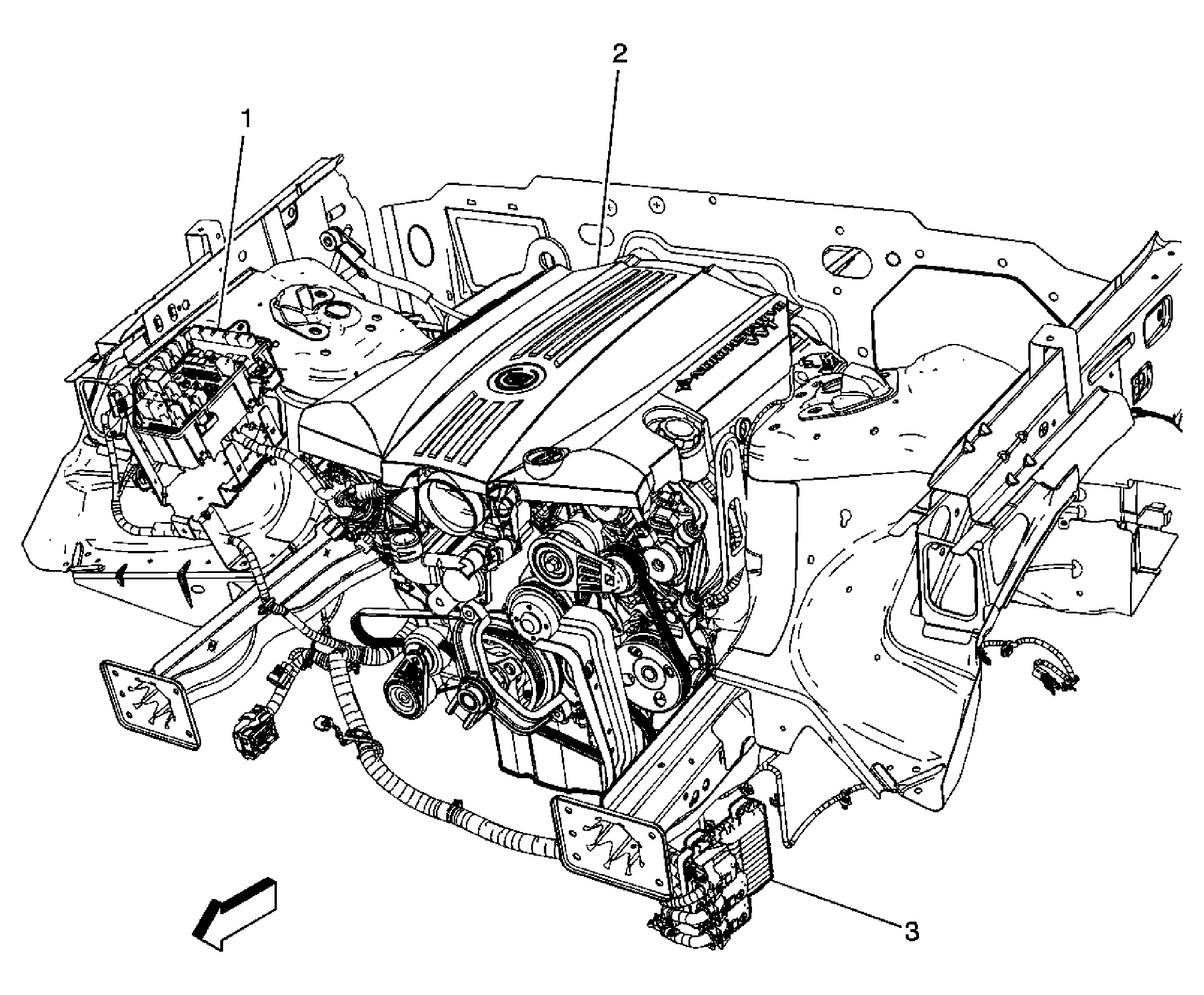

Fig 4: Front Engine Compartment (LH2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Engine - LH2
3	Engine Control Module (ECM)/Transmission Control Module (TCM)

Fig 5: Top Of Engine (LH2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Actuator Solenoid Exhaust - Bank 1
2	Camshaft Position (CMP) Sensor Exhaust - Bank 1
3	Camshaft Position (CMP) Sensor Intake - Bank 1
4	Camshaft Position (CMP) Actuator Solenoid Intake - Bank 1
5	Manifold Absolute Pressure (MAP) Sensor
6	C140
7	Ignition Coil - Module 1
8	Fuel Injector 1
9	Ignition Coil - Module 3
10	Fuel Injector 3
11	Ignition Coil - Module 5
12	Fuel Injector 5
13	Ignition Coil - Module 7
14	Fuel Injector 7
15	Fuel Injector 6
16	Starter
17	C102
18	Fuel Injector 8
19	C139
20	Ignition Coil - Module 8
21	Ignition Coil - Module 6
22	Ignition Coil - Module 4
23	Fuel Injector 4
24	Ignition Coil - Module 2
25	Fuel Injector 2
26	Camshaft Position (CMP) Actuator Solenoid Exhaust - Bank 2
27	Camshaft Position (CMP) Sensor Exhaust - Bank 2
28	Camshaft Position (CMP) Sensor Intake - Bank 2
29	Camshaft Position (CMP) Actuator Solenoid Intake - Bank 2
30	Evaporative Emission (EVAP) Canister Purge Valve
31	Throttle Actuator Control (TAC) Module
