Distance Sensing Cruise Control Module Replacement

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

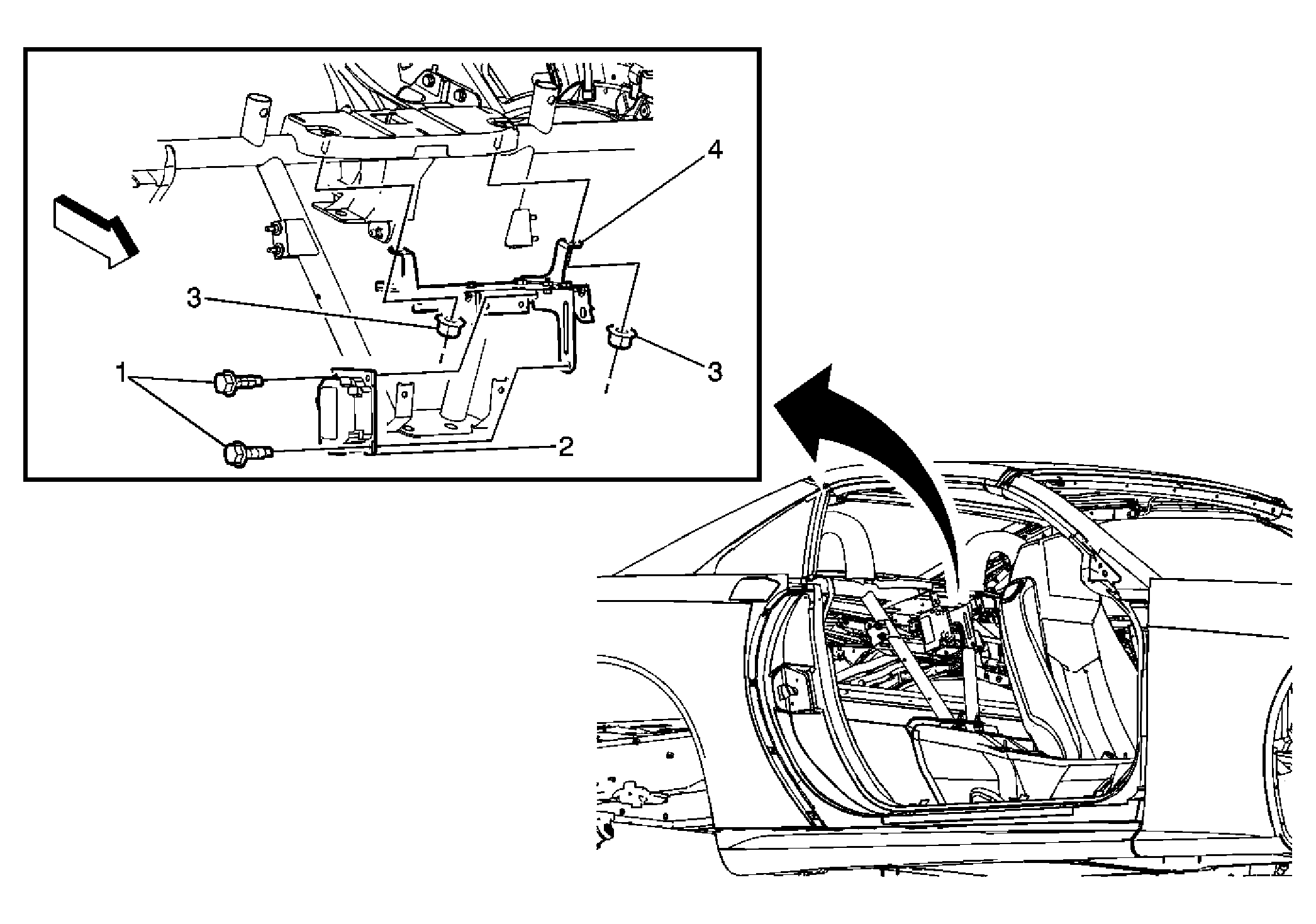

Fig 1: Identifying Distance Sensing Cruise Control Module & Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window panel assembly. Refer to Rear Window Panel Trim Replacement .
1	Cruise Control Module Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
2	Cruise Control Module Tip: Disconnect the electrical connector and remove from the bracket. Refer to Control Module References for programming and setup information.
3	Cruise Control Module Bracket Nut (Qty: 2) Tighten: 3 N.m (27 lb in)
4	Cruise Control Module Bracket
