Cruise Control Component Views
WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

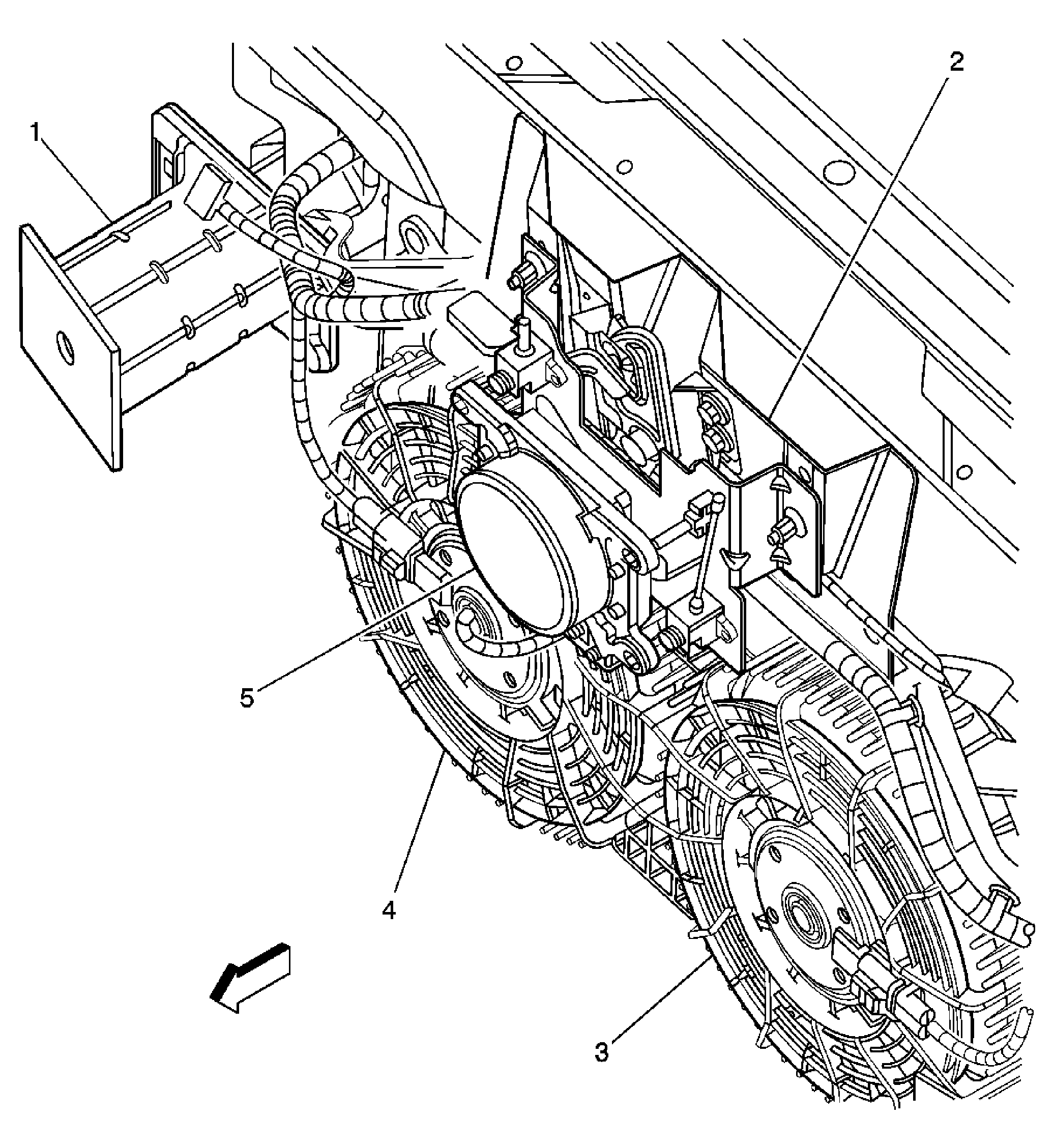

| Callout | Component Name |
|---|---|
| 1 | Frame |
| 2 | Hood Latch Bracket |
| 3 | Cooling Fan - Left |
| 4 | Cooling Fan - Right |
| 5 | Distance Sensing Cruise Control Module (w/K59) |
| Callout | Component Name |
|---|---|
| 1 | Telescoping Actuator |
| 2 | Steering Angle Sensor |
| 3 | Turn Signal/Multifunction Switch |
| 4 | Windshield Wiper/Washer Switch Assembly |
| 5 | Steering Wheel Controls Seek Button (Part of the Steering Wheel Control Switch Assembly) |
| 6 | Steering Wheel Controls Volume Button (Part of the Steering Wheel Control Switch Assembly) |
| 7 | C277 |
| 8 | Horn Switch Connector |
| 9 | Heated Steering Wheel Module |
| 10 | Steering Wheel Controls Mute/Source Button (w/o NR7/N31), Heated Steering Wheel Button (NR7/N31) (Part of the Steering Wheel Control Switch Assembly) |
| 11 | Steering Wheel Controls Voice/Preset Button (Part of the Steering Wheel Control Switch Assembly) |
| 12 | Heated Steering Wheel (NR7/N31) |
| 13 | Tilt/Telescope Switch |
| 14 | Tilt Actuator |
| 15 | C202 |
| 16 | Steering Column Lock Control Module (UA2) |
| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch |
| 2 | Brake Pedal Position Sensor |
| 3 | Accelerator Pedal Position (APP) Sensor |
| 4 | Left Front Floor Panel |
