WARNING: This page is about a different car, the 2006 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

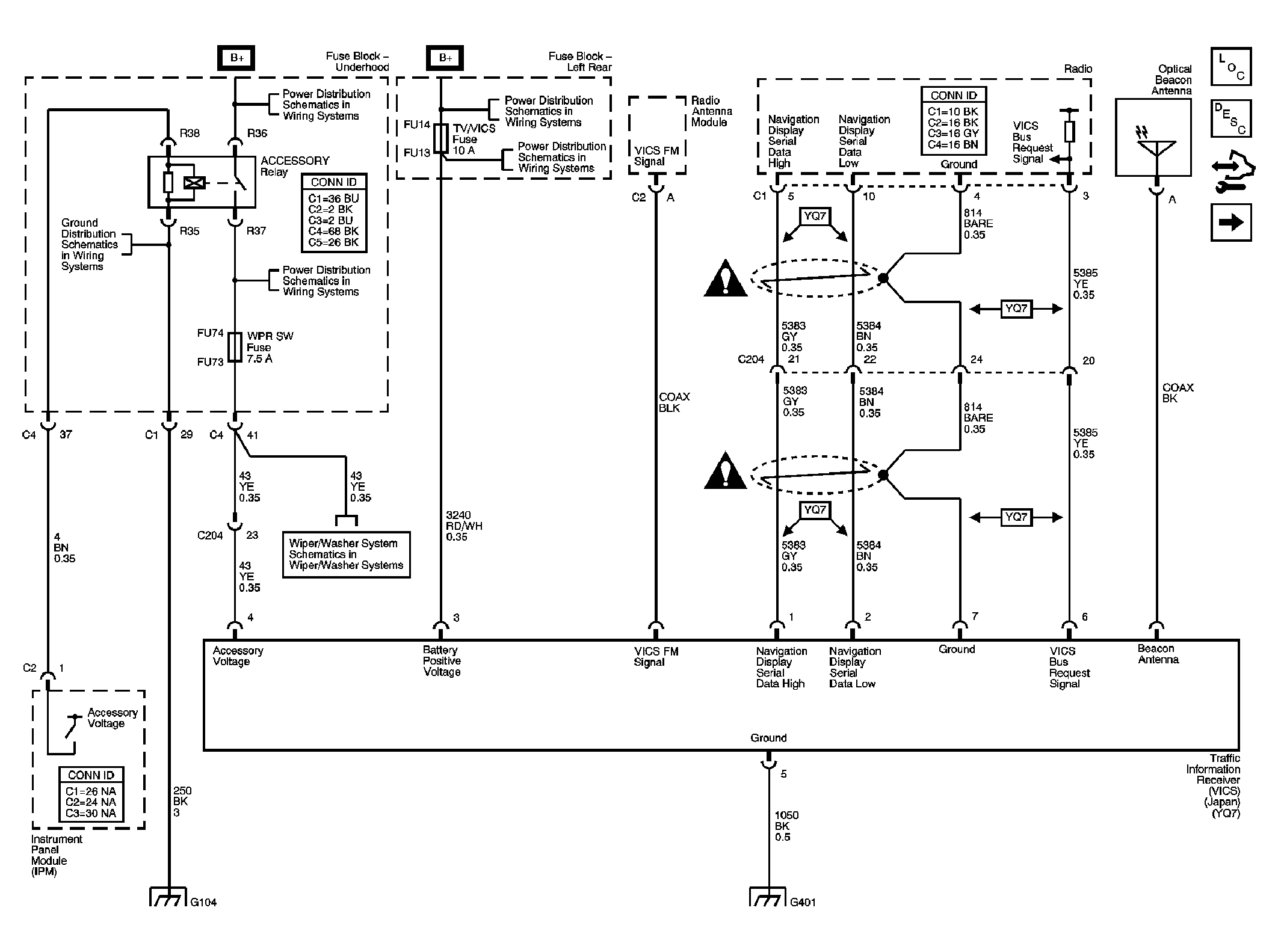

Fig 1: Traffic Information Receiver Module (VICS) - Japan Only
Courtesy of GENERAL MOTORS CORP.

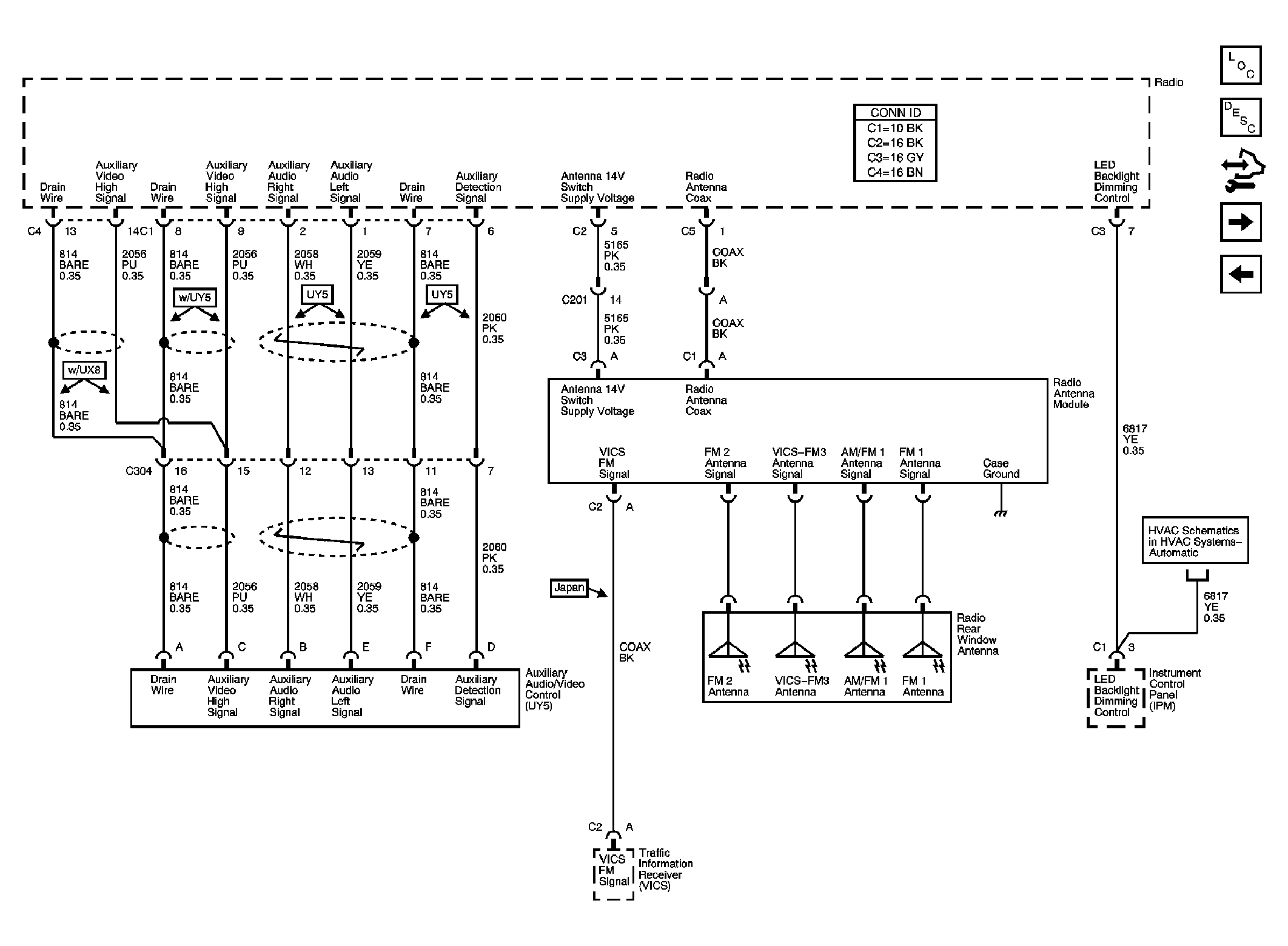

Fig 2: Radio and VICS Antennas, Audio/Video Adapter
