Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

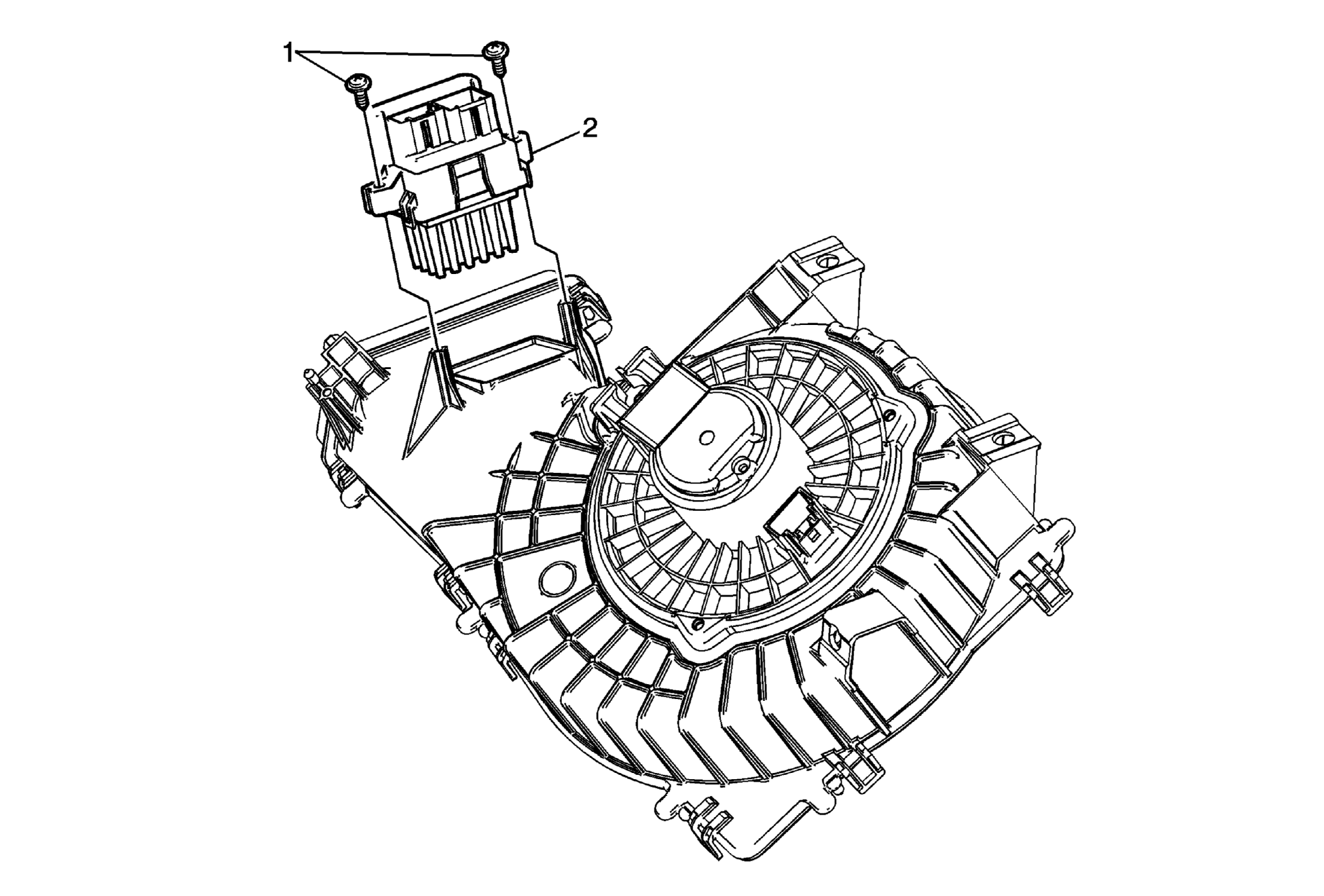

Fig 1: View Of Blower Motor Control Processor (LHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right sound insulator. Refer to Instrument Panel Insulator Replacement - Right Side (Right Hand Drive) , Instrument Panel Insulator Replacement - Right Side (Left Hand Drive) . Remove the I/P Compartment. Refer to Instrument Panel Compartment Replacement (Right Hand Drive) , Instrument Panel Compartment Replacement (Left Hand Drive) . Remove the electrical connectors from the blower motor control processor.
1	Blower Motor Control Processor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Blower Motor Control Processor

Callout

Component Name

Preliminary Procedures

Remove the right sound insulator. Refer to Instrument Panel Insulator Replacement - Right Side (Right Hand Drive) , Instrument Panel Insulator Replacement - Right Side (Left Hand Drive) .
Remove the I/P Compartment. Refer to Instrument Panel Compartment Replacement (Right Hand Drive) , Instrument Panel Compartment Replacement (Left Hand Drive) .
Remove the electrical connectors from the blower motor control processor.

Blower Motor Control Processor Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Blower Motor Control Processor
