Door Control Module Schematics

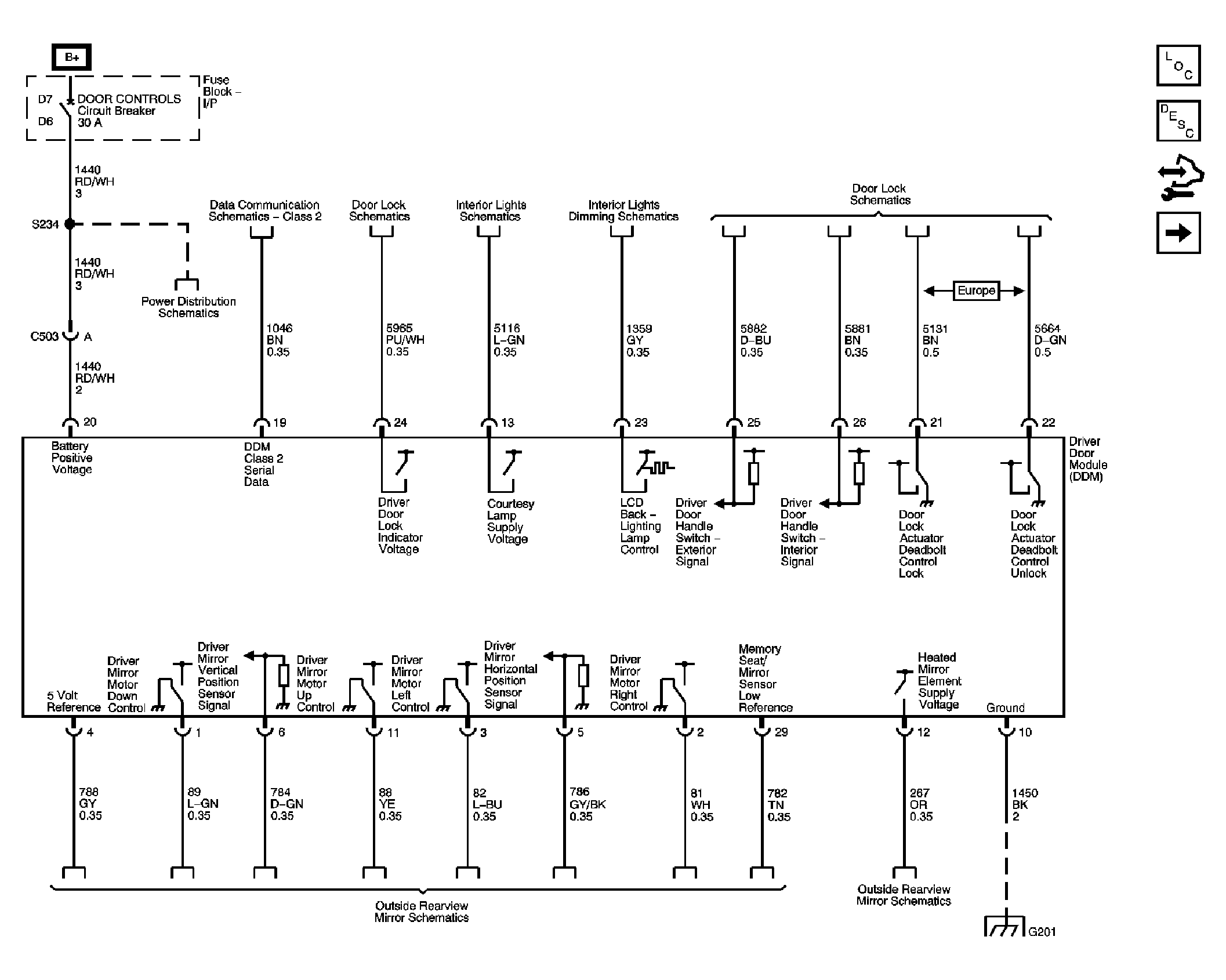

Fig 1: DriverDoor Control Module Schematic
GM1757050Courtesy of GENERAL MOTORS CORP.

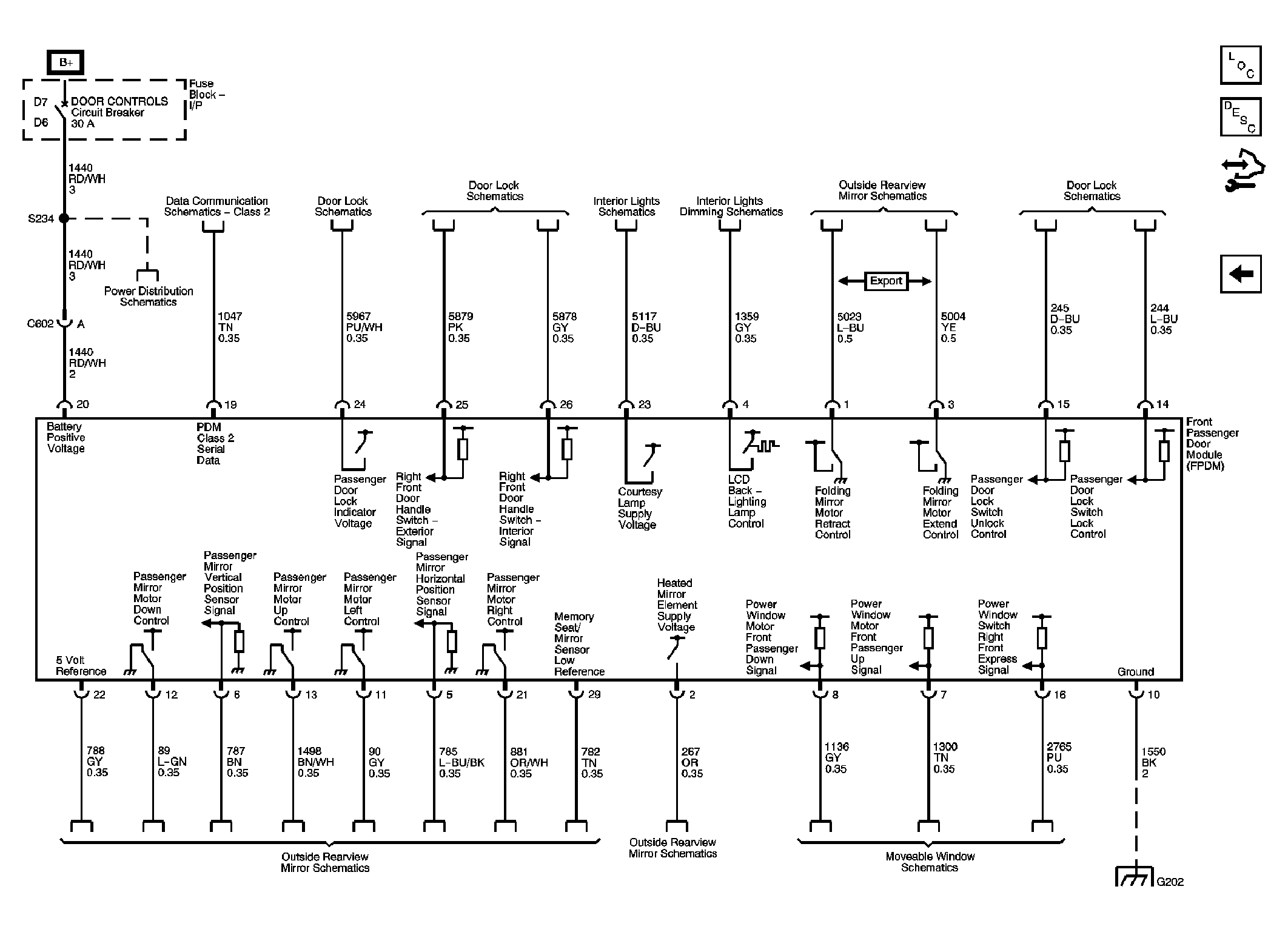

Fig 2: PassengerDoor Control Module Schematic
GM1757051Courtesy of GENERAL MOTORS CORP.
