Radio/Navigation System Schematics

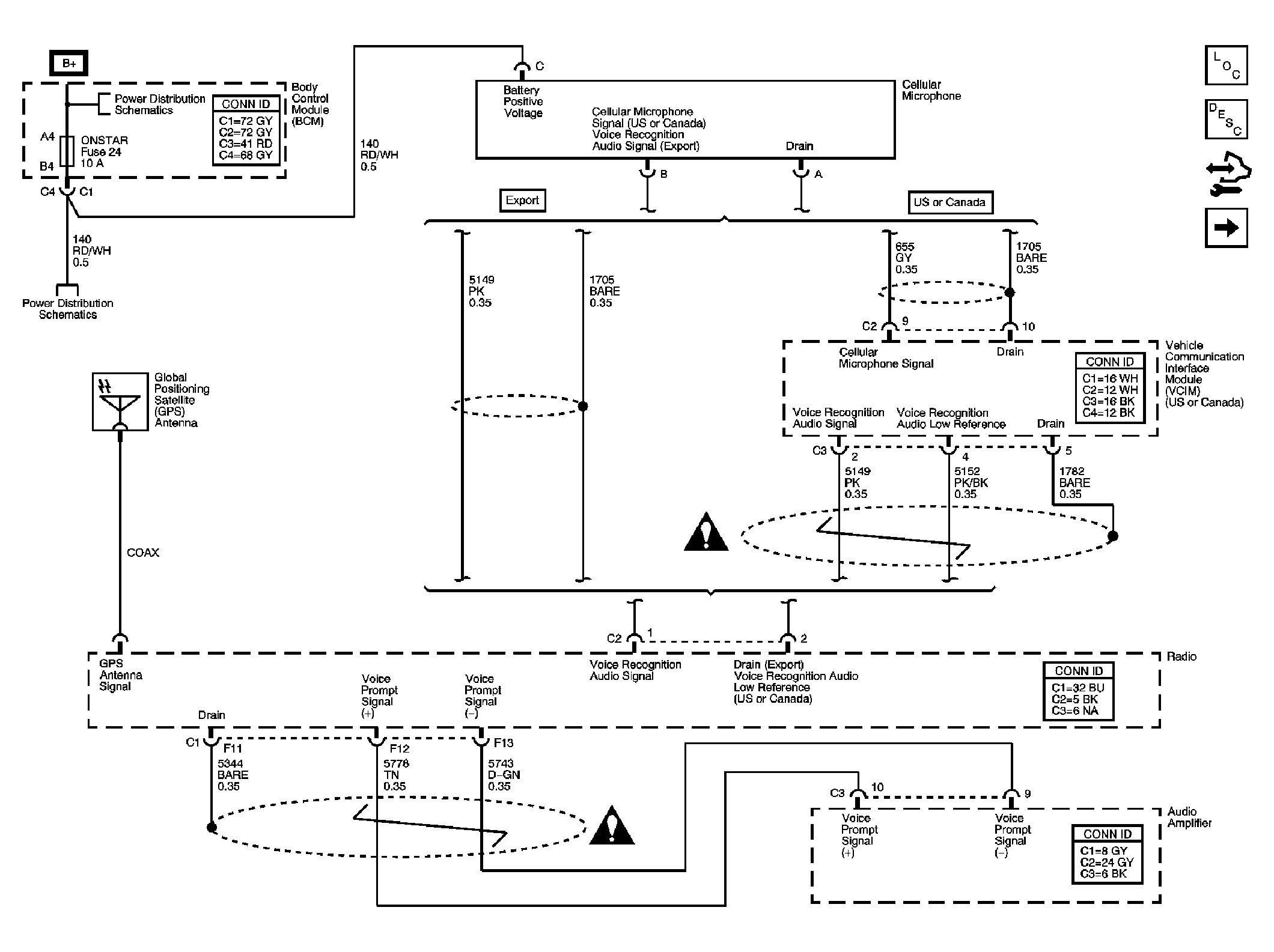

Fig 1: Power, Ground, Messages & Radio to CD Player Audio Signals Schematic

Courtesy of GENERAL MOTORS CORP.

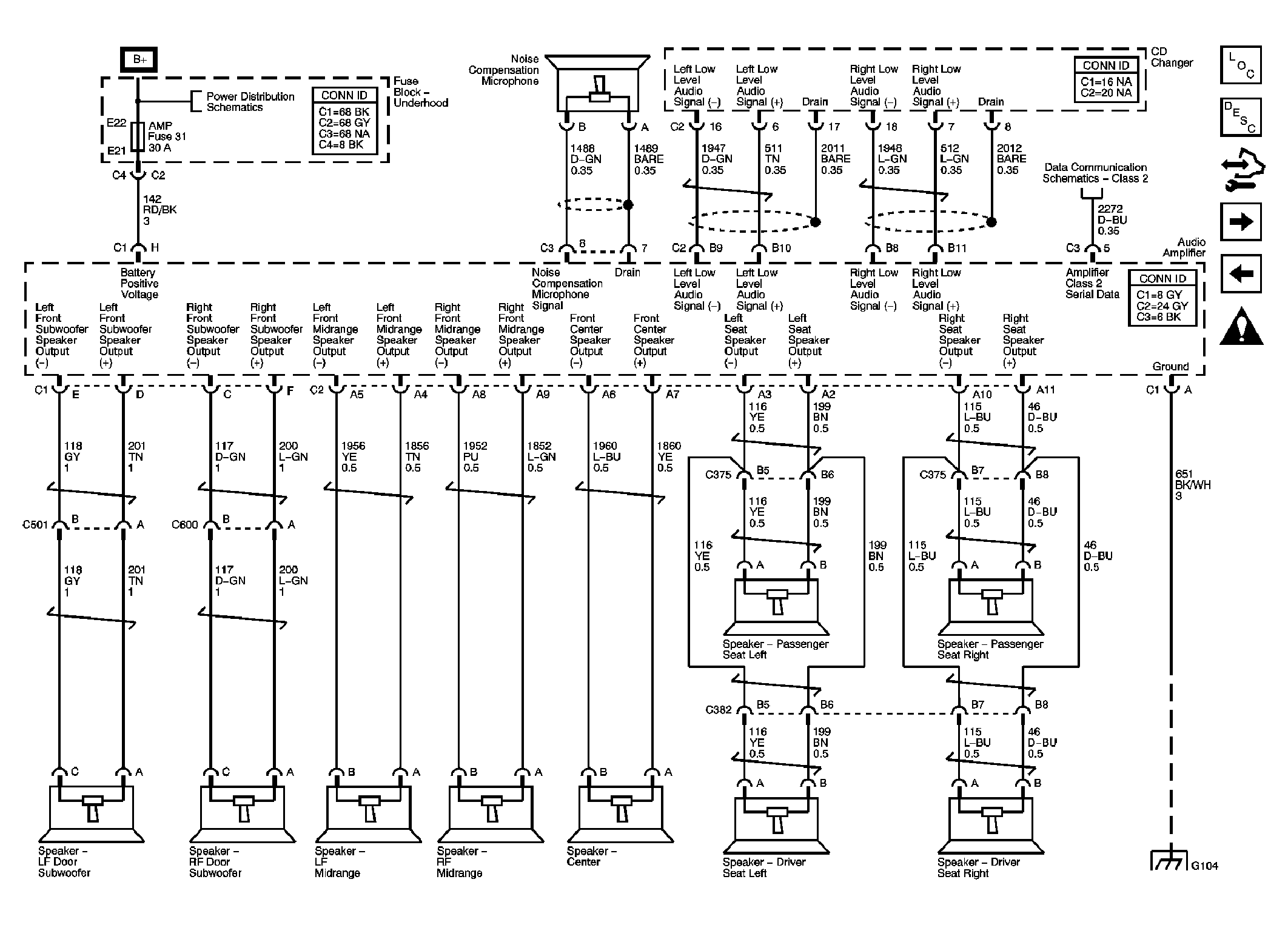

Fig 2: Amplification Schematic

Courtesy of GENERAL MOTORS CORP.

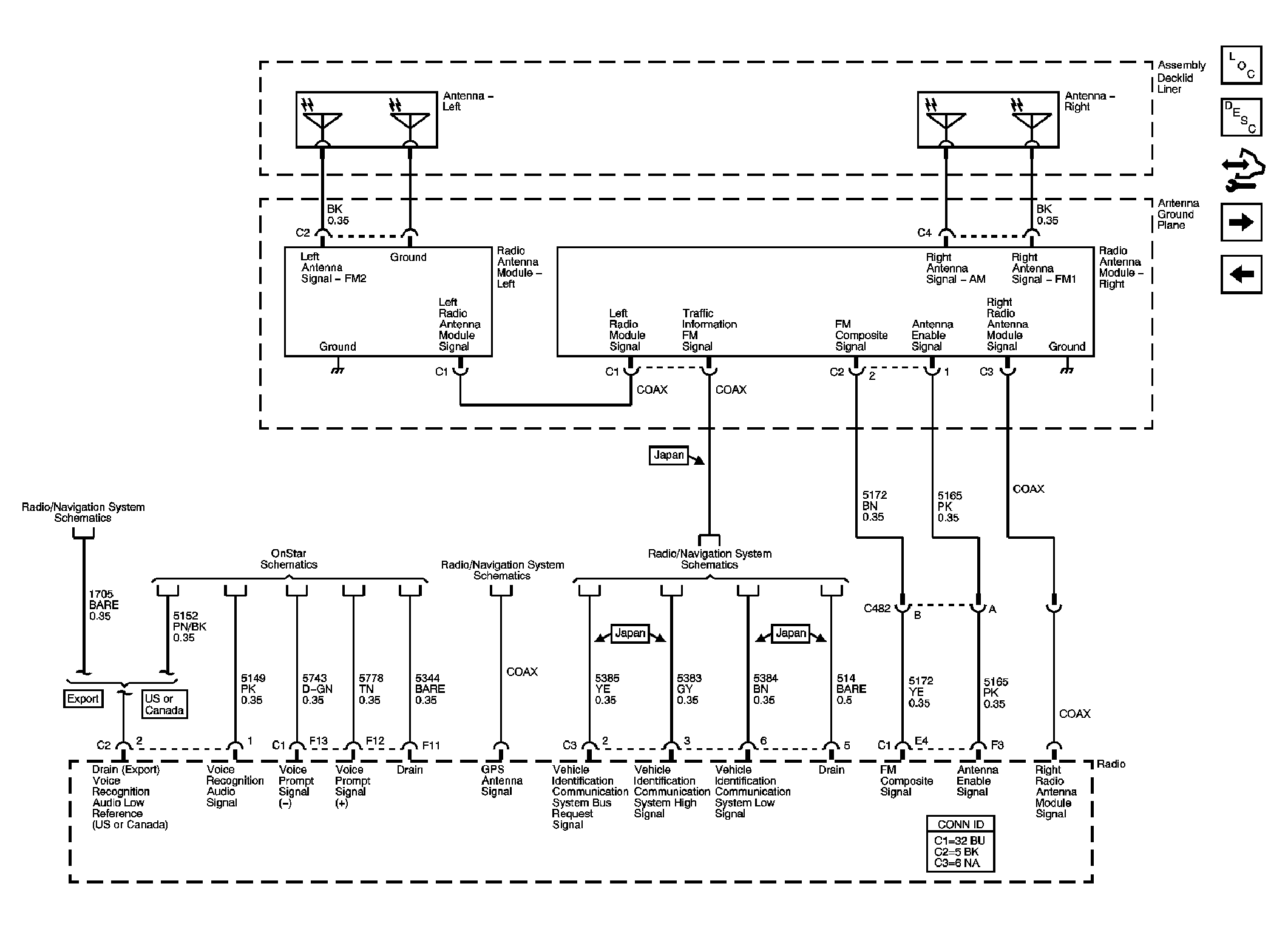

Fig 3: AM and FM Antennas & OnStar References Schematic

Courtesy of GENERAL MOTORS CORP.

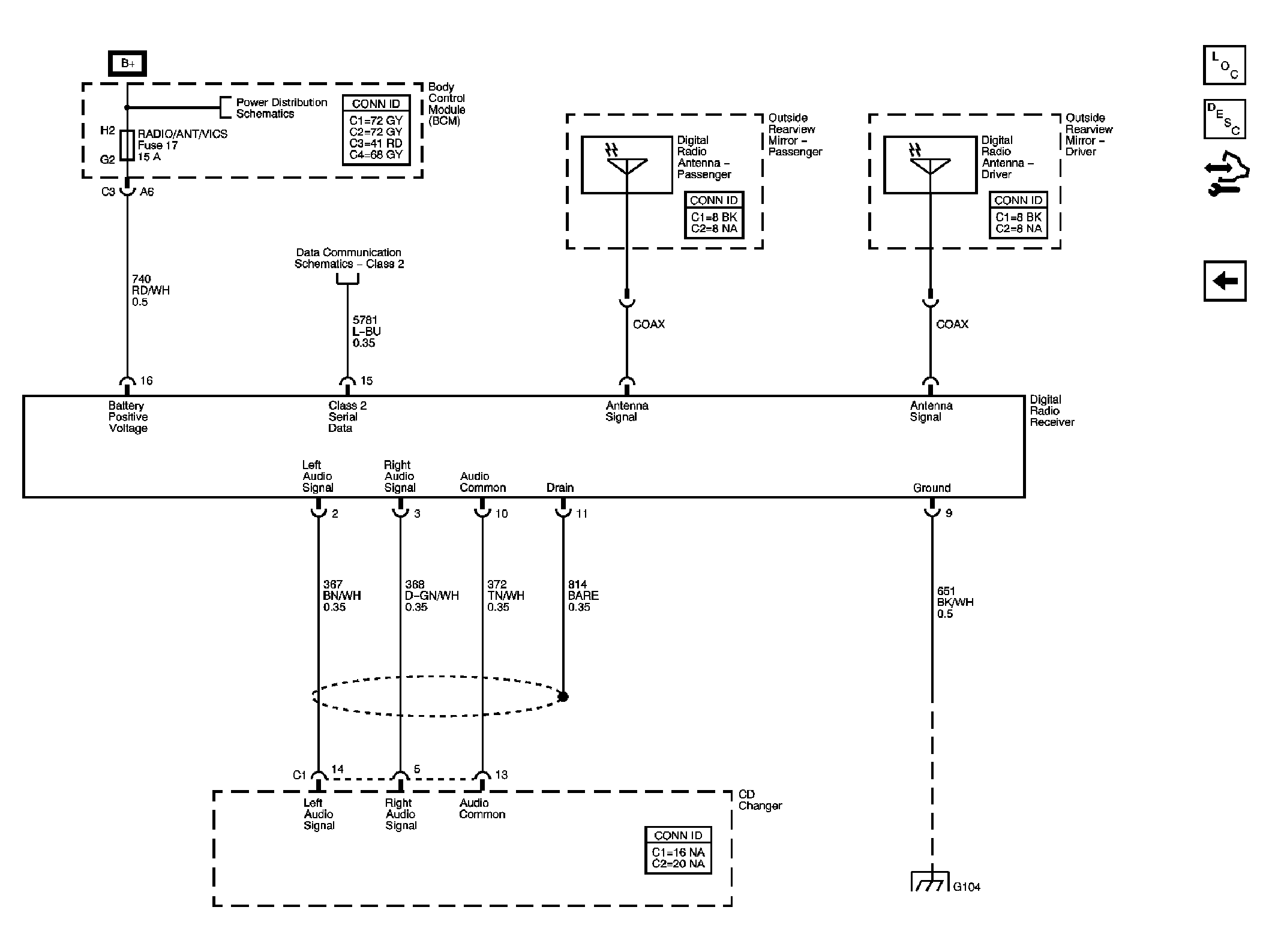

Fig 4: Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

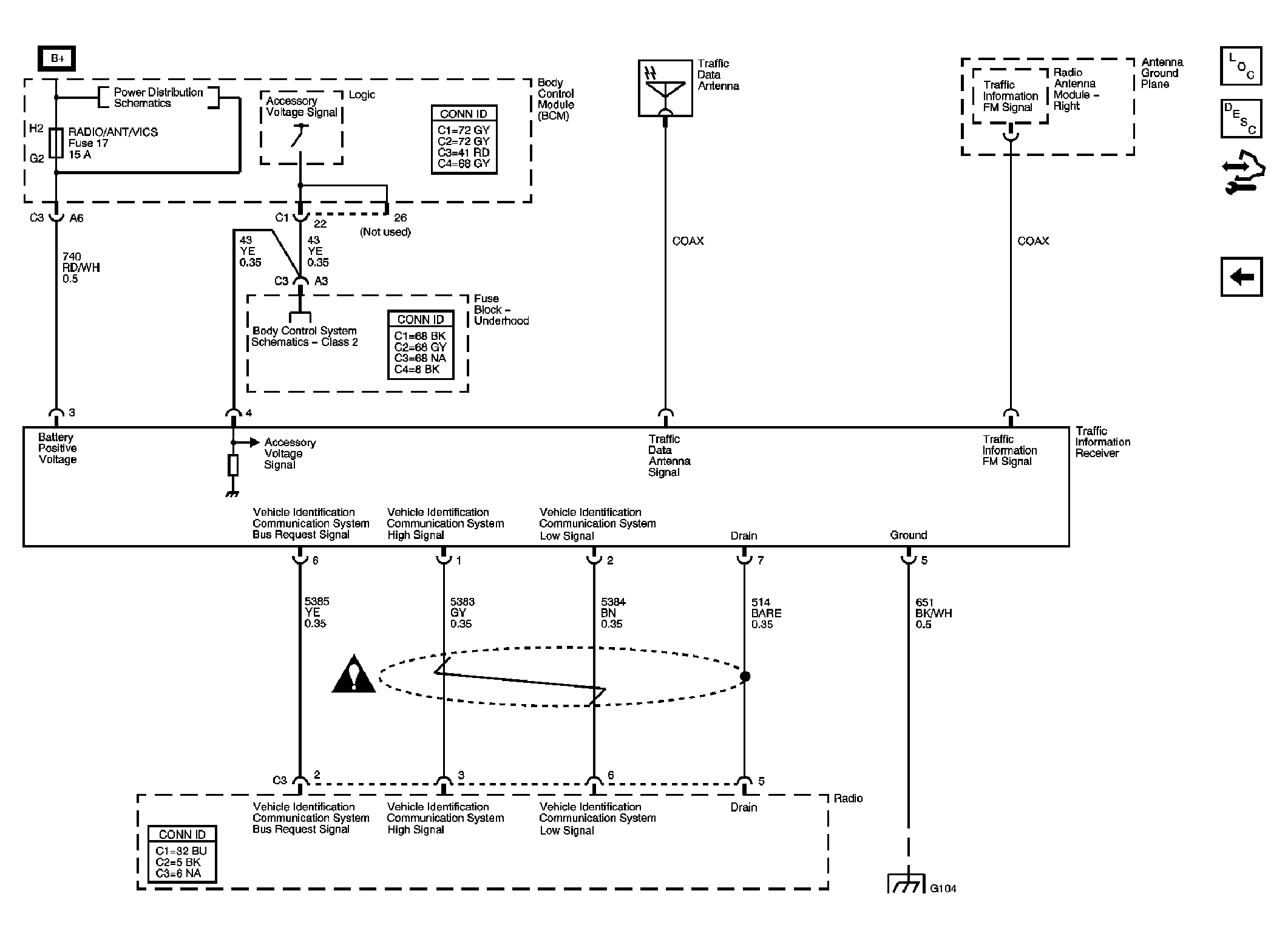

Fig 5: Navigation Schematic - Except Japan

Courtesy of GENERAL MOTORS CORP.

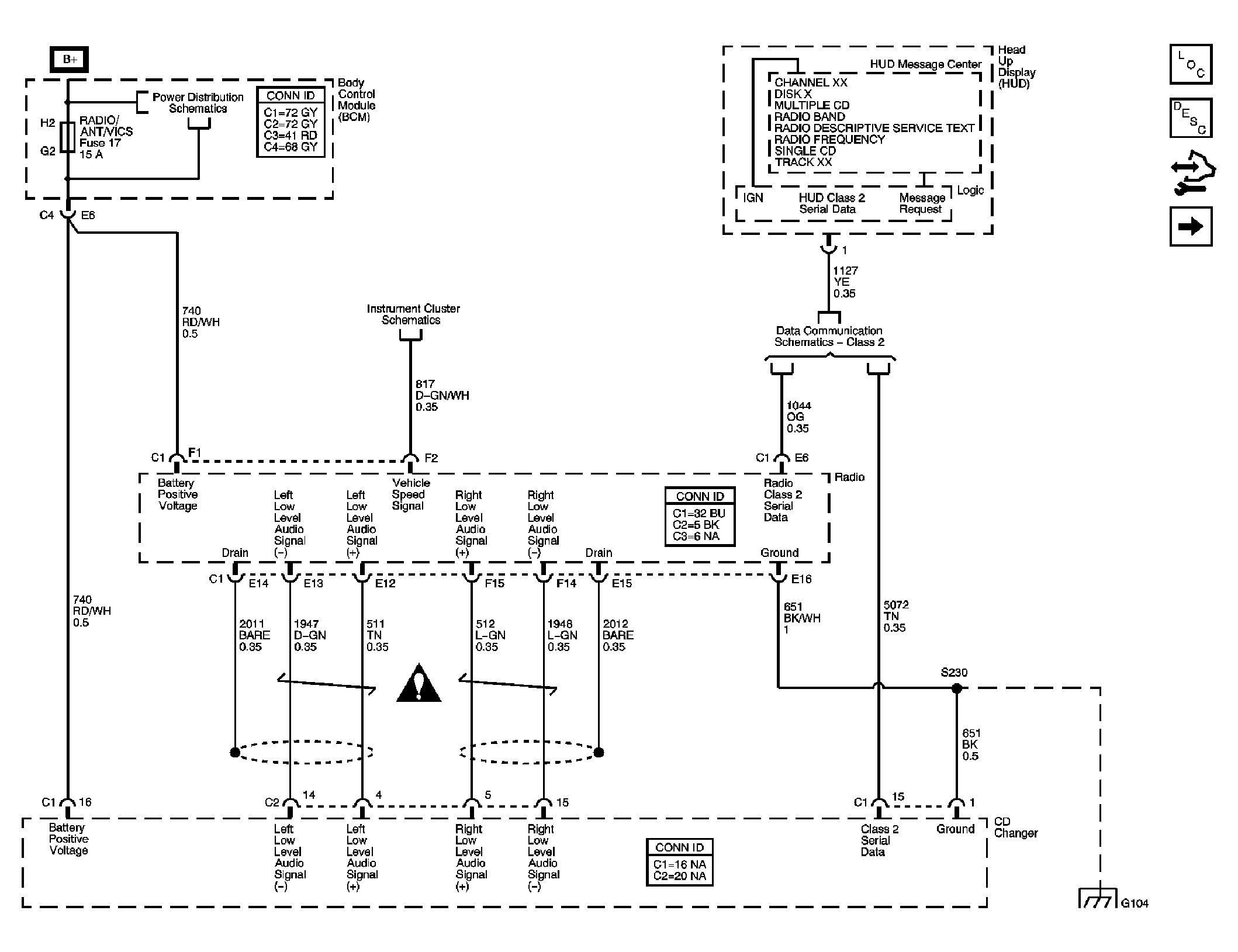

Fig 6: Navigation Schematic - Japan

Courtesy of GENERAL MOTORS CORP.
