Installation Procedure

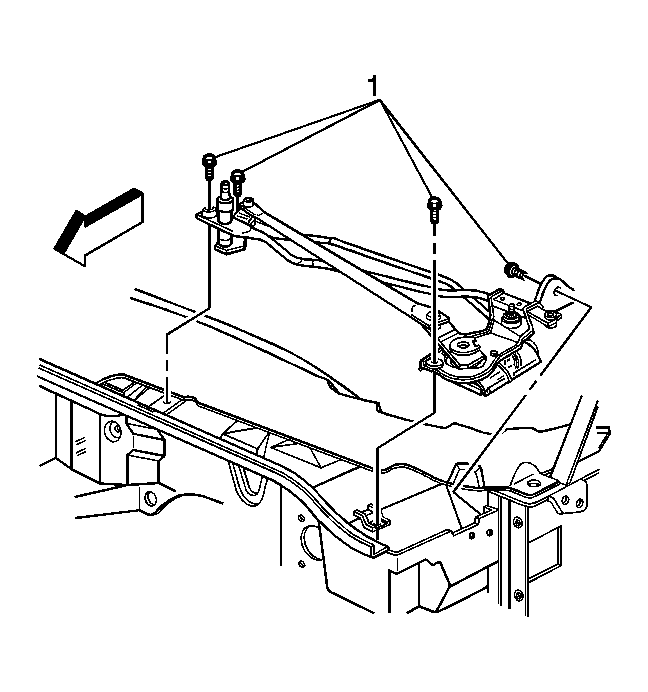

    Fig 1: View Of Wiper Drive System Module Screws
    GM1070811Courtesy of GENERAL MOTORS CORP.
  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
  3. Install the wiper drive system module into the plenum.
    4. NOTE: Refer to Fastener Notice .
  4. Install the wiper drive system module screws (1).

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

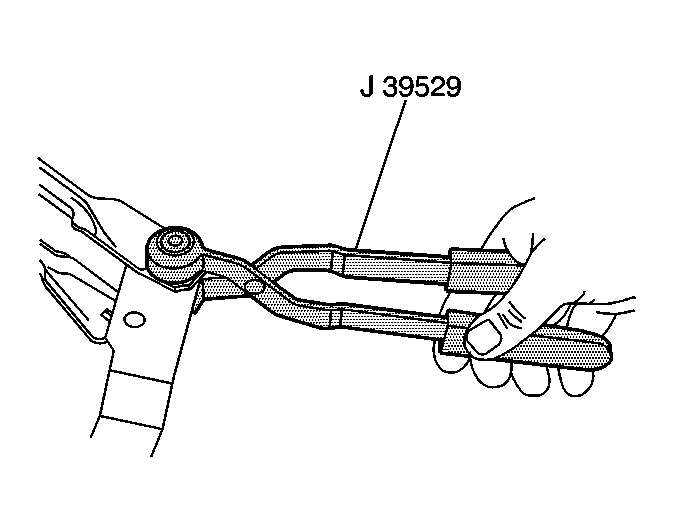

    5. Fig 2: View Of J 39529, Wiper Transmission & Wiper Motor Crank Arm
    GM70090Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39529  , connect the wiper transmission to the wiper motor crank arm.
    6. IMPORTANT: If the washer fluid line is pulled upwards at the air inlet grill during service, this could cause interference between the line and the wiper system. The fluid line may have to be repositioned by removing the access panel at the lower rear of the wheelhouse.
  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  7. Inspect the wipers for proper operation.
