Removal Procedure

  1. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .

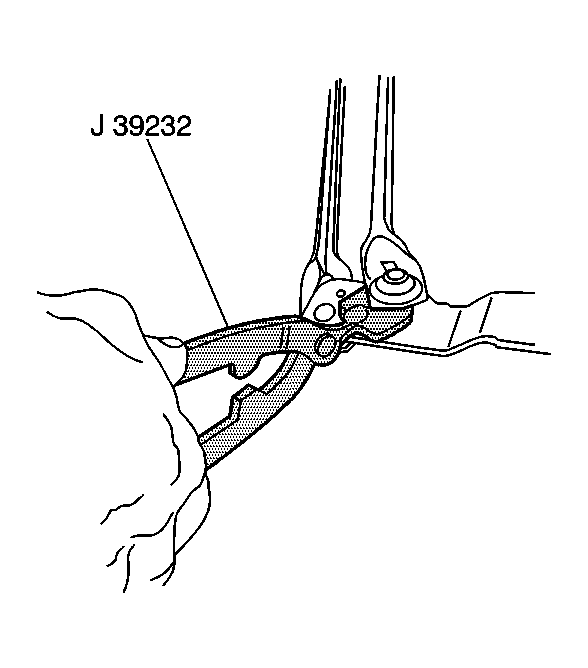

    2. Fig 1: View Of J 39232 & Wiper Transmission
    GM70093Courtesy of GENERAL MOTORS CORP.
  2. Using the J 39232  , disconnect the wiper transmission from the wiper motor crank arm to aid in the removal of the wiper drive system module.
    3. Fig 2: View Of Wiper Drive System Module Screws
    GM1070811Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiper drive system module screws (1).
  4. Remove the wiper drive system module from the plenum to gain access to the wiper motor electrical connector.
  5. Disconnect the wiper motor electrical connector.
  6. Remove the wiper drive system module from the vehicle.
