Driver Door Switch Assembly (DDSA)

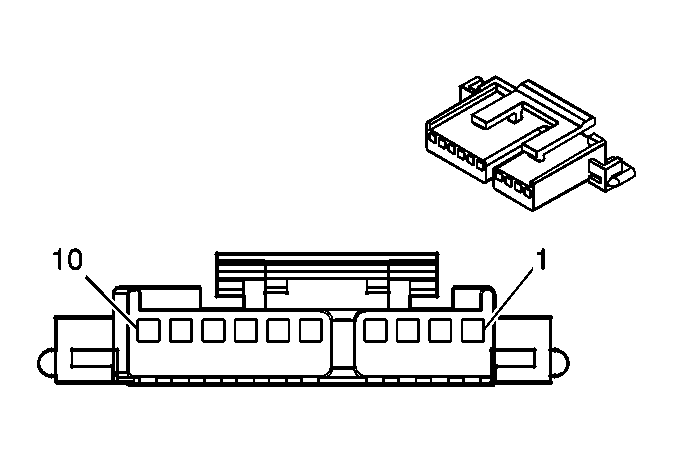

Fig 1: Driver Door Switch Assembly (DDSA) Connector End View
GM62435Courtesy of GENERAL MOTORS CORP.
Driver Door Switch Assembly (DDSA) Connector Parts Information

Connector Part Information
  • OEM: 12047531
  • Service: 12085486
  • Description: 10-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Pins: 5, 6, 7, 8, 9, 10
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Driver Door Switch Assembly (DDSA) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1-4 - - Not Used
5 GY 1359 LCD Backlighting Lamp Control
6 OR/BK 781 Driver Door Lock Switch Unlock Signal
7 OR/BK 780 Driver Door Lock Switch Lock Signal
8 BK 1450 Ground
9 RD/WH 340 Battery Positive Voltage
10 BN 1046 DDM Class 2 Serial Data
