Engine Electrical Component Views

Fig 1: Top Of Engine (LH2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust
2	Camshaft Position (CMP) Sensor Bank 1 Exhaust
3	Camshaft Position (CMP) Sensor Bank 1 Intake
4	Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake
5	Manifold Absolute Pressure (MAP) Sensor
6	C140
7	Ignition Coil/Module 1
8	Fuel Injector 1
9	Ignition Coil/Module 3
10	Fuel Injector 3
11	Ignition Coil/Module 5
12	Fuel Injector 5
13	Ignition Coil/Module 7
14	Fuel Injector 7
15	Fuel Injector 6
16	Starter
17	C148
18	Fuel Injector 8
19	C139
20	Ignition Coil/Module 8
21	Ignition Coil/Module 6
22	Ignition Coil/Module 4
23	Fuel Injector 4
24	Ignition Coil/Module 2
25	Fuel Injector 2
26	Camshaft Position (CMP) Actuator Solenoid Bank 2 Exhaust
27	Camshaft Position (CMP) Sensor Bank 2 Exhaust
28	Camshaft Position (CMP) Sensor Bank 2 Intake
29	Camshaft Position (CMP) Actuator Solenoid Bank 2 Intake
30	Evaporative Emission (EVAP) Canister Purge Valve
31	Throttle Body Assembly

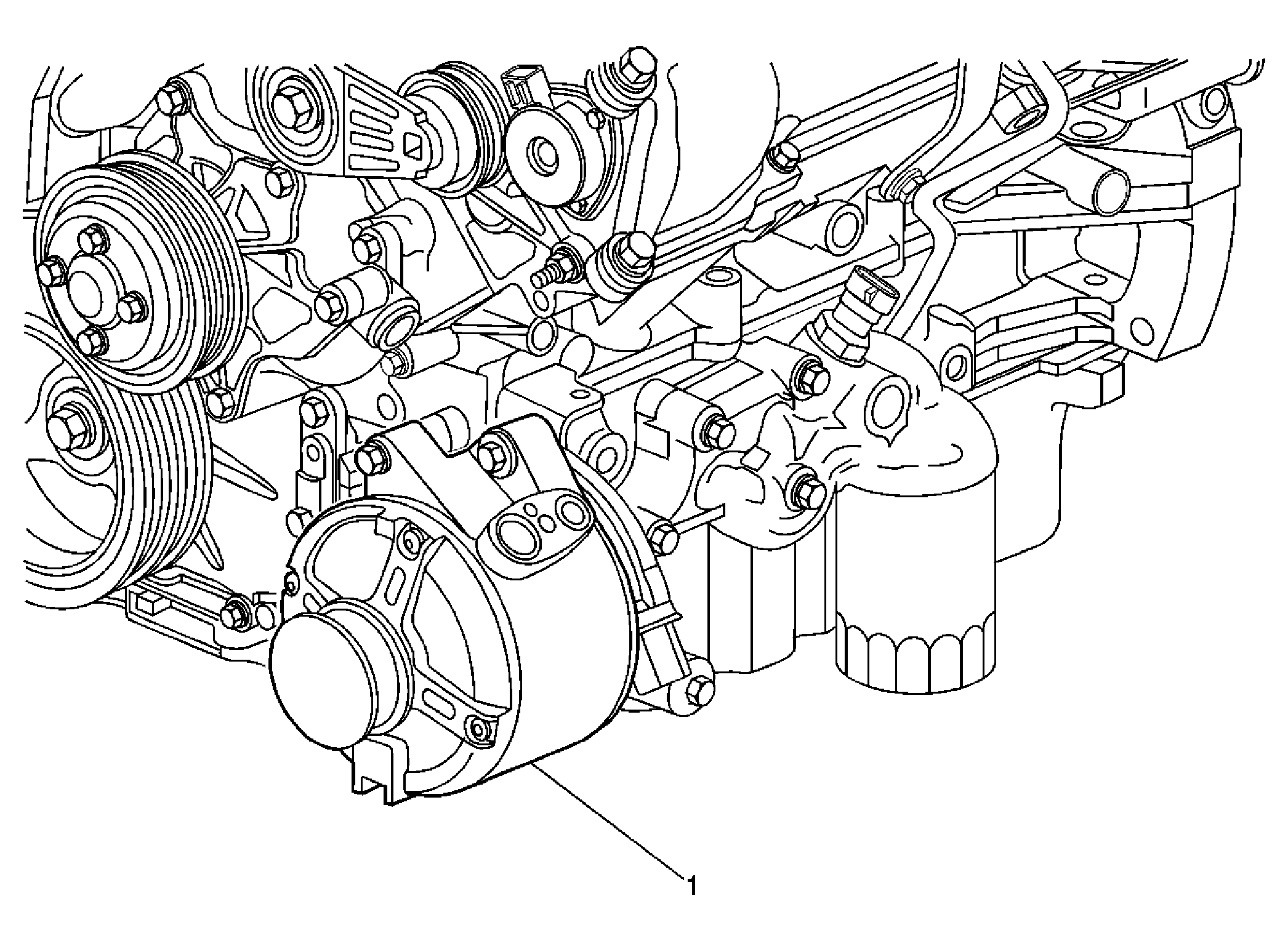

Fig 2: Lower LF Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator
