Camshaft Position (CMP) Sensor Bank 2 Intake

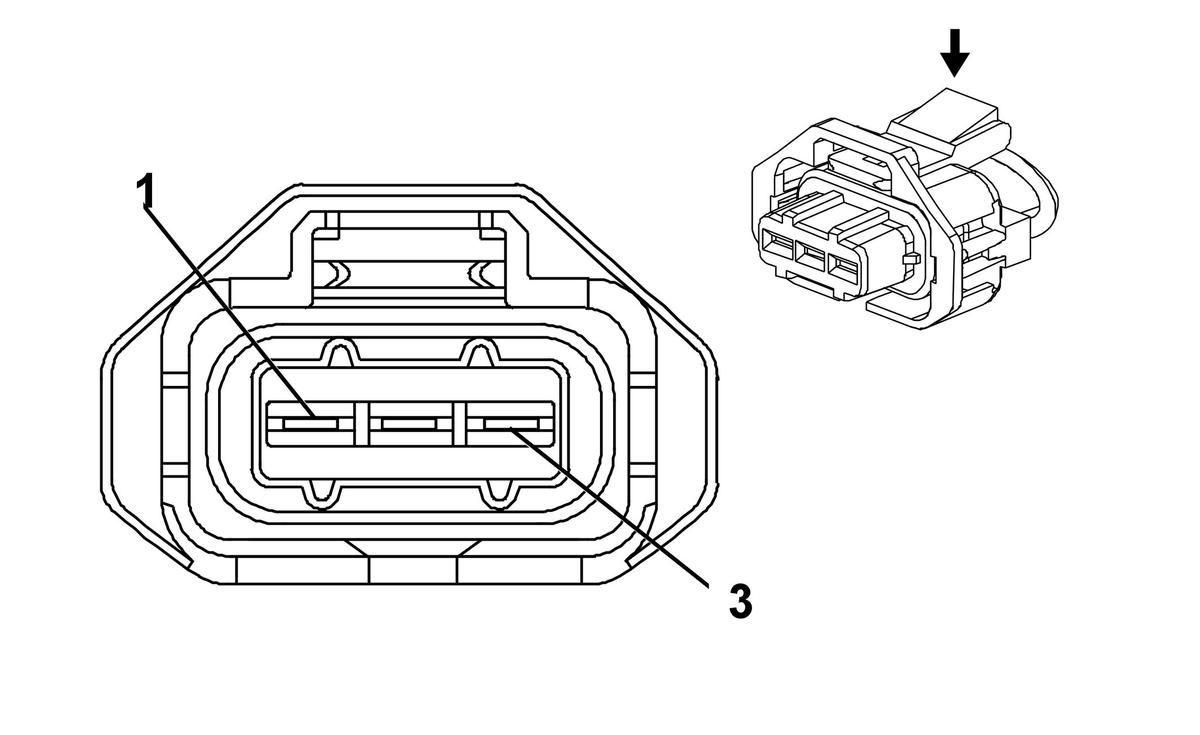

Fig 1: Camshaft Position (CMP) Sensor Bank 2 Intake Connector End View
GM816171Courtesy of GENERAL MOTORS CORP.
Camshaft Position (CMP) Sensor Bank 2 Intake Connector Parts Information

Connector Part Information
  • OEM: 1928403870
  • Service: 88952842
  • Description: 3-Way F (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Camshaft Position (CMP) Sensor Bank 2 Intake Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 YE 5276 Camshaft Position Intake Sensor (2)
2 BN/WH 5303 Camshaft Position Intake Sensor Low Reference (2)
3 L-BU 5302 Camshaft Position Intake Sensor Supply Voltage (2)
