Ignition Coil/Module 1

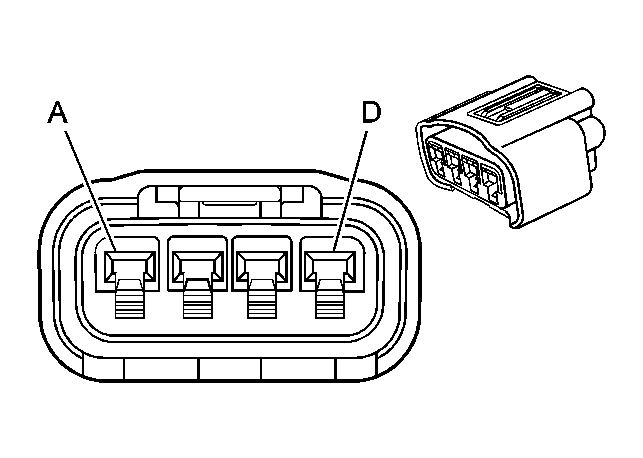

Fig 1: Ignition Coil/Module 1 Connector End View
GM1711350Courtesy of GENERAL MOTORS CORP.
Ignition Coil/Module 1 Connector Parts Information

Connector Part Information
  • OEM: 7283-7449-30
  • Service: See Catalog
  • Description: 4-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Ignition Coil/Module 1 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B RD 2121 IC 1 Control
C BN 2129 Low Reference
D BK 51 Ground
