Steering Assist Component Views

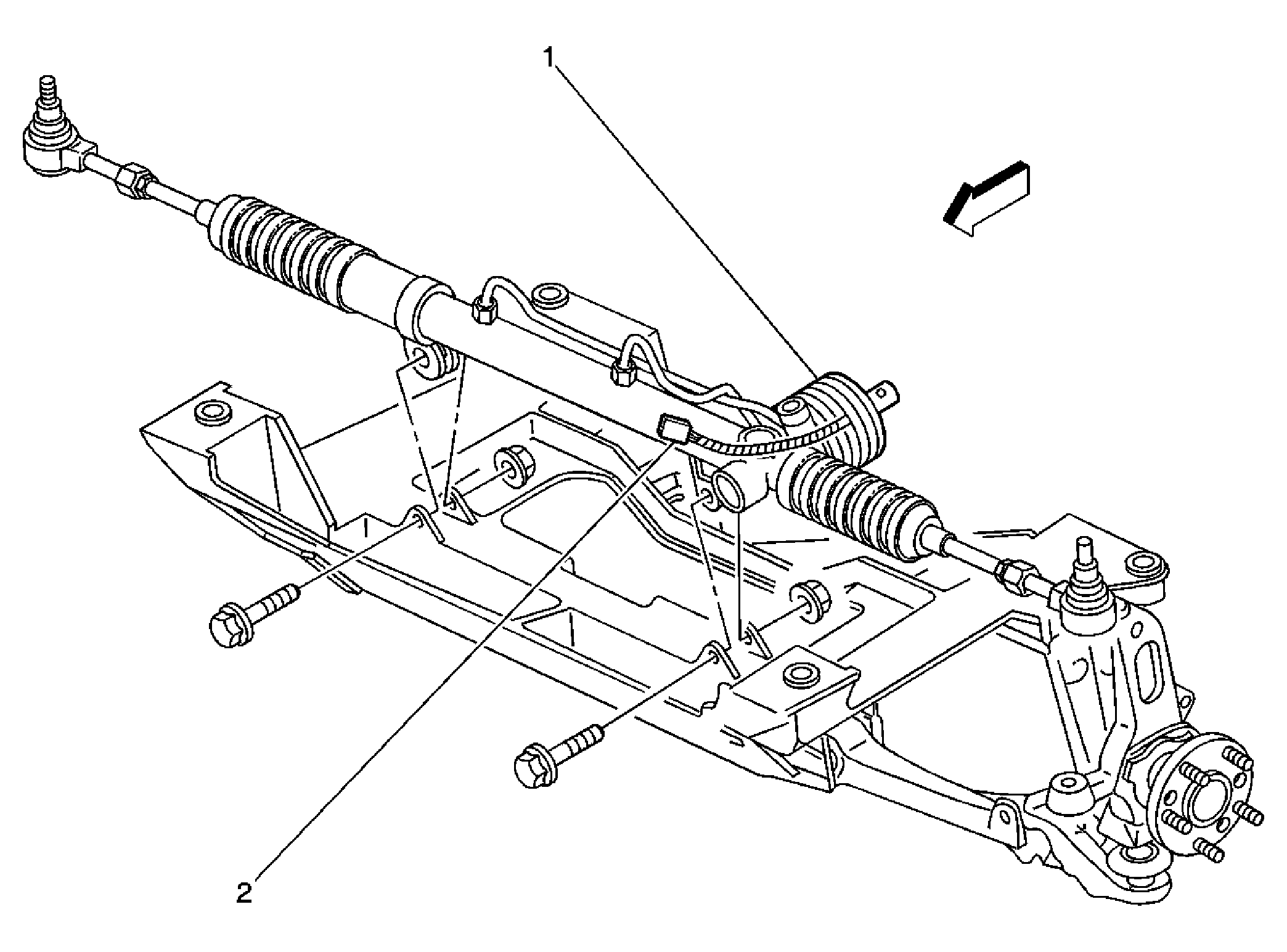

Fig 1: Identifying Variable Effort Steering Actuator & Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Variable Effort Steering Actuator
2	Variable Effort Steering Actuator Connector

Fig 2: Identifying Steering Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Position Sensor
