XLR Base
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Exhaust System
>>
Schematic and Routing Diagrams
>>
Exhaust System Schematics
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Exhaust System Schematics

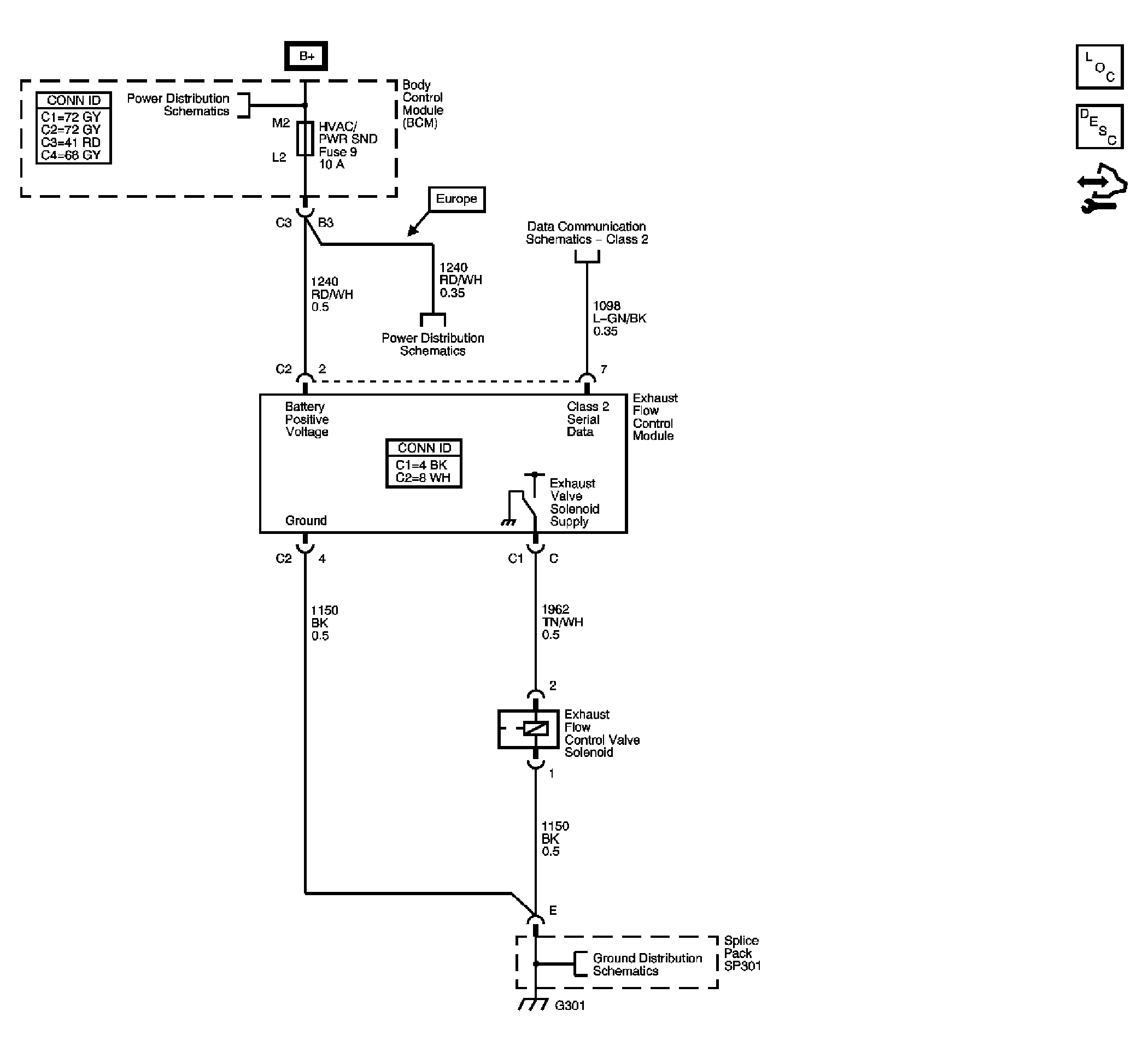

Fig 1: Exhaust System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
