Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

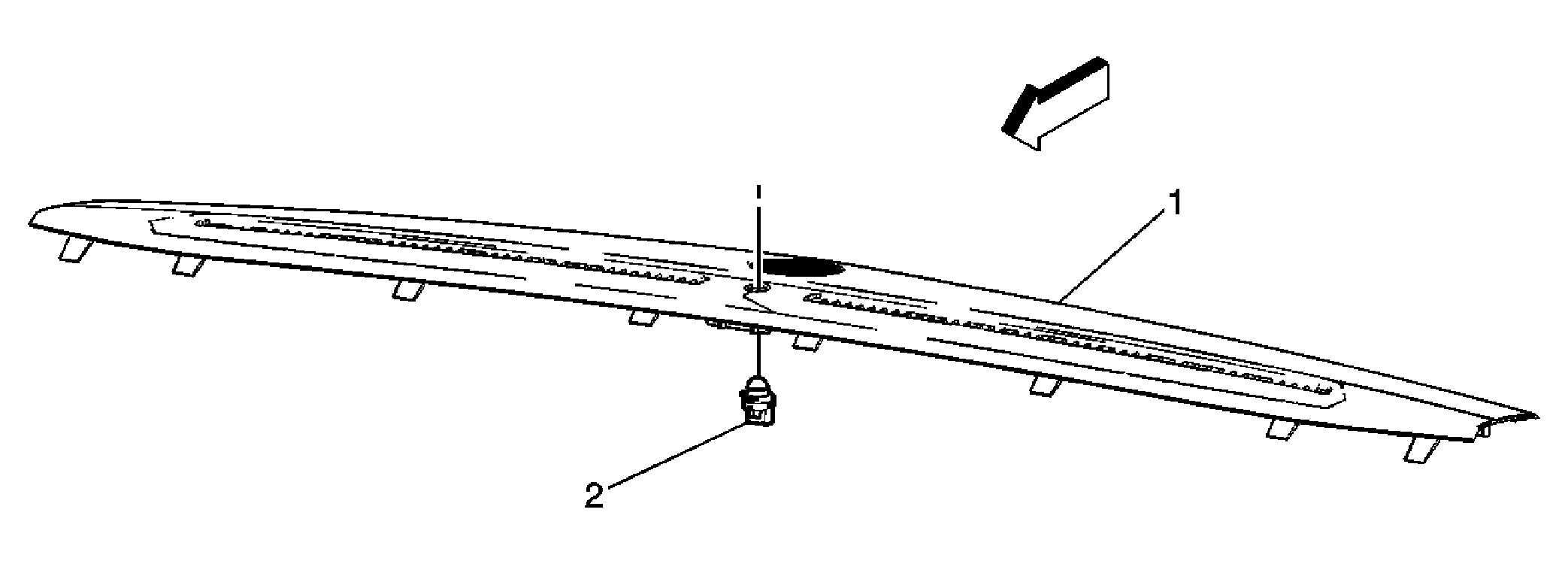

Fig 1: Identifying Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Defroster Grille Assembly Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Left Hand Drive) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Right Hand Drive) .
2	Ambient Light Sensor Assembly Procedure Disconnect electrical connector. Twist sensor to remove from defroster grille assembly.

Callout

Component Name

Windshield Defroster Grille Assembly
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Left Hand Drive) or Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Right Hand Drive) .

Ambient Light Sensor Assembly

Procedure

Disconnect electrical connector.
Twist sensor to remove from defroster grille assembly.
