Second Seat Audio Control Replacement
WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

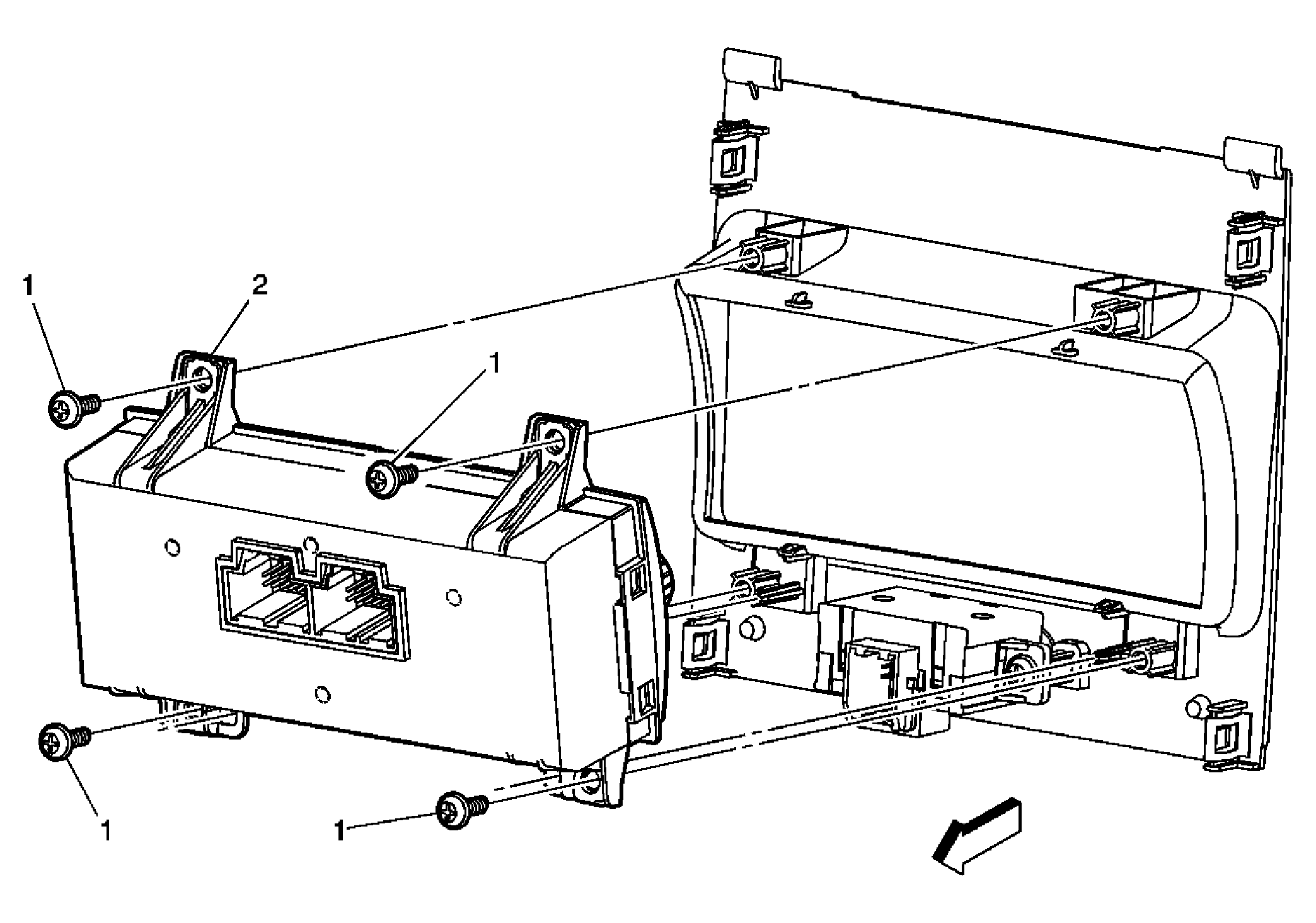

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the video disc player display bezel. Refer to Video Disc Player Display Bezel Replacement . |
|
| 1 | Rear Seat Audio Controller Assembly Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
. Tip: Tighten the fasteners equally to ensure the control assembly seats evenly. Tighten: 1.5 N.m (13 lb in) |
| 2 | Rear Seat Audio Controller Assembly |
